Standard Features
Features for “SGX1272BP7K”
- Length: 12‘
- Width: 72“
- Deck Height: 16“
- GVWR: 7,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 1,896 lbs.
- Load Capacity: 5,870 lbs.
- Main Frame: 5″ Channel
- Cross-Members: 3″ Channel / 12″ OC
- Flooring: 12G Diamond Plate
- Fenders: 16G Rolled Fenders
- D-Rings: 8 – D-Rings ( 4 On Each Side )
- Latching System: EZ Slam Safety Latch
- Lift System: Gravity Up / Gravity Down
- Tilt Angle: 11°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 7,000 lb. Side Wind Jack
- Tool Box: Integrated In Tongue
- Suspension: Torsion
- Axles: 1 – 7,000 lb. Electric Brake Axle
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 1/4″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
SGX 3D
Standard Features
Features for “SGX1272BP7K”
- Length: 12‘
- Width: 72“
- Deck Height: 16“
- GVWR: 7,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 1,896 lbs.
- Load Capacity: 5,870 lbs.
- Main Frame: 5″ Channel
- Cross-Members: 3″ Channel / 12″ OC
- Flooring: 12G Diamond Plate
- Fenders: 16G Rolled Fenders
- D-Rings: 8 – D-Rings ( 4 On Each Side )
- Latching System: EZ Slam Safety Latch
- Lift System: Gravity Up / Gravity Down
- Tilt Angle: 11°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 7,000 lb. Side Wind Jack
- Tool Box: Integrated In Tongue
- Suspension: Torsion
- Axles: 1 – 7,000 lb. Electric Brake Axle
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 1/4″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
SGX
SGX
Precision

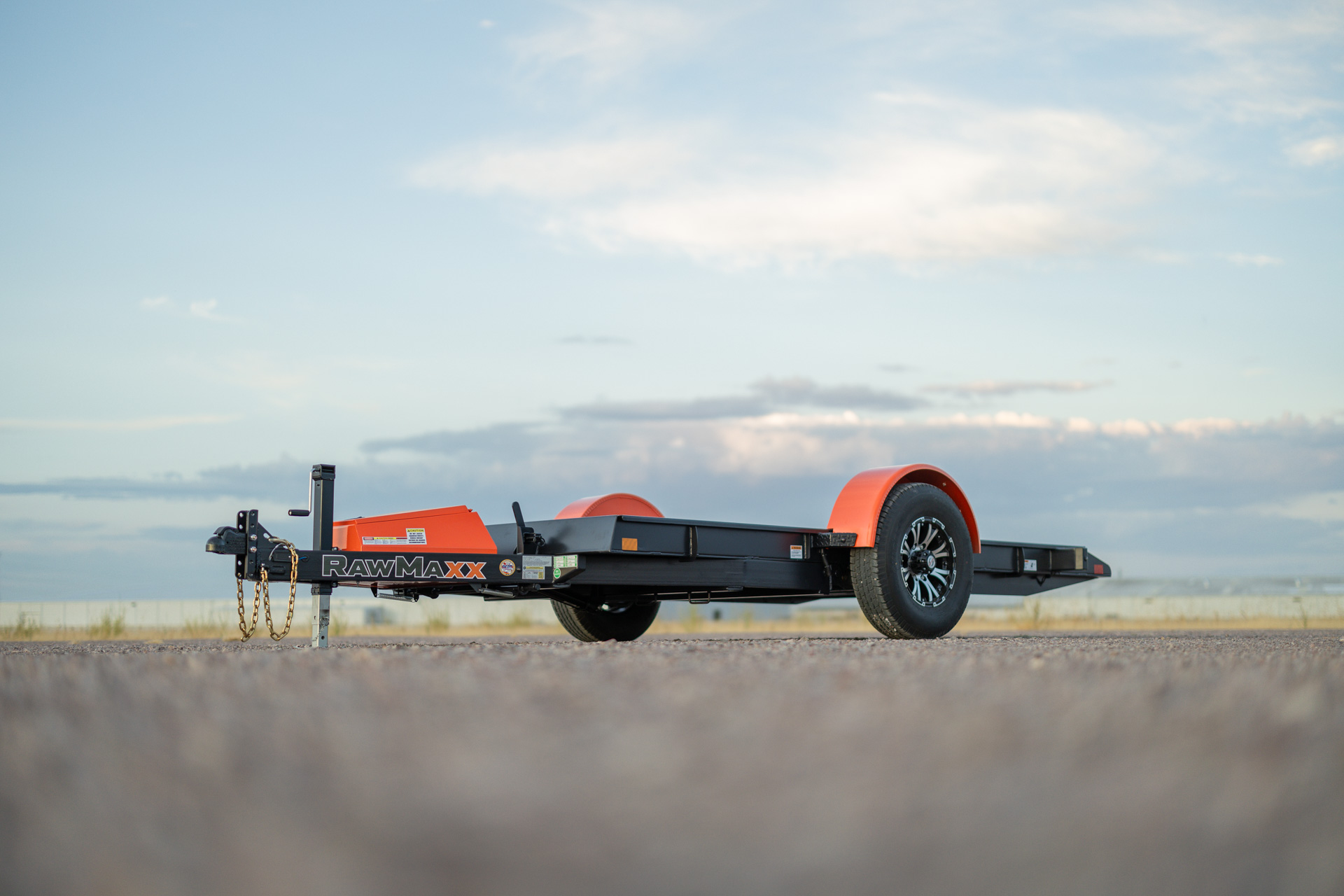

The Compact Gravity Tilt Trailer Built for Efficiency
When space is tight but performance still matters, the RawMaxx SGX delivers. At 12’ long and 72” wide, this single-axle gravity tilt trailer is designed for smaller loads with big expectations. With a GVWR of 7,000 lbs. and nearly 6,000 lbs. of load capacity, the SGX is compact, efficient, and ready to move.

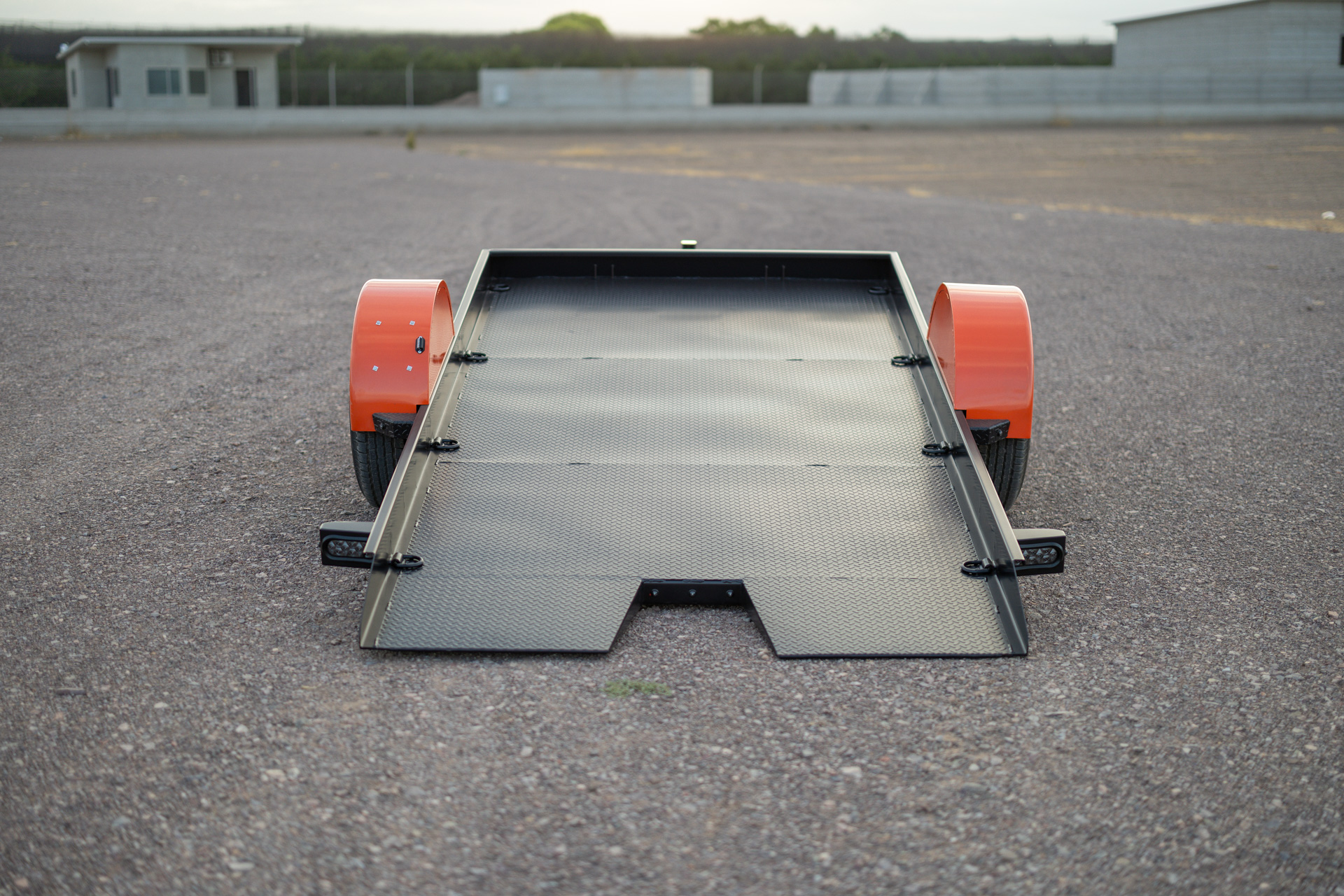

Built on a 5″ channel tongue with 3″ channel cross-members spaced every 12”, the SGX is engineered for strength without unnecessary weight. Its 12-gauge tread plate floor and eight welded D-rings provide reliable tie-down points for whatever you’re hauling — from compact equipment to jobsite essentials.

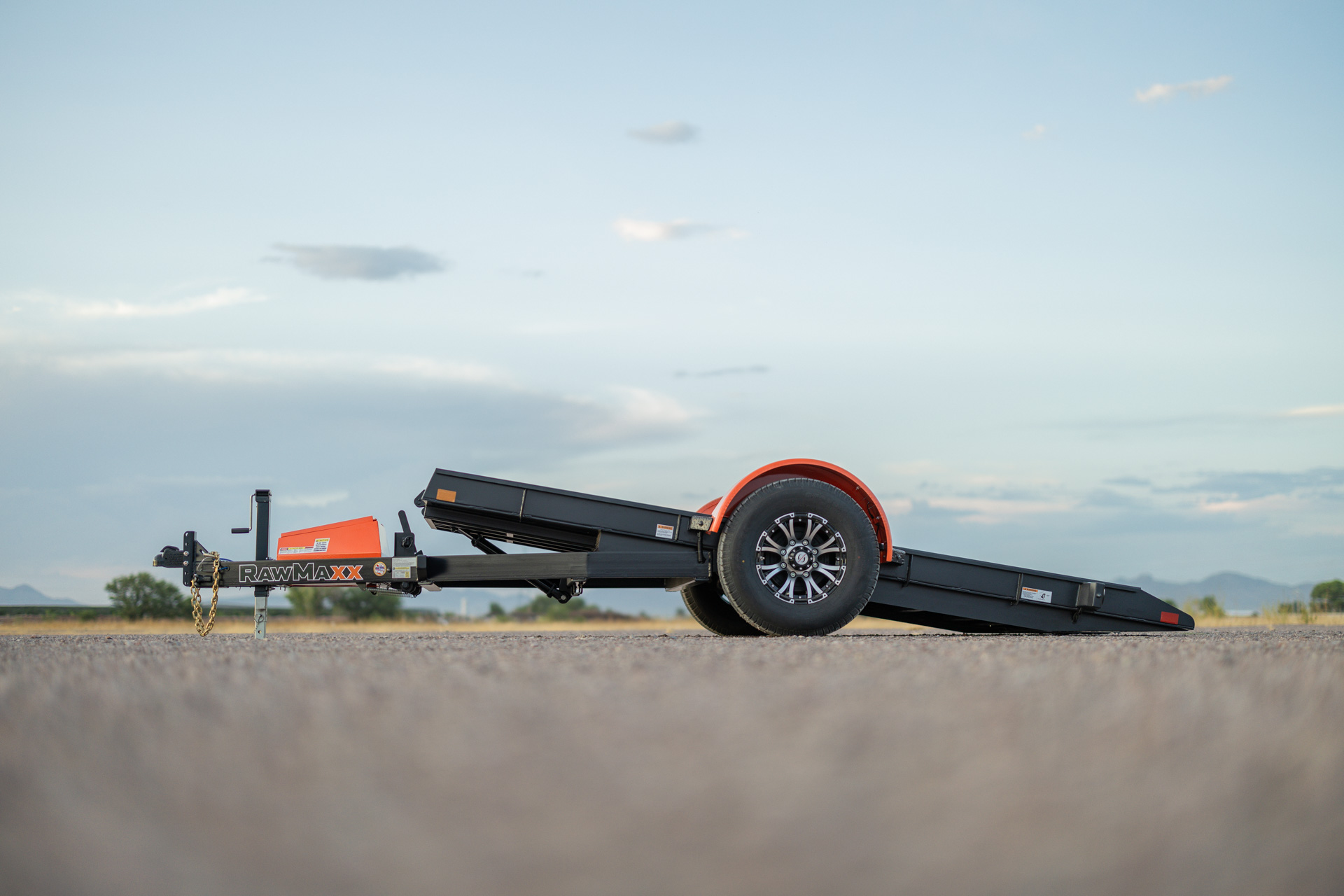

The tilt system is where the SGX makes its mark. Featuring gravity up/down operation and an 11° tilt angle, loading and unloading are smooth, simple, and hassle-free. No need for ramps — just drive on and off with ease.

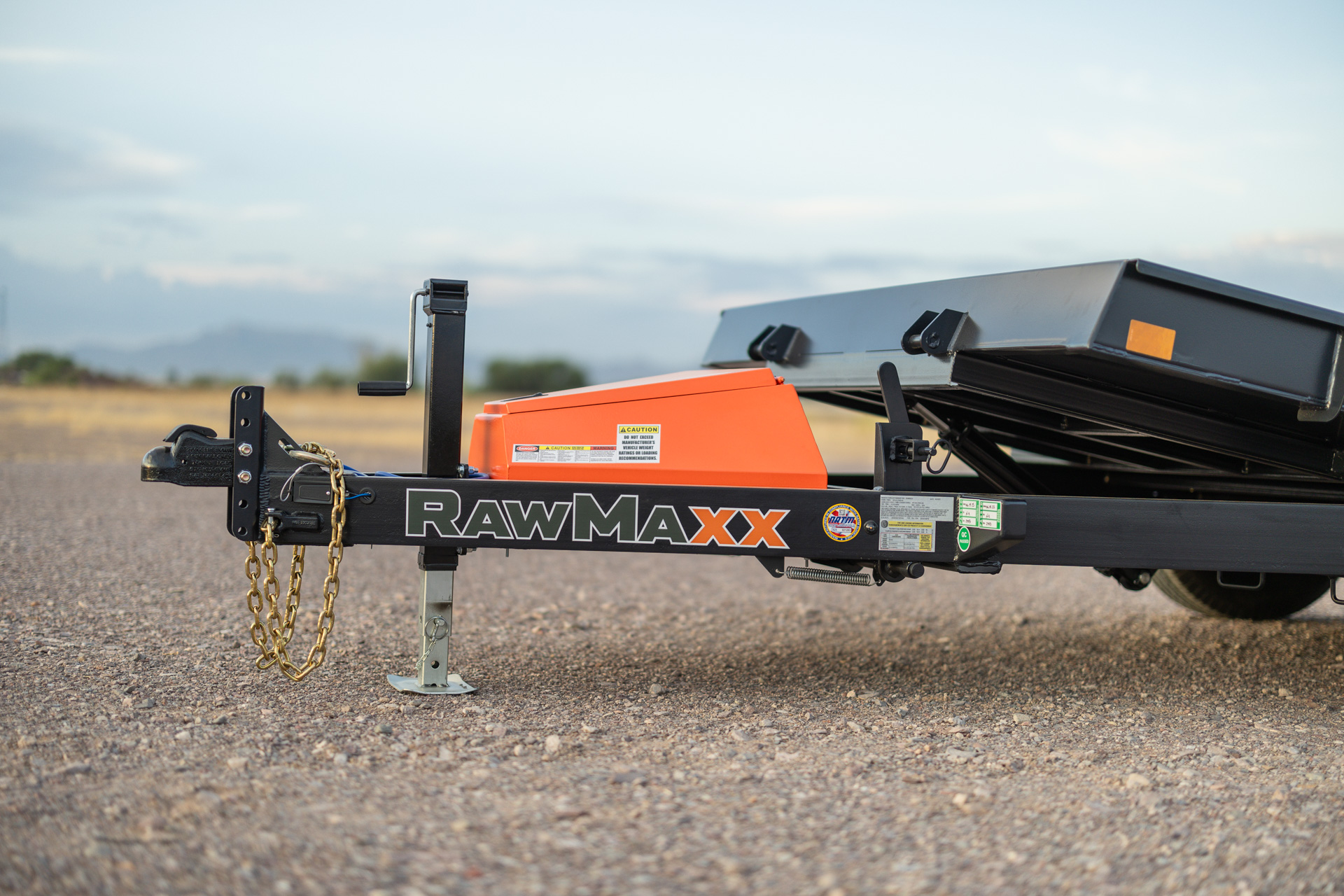

Safety and durability come standard. Equipped with 3/8″ G70 safety chains, an electric breakaway kit, and DOT-approved LED lighting, you can count on visibility and security. The 2-5/16” adjustable ball coupler, 7,000 lb. side wind jack, and radial ST235/80R16 tires on a torsion axle deliver stability and confidence mile after mile.
And, like every RawMaxx, the SGX is built with customization in mind. From toolboxes to paint upgrades, you can tailor it to your exact needs.
The RawMaxx SGX – compact in size, powerful in performance, and always ready to get the job done.
