Tongue Tool Box:Tool Box for Pump, Battery & Charger
Tongue
Tongue:5" C Channel Tongue
Tongue Length:46"
Safety System
Safety Chains:1/4" Safety Chains
Breakaway System:Electric Breakaway Kit
Reflective Tape:3M DOT Compliant Reflective Tape

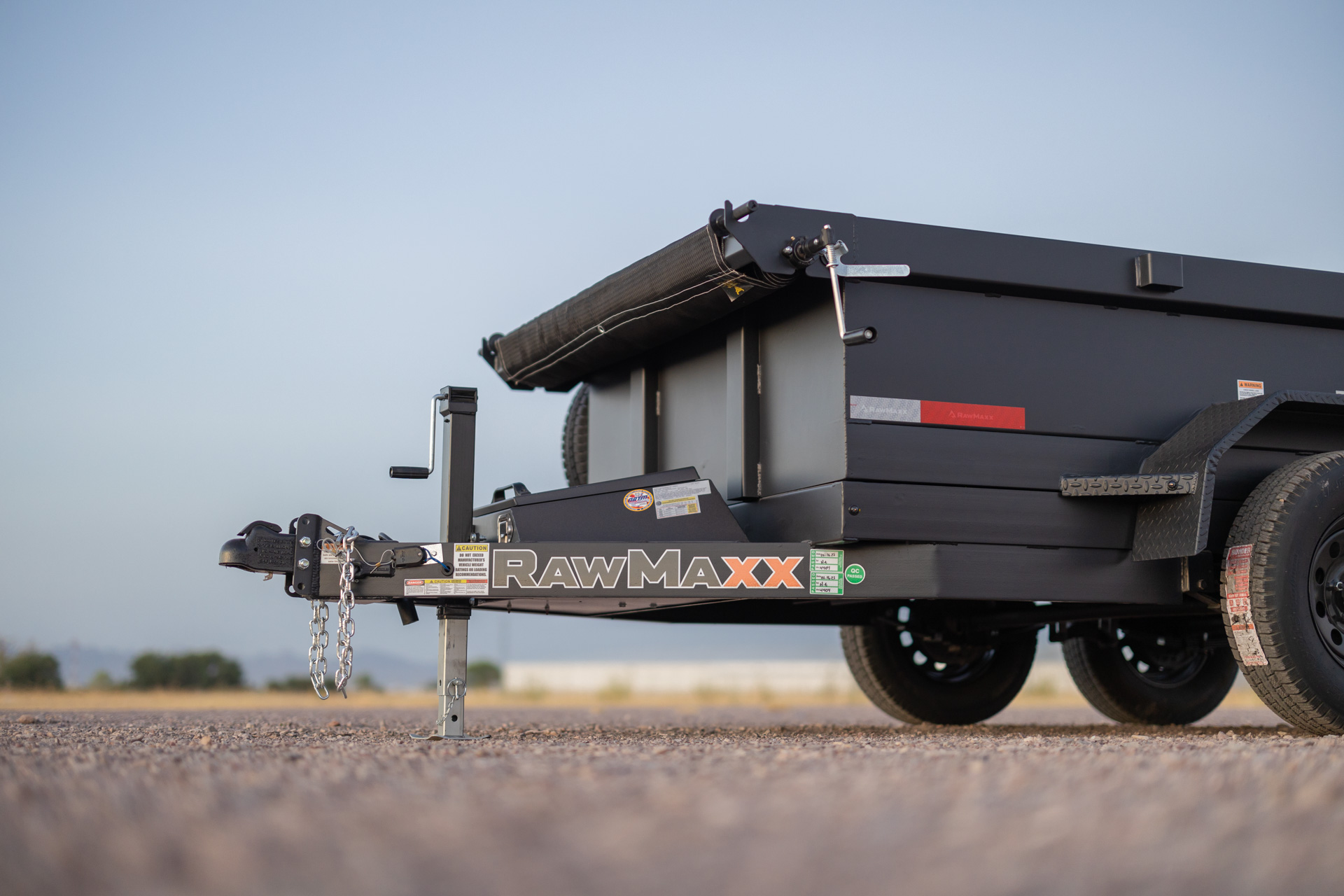

Coupler
The SDX Dump trailer is equipped with a reliable and versatile coupler to ensure secure and efficient towing. Featuring a 2″ adjustable ball coupler, this trailer offers flexibility in hitching to different towing vehicles. The adjustable design allows for easy height adjustment, accommodating various towing setups. With its durable construction and reliable performance, the coupler on the SDX Dump trailer provides peace of mind during transportation, making it a dependable choice for hauling heavy loads, whether it’s for construction projects, landscaping, or other demanding applications.
Jack
The SDX Dump trailer features a robust jack system to facilitate smooth and efficient operations. Equipped with a 1 Side Wind Drop Leg jack, this trailer ensures stability and ease of use during hooking and unhooking to your vehicle. With a weight capacity of 7,000 lbs., it can handle heavy loads with confidence. The side wind design allows for convenient operation, while the durable construction guarantees long-lasting performance. Whether you’re working on construction sites or handling landscaping projects, the SDX Dump trailer’s reliable jack system is there to support your needs.
Tool Box
The SDX Dump trailer features a convenient and practical tongue tool box located at the front of the trailer. This dedicated tool box is specifically designed to house the pump, battery, and charger, providing a centralized and easily accessible storage solution. By having these essential components stored in the tongue tool box, users can conveniently access and organize them, ensuring they are readily available for operation. The tongue tool box adds a level of convenience and practicality to the SDX Dump trailer, making it easier to store, transport, and maintain the necessary equipment for efficient operation.
Chains
The SDX Dump trailer prioritizes safety with its robust safety system, including high-quality safety chains. These 1/4″ safety chains are designed to provide maximum strength and security during towing. With their durable construction and appropriate size, they offer reliable protection and help prevent the trailer from separating from the towing vehicle in the event of an unforeseen incident or hitch failure. The SDX Dump trailer’s safety chains meet industry standards and regulations, ensuring compliance and providing peace of mind to users. By incorporating a strong and dependable safety system, the SDX Dump trailer offers enhanced safety and stability, making it a trusted choice for heavy-duty hauling tasks.
Chassis
Frame
Main Frame:5" C Channel Frame
Cross-Member:4" x 3" x 3/16" Tubing
Dump Bed
Tilt Frame
Type:5" C Channel
Cross-Members:3" Channel / 16" Spacings
Dump Bed
Inside Width:60"
Side Height:19"
Side Walls:12G Formed Walls
Flooring:10G Steel Floor
Fenders:12G Diamond Plate Steel
Stake Pockets: 3-7/8" x 1-13/16" (ID) Stake Pockets
D-Rings:4 D-Rings (Welded Inside Corners)
Cargo Capacity
3 Cubic Yards
Rear Gate
Gate:3 Way Doors
Latching System:EZ Slam Door Latches
Ramps:5' Slide-In Channel Ramps
Lift System
Power:Hydraulic - Powder Up - Down
Pump:KTI 12V Hydraulic Pump
Controller:14' Cable with Control
Scissor:Heavy Duty Scissor Lift
Cylinder:5" x 16" Cylinder
Tilt Angle:41°
Tarp
Manual Tarp Kit
Spare Mount
Spare Tire Mount:3" Tubing / 3/16" Plate
Bed
The dump bed of the SDX trailer is designed for efficient and reliable performance. With an inside width of 60″, it provides ample space for loading and unloading materials. The side height of 19″ ensures that the contents are securely contained within the dump bed during transport. The side walls are made of durable 12-gauge formed steel, providing strength and durability to withstand heavy loads. The flooring is constructed with robust 10-gauge steel, ensuring stability and resistance to wear and tear. Additionally, the fenders are made of sturdy 12-gauge diamond plate steel, offering protection and preventing debris from affecting the trailer. These features combine to create a dependable and rugged dump bed that is built to handle demanding tasks.
Fenders
The SDX trailer comes with rugged 12-gauge diamond plate steel fenders. These fenders are designed to provide exceptional durability and protection for the trailer’s tires and cargo. With their sturdy construction, they can withstand the rigors of the road and resist damage from debris and other elements. The diamond plate pattern adds a touch of style to the trailer’s overall appearance.
Stake Pockets
The SDX trailer features stake pockets, allowing for easy installation of stake extensions. These extensions provide added height and containment for your cargo. With the stake pockets, you can customize the trailer based on your load requirements, ensuring versatility and adaptability during transportation.
D-Rings
The SDX trailer is equipped with 4 D-Rings that are welded inside the corners of the trailer bed. These D-Rings provide convenient anchor points for securing and tying down your cargo. With their strategic placement, they allow for efficient and secure attachment of straps, ropes, or chains to keep your load in place during transportation. The welded construction ensures strength and durability, allowing you to confidently secure heavy or bulky items. Whether you’re hauling equipment, machinery, or other valuable goods, the D-Rings in the SDX trailer provide a reliable and practical solution for safe and secure cargo transport.
Rear Gate

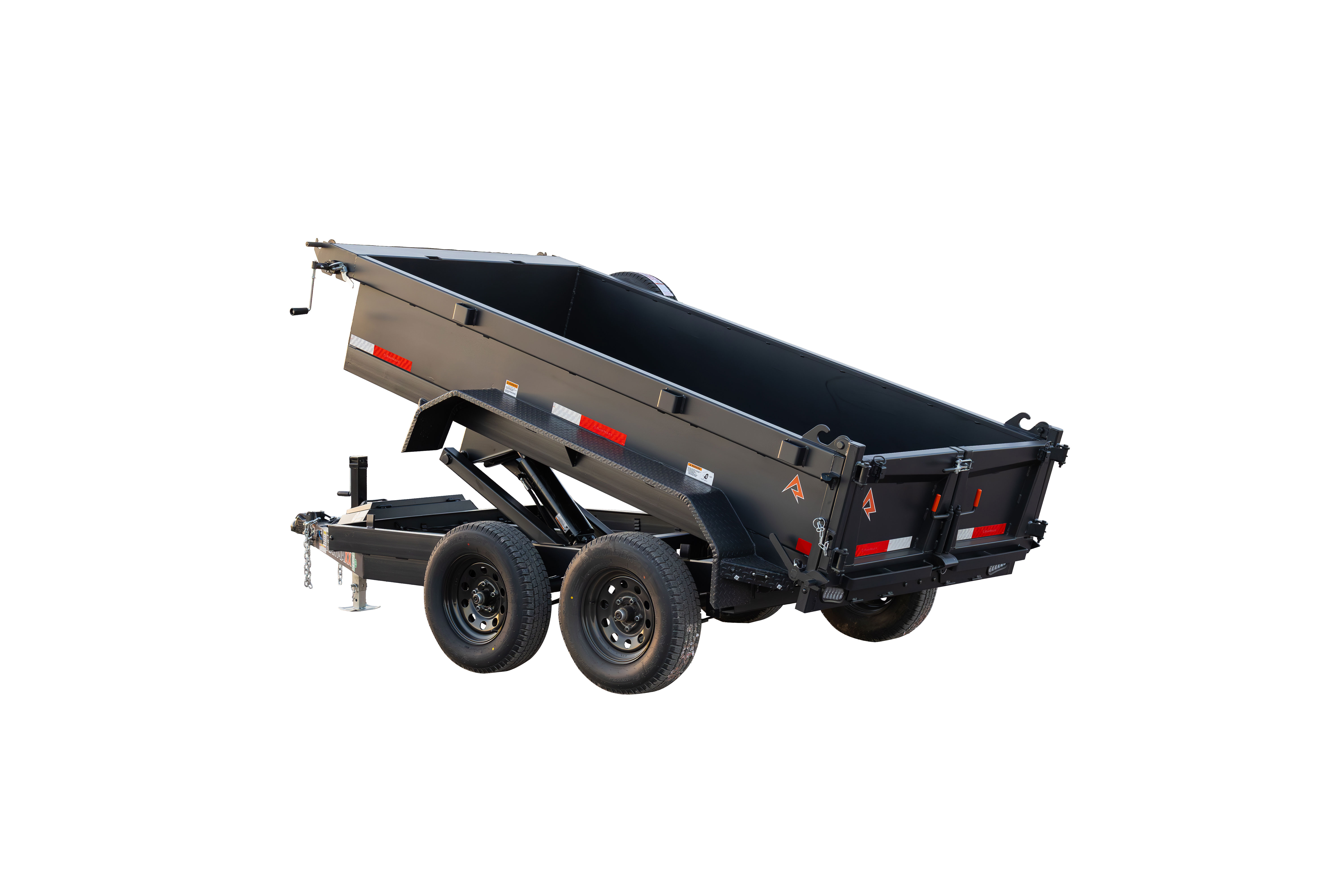

The SDX trailer is equipped with a rear gate that features 3-way doors. This gate design provides versatility and convenience for loading and unloading cargo.
Rear Gate
The 3-way doors can be opened individually or together, allowing for easy access to the trailer’s bed from multiple sides.
Rear Gate
Whether you need to load large items, separate different materials, or create a wider opening, the 3-way doors on the rear gate offer flexibility to accommodate your specific hauling needs.
Ramps
The SDX trailer is equipped with convenient 5-foot slide-in channel ramps. These ramps make loading and unloading equipment and cargo a breeze. They provide a smooth transition from the ground to the trailer bed, allowing for easy maneuvering of heavy items. The channel design ensures stability and strength, allowing the ramps to support the weight of various loads. With their practical and user-friendly design, these slide-in channel ramps enhance the versatility and functionality of the SDX trailer.

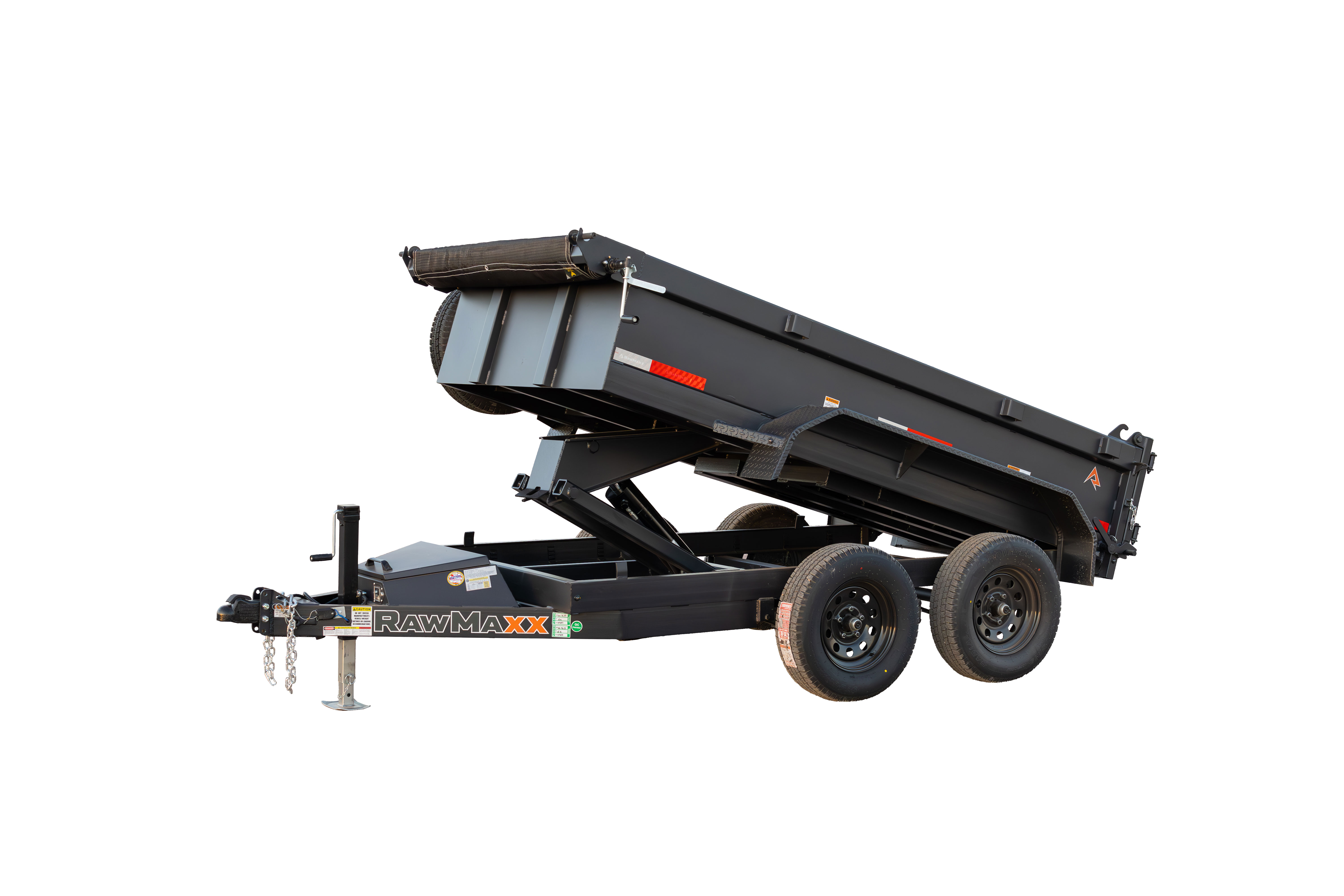

Cylinder & Hoist
The SDX trailer features a powerful hydraulic lift system that enables smooth and effortless operation. Powered by a reliable KTI 12V hydraulic pump, this system allows for convenient and precise raising and lowering of the trailer bed. The lift is controlled via a 14′ cable with a control unit, giving you easy access and control from a distance. The heavy-duty scissor lift ensures stability and durability, even when handling heavy loads. With a 5″ x 16″ cylinder, the lift system provides excellent lifting capacity. The SDX trailer offers a generous tilt angle of 41°, allowing for efficient dumping and unloading of materials. Whether you’re transporting gravel, construction debris, or other bulk materials, the SDX lift system ensures efficient and reliable performance, making your dumping tasks easier and more efficient.

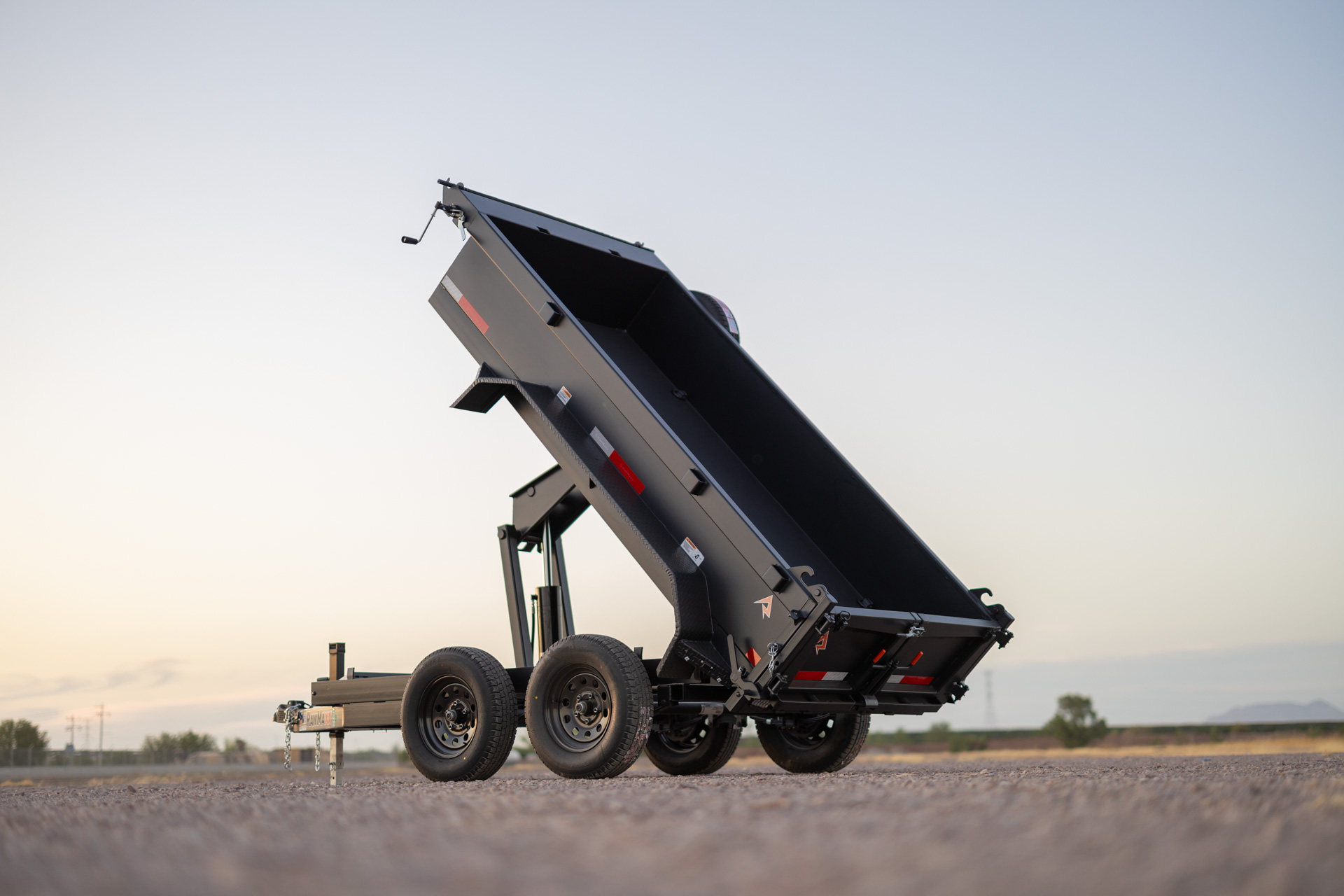

Tilt Angle
The SDX trailer is designed with a generous tilt angle of 41°, providing enhanced versatility and convenience for loading and unloading operations. With such a steep tilt angle, you can easily dump and unload materials, such as gravel, dirt, or debris, with minimal effort.
Tilt Angle
The high tilt angle ensures efficient and thorough emptying of the trailer bed, allowing you to complete your tasks quickly and effectively. Whether you’re working on a construction site, landscaping project, or any other application that requires frequent dumping, the SDX trailer’s 41° tilt angle provides the optimal angle for efficient material handling and ensures that you can get the job done with ease.

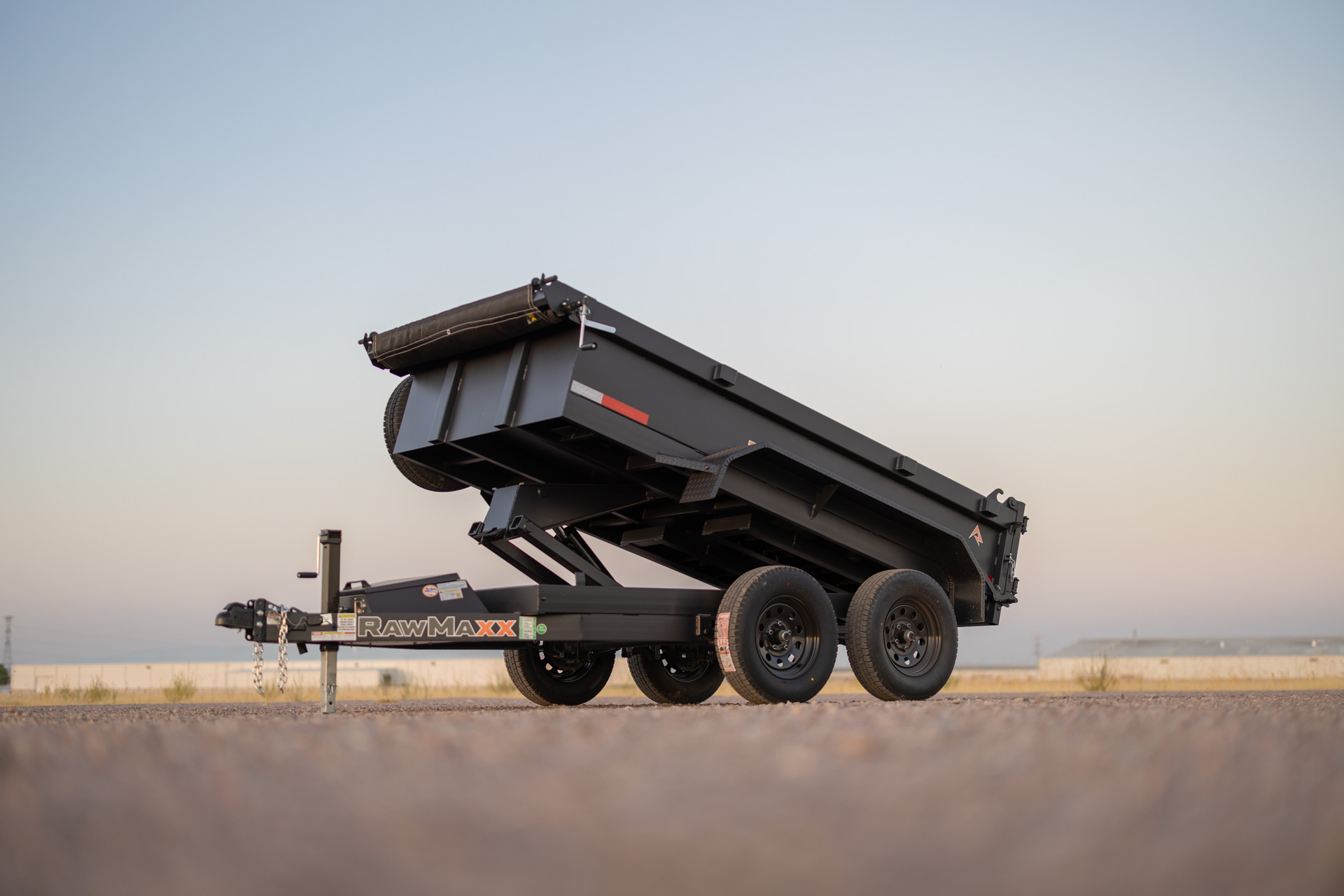

Manual Tarp Kit
The SDX trailer is equipped with a manual tarp kit, providing convenient and reliable coverage for your cargo. The tarp kit allows you to easily secure and protect your load from the elements, ensuring that your materials or equipment stay safe and dry during transport. With a user-friendly design, the manual tarp kit enables quick and hassle-free operation, allowing you to secure the tarp securely in place. Whether you’re hauling debris, construction materials, or any other items, the SDX trailer’s manual tarp kit offers an effective solution for keeping your cargo protected and secure.
Spare Tire Mount
The SDX trailer is designed with convenience and safety in mind, featuring a spare tire mount located on the right side of the trailer for easy access in the event of a tire failure. With this feature, drivers can quickly replace a flat tire and continue their journey with minimal disruption.
Running Gear
Tires
Type:Radial Tires
Size:ST205/75R15
Ply:8 Ply
Rating:2,040 lbs.
Rims:15” Black Mod Wheels
Bolt Pattern:550
Suspension
Axle Type:Spring
Axles:2
Rating:3,500 lbs.
Brakes:Electric
Tires
The SDX trailer is equipped with reliable radial tires, specifically ST205/75R15 size. These tires are built with 8-ply construction, ensuring durability and strength to handle heavy loads. With a rating of 2,040 lbs., they provide excellent load-carrying capacity. The trailer features 15″ black mod wheels with a bolt pattern of 550, adding style and stability to your towing experience.
Electrical & Lighting
Wiring
Front Plug7 - Way Plug
Frame Wiring:All Weather Wiring Harness
Lighting
Side Markers:3/4" LED Bullet Lights
Rear Lights:DOT Approved LED Lights
Battery & Charging
Battery:27M Deep Cycle Marine Battery
Charging System:110V Integrated Trickle Charger
Wiring
The SDX trailer features a front plug with a 7-way configuration, providing a secure and standardized connection. Its all-weather wiring harness ensures reliable electrical connectivity, even in challenging conditions. With this setup, you can confidently tow the trailer, knowing that its electrical system is designed for durability and consistent performance.
Lights
The SDX trailer is equipped with high-quality lighting for enhanced visibility and safety. It features 3/4″ LED bullet lights as side markers, providing bright and reliable illumination along the trailer’s sides. With the combination of LED bullet lights as side markers and DOT-approved LED lights at the rear, the SDX trailer ensures optimal visibility and compliance with safety regulations. Whether you’re towing during the day or night, these lighting features provide reliable performance to keep you and others safe on the road.
Available Options
Removable Extensions
Tire Options
Little But Mighty

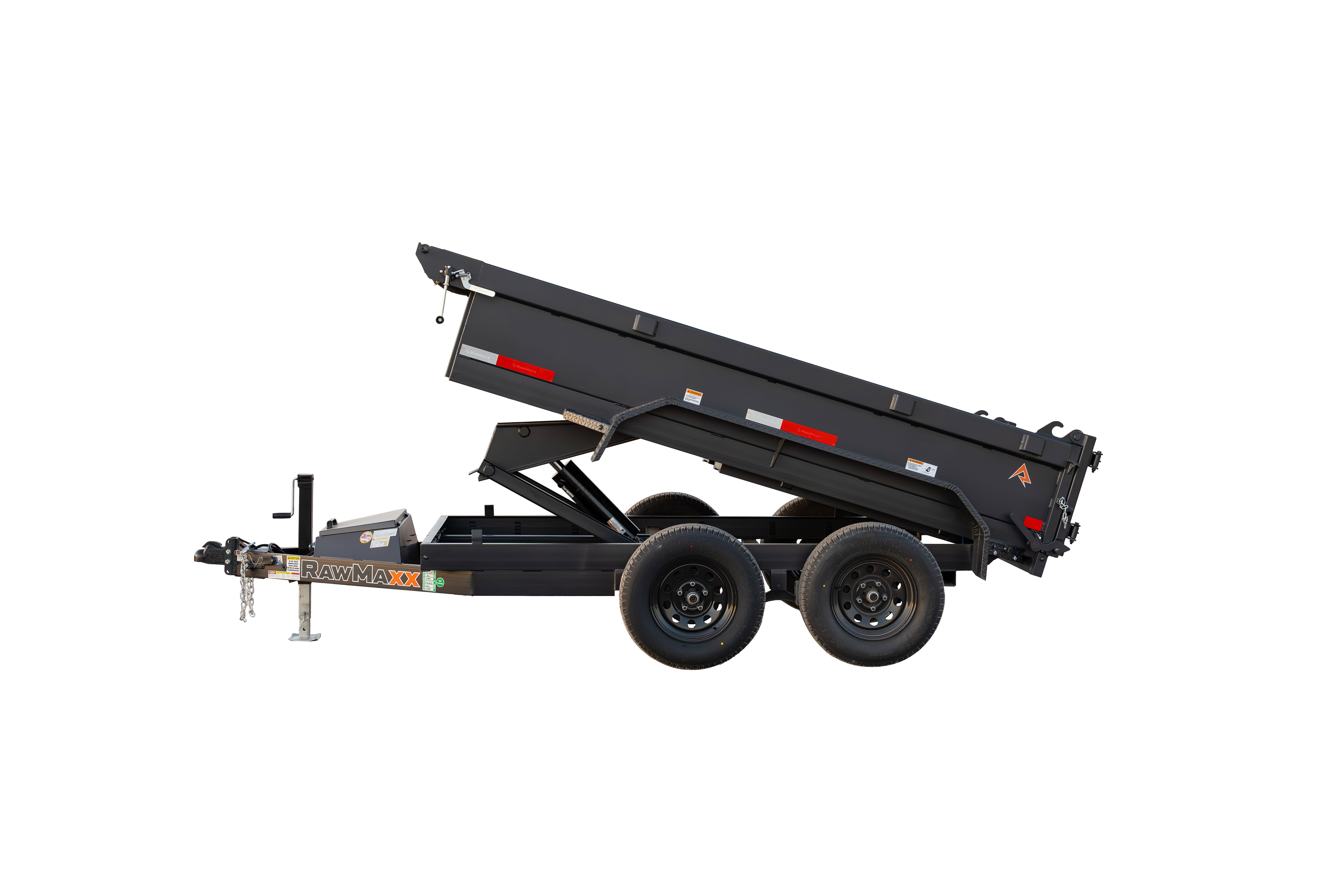

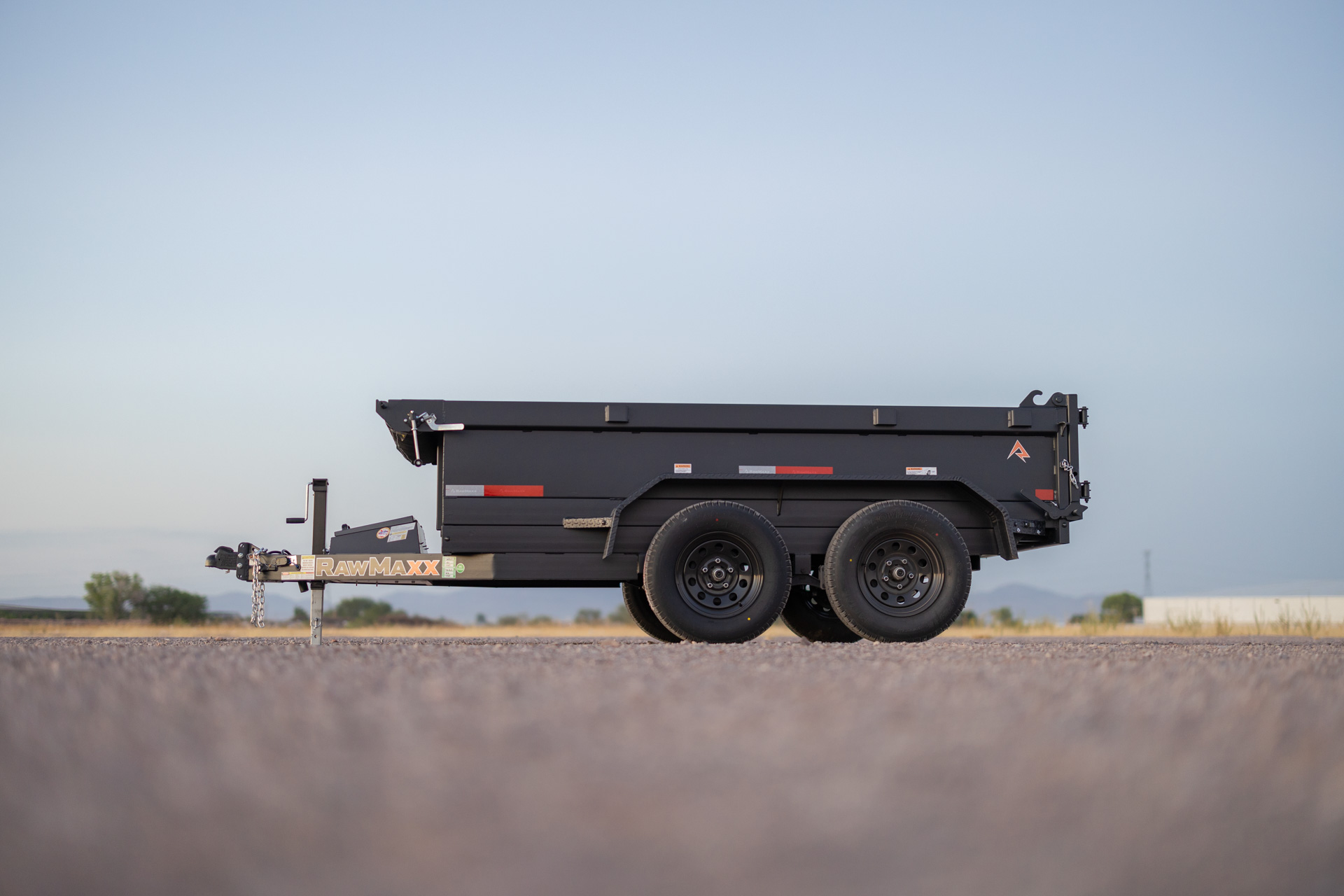

The SDX trailer is a versatile dump trailer that comes in one size: 10′ x 60″. It has a GVWR of 7,000 lbs. and an empty weight of 2,494 lbs. The trailer features a hydraulic tilt system that can handle up to 3 cubic yards of cargo with a tilt angle of 41 degrees. The dump bed has 3-way doors, 5′ slide-in channel ramps, and a manual tarp kit. The SDX also includes safety features such as 1/4″ safety chains, an electric breakaway kit, and 3M DOT compliant reflective tape. The trailer comes with a 3-year structural warranty and a 1-year paint warranty, as well as options such as removable extensions, a KTI wireless remote, and spare tire options.
