Standard Features
Features for “SDXK10BP10K”
- Length: 10‘
- Width: 60“
- Deck Height: 22“
- GVWR: 10,000 lbs.
- GAWR: 5,200 lbs.
- Empty Weight: 3,219 lbs.
- Load Capacity: 8,258 lbs.
- Main Frame: 5″ Channel
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 60″
- Side Height: 32″
- Capacity: 3 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Flooring: 10G Grade 50 Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 5′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 5,200 lb. Electric Brake Axles
- 8 Ply ST225/75R15 Tires (2,540 lb. Rating)
- 15″ Black Mod Steel Wheels
- Bolt Pattern: 6 on 5.50
- Safety Chains: 1/4″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
SDX Knight 3D
360° View
Order NowStandard Features
Features for “SDXK10BP10K”
- Length: 10‘
- Width: 60“
- Deck Height: 22“
- GVWR: 10,000 lbs.
- GAWR: 5,200 lbs.
- Empty Weight: 3,219 lbs.
- Load Capacity: 8,258 lbs.
- Main Frame: 5″ Channel
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 60″
- Side Height: 32″
- Capacity: 3 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Flooring: 10G Grade 50 Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 5′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 5,200 lb. Electric Brake Axles
- 8 Ply ST225/75R15 Tires (2,540 lb. Rating)
- 15″ Black Mod Steel Wheels
- Bolt Pattern: 6 on 5.50
- Safety Chains: 1/4″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
SDX Knight
Compact
The RawMaxx SDX Knight may be compact, but it’s built to take on serious work. At 10’ x 60” with a 10,000 lb. GVWR, this dump trailer delivers big strength in a tight package — perfect for contractors, landscapers, and property owners who need heavy-duty performance without sacrificing maneuverability.

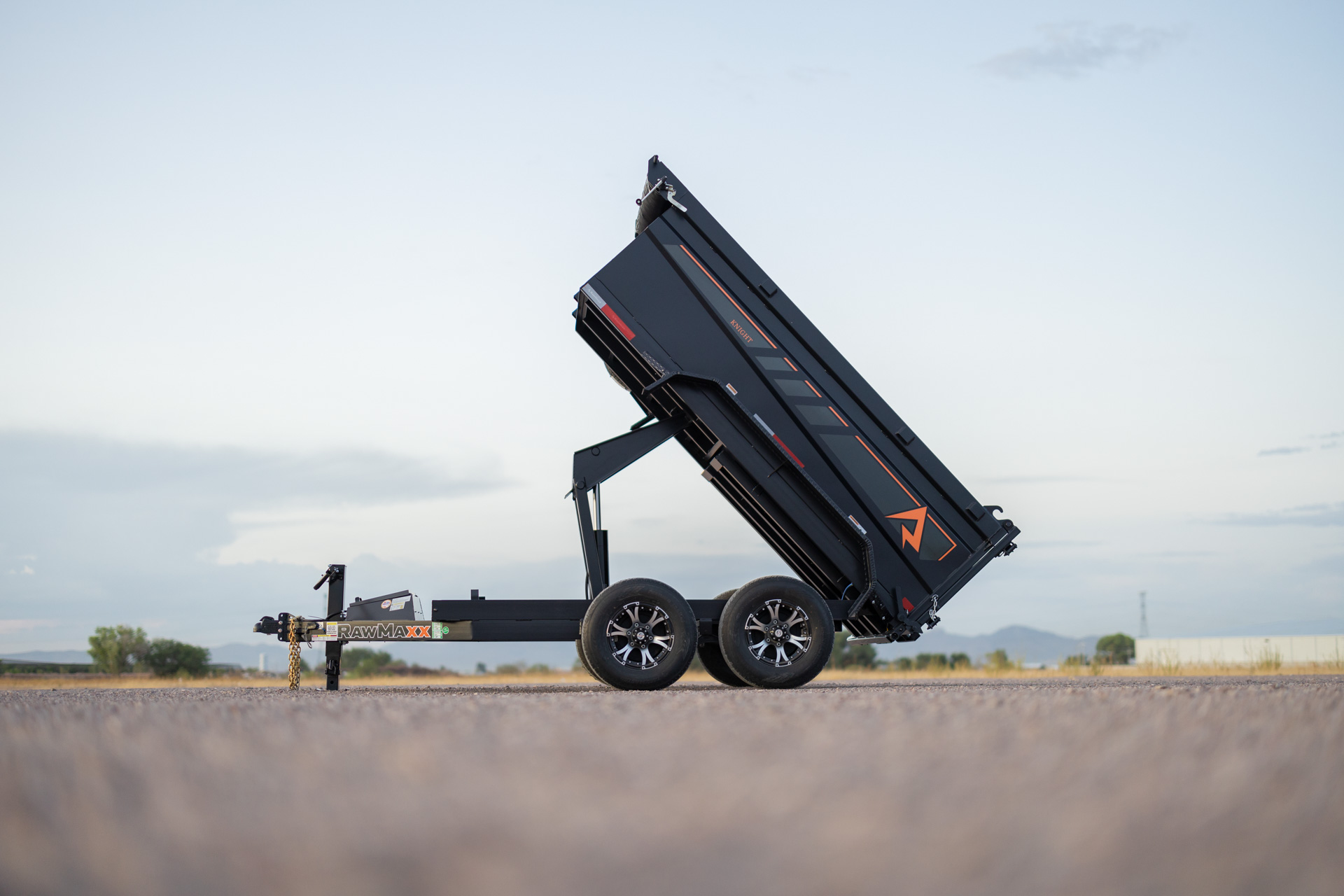

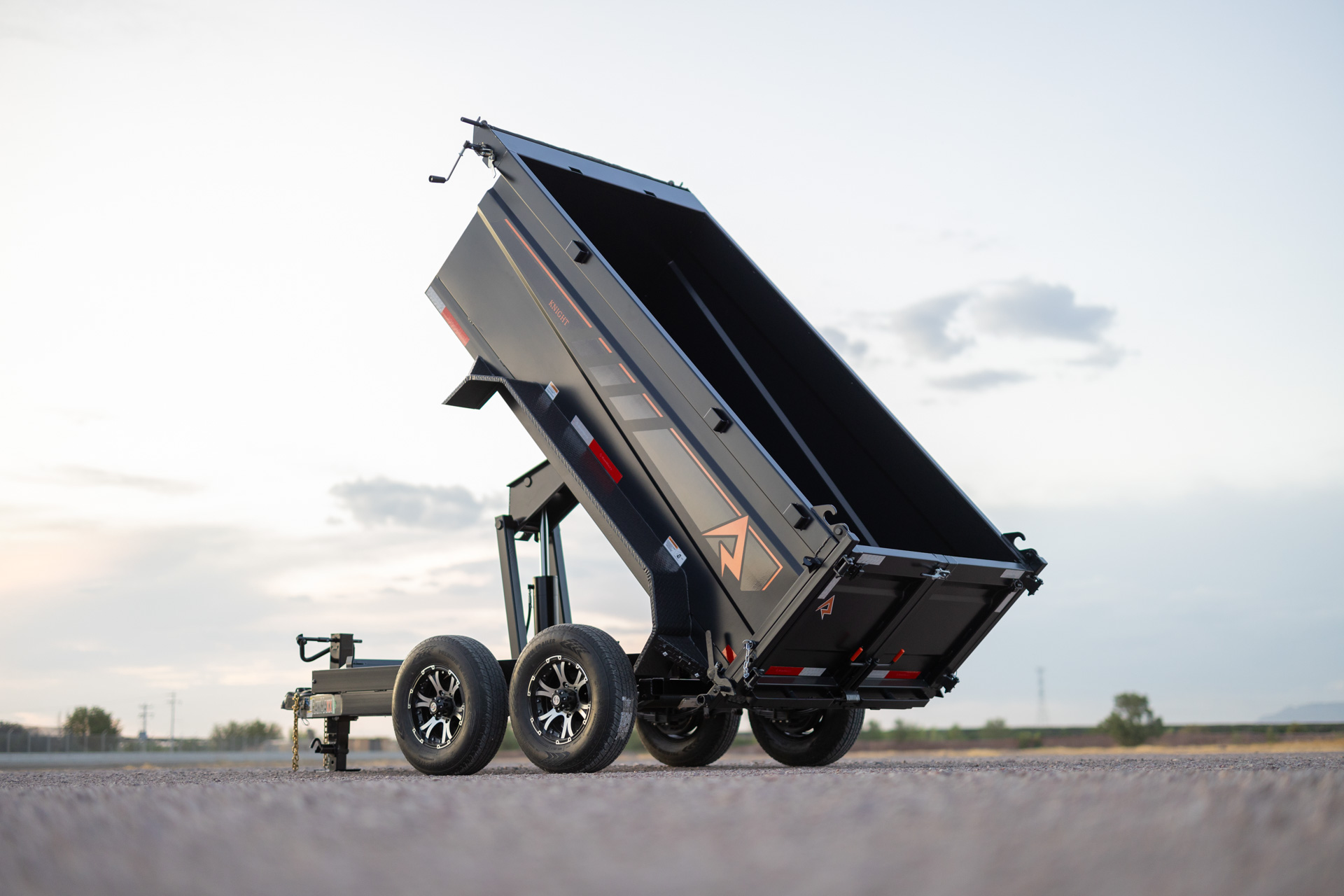

Engineered for reliability, the SDX Knight is equipped with a 5” C-channel main frame, 10-gauge steel flooring, and 12-gauge diamond plate fenders. Its 32” tall formed steel walls and 3-cubic-yard dump capacity give you the muscle to move gravel, dirt, debris, or materials with confidence. And with the heavy-duty scissor lift, 5” x 16” hydraulic cylinder, and a 41° tilt angle, unloading is quick, smooth, and efficient every time.
Every detail is built with the user in mind. EZ Slam 3-way doors, slide-in ramps, and four welded D-rings make loading and securing simple, while the integrated tongue toolbox houses the pump, battery, and charger for streamlined operation. The Armor Grey powder coat finish ensures the SDX Knight looks as tough as it works.
Optional upgrades like removable extensions and a wireless remote give you the flexibility to customize your Knight to your workflow.
The RawMaxx SDX Knight — compact, powerful, and ready to command any jobsite.
SDX Knight
Compact
The RawMaxx SDX Knight may be compact, but it’s built to take on serious work. At 10’ x 60” with a 10,000 lb. GVWR, this dump trailer delivers big strength in a tight package — perfect for contractors, landscapers, and property owners who need heavy-duty performance without sacrificing maneuverability.
Engineered for reliability, the SDX Knight is equipped with a 5” C-channel main frame, 10-gauge steel flooring, and 12-gauge diamond plate fenders. Its 32” tall formed steel walls and 3-cubic-yard dump capacity give you the muscle to move gravel, dirt, debris, or materials with confidence. And with the heavy-duty scissor lift, 5” x 16” hydraulic cylinder, and a 41° tilt angle, unloading is quick, smooth, and efficient every time.
Every detail is built with the user in mind. EZ Slam 3-way doors, slide-in ramps, and four welded D-rings make loading and securing simple, while the integrated tongue toolbox houses the pump, battery, and charger for streamlined operation. The Armor Grey powder coat finish ensures the SDX Knight looks as tough as it works.
Optional upgrades like removable extensions and a wireless remote give you the flexibility to customize your Knight to your workflow.
The RawMaxx SDX Knight — compact, powerful, and ready to command any jobsite.
