Standard Features
Features for “SDX10BP7K”
- Length: 10‘
- Width: 60“
- Deck Height: 22“
- GVWR: 7,000 lbs.
- GAWR: 3,500 lbs.
- Empty Weight: 2,494 lbs.
- Load Capacity: 5,182 lbs.
- Main Frame: 5″ Channel Frame
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 60″
- Side Height: 19″
- Capacity: 3 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 5′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 7,000 lb. Side Wind Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 3,500 lb. Electric Brake Axles
- 8 Ply ST205/75R15 Tires
- 15″ Black Mod Steel Wheels
- Bolt Pattern: 5 on 5.5
- Safety Chains: 1/4″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “SDX10BP10K”
- Length: 10‘
- Width: 60“
- Deck Height: 22“
- GVWR: 5,200 lbs.
- GAWR: 10,000 lbs.
- Empty Weight: 2,620 lbs.
- Load Capacity: 8,947 lbs.
- Main Frame: 5″ Channel Frame
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 60″
- Side Height: 19″
- Capacity: 3 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 5′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 7,000 lb. Side Wind Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 5,200 lb. Electric Brake Axles
- 8 Ply ST225/75R15 Tires
- 15″ Black Mod Steel Wheels
- Bolt Pattern: 6 on 5.5
- Safety Chains: 1/4″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
SDX 3D
Standard Features
Features for “SDX10BP7K”
- Length: 10‘
- Width: 60“
- Deck Height: 22“
- GVWR: 7,000 lbs.
- GAWR: 3,500 lbs.
- Empty Weight: 2,494 lbs.
- Load Capacity: 5,182 lbs.
- Main Frame: 5″ Channel Frame
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 60″
- Side Height: 19″
- Capacity: 3 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 5′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 7,000 lb. Side Wind Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 3,500 lb. Electric Brake Axles
- 8 Ply ST205/75R15 Tires
- 15″ Black Mod Steel Wheels
- Bolt Pattern: 5 on 5.5
- Safety Chains: 1/4″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “SDX10BP10K”
- Length: 10‘
- Width: 60“
- Deck Height: 22“
- GVWR: 5,200 lbs.
- GAWR: 10,000 lbs.
- Empty Weight: 2,620 lbs.
- Load Capacity: 8,947 lbs.
- Main Frame: 5″ Channel Frame
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 60″
- Side Height: 19″
- Capacity: 3 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 5′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 7,000 lb. Side Wind Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 5,200 lb. Electric Brake Axles
- 8 Ply ST225/75R15 Tires
- 15″ Black Mod Steel Wheels
- Bolt Pattern: 6 on 5.5
- Safety Chains: 1/4″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
SDX
Entry

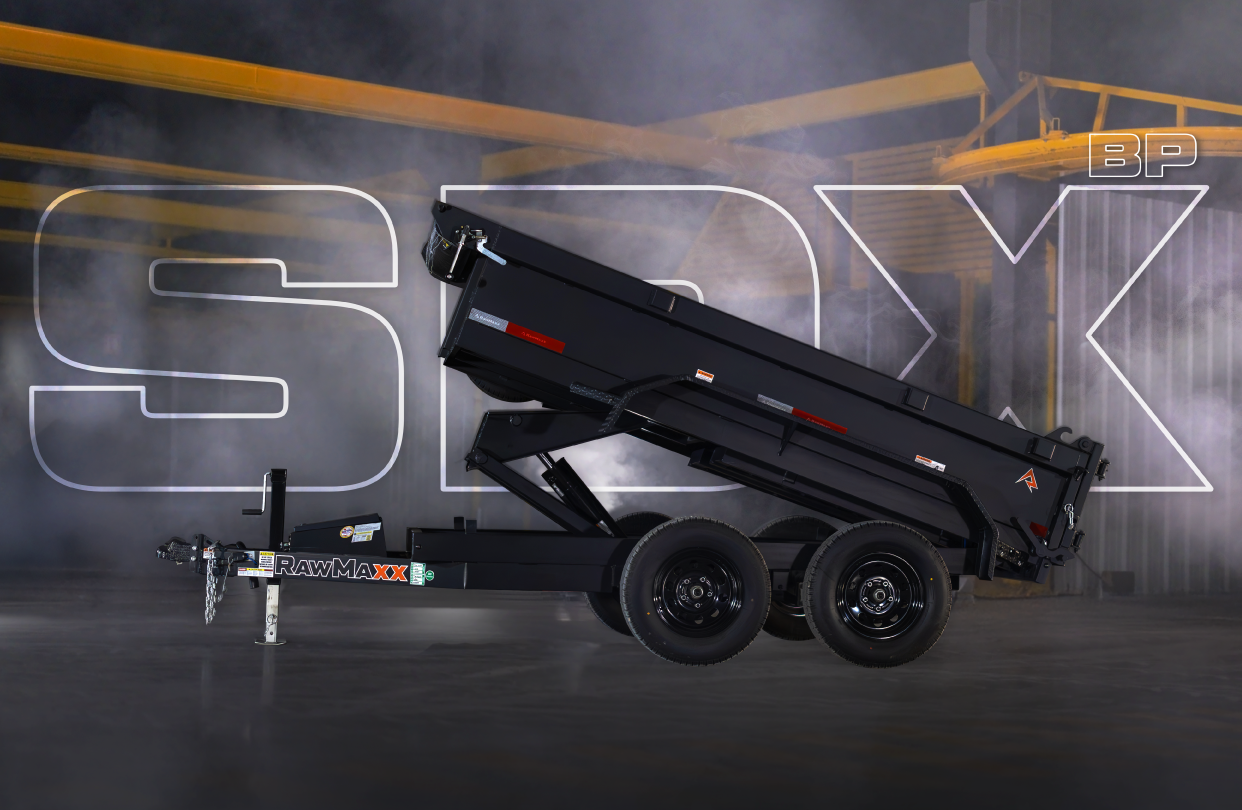

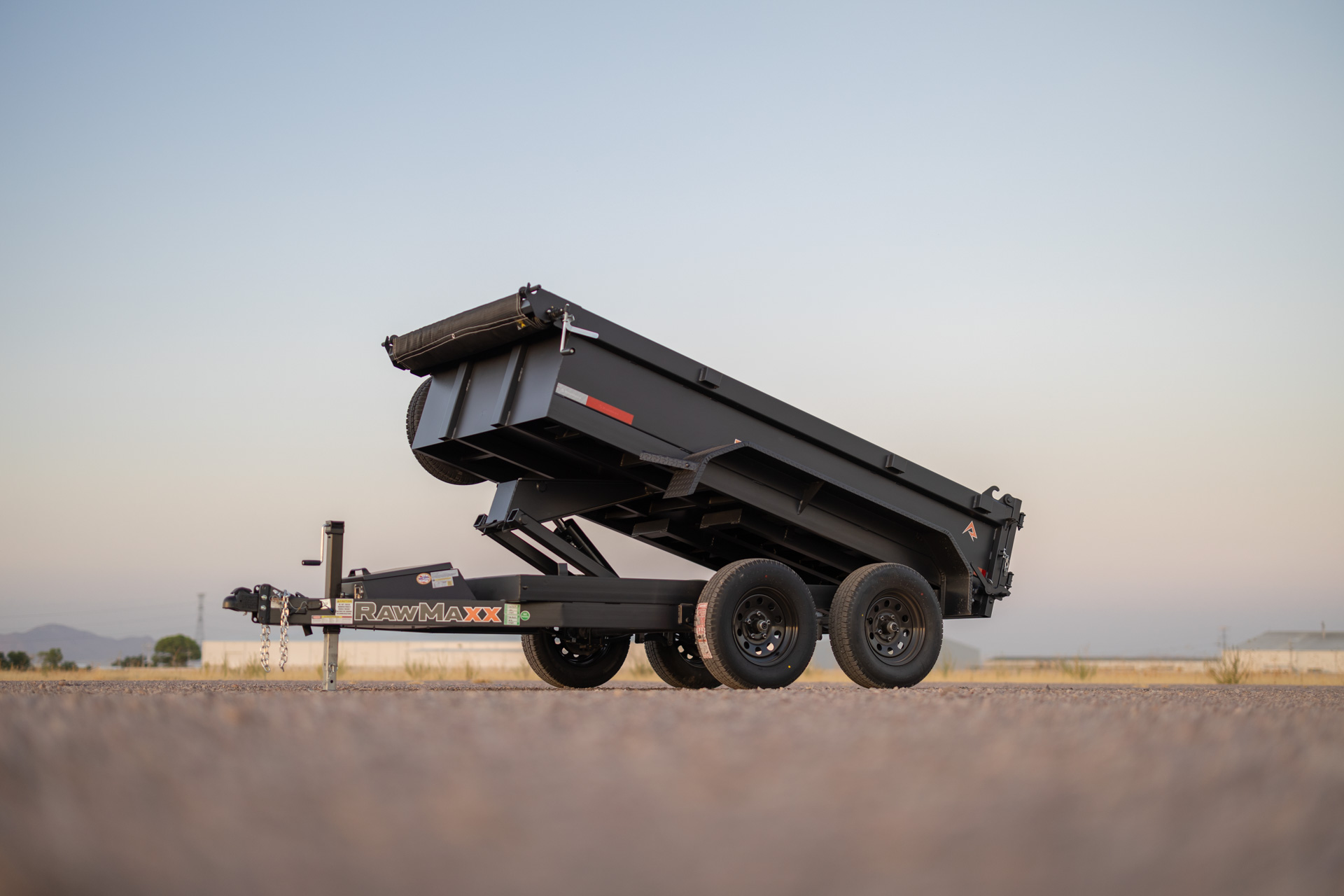

The Compact Dump Trailer That Punches Above Its Weight
When the job calls for strength in a smaller package, the RawMaxx SDX delivers. At 10’ long and 60” wide, this compact dump trailer is built for tighter spaces and lighter loads — but don’t let its size fool you. With a GVWR of 7,000 lbs. and over 5,000 lbs. of load capacity, the SDX proves that big power can come in small frames.
Engineered with a 5” C-channel frame and 3” channel cross-members, the SDX is as tough as it is nimble. Its 10-gauge steel floor, 12-gauge formed walls, and diamond plate fenders give it the durability to handle dirt, gravel, mulch, and debris day after day.

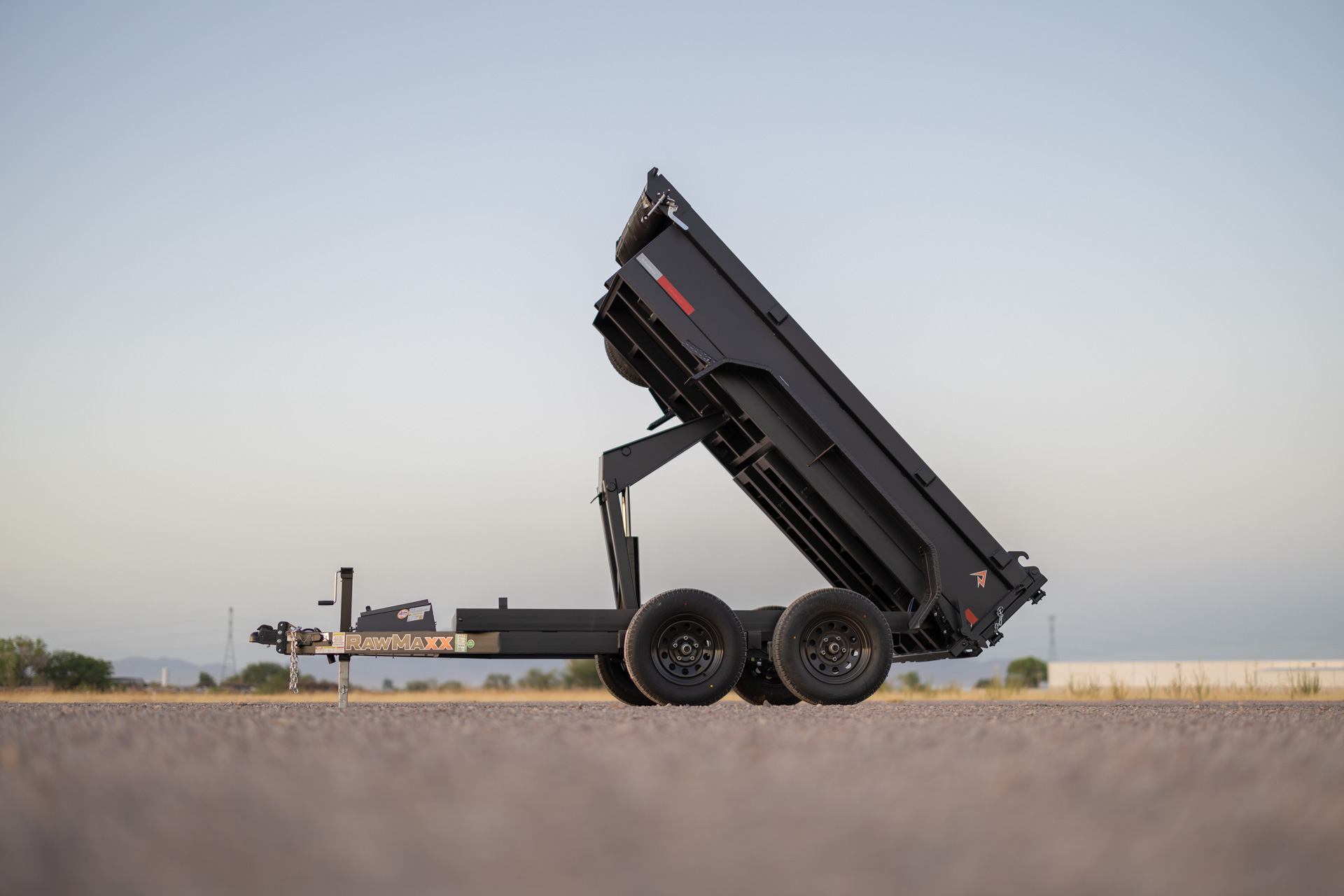

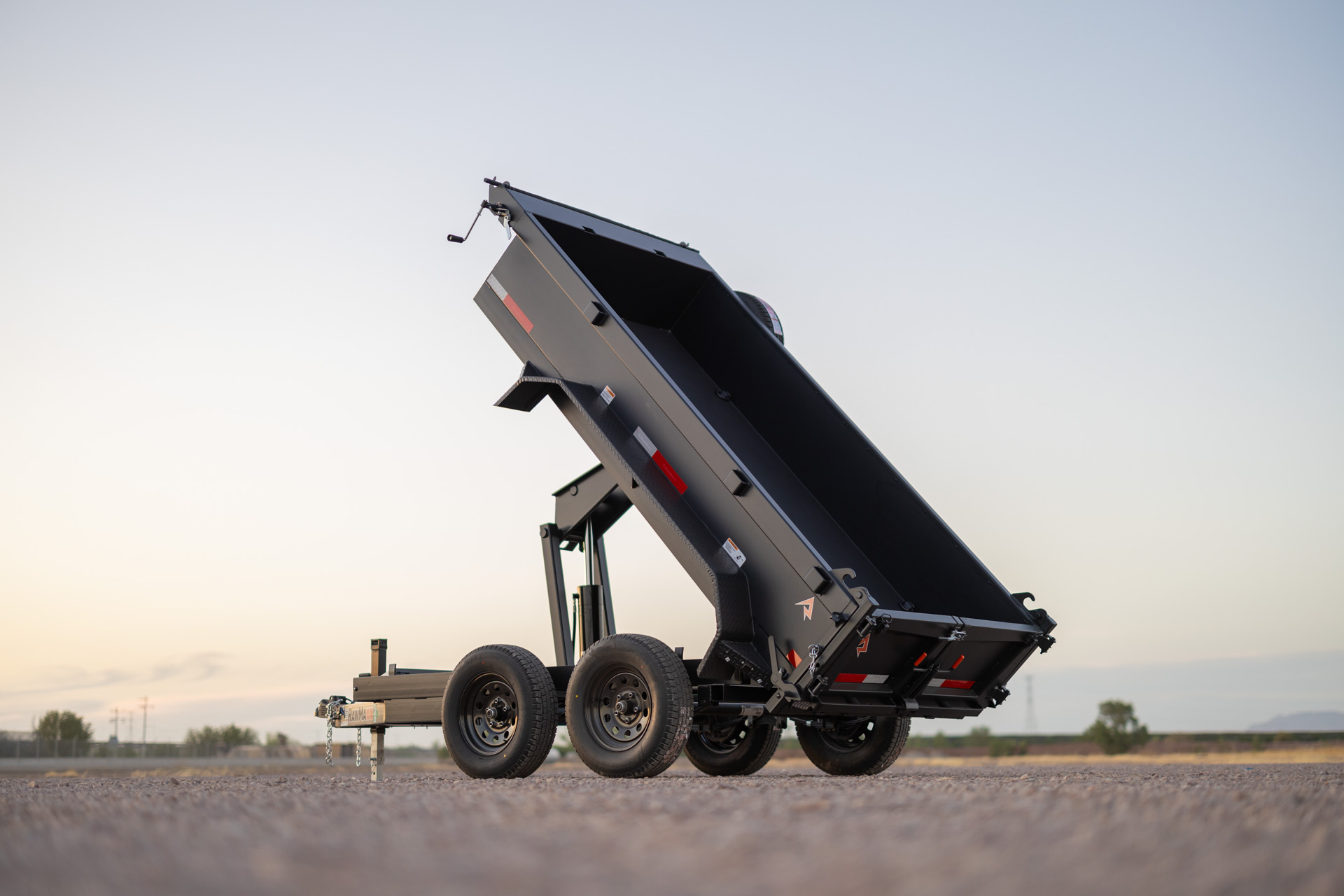

The hydraulic scissor lift system, powered by a KTI 12V pump and a 5” x 16” cylinder, provides smooth, controlled dumping at a 41° tilt angle. A versatile 3-way rear gate, EZ Slam latches, and 5’ slide-in ramps make loading and unloading fast and simple, no matter the job.

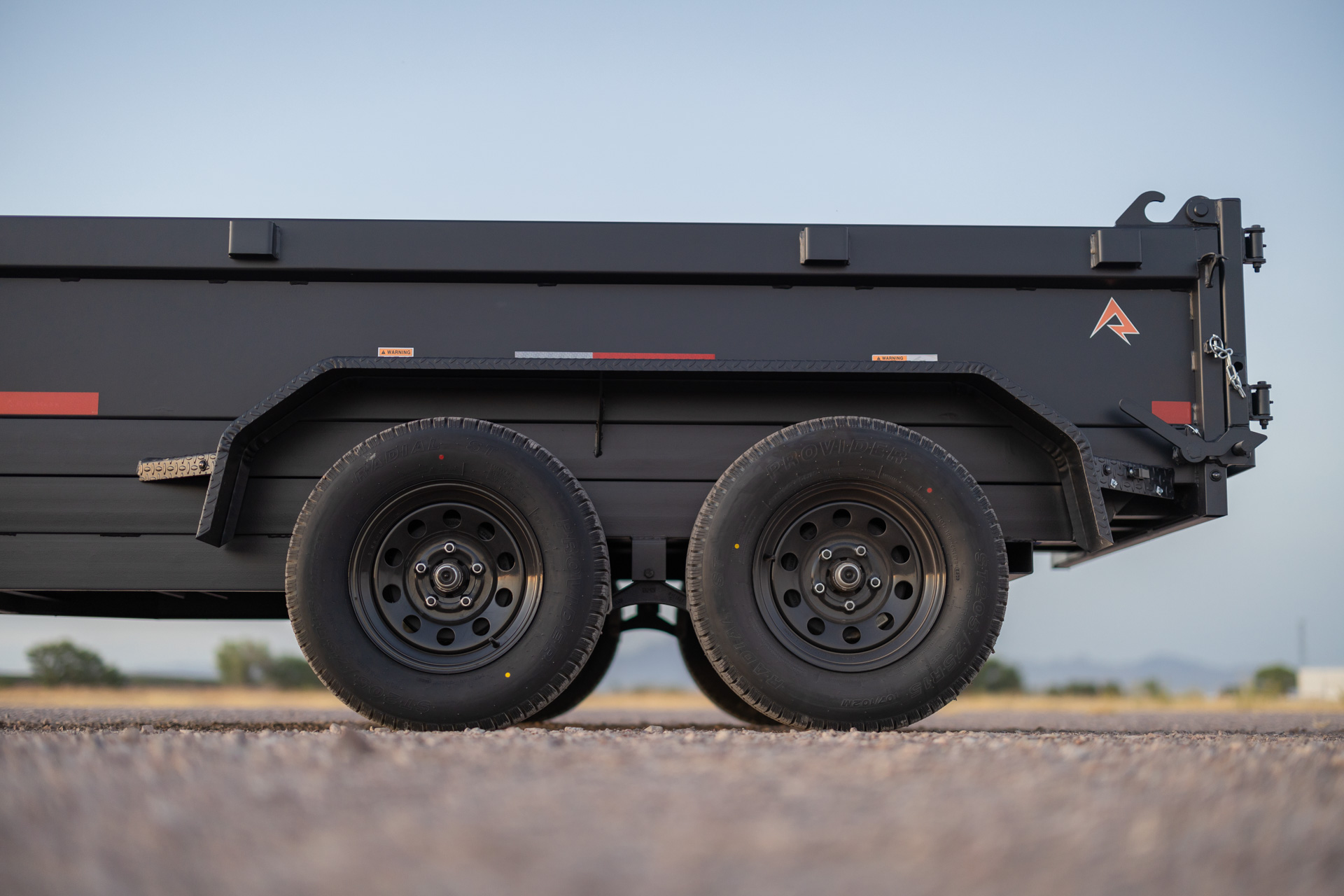

Safety and reliability are never optional. The SDX comes equipped with 1/4” safety chains, an electric breakaway kit, DOT-approved LED lighting, and a 27M deep-cycle marine battery with integrated trickle charger. Paired with radial ST205/75R15 tires, dual 3,500 lb. axles, and electric brakes, you’ll move with confidence every time you hook up.
And when you need more, the SDX is ready to adapt. Customize with removable extensions, a KTI wireless remote, or a spare tire package to fit your exact needs.
The RawMaxx SDX — compact, tough, and mighty enough to earn its place on any jobsite.
