RDX

Available Sizes

Trailer Specs

Dimensions

Length: 14'
Width: 83"
Deck Height: 29"

Weight Rating

GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,148 lbs.
Load Capacity: 12,300 lbs.

Finish

Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Gooseneck Ball Coupler

Jack

Jack: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Tool Box Between Risers for Pump, Battery & Charger

Gooseneck

Neck 10" x 12 lb. I-beam
Gooseneck Length: 90"

Safety System

Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Spare Tire Mount

Spare Tire Mount: 3" Tubing / 3/16" Plate

Chassis

Frame

Main Frame: 10" x 12 lb. I-beam Frame
Cross-Member: 4" x 6" x 3/16" Tubing
Fenders: 12G Diamond Plate Steel
Side Step: G10 Sides / G12 Diamond Plate Step

Tilt Bed

Tilt Frame

Side Frame: 2" x 3" x 3/16" Tubing
Deck: 5" x 3" Formed Slide Rails
Cross-Members: 2" x 3" x 3/16" Tubing
D-Ring 1 D-Ring (Welded On Back)

Lift System

Power: Hydraulic - Powder Up - Down
Pump: KTI 12V Hydraulic Pump
Controller: 14' Cable with Control
Scissor: Heavy Duty Scissor Lift
Cylinder: 6" x 20" Cylinder
Tilt Angle: 55°

Winch System

Winch: 17,500 lbs. Warrior Electric Winch

Latching System

Latch: Spring Loaded Latch Assembly / Zinc Plated 5/8" diameter pin

Running Gear

Tires

Type: Radial Tires
Size: ST235/80R16
Ply: 10 Ply
Rating: 3,520 lbs.
Rims: 16” Black Mod Wheels
Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring
Axles: 2
Rating: 7,000 lbs.
Brakes: Electric
Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug 7 - Way RV
Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights

Battery & Charging

Battery: 27M Deep Cycle Marine Battery
Charging System: 110V Integrated Trickle Charger

Roll-Off Bins

Standard Features

Bottom Bin Width: 60"
Frame: 2" x 3" Tubing Frame
Crossmembers: 3" Channel / 16" Spacings
Floor: 7G Steel Floor
Sides: 52" High Sides, 10G
D-Ring: Located at front of Boxx to hook cable
Rollers: 4 - 5" Rollers located at (2) front and (2) rear
Stake Pockets: 3 - 7/8" x 1-13/16" (ID)
D-Rings: 4 D-Rings (Welded outside perimeters)
Gate: Barn Doors with Cam Over Latch

Available Bin Packages

Roll-Off Beds

Standard Features

Frame: 8" Channel Frame
Crossmembers: 3" Channel / 16" Spacings
Floor: 2" Treated Pine Wood
D-Ring: Located at front of Boxx to hook cable

Available Upgrades

Axle Upgrades

Tire Upgrades

Spare Tire Options

Jack Options

Trailer Tarp Option

Other Options

Trailer Specs

Dimensions

Length: 16'
Width: 83"
Deck Height: 29"

Weight Rating

GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,433 lbs.
Load Capacity: 11,652 lbs.

Finish

Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Gooseneck Ball Coupler

Jacks

Jack: ( 2 ) Side Wind Drop Legs. ( 10,000 lbs.

Tool Box

Tool Box Between Risers for Pump, Battery & Charger

Gooseneck

Neck 8" x 13 lb. I-beam
Gooseneck Length: 90"

Safety System

Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Chassis

Frame

Main Frame: 10" x 12 lb. I-beam Frame
Cross-Member: 4" x 6" x 3/16" Tubing
Fenders: 12G Diamond Plate Steel
D-Rings: (2) D-Rings ( Welded On Front & Back )

Tilt Bed

Tilt Frame

Side Frame: 2" x 3" x 3/16" Tubing
Deck: 5" x 3" Formed Slide Rails
Cross-Members: 2" x 3" x 3/16" Tubing

Lift System

Power: Hydraulic - Powder Up - Down
Pump: KTI 12V Hydraulic Pump
Controller: 14' Cable with Control
Scissor: Heavy Duty Scissor Lift
Cylinder: 6" x 20" Cylinder
Tilt Angle: 55°

Winch System

Winch: 17,500 lbs. Warrior Electric Winch

Running Gear

Tires

Type: Radial Tires
Size: ST235/80R16
Ply: 10 Ply
Rating: 3,520 lbs.
Rims: 16” Black Mod Wheels
Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring
Axles: 2
Rating: 7,000 lbs.
Brakes: Electric
Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug 7 - Way RV
Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights

Battery & Charging

Battery: 27M Deep Cycle Marine Battery
Charging System: 110V Integrated Trickle Charger

Roll-Off Bins

Standard Features

Bottom Bin Width: 60"
Frame: 2" x 3" Tubing Frame
Crossmembers: 3" Channel / 16" Spacings
Floor: 7G Steel Floor
Sides: 52" High Sides, 10G
Rollers: 4 - 5" Rollers located at (2) front and (2) rear
Stake Pockets: 3 - 7/8" x 1-13/16" (ID)
D-Rings: 4 D-Rings (Welded outside perimeters)
Gate: Barn Doors

Available Bin Packages

Roll-Off Beds

Standard Features

Frame: 8" Channel Frame
Crossmembers: 3" Channel / 16" Spacings
Floor: 2" Treated Pine Wood
D-Ring: Located at front of Boxx to hook cable

Available Flat Bed Packages

Available Upgrades

Axle Upgrades

Tire Upgrades

Spare Tire Options

Jack Options

Trailer Tarp Option

Other Options

Trailer Specs

Dimensions

Length: 20'
Width: 83"
Deck Height: 32"

Weight Rating

GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 5,185 lbs.
Load Capacity: 17,215 lbs.

Finish

Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Gooseneck Ball Coupler

Jacks

Jack: ( 2 ) Side Wind Drop Legs. ( 10,000 lbs.

Tool Box

Tool Box Between Risers for Pump, Battery & Charger

Gooseneck

Neck: 10" x 15 lb. I-beam
Gooseneck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Chassis

Frame

Main Frame: 10" x 15 lb. I-beam Frame
Cross-Members: 4" x 6" x 3/16" Tubing
Fenders: 12G Diamond Plate Steel
D-Rings: (2) D-Rings ( Welded On Front & Back )

Tilt Bed

Tilt Frame

Side Frame: 2" x 4" x 3/16" Tubing
Deck: 5" x 3" Formed Slide Rails
Cross-Members: 2" x 4" x 3/16" Tubing

Lift System

Power: Hydraulic - Powder Up - Down
Pump: KTI 12V Hydraulic Pump
Controller: 14' Cable with Control
Scissor: Heavy Duty Scissor Lift
Cylinder: 6" x 30" Cylinder
Tilt Angle: 55°

Winch System

Winch: 17,500 lbs. Warrior Electric Winch

Running Gear

Tires

Type: Radial Tires
Size: ST215/75R17.5
Ply: 18 Ply
Rating: 3,520 lbs.
Rims: 17.5” Black Mod Wheels
Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring
Axles: 2
Rating: 10,000 lbs.
Brakes: Electric
Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug 7 - Way RV
Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights

Battery & Charging

Battery: 27M Deep Cycle Marine Battery
Charging System: 110V Integrated Trickle Charger

Roll-Off Bins

Standard Features

Bottom Bin Width: 60"
Frame: 2" x 4" Tubing Frame
Crossmembers: 3" Channel / 16" Spacings
Floor: 7G Steel Floor
Sides: 52" High Sides, 10G
Rollers: 4 - 5" Rollers located at (2) front and (2) rear
Stake Pockets: 3 - 7/8" x 1-13/16" (ID)
D-Rings: 4 D-Rings (Welded outside perimeters)
Gate: Barn Doors

Available Bin Packages

Roll-Off Beds

Standard Features

Frame: 8" Channel Frame
Crossmembers: 3" Channel / 16" Spacings
Floor: 2" Treated Pine Wood
D-Ring: Located at front of Boxx to hook cable

Available Flat Bed Packages

Available Upgrades

Axles Upgrades

Spare Tire Upgrades

Jack Options

Trailer Tarp Options

Other Options

Trailer Specs

Dimensions

Length: 20'
Width: 83"
Deck Height: 32"

Weight Rating

GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 5,485 lbs.
Load Capacity: 17,515 lbs.

Finish

Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Gooseneck Ball Coupler

Jacks

Jack: ( 2 ) Side Wind Drop Legs. ( 10,000 lbs.

Tool Box

Tool Box Between Risers for Pump, Battery & Charger

Gooseneck

Neck: 10" x 15 lb. I-beam
Gooseneck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Chassis

Frame

Main Frame: 10" x 15 lb. I-beam Frame
Cross-Members: 4" x 6" x 3/16" Tubing
Fenders: 12G Diamond Plate Steel
D-Rings: (2) D-Rings ( Welded On Front & Back )

Tilt Bed

Tilt Frame

Side Frame: 2" x 4" x 3/16" Tubing
Deck: 5" x 3" Formed Slide Rails
Cross-Members: 2" x 4" x 3/16" Tubing

Lift System

Power: Hydraulic - Powder Up - Down
Pump: KTI 12V Hydraulic Pump
Controller: 14' Cable with Control
Scissor: Heavy Duty Scissor Lift
Cylinder: 6" x 30" Cylinder
Tilt Angle: 55°

Winch System

Winch: 17,500 lbs. Warrior Electric Winch

Running Gear

Tires

Type: Radial Tires
Size: ST215/75R17.5
Ply: 18 Ply
Rating: 3,520 lbs.
Rims: 17.5” Black Mod Wheels
Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring
Axles: 2
Rating: 10,000 lbs.
Brakes: Electric
Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug 7 - Way RV
Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights

Battery & Charging

Battery: 27M Deep Cycle Marine Battery
Charging System: 110V Integrated Trickle Charger

Roll-Off Bins

Standard Features

Length: 20'
Sides: 52" High Sides, 10G
Bottom Bin Width: 60"
Load Capacity: 19 Cubic Yards
Empty Weight: 3,190 lbs.
Frame: 2" x 3" Tubing Frame
Crossmembers: 3" Channel / 16" Spacings
Floor: 7G Steel Floor
Rollers: 4 - 5" Rollers located at (2) front and (2) rear
Stake Pockets: 3 - 7/8" x 1-13/16" (ID)
D-Rings: 4 D-Rings (Welded outside perimeters)
Gate: Barn Doors

Available Bin Packages

Roll-Off Beds

Standard Features

Length: 20'
Load Capacity: 15,000 lbs
Frame: 8" Channel Frame
Crossmembers: 3" Channel / 16" Spacings
Floor: 2" Treated Pine Wood
D-Ring: Located at front of Boxx to hook cable

Available Flat Bed Packages

Available Options

Axle Upgrades

Spare Tire Upgrades

Jack Options

Trailer Tarp Options

Other Options

RDX Video

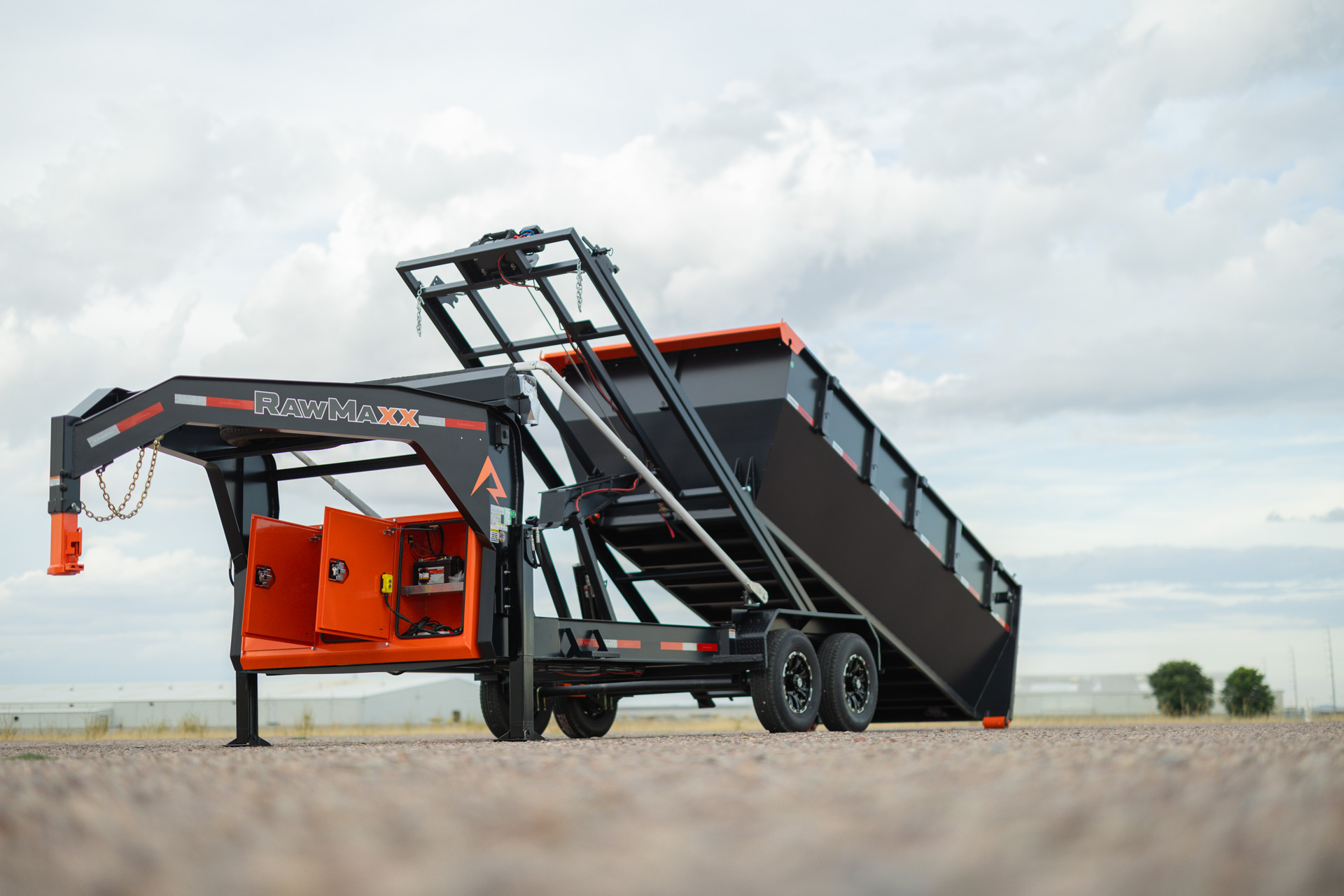

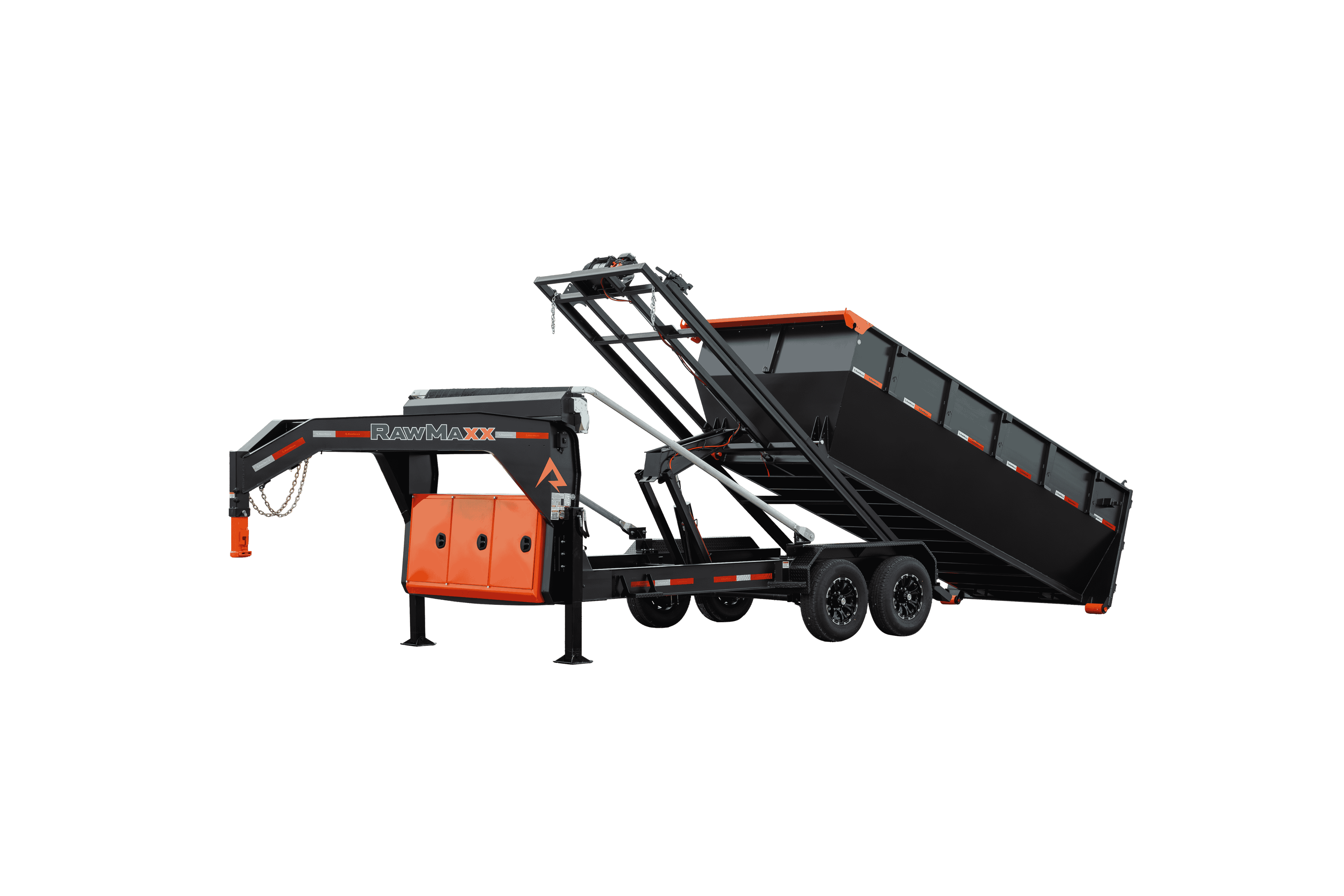

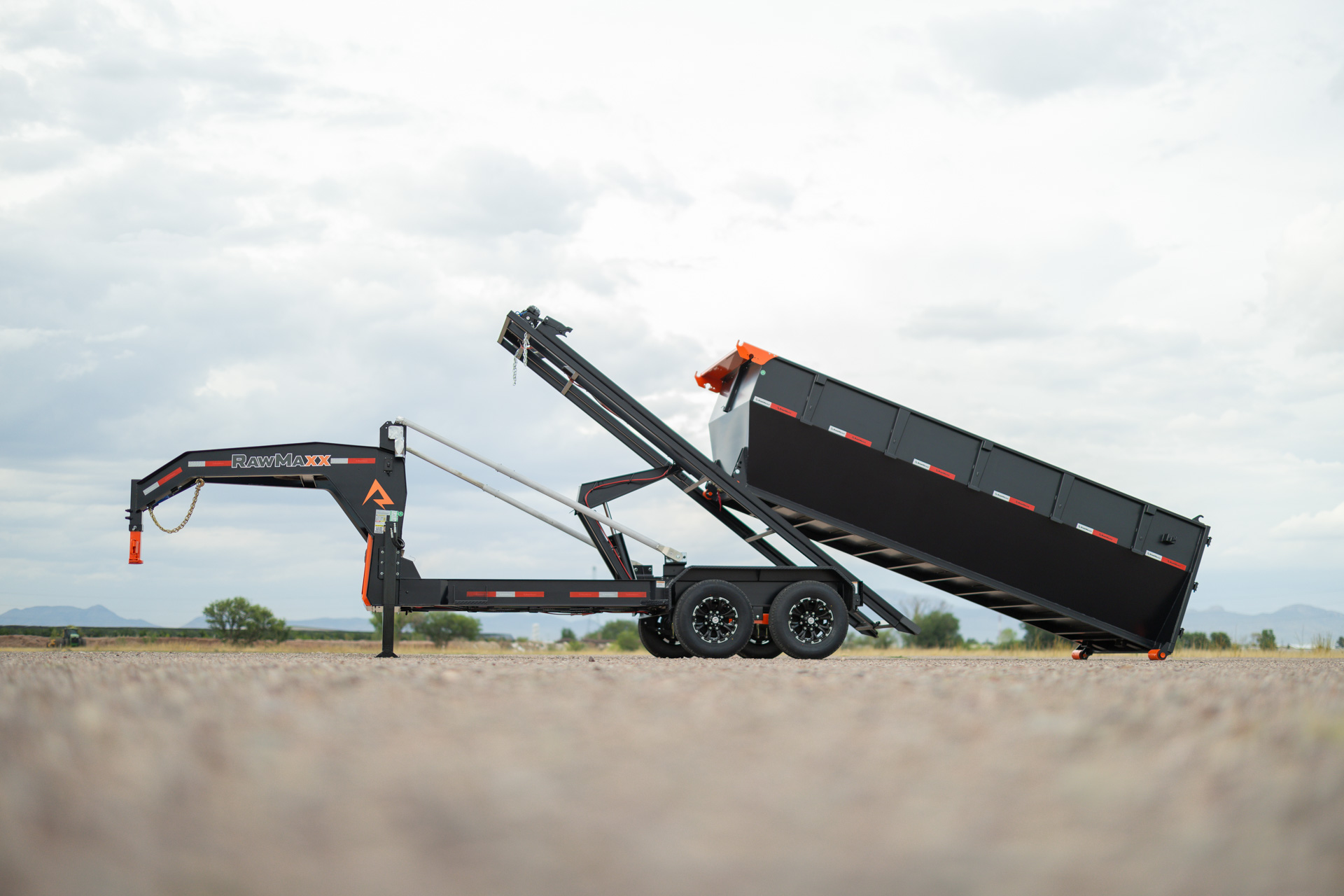

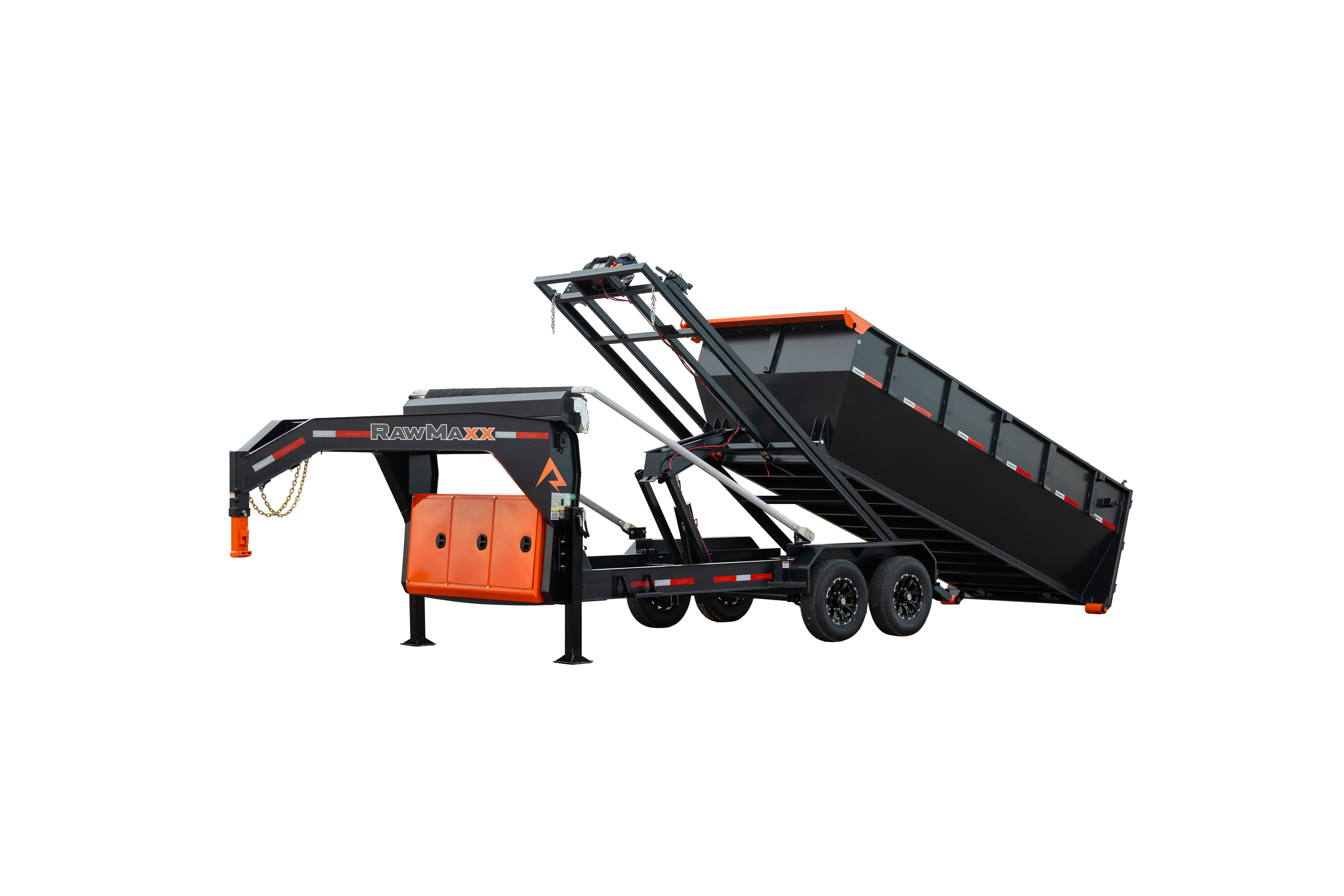

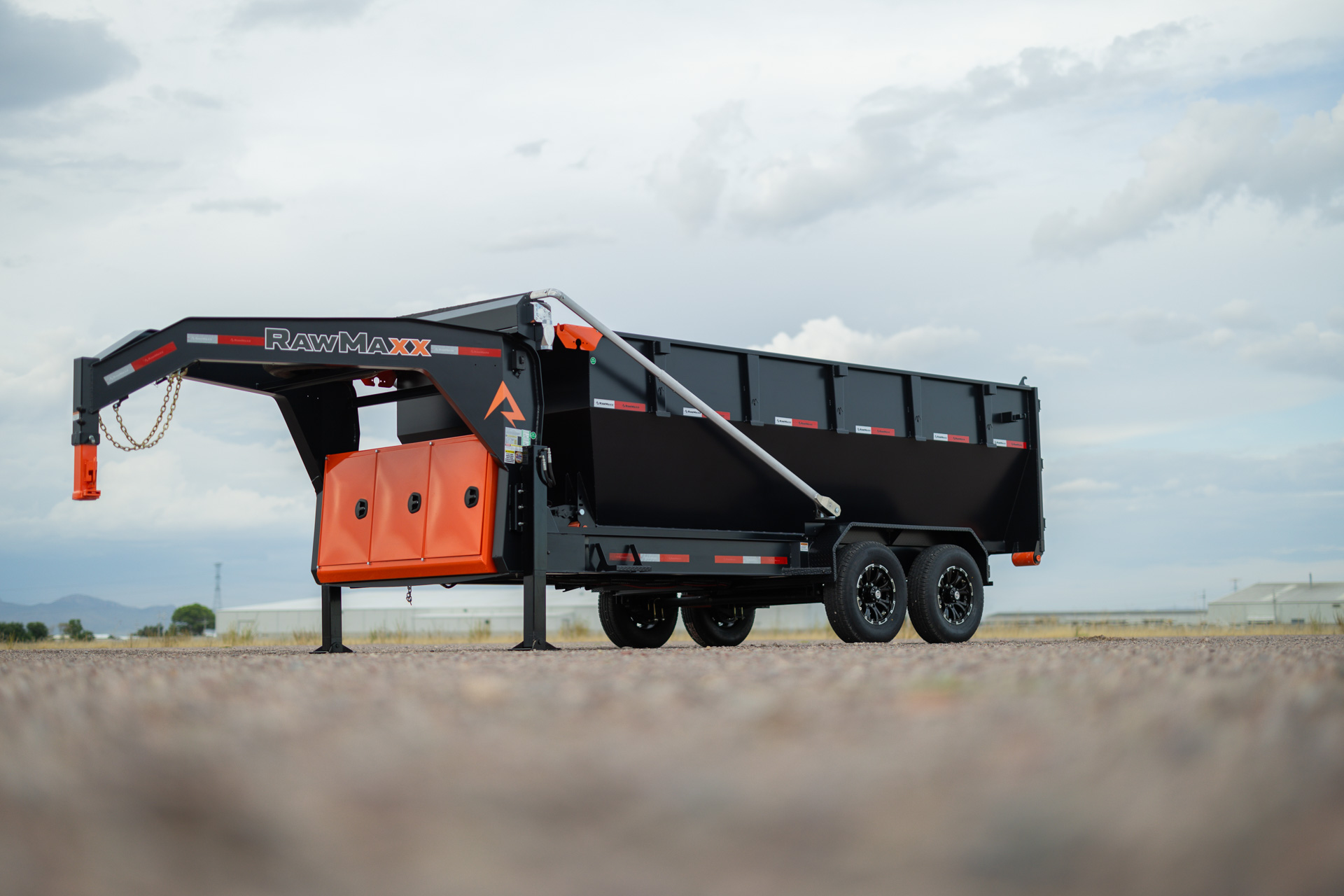

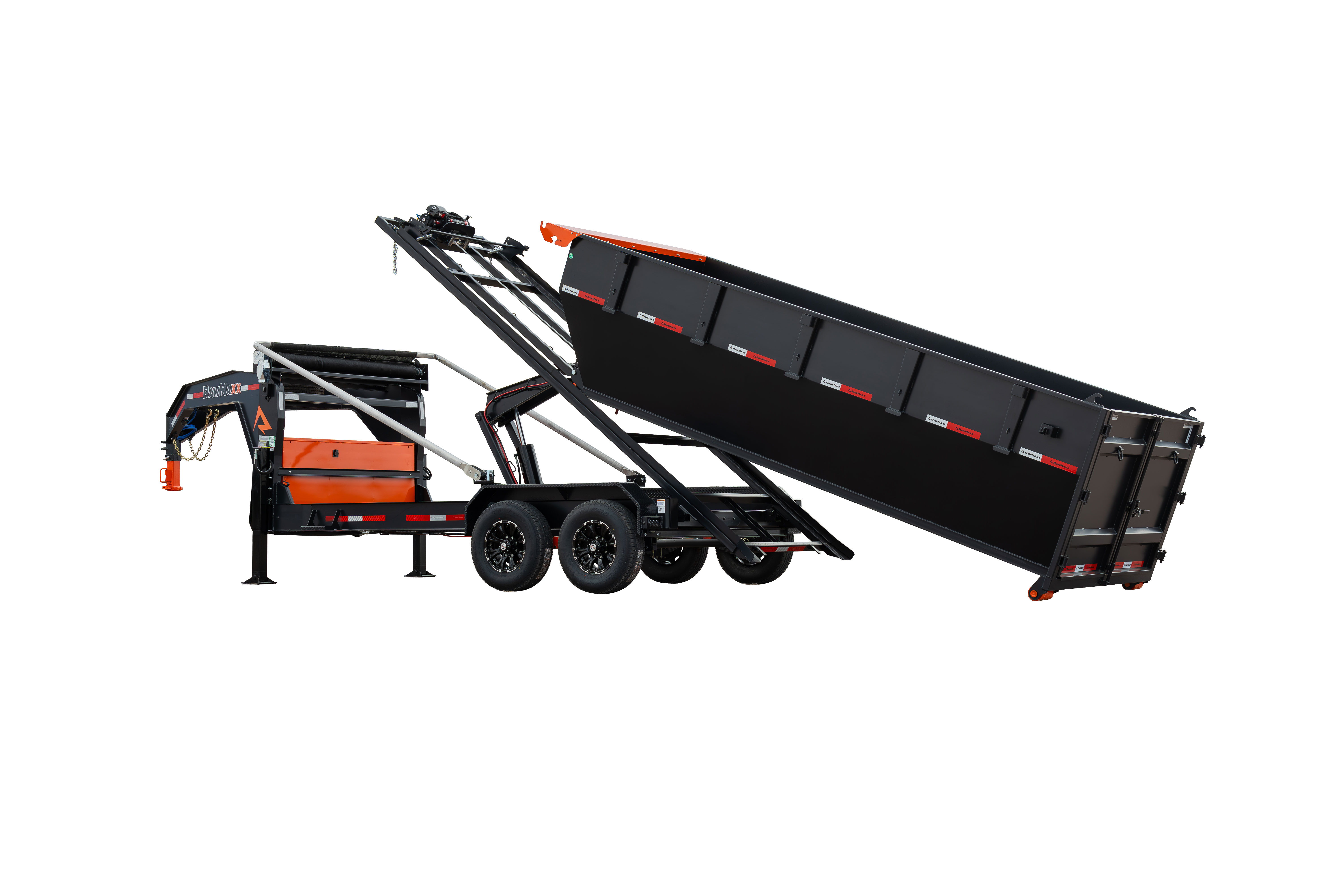

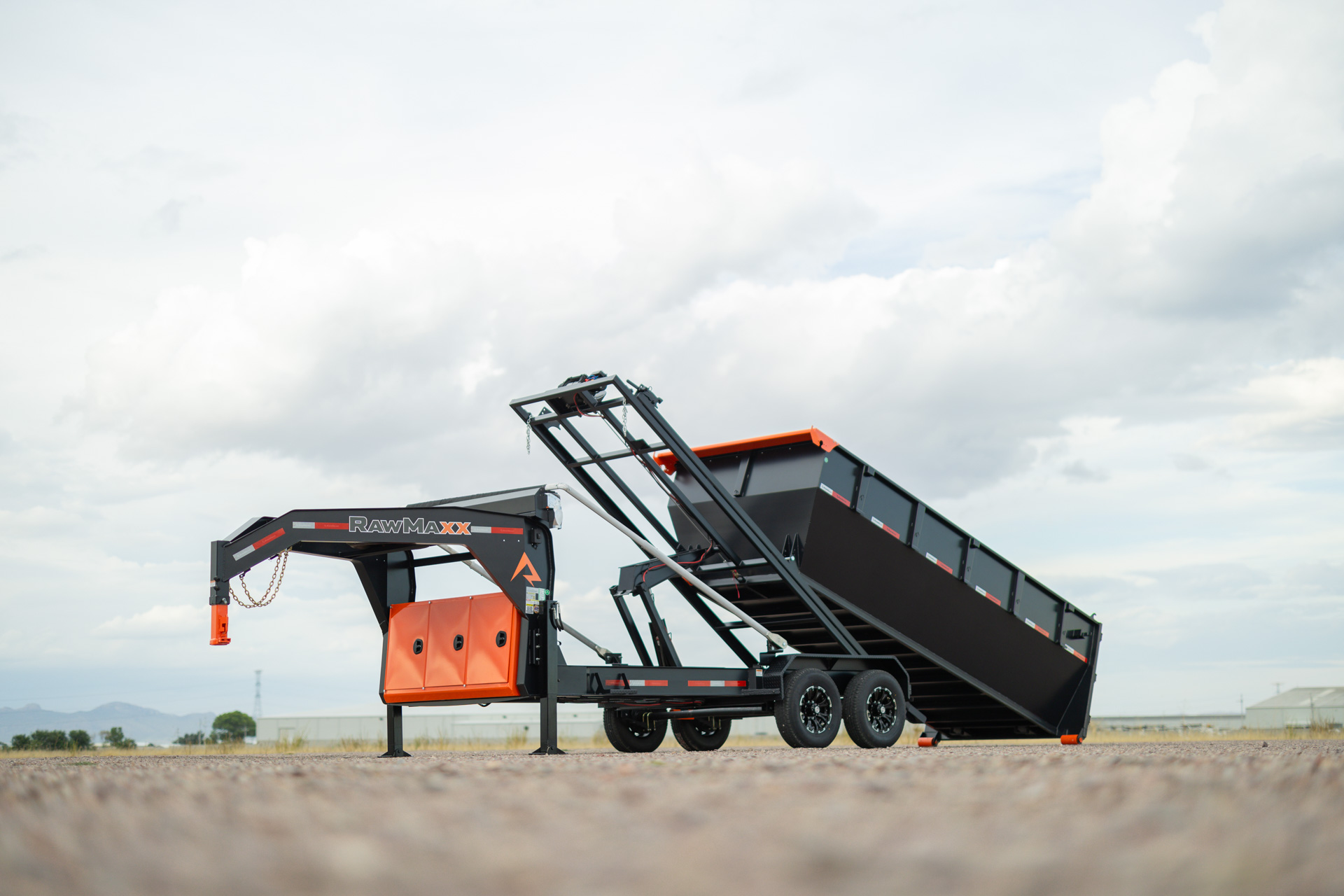

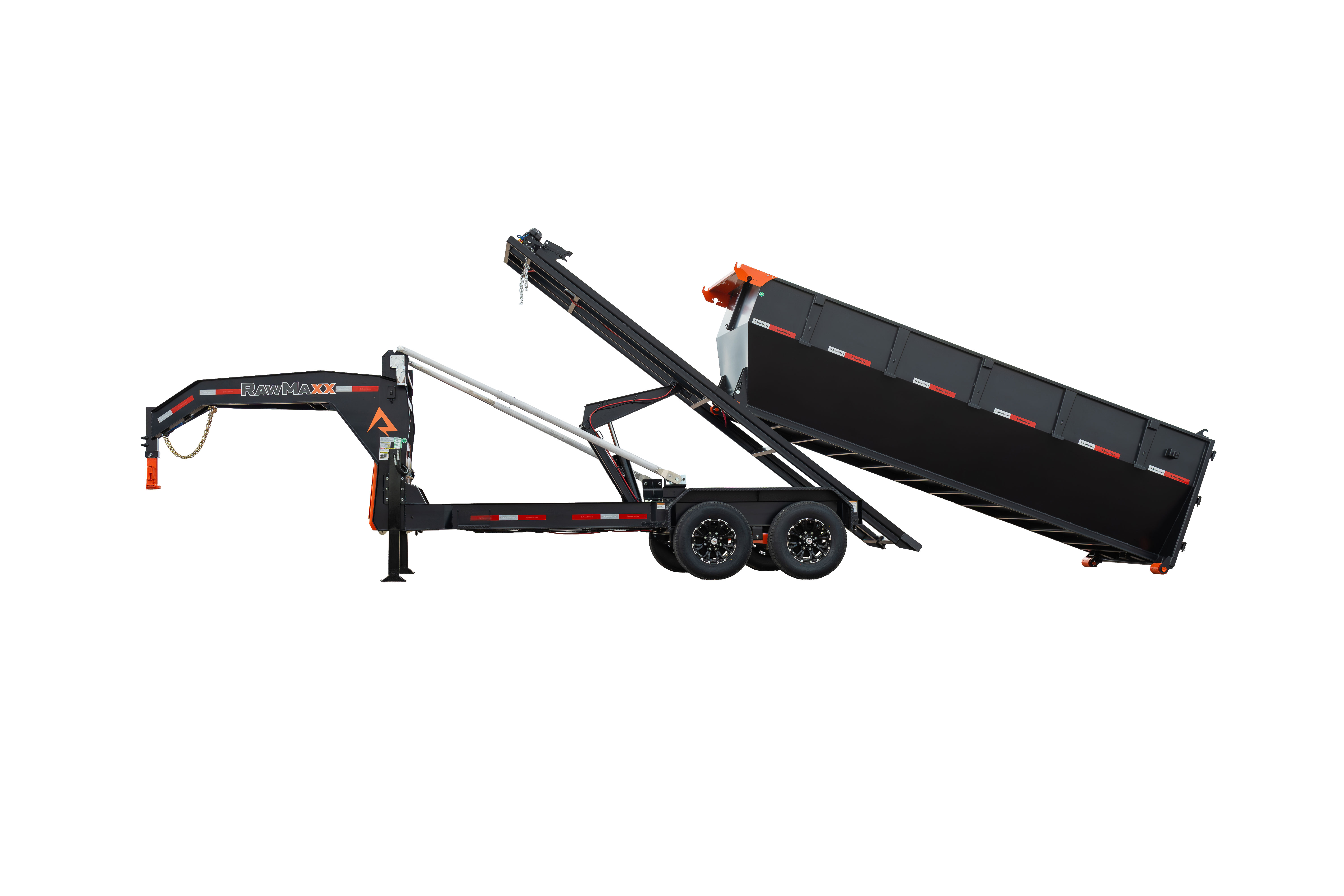

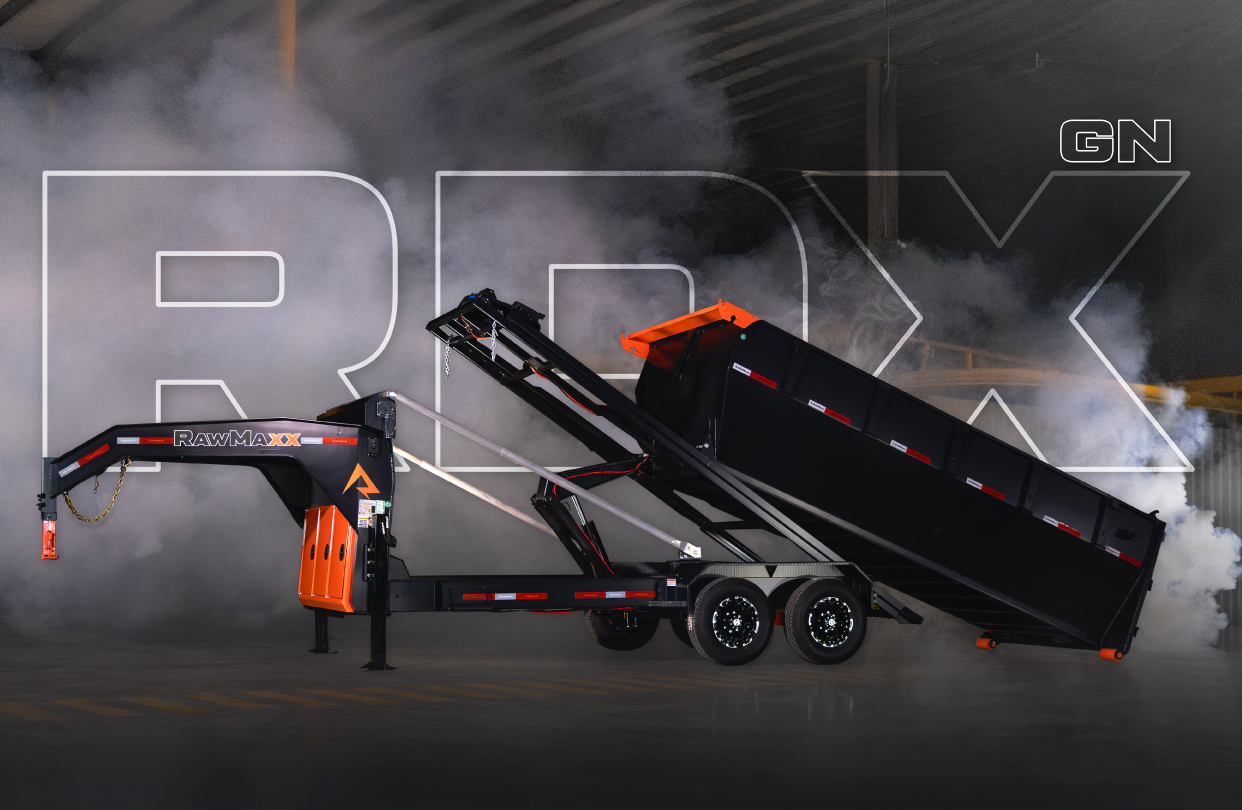

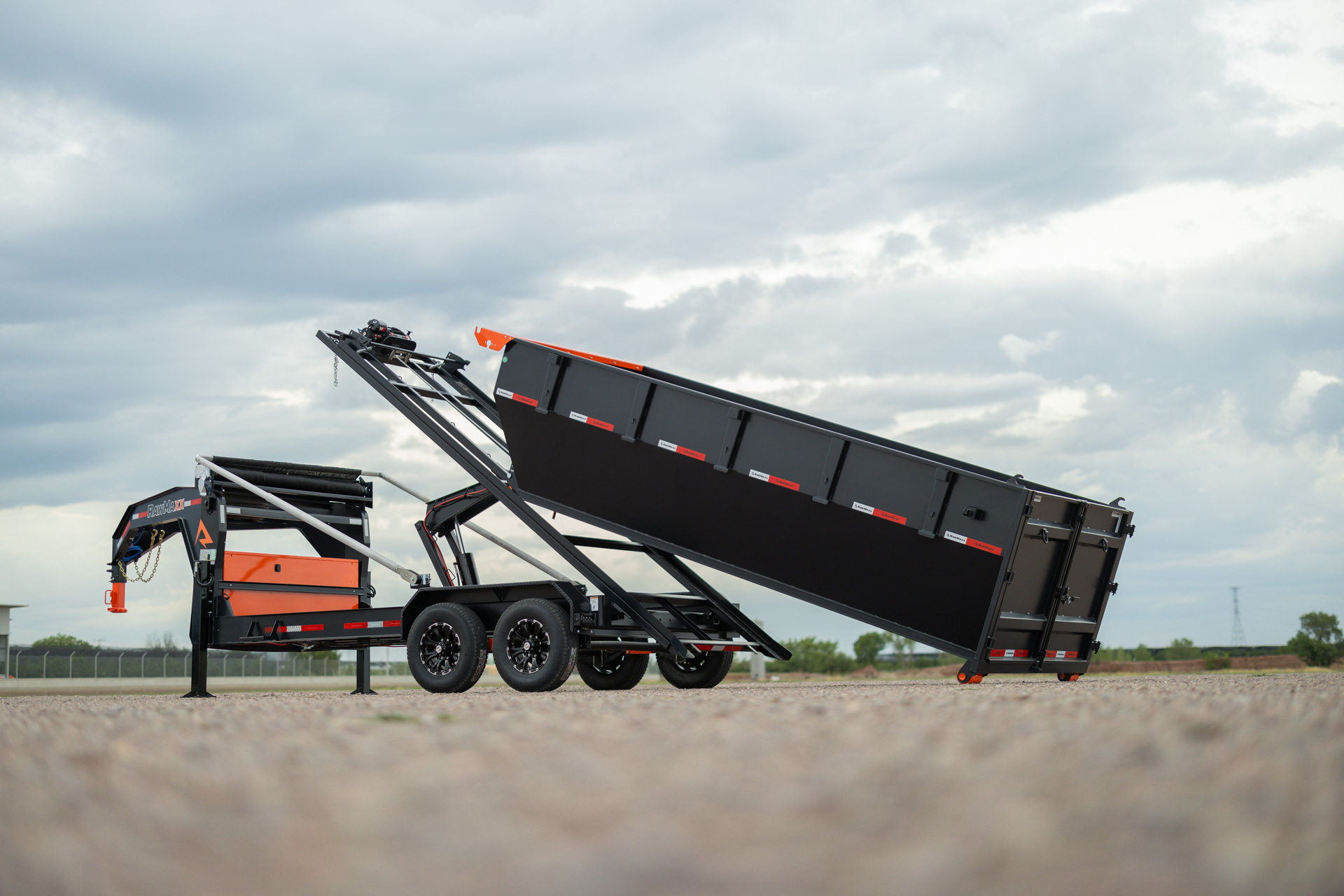

The RDX GN is a heavy-duty gooseneck trailer that comes in three sizes: 14′ x 83″, 16′ x 83″, and 20′ x 83″. The trailer features a 2-5/16” gooseneck ball coupler, 2 side wind drop legs, and a tool box for pump, battery, and charger storage. The frame is made of 10″ x 12 lb. I-beam, and the deck is 5″ x 3″ formed slide rails. The trailer tilts at a 55-degree angle and has a hydraulic power system with a KTI 12V hydraulic pump and a 17,500 lbs. Warrior electric winch. The RDX GN comes with radial tires, 10-ply, with a size of ST235/80R16 and a rating of 3,520 lbs. The trailer has DOT-approved LED lights and 3M reflective tape for safety, as well as a 27M deep cycle marine battery and a 110V integrated trickle charger for power. The RDX also offers the Roll-Off Bin and the Roll-Off Flat Bed, making it an ideal trailer for various construction jobs. Available options include a tarp kit, dual 10K hydraulic operated jacks, a KTI wireless remote, and a spare tire.
