Standard Features

Features for PHXD30PT20K

  • Length: 30‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 9,348 lbs.
  • Load Capacity: 13,315 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD

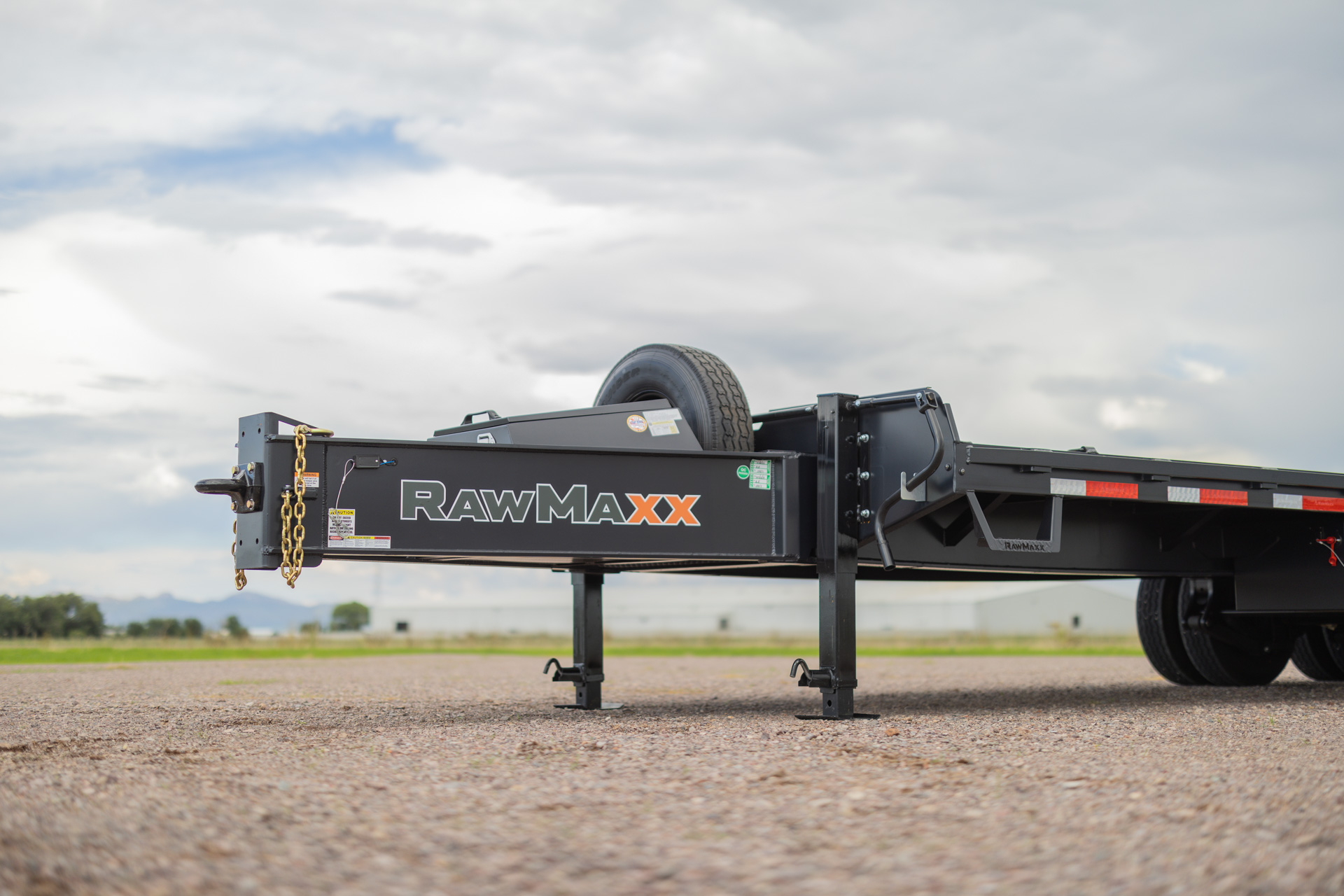

  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs

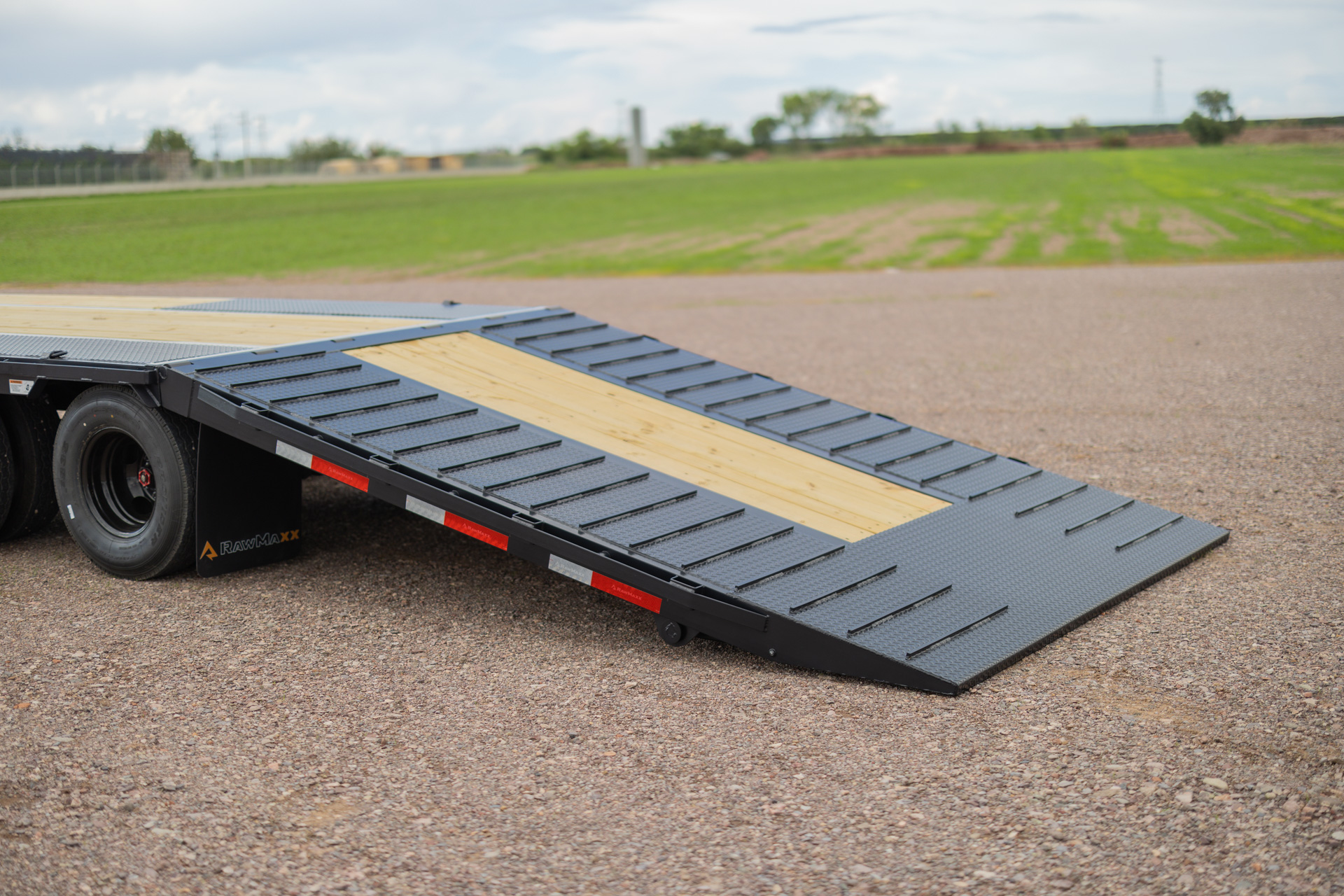

  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD32PT20K

  • Length: 32‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 8,780 lbs.
  • Load Capacity: 14,025 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD34PT20K

  • Length: 34‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 8,920 lbs.
  • Load Capacity: 13,850 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD36PT20K

  • Length: 36‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 9,060 lbs.
  • Load Capacity: 13,675 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD30PT24K

  • Length: 30‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 10,075 lbs.
  • Load Capacity: 17,406 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD32PT24K

  • Length: 32‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 9,550 lbs.
  • Load Capacity: 18,315 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD34PT24K

  • Length: 34‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 9,650 lbs.
  • Load Capacity: 17,938 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD36PT24K

  • Length: 36‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 9,750 lbs.
  • Load Capacity: 17,813 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

PHX 3D

360° View

Order Now

Standard Features

Features for PHXD30PT20K

  • Length: 30‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 9,348 lbs.
  • Load Capacity: 13,315 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD32PT20K

  • Length: 32‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 8,780 lbs.
  • Load Capacity: 14,025 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD34PT20K

  • Length: 34‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 8,920 lbs.
  • Load Capacity: 13,850 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD36PT20K

  • Length: 36‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 9,060 lbs.
  • Load Capacity: 13,675 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD30PT24K

  • Length: 30‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 10,075 lbs.
  • Load Capacity: 17,406 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD32PT24K

  • Length: 32‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 9,550 lbs.
  • Load Capacity: 18,315 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD34PT24K

  • Length: 34‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 9,650 lbs.
  • Load Capacity: 17,938 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for PHXD36PT24K

  • Length: 36‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 9,750 lbs.
  • Load Capacity: 17,813 lbs.
  • 2-5/16” Ball Coupler Or Pintle Eye
  • 12″ Engineered I-Beam Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks. – 10,000 lbs
  • 11′ Hydraulic Tail (10,000 lbs Lift Capacity)
  • Dual Cylinder Hyd. lift
  • Self-locking Hyd. Tail.
  • Flooring: 2” Treated Lumber Deck
  • 4 D-Rings
  • Integrated Tool Box in Tongue
  • Torque Tube
  • Winch Plate
  • 8 – 10 Ply ST235/80R16 Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

PHX

Command

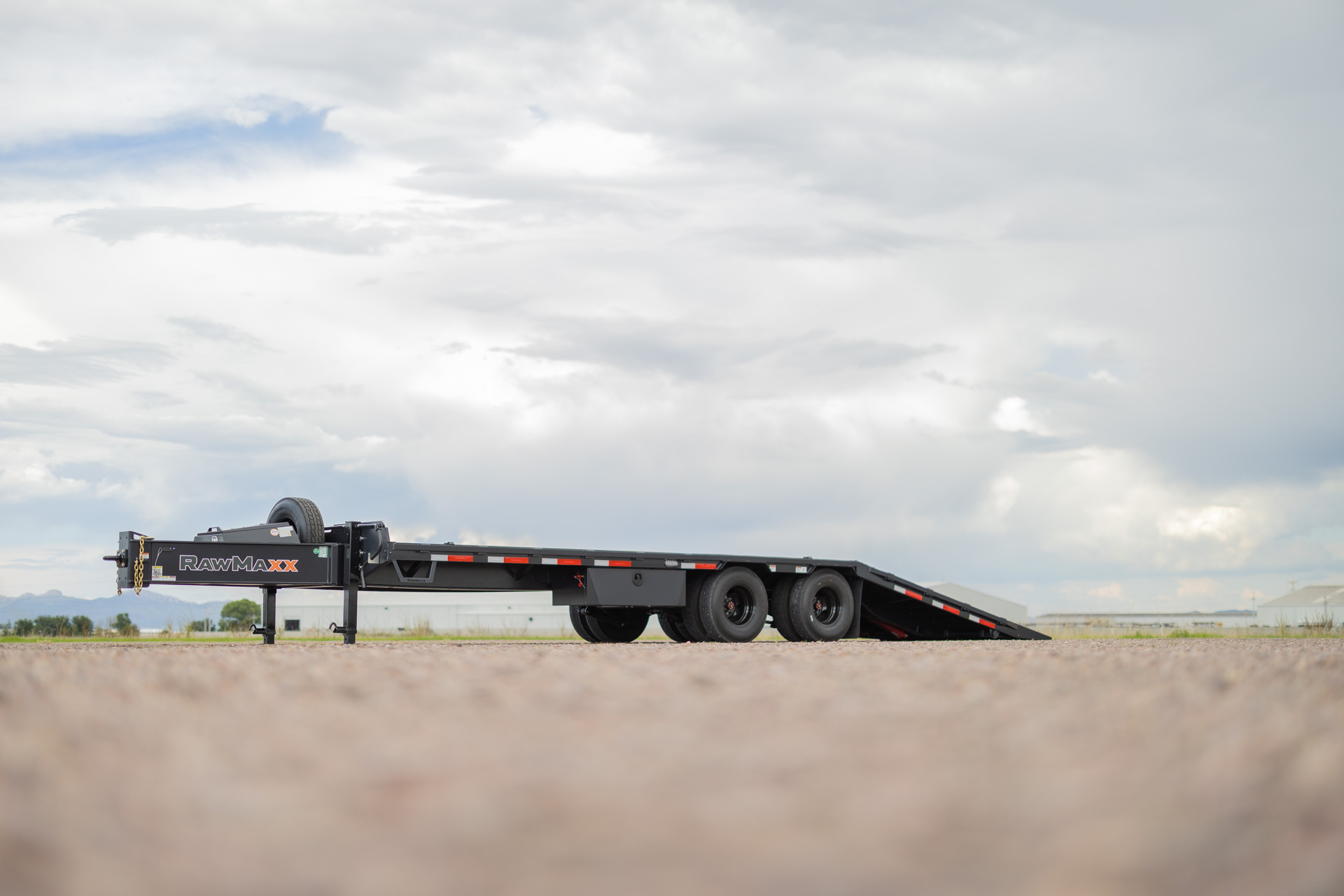

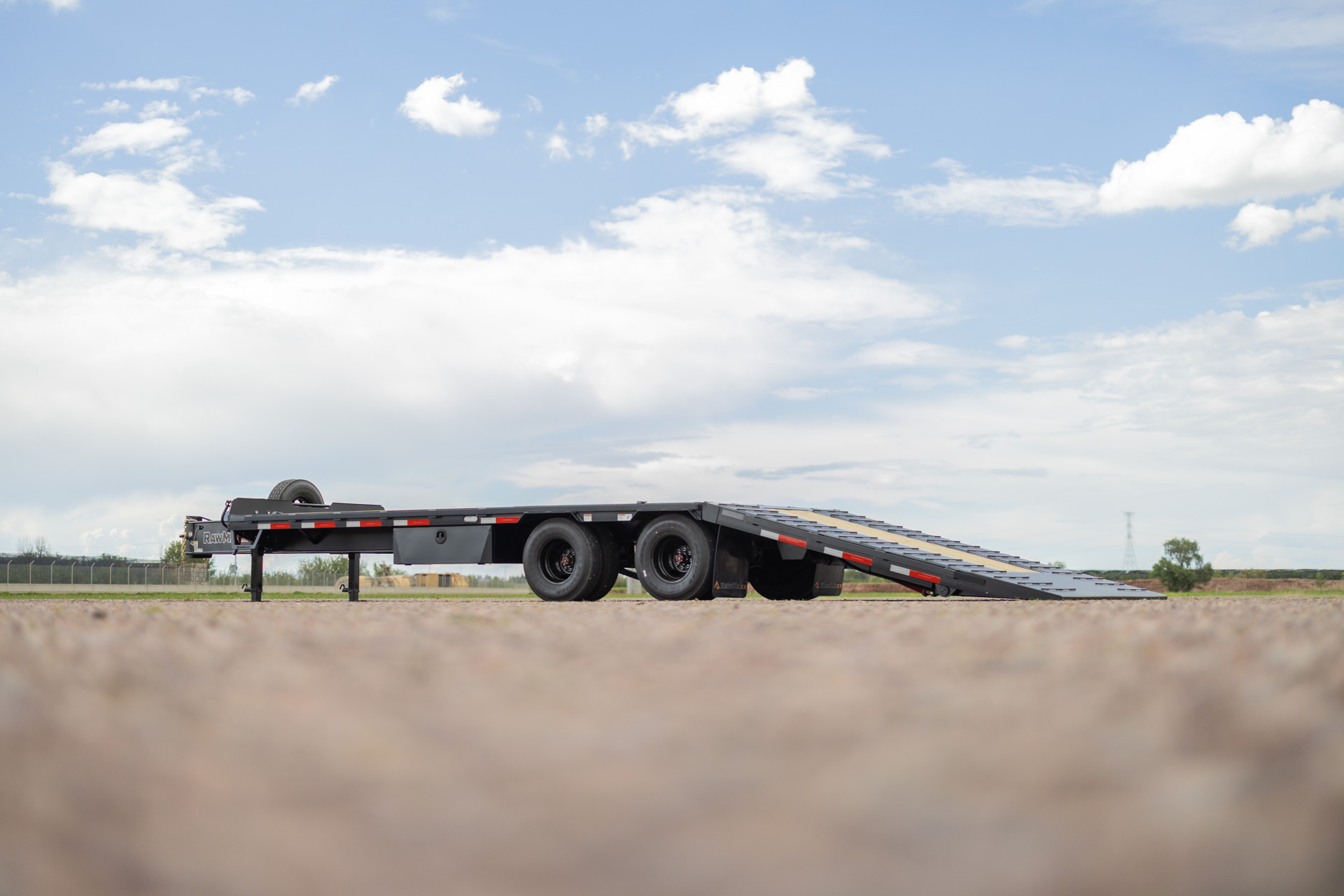

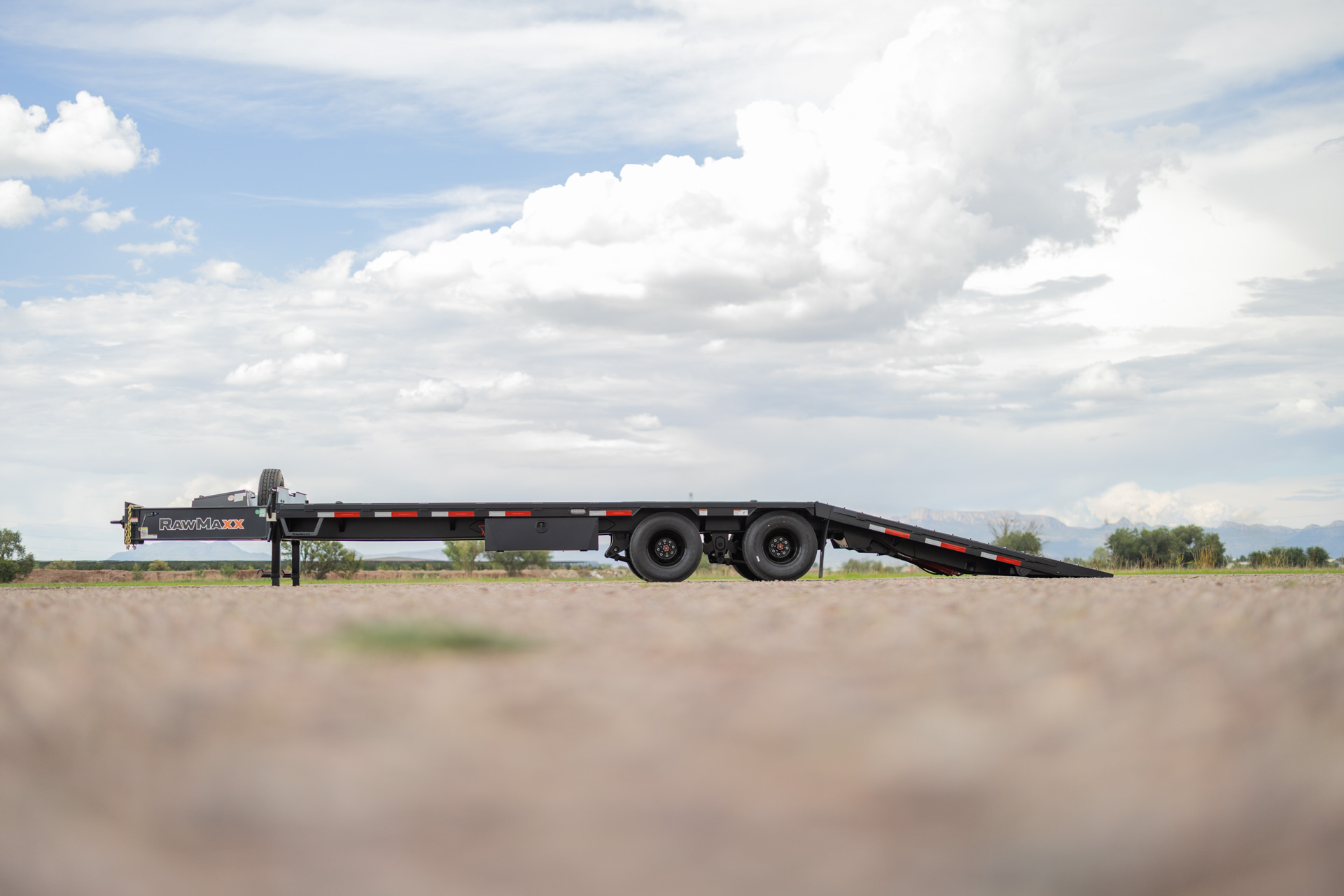

The Pintle Hitch Hydraulic Tail Built for Serious Equipment

When the load gets bigger and the job gets tougher, the RawMaxx PHX is built to answer with control and strength. Available in 30’, 32’, 34’, and 36’ lengths with 20K and 24K configurations, the PHX is designed for operators hauling heavy equipment, machinery, and demanding loads that need more than a standard deckover can offer.

At its core is a massive 12″ x 19 lb. I-beam main frame supported by 3″ channel cross-members on 16″ centers and a 5″ round torque tube for added rigidity across long spans. A full 102″ deck width, 2″ treated lumber floor, drive-over treadplate fenders, and a 6″ channel outer deck frame give the PHX the structure and deck space needed for real equipment hauling. The 11′ hydraulic lift tail is the feature that changes the pace of the day — giving operators smooth, controlled loading without bulky ramps or wasted motion.

A 3″ pintle eye, dual 10,000 lb. drop-leg jacks, and dual 10K electric brake axles keep the trailer planted and job-ready from the front to the rear. Welded D-rings, stake pockets, and available ratchet track options give crews the flexibility to secure equipment with confidence. Dual-wheel running gear, LED lighting, all-weather wiring, and G70 safety chains round out a platform built for hard miles and repeat use.

For heavier applications, the PHX can be upgraded with 12K, 15K, or 16K axle packages, electric-over-hydraulic brakes, winches, underbody toolboxes, and additional load securement options. It’s a trailer built for operators who need hydraulic-tail efficiency and serious structural backbone in the same package.

The RawMaxx PHX — commanding strength, controlled loading, and built for the equipment that keeps the job moving.

The PHX Trailer

Command

The Pintle Hitch Hydraulic Tail Built for Serious Equipment

When the load gets bigger and the job gets tougher, the RawMaxx PHX is built to answer with control and strength. Available in 30’, 32’, 34’, and 36’ lengths with 20K and 24K configurations, the PHX is designed for operators hauling heavy equipment, machinery, and demanding loads that need more than a standard deckover can offer.

At its core is a massive 12″ x 19 lb. I-beam main frame supported by 3″ channel cross-members on 16″ centers and a 5″ round torque tube for added rigidity across long spans. A full 102″ deck width, 2″ treated lumber floor, drive-over treadplate fenders, and a 6″ channel outer deck frame give the PHX the structure and deck space needed for real equipment hauling. The 11′ hydraulic lift tail is the feature that changes the pace of the day — giving operators smooth, controlled loading without bulky ramps or wasted motion.

A 3″ pintle eye, dual 10,000 lb. drop-leg jacks, and dual 10K electric brake axles keep the trailer planted and job-ready from the front to the rear. Welded D-rings, stake pockets, and available ratchet track options give crews the flexibility to secure equipment with confidence. Dual-wheel running gear, LED lighting, all-weather wiring, and G70 safety chains round out a platform built for hard miles and repeat use.

For heavier applications, the PHX can be upgraded with 12K, 15K, or 16K axle packages, electric-over-hydraulic brakes, winches, underbody toolboxes, and additional load securement options. It’s a trailer built for operators who need hydraulic-tail efficiency and serious structural backbone in the same package.

The RawMaxx PHX — commanding strength, controlled loading, and built for the equipment that keeps the job moving.
