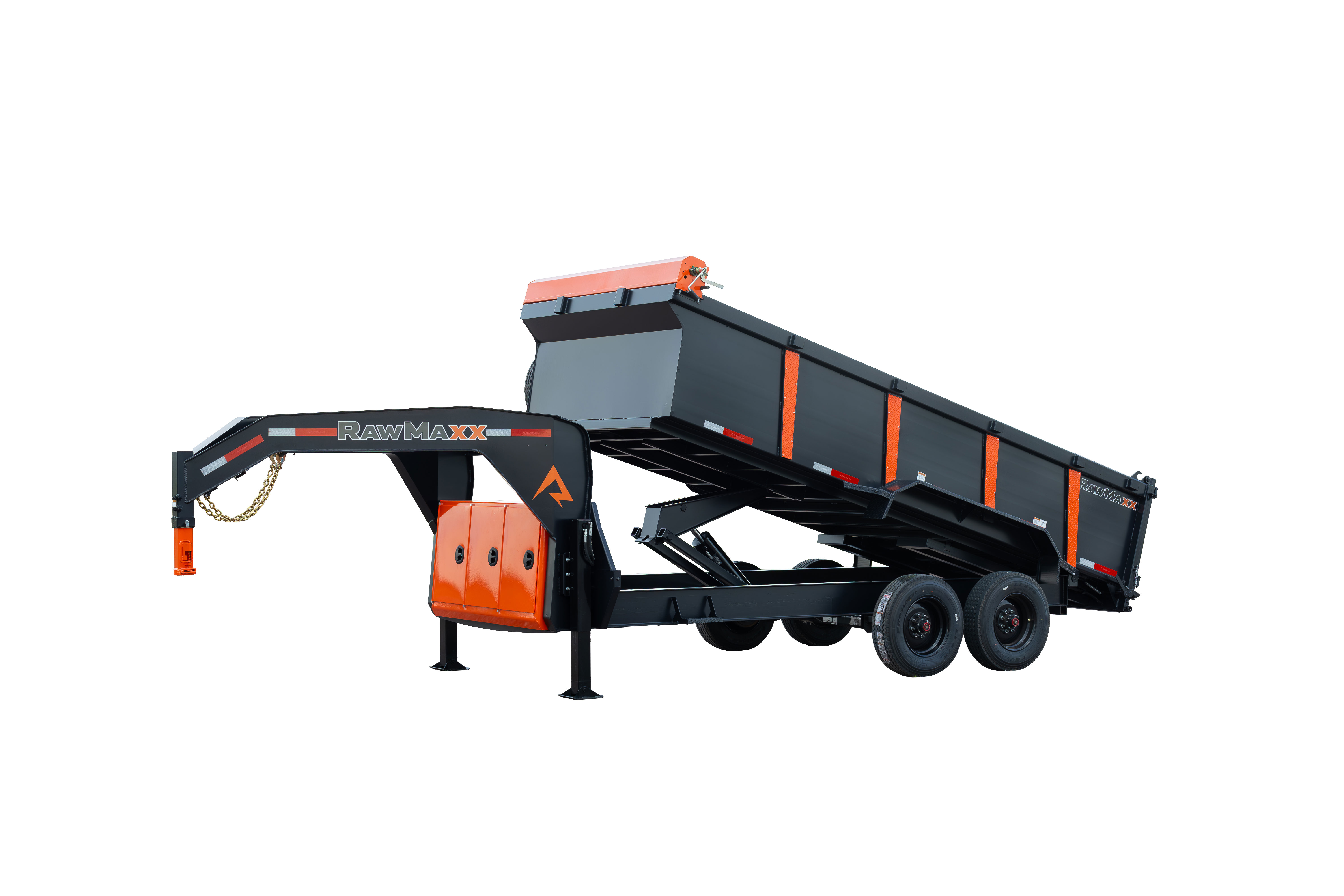

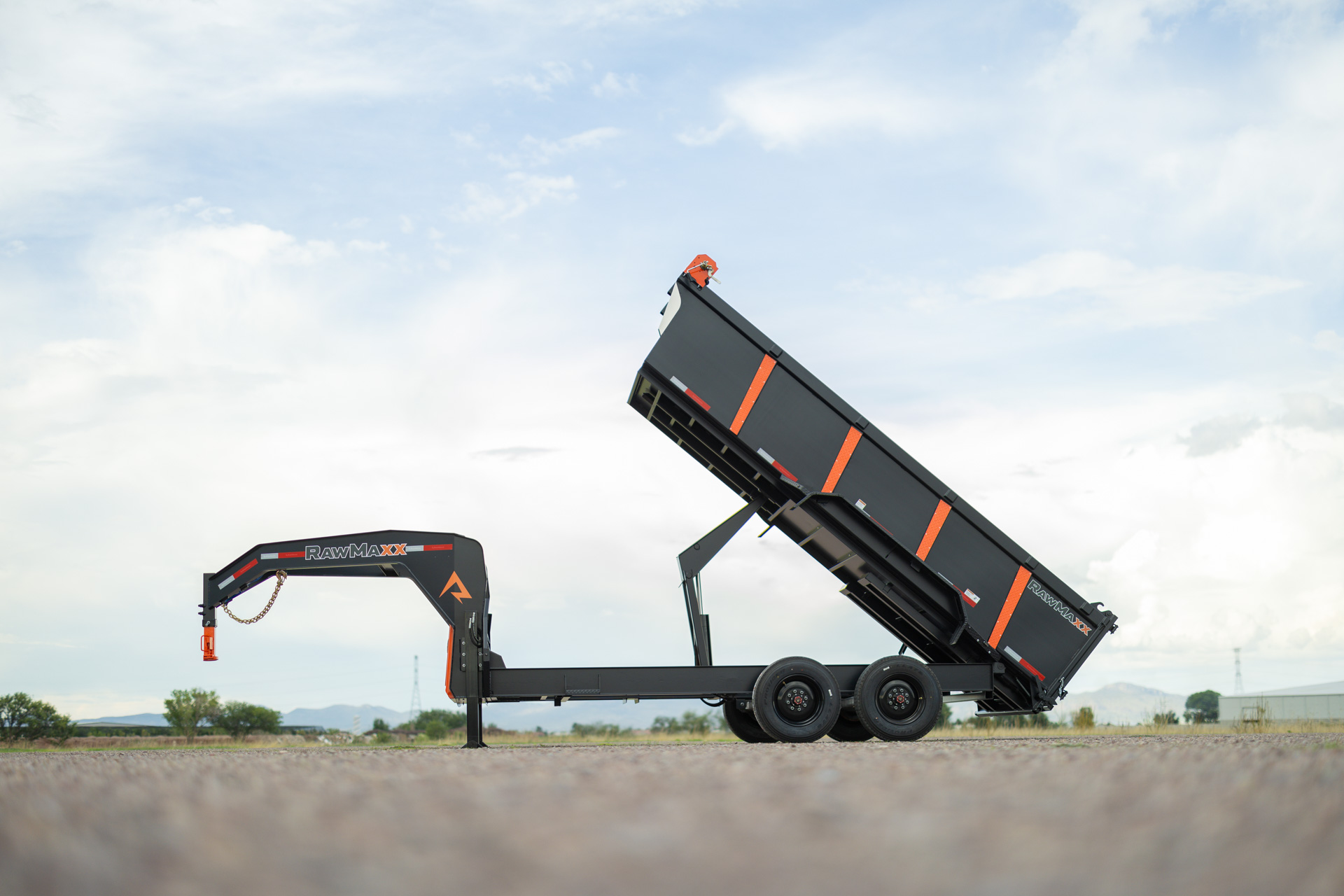

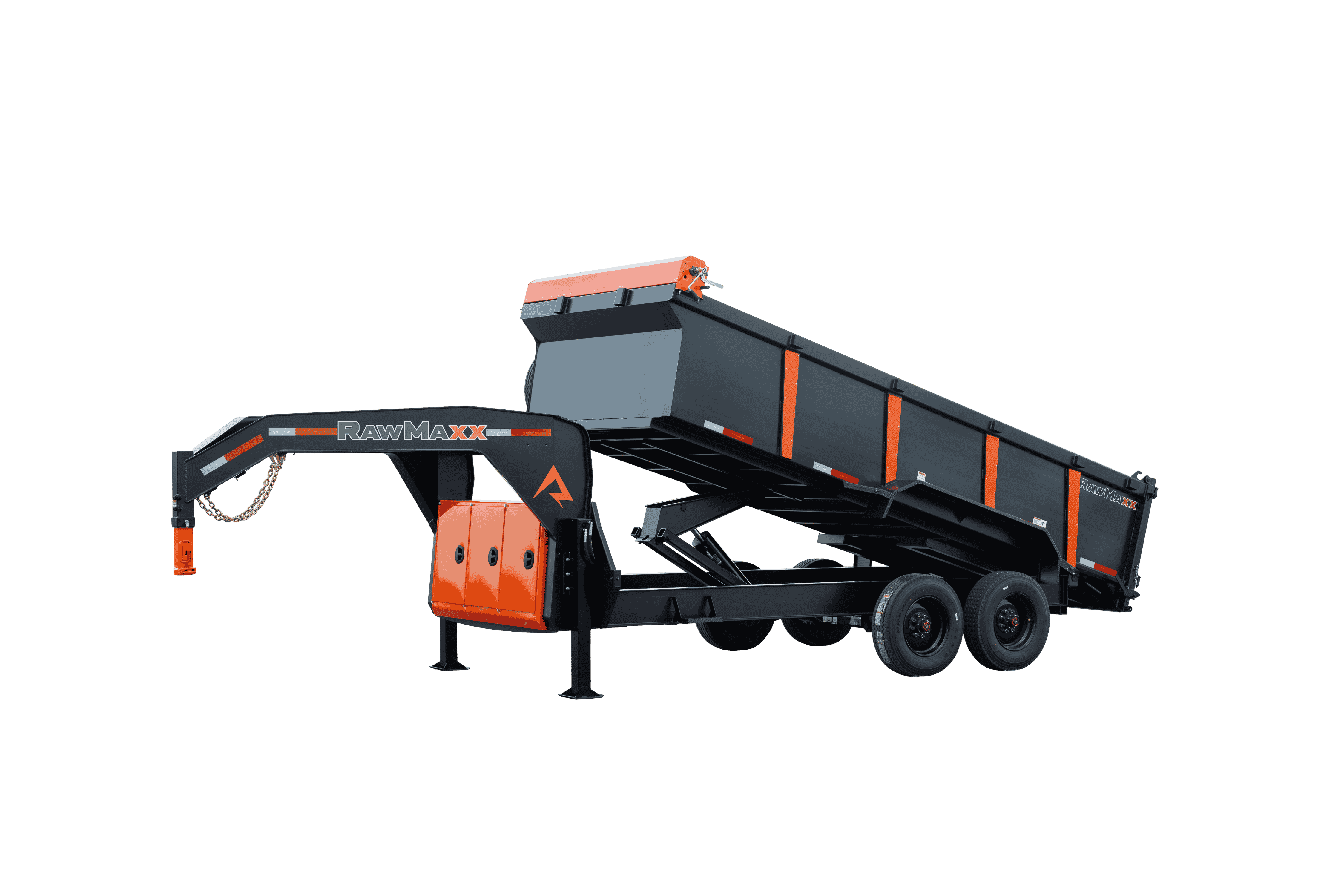

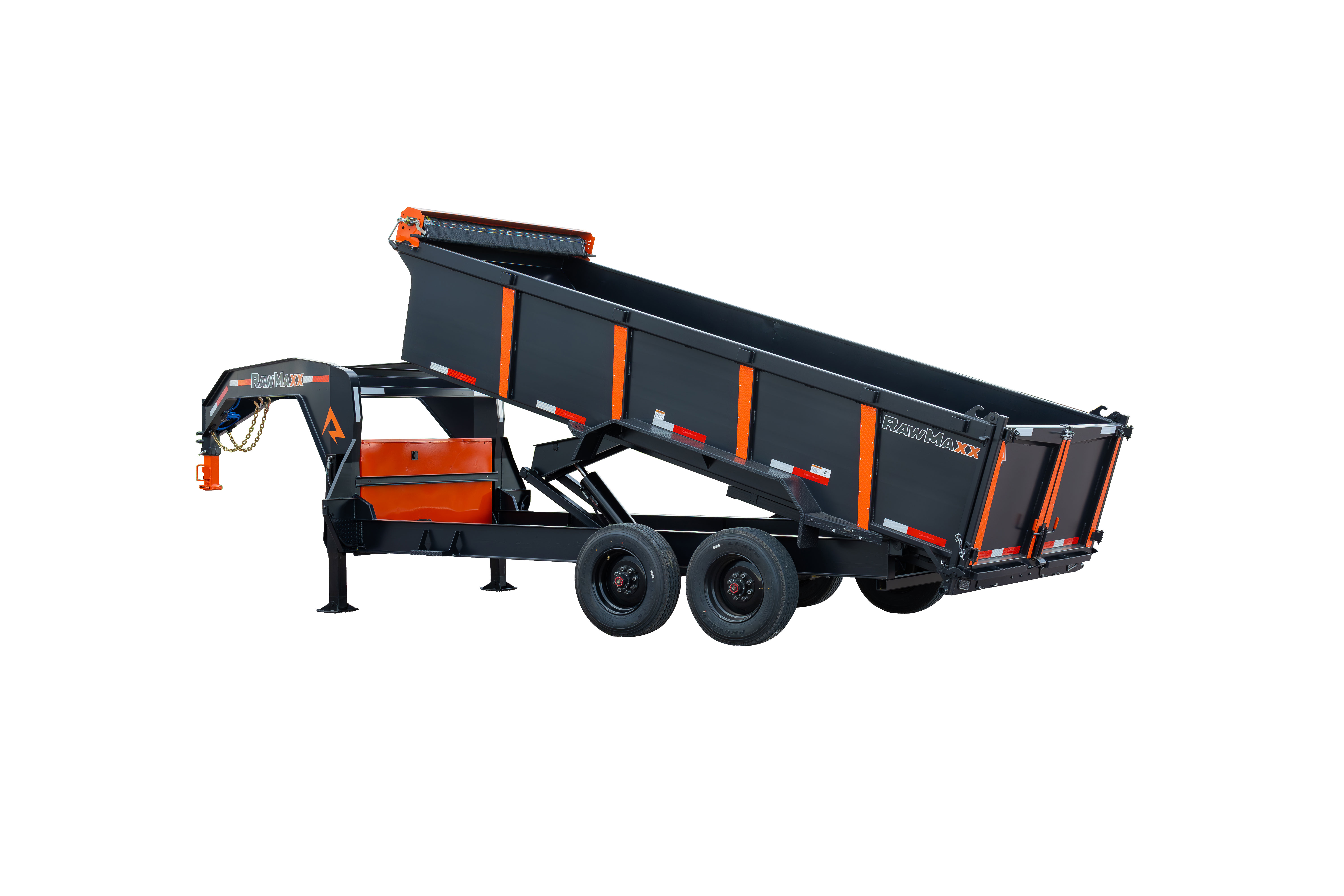

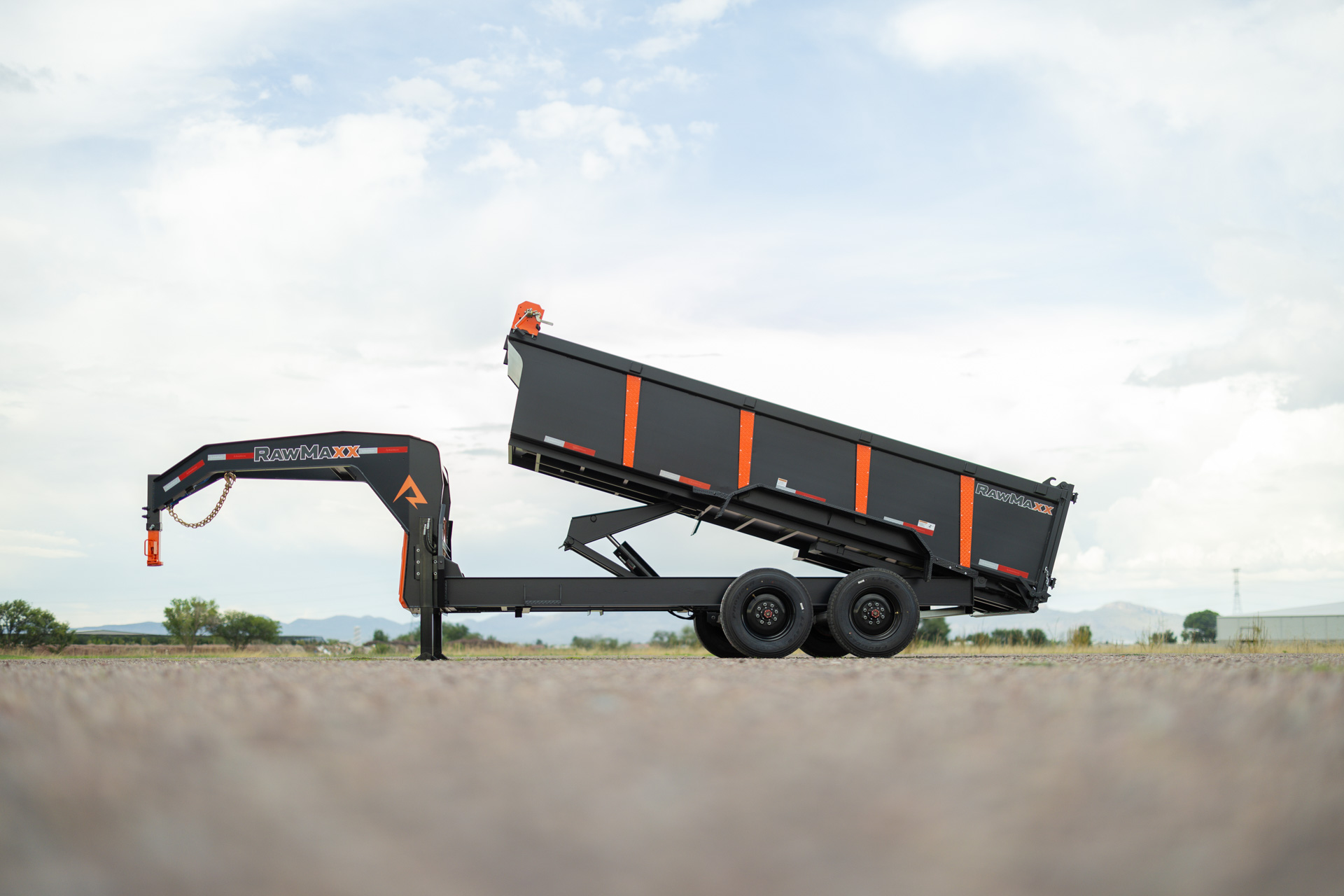

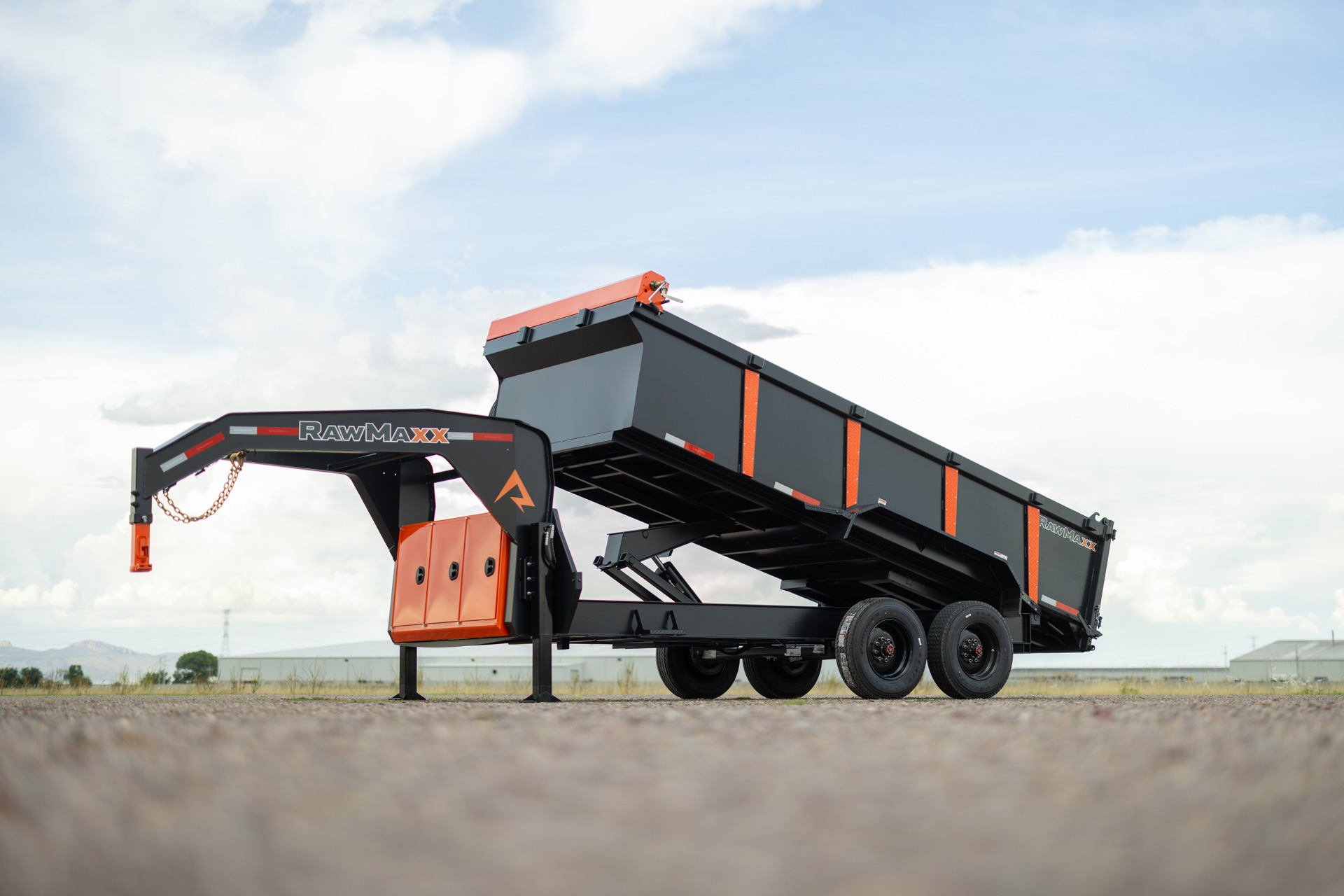

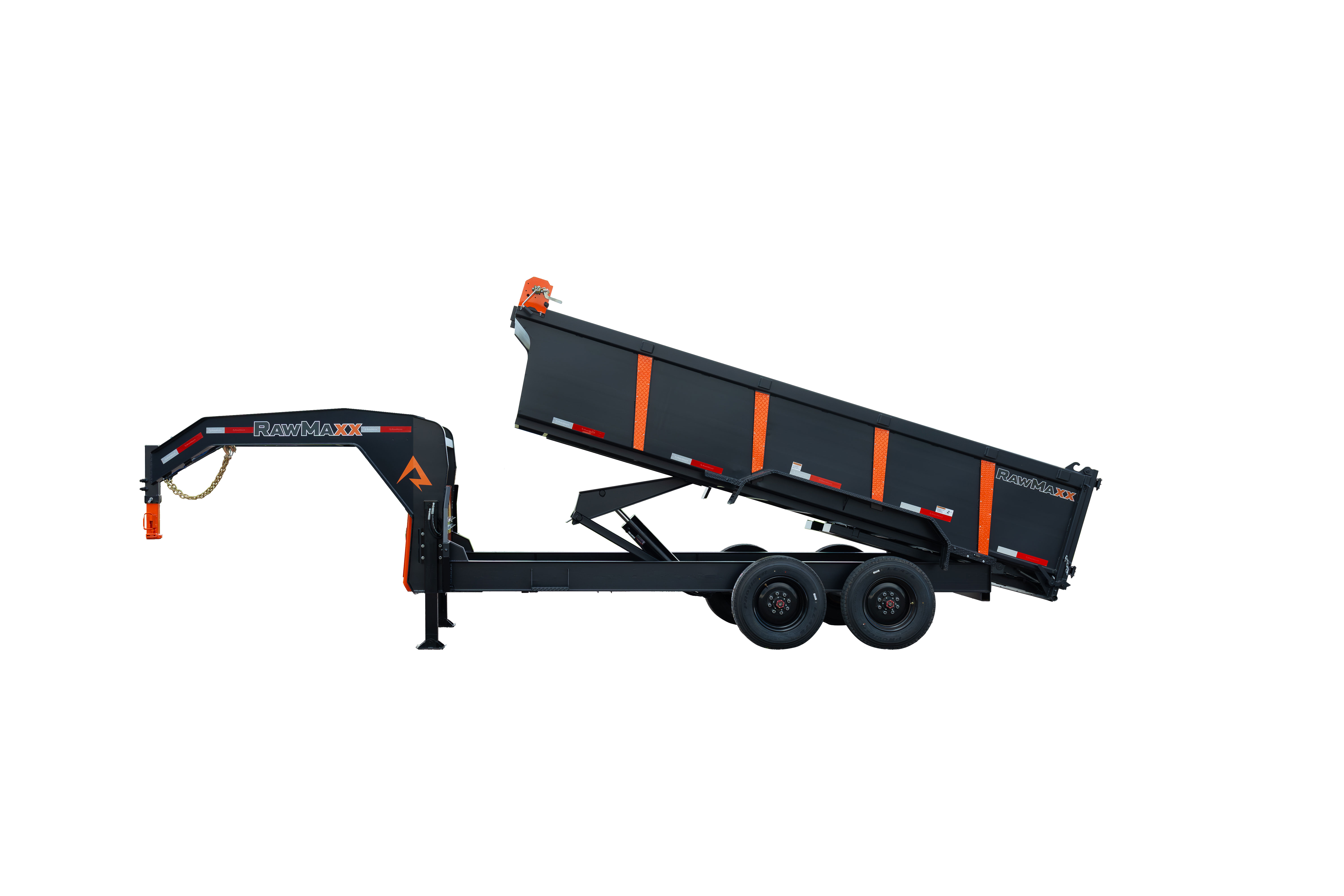

LTX

Available Sizes

Trailer Specs

Dimensions

Length: 16'
Width: 83"
Deck Height: 29"

Weight Rating

GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 5,485 lbs.
Load Capacity: 19,515 lbs.

Finish

Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Gooseneck Ball Coupler

Jacks

Jack: ( 2 ) Side Wind Drop Legs. ( 10,000 lbs.

Tool Box

Tool Box Between Risers for Pump, Battery & Charger

Gooseneck

Neck 10" x 15 lb. I-beam
Gooseneck Length: 92"

Safety System

Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Chassis

Frame

Main Frame: 10" x 15 lb. I-beam Frame
Cross-Member: 4" x 6" x 3/16" Tubing

Dump Bed

Tilt Frame

Type: 5' x 5" x 3/8" Angle
Cross-Members: 3" Channel / 16" Spacings

Dump Bed

Inside Width: 83"
Side Height: 24"
Side Walls: 10G Formed Walls
Flooring: 7G One Piece Floor
Fenders: 12G Diamond Plate Steel
D-Rings: (4) D-Rings ( Welded Inside Corners )

Cargo Capacity

9.5 Cubic Yards

Rear Gate

Gate: 3 Way Doors
Latching System: EZ Slam Door Latches
Ramps: 5' Slide-In Channel Ramps

Lift System

Power: Hydraulic - Powder Up - Down
Pump: KTI 12V Hydraulic Pump
Controller: 14' Cable with Control
Scissor: Heavy Duty Scissor Lift
Cylinder: 6" x 20" Cylinder
Tilt Angle: 48°

Running Gear

Tires

Type: Radial Tires
Size: ST215/75R17.5
Ply: 18 Ply
Rating: 3,520 lbs.
Rims: 17.5” Black Mod Wheels
Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Torsion
Axles: 2
Rating: 10,000 lbs.
Brakes: Electric
Type: Torflex

Electrical & Lighting

Wiring

Front Plug 7 - Way RV
Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights

Battery & Charging

Battery: 27M Deep Cycle Marine Battery
Charging System: 110V Integrated Trickle Charger

Available Options

Side Height Options

36" High Sides
44" high Sides

Tarp Options

Manual Tarp Kit

Jack Options

Dual 10K Hydraulic Operated Jacks

Other Options

KTI Wireless Remote

Tire Options

18 ply 215/75R17.5 Spare

Trailer Specs

Dimensions

Length: 18'
Width: 83"
Deck Height: 29"

Weight Rating

GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 6,495 lbs.
Load Capacity: 18,505 lbs.

Finish

Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Gooseneck Ball Coupler

Jacks

Jack: ( 2 ) Side Wind Drop Legs. ( 10,000 lbs.

Tool Box

Tool Box Between Risers for Pump, Battery & Charger

Gooseneck

Neck 10" x 15 lb. I-beam
Gooseneck Length: 92"

Safety System

Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Chassis

Frame

Main Frame: 10" x 15 lb. I-beam Frame
Cross-Member: 4" x 6" x 3/16" Tubing

Dump Bed

Tilt Frame

Type: 5' x 5" x 3/8" Angle
Cross-Members: 3" Channel / 16" Spacings

Dump Bed

Inside Width: 83"
Side Height: 24"
Side Walls: 10G Formed Walls
Flooring: 7G One Piece Floor
Fenders: 12G Diamond Plate Steel
D-Rings: (4) D-Rings ( Welded Inside Corners )

Cargo Capacity

-

Rear Gate

Gate: 3 Way Doors
Latching System: EZ Slam Door Latches
Ramps: 5' Slide-In Channel Ramps

Lift System

Power: Hydraulic - Powder Up - Down
Pump: KTI 12V Hydraulic Pump
Controller: 14' Cable with Control
Scissor: Heavy Duty Scissor Lift
Cylinder: 6" x 20" Cylinder
Tilt Angle: 48°

Running Gear

Tires

Type: Radial Tires
Size: ST215/75R17.5
Ply: 18 Ply
Rating: 3,520 lbs.
Rims: 17.5” Black Mod Wheels
Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Torsion
Axles: 2
Rating: 10,000 lbs.
Brakes: Electric
Type: Torflex

Electrical & Lighting

Wiring

Front Plug: 7 - Way RV
Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights

Battery & Charging

Battery: 27M Deep Cycle Marine Battery
Charging System: 110V Integrated Trickle Charger

Available Options

Side Height Options

36" High Sides
44" high Sides

Removable Extensions

12" High Removable Extension Kit
24" High Removable Extension Kit

Tarp Options

Manual Tarp Kit

Jack Options

Dual 10K Hydraulic Operated Jacks

Other Options

KTI Wireless Remote

Tire Options

18 Ply 215/75R17.5 Spare

Trailer Specs

Dimensions

Length: 20'
Width: 83"
Deck Height: 29"

Weight Rating

GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,500 lbs.
Load Capacity: 17,500 lbs.

Finish

Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Gooseneck Ball Coupler

Jacks

Jack: ( 2 ) Side Wind Drop Legs. ( 10,000 lbs.

Tool Box

Tool Box Between Risers for Pump, Battery & Charger

Gooseneck

Neck: 10" x 15 lb. I-beam
Gooseneck Length: 92"

Safety System

Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Chassis

Frame

Main Frame: 10" x 15 lb. I-beam Frame
Cross-Member: 4" x 6" x 3/16" Tubing

Dump Bed

Tilt Frame

Type: 5' x 5" x 3/8" Angle
Cross-Members: 3" Channel / 16" Spacings

Dump Bed

Inside Width: 83"
Side Height: 24"
Flooring: 7G One Piece Floor
Side Walls: 10G Formed Walls
Fenders: 12G Diamond Plate Steel
D-Rings: (4) D-Rings ( Welded Inside Corners )

Cargo Capacity

-

Rear Gate

Gate: 3 Way Doors
Latching System: EZ Slam Door Latches
Ramps: 5' Slide-In Channel Ramps

Lift System

Power: Hydraulic - Powder Up - Down
Pump: KTI 12V Hydraulic Pump
Controller: 14' Cable with Control
Scissor: Heavy Duty Scissor Lift
Cylinder: 6" x 30" Cylinder
Tilt Angle: 48°

Running Gear

Tires

Type: Radial Tires
Size: ST215/75R17.5
Ply: 18 Ply
Rating: 3,520 lbs.
Rims: 17.5” Black Mod Wheels
Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Torsion
Axles: 2
Rating: 10,000 lbs.
Brakes: Electric
Type: Torflex

Electrical & Lighting

Wiring

Front Plug: 7 - Way RV
Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights

Battery & Charging

Battery: 27M Deep Cycle Marine Battery
Charging System: 110V Integrated Trickle Charger

Available Options

Side Height Options

36" High Sides
44" high Sides

Removable Extensions

12" High Removable Extension Kit
24" High Removable Extension Kit

Tarp Options

Manual Tarp Kit

Jack Options

Dual 10K Hydraulic Operated Jacks

Other Options

KTI Wireless Remote

Tire Options

18 Ply 215/75R17.5 Spare

Available Colors

Jet Black Shadow Gray Lava Gray Chalk white Ghost White Sunny Beige Desert Tan Army Green Limon Green Cobalt Blue Classic Orange Ruby Red
