Standard Features
Features for “LTX16GN20K”
- Length: 16‘
- Width: 83“
- Deck Height: 28“
- GVWR: 20,000 lbs.
- GAWR: 10,000 lbs.
- Empty Weight: 6,100 lbs.
- Load Capacity: 17,375 lbs.
- Main Frame: 10″ x 15 lb. I Beam
- Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 24″
- Capacity: 7.45 Cubic Yards
- Side Walls: 10G Formed Plate
- Side Rail: 10G Formed Plate
- Side Post: 10G Formed Plate
- Flooring: 7G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 20″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
- Tool Box: Bolt On Tool Box Between Risers
- Suspension: Torsion
- Axles: 2 – 10,000 lb. Electric Brake Axles
- 18 Ply ST235/75R17.5 Tires
- 17.5″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5″
- Safety Chains: 3/8″ G70 Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “LTX18GN20K”
- Length: 18‘
- Width: 83“
- Deck Height: 28“
- GVWR: 20,000 lbs.
- GAWR: 10,000 lbs.
- Empty Weight: 7,250 lbs.
- Load Capacity: 15,938 lbs.
- Main Frame: 10″ x 15 lb. I Beam
- Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 24″
- Capacity: 7.45 Cubic Yards
- Side Walls: 10G Formed Plate
- Side Rail: 10G Formed Plate
- Side Post: 10G Formed Plate
- Flooring: 7G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 30″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
- Tool Box: Bolt On Tool Box Between Risers
- Suspension: Torsion
- Axles: 2 – 10,000 lb. Electric Brake Axles
- 18 Ply ST235/75R17.5 Tires
- 17.5″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5″
- Safety Chains: 3/8″ G70 Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “LTX20GN20K”
- Length: 20‘
- Width: 83“
- Deck Height: 28“
- GVWR: 20,000 lbs.
- GAWR: 10,000 lbs.
- Empty Weight: 7,450 lbs.
- Load Capacity: 15,688 lbs.
- Main Frame: 10″ x 15 lb. I Beam
- Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 24″
- Capacity: 7.45 Cubic Yards
- Side Walls: 10G Formed Plate
- Side Rail: 10G Formed Plate
- Side Post: 10G Formed Plate
- Flooring: 7G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 30″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
- Tool Box: Bolt On Tool Box Between Risers
- Suspension: Torsion
- Axles: 2 – 10,000 lb. Electric Brake Axles
- 18 Ply ST235/75R17.5 Tires
- 17.5″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5″
- Safety Chains: 3/8″ G70 Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
LTX GN 3D
Standard Features
Features for “LTX16GN20K”
- Length: 16‘
- Width: 83“
- Deck Height: 28“
- GVWR: 20,000 lbs.
- GAWR: 10,000 lbs.
- Empty Weight: 6,100 lbs.
- Load Capacity: 17,375 lbs.
- Main Frame: 10″ x 15 lb. I Beam
- Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 24″
- Capacity: 7.45 Cubic Yards
- Side Walls: 10G Formed Plate
- Side Rail: 10G Formed Plate
- Side Post: 10G Formed Plate
- Flooring: 7G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 20″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
- Tool Box: Bolt On Tool Box Between Risers
- Suspension: Torsion
- Axles: 2 – 10,000 lb. Electric Brake Axles
- 18 Ply ST235/75R17.5 Tires
- 17.5″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5″
- Safety Chains: 3/8″ G70 Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “LTX18GN20K”
- Length: 18‘
- Width: 83“
- Deck Height: 28“
- GVWR: 20,000 lbs.
- GAWR: 10,000 lbs.
- Empty Weight: 7,250 lbs.
- Load Capacity: 15,938 lbs.
- Main Frame: 10″ x 15 lb. I Beam
- Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 24″
- Capacity: 7.45 Cubic Yards
- Side Walls: 10G Formed Plate
- Side Rail: 10G Formed Plate
- Side Post: 10G Formed Plate
- Flooring: 7G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 30″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
- Tool Box: Bolt On Tool Box Between Risers
- Suspension: Torsion
- Axles: 2 – 10,000 lb. Electric Brake Axles
- 18 Ply ST235/75R17.5 Tires
- 17.5″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5″
- Safety Chains: 3/8″ G70 Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “LTX20GN20K”
- Length: 20‘
- Width: 83“
- Deck Height: 28“
- GVWR: 20,000 lbs.
- GAWR: 10,000 lbs.
- Empty Weight: 7,450 lbs.
- Load Capacity: 15,688 lbs.
- Main Frame: 10″ x 15 lb. I Beam
- Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 24″
- Capacity: 7.45 Cubic Yards
- Side Walls: 10G Formed Plate
- Side Rail: 10G Formed Plate
- Side Post: 10G Formed Plate
- Flooring: 7G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 30″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
- Tool Box: Bolt On Tool Box Between Risers
- Suspension: Torsion
- Axles: 2 – 10,000 lb. Electric Brake Axles
- 18 Ply ST235/75R17.5 Tires
- 17.5″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5″
- Safety Chains: 3/8″ G70 Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
LTX GN
Relentless
The Heavy-Duty Gooseneck Dump Built for Real Weight

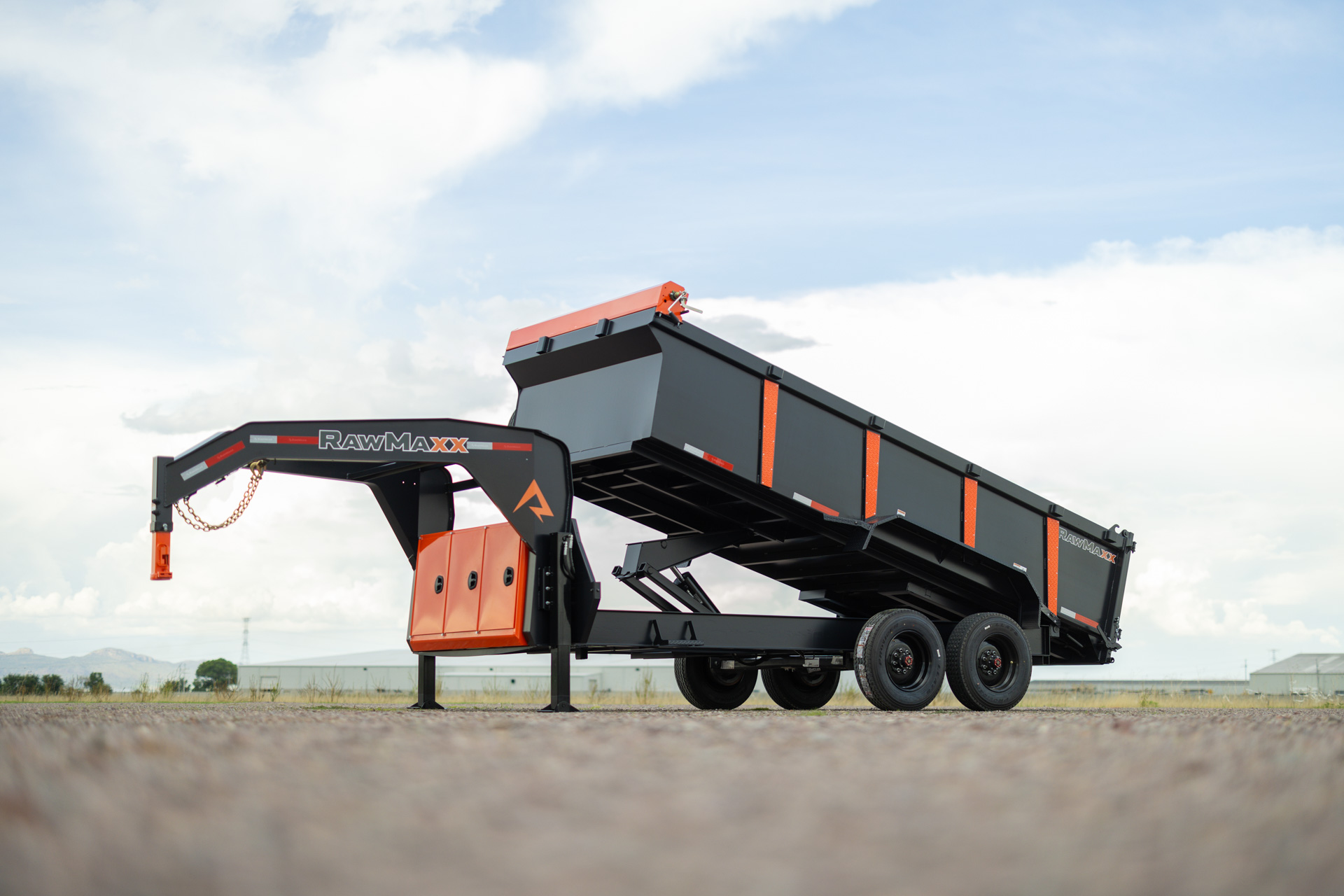

When the job calls for serious capacity and zero hesitation, the RawMaxx LTX GN shows up ready. Available in 14’, 16’, 18’, and 20’ lengths, this 20,000 lb. GVWR gooseneck dump delivers over 16,000 lbs. of usable load capacity and 9.5 cubic yards of hauling volume — built for contractors, crews, and operators who move material daily.
Strength starts with a 10″ x 15 lb. I-beam main frame and gooseneck neck, paired with 4″ x 6″ cross-members and a heavy-duty scissor lift system. The dump bed features 10-gauge formed walls, a 7-gauge one-piece steel floor, and 24″ sides — built to handle rock, dirt, debris, and equipment without flinching.

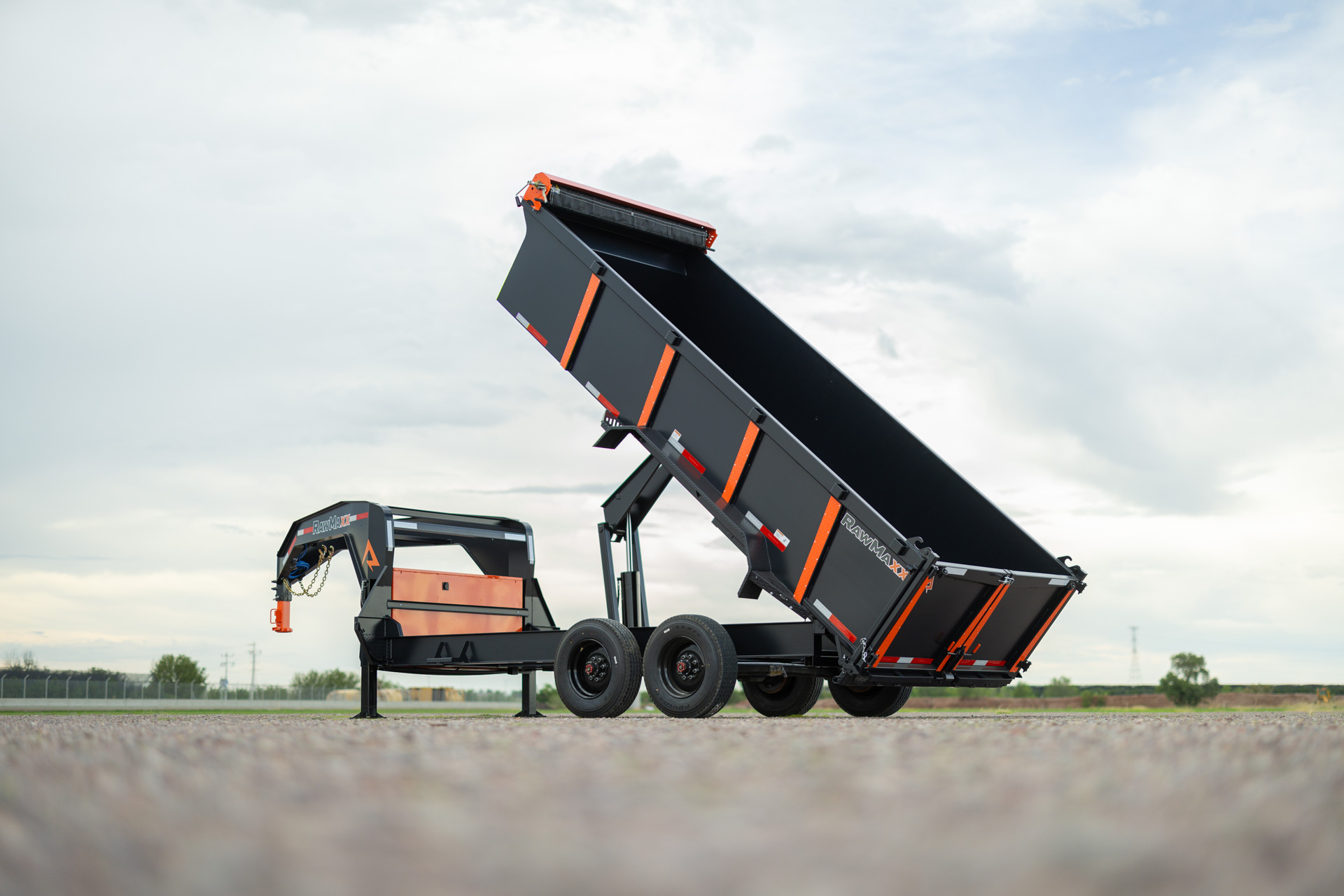

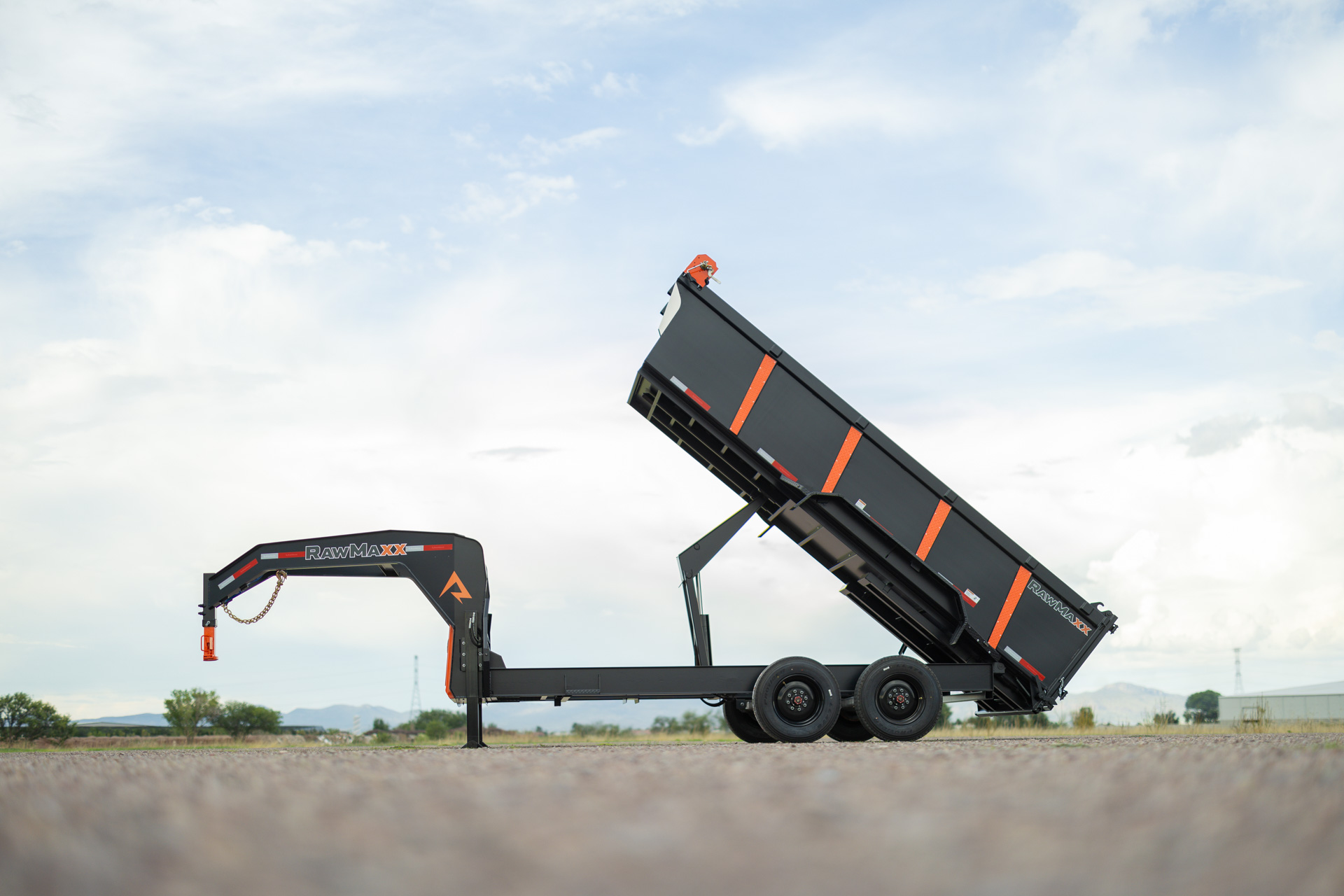

The hydraulic power up / power down system, driven by a KTI 12V pump and 6″ x 20″ cylinder, delivers a strong 48° dump angle for clean, controlled unloading. A 3-way rear gate with EZ Slam latches and 6′ slide-in channel ramps add versatility for material dumping or equipment loading in one setup.
Up front, the 92″ gooseneck with dual 10,000 lb. drop-leg jacks and integrated toolbox keeps the trailer stable and job-ready. Dual 10K torsion axles with 18-ply 17.5″ tires provide serious road stability and durability under heavy load.
LED lighting, all-weather wiring, G70 safety chains, and an integrated 110V battery charging system come standard. Available upgrades like 36″ or 44″ high sides, hydraulic jacks, stabilizer legs, wireless remote, and 2-tone paint allow you to spec it exactly how your workload demands.
The RawMaxx LTX GN — relentless strength, controlled power, and built to move real material without compromise.
