Standard Features

Features for “LPXT14BP14K”

Length: 14‘
Width: 83“
Deck Height: 28“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,091 lbs.
Load Capacity: 10,245 lbs.
Main Frame: 8″ x 13 lb. I Beam
Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
Dump Bed Width: 83″
Side Height: 22″
Capacity: 6.85 Cubic Yards
Side Walls: 10G Formed Plate
Side Rail: 10G Formed Plate
Side Post: 10G Formed Plate
Flooring: 7G Plate
Fenders: 12G Diamond Plate Fenders
D-Rings: 4 D-Rings Standard (Welded Inside Corners)
State Pockets: 3 7/8″ x 1 13/16″ (ID)
Rear Gate: 3in1 Rear Gate
Latching System: EZ Slam Door Latches
Ramps: 6′ Slide Out Channel Ramps
Tarp: Manual Tarp Kit
Lift System: Hydraulic Power up / Gravity Down
Pump: KTI Hydraulic Pump
Telescopic: Telescopic 3 Stage Cylinder
Tilt Angle: 41°
Coupler: 2 5/16″ Adjustable Ball
Jacks: 10,000 lb. Side Wind Drop Leg Jack
Tool Box: Integrated In Tongue
Suspension: Leaf Spring
Axles: 2 – 7,000 lb. Electric Brake Axles
10 Ply ST235/80R16 Tires (3,520 lb. Rating)
16″ Black Mod Steel Wheels
Bolt Pattern: 8 on 6.5″
Safety Chains: 3/8″ G70 Chains
Spare Mount: Included
All Weather Proof Harness
Market Lights: 3/4″ LED Bullet Lights
Rear Lights: 6″ Oval DOT Approved LED Lights
Paint: Powder Coated
Color: Midnight Black With Classic Orange Trim
5 Year Dexter Axle Warranty
3 Year Structural Warranty
1 Year Paint Warranty

Features for “LPXT16BP14K”

Length: 16‘
Width: 83“
Deck Height: 28“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,291 lbs.
Load Capacity: 10,015 lbs.
Main Frame: 8″ x 13 lb. I Beam
Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
Dump Bed Width: 83″
Side Height: 22″
Capacity: 9.20 Cubic Yards
Side Walls: 10G Formed Plate
Side Rail: 10G Formed Plate
Side Post: 10G Formed Plate
Flooring: 7G Plate
Fenders: 12G Diamond Plate Fenders
D-Rings: 4 D-Rings Standard (Welded Inside Corners)
State Pockets: 3 7/8″ x 1 13/16″ (ID)
Rear Gate: 3in1 Rear Gate
Latching System: EZ Slam Door Latches
Ramps: 6′ Slide Out Channel Ramps
Tarp: Manual Tarp Kit
Lift System: Hydraulic Power up / Gravity Down
Pump: KTI Hydraulic Pump
Telescopic: Telescopic 3 Stage Cylinder
Tilt Angle: 41°
Coupler: 2 5/16″ Adjustable Ball
Jacks: 10,000 lb. Side Wind Drop Leg Jack
Tool Box: Integrated In Tongue
Suspension: Leaf Spring
Axles: 2 – 7,000 lb. Electric Brake Axles
10 Ply ST235/80R16 Tires (3,520 lb. Rating)
16″ Black Mod Steel Wheels
Bolt Pattern: 8 on 6.5″
Safety Chains: 3/8″ G70 Chains
Spare Mount: Included
All Weather Proof Harness
Market Lights: 3/4″ LED Bullet Lights
Rear Lights: 6″ Oval DOT Approved LED Lights
Paint: Powder Coated
Color: Midnight Black With Classic Orange Trim
5 Year Dexter Axle Warranty
3 Year Structural Warranty
1 Year Paint Warranty

Features for “LPXT14BP16K”

Length: 14‘
Width: 83“
Deck Height: 28“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,414 lbs.
Load Capacity: 12,174 lbs.
Main Frame: 8″ x 13 lb. I Beam
Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
Dump Bed Width: 83″
Side Height: 22″
Capacity: 6.85 Cubic Yards
Side Walls: 10G Formed Plate
Side Rail: 10G Formed Plate
Side Post: 10G Formed Plate
Flooring: 7G Plate
Fenders: 12G Diamond Plate Fenders
D-Rings: 4 D-Rings Standard (Welded Inside Corners)
State Pockets: 3 7/8″ x 1 13/16″ (ID)
Rear Gate: 3in1 Rear Gate
Latching System: EZ Slam Door Latches
Ramps: 6′ Slide Out Channel Ramps
Tarp: Manual Tarp Kit
Lift System: Hydraulic Power up / Gravity Down
Pump: KTI Hydraulic Pump
Telescopic: Telescopic 3 Stage Cylinder
Tilt Angle: 41°
Coupler: 2 5/16″ Adjustable Ball
Jacks: 10,000 lb. Side Wind Drop Leg Jack
Tool Box: Integrated In Tongue
Suspension: Leaf Spring
Axles: 2 – 8,000 lb. Electric Brake Axles
14 Ply ST235/85R16 Tires
16″ Black Mod Steel Wheels
Bolt Pattern: 8 on 6.5″
Safety Chains: 3/8″ G70 Chains
Spare Mount: Included
All Weather Proof Harness
Market Lights: 3/4″ LED Bullet Lights
Rear Lights: 6″ Oval DOT Approved LED Lights
Paint: Powder Coated
Color: Midnight Black With Classic Orange Trim
5 Year Dexter Axle Warranty
3 Year Structural Warranty
1 Year Paint Warranty

Features for “LPXT16BP16K”

Length: 16‘
Width: 83“
Deck Height: 28“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,896 lbs.
Load Capacity: 11,620 lbs.
Main Frame: 8″ x 13 lb. I Beam
Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
Dump Bed Width: 83″
Side Height: 22″
Capacity: 9.20 Cubic Yards
Side Walls: 10G Formed Plate
Side Rail: 10G Formed Plate
Side Post: 10G Formed Plate
Flooring: 7G Plate
Fenders: 12G Diamond Plate Fenders
D-Rings: 4 D-Rings Standard (Welded Inside Corners)
State Pockets: 3 7/8″ x 1 13/16″ (ID)
Rear Gate: 3in1 Rear Gate
Latching System: EZ Slam Door Latches
Ramps: 6′ Slide Out Channel Ramps
Tarp: Manual Tarp Kit
Lift System: Hydraulic Power up / Gravity Down
Pump: KTI Hydraulic Pump
Telescopic: Telescopic 3 Stage Cylinder
Tilt Angle: 41°
Coupler: 2 5/16″ Adjustable Ball
Jacks: 10,000 lb. Side Wind Drop Leg Jack
Tool Box: Integrated In Tongue
Suspension: Leaf Spring
Axles: 2 – 8,000 lb. Electric Brake Axles
14 Ply ST235/85R16 Tires
16″ Black Mod Steel Wheels
Bolt Pattern: 8 on 6.5″
Safety Chains: 3/8″ G70 Chains
Spare Mount: Included
All Weather Proof Harness
Market Lights: 3/4″ LED Bullet Lights
Rear Lights: 6″ Oval DOT Approved LED Lights
Paint: Powder Coated
Color: Midnight Black With Classic Orange Trim
5 Year Dexter Axle Warranty
3 Year Structural Warranty
1 Year Paint Warranty

LPXT BP 3D

360° View

Order Now

Standard Features

Features for “LPXT14BP14K”

Length: 14‘
Width: 83“
Deck Height: 28“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,091 lbs.
Load Capacity: 10,245 lbs.
Main Frame: 8″ x 13 lb. I Beam
Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
Dump Bed Width: 83″
Side Height: 22″
Capacity: 6.85 Cubic Yards
Side Walls: 10G Formed Plate
Side Rail: 10G Formed Plate
Side Post: 10G Formed Plate
Flooring: 7G Plate
Fenders: 12G Diamond Plate Fenders
D-Rings: 4 D-Rings Standard (Welded Inside Corners)
State Pockets: 3 7/8″ x 1 13/16″ (ID)
Rear Gate: 3in1 Rear Gate
Latching System: EZ Slam Door Latches
Ramps: 6′ Slide Out Channel Ramps
Tarp: Manual Tarp Kit
Lift System: Hydraulic Power up / Gravity Down
Pump: KTI Hydraulic Pump
Telescopic: Telescopic 3 Stage Cylinder
Tilt Angle: 41°
Coupler: 2 5/16″ Adjustable Ball
Jacks: 10,000 lb. Side Wind Drop Leg Jack
Tool Box: Integrated In Tongue
Suspension: Leaf Spring
Axles: 2 – 7,000 lb. Electric Brake Axles
10 Ply ST235/80R16 Tires (3,520 lb. Rating)
16″ Black Mod Steel Wheels
Bolt Pattern: 8 on 6.5″
Safety Chains: 3/8″ G70 Chains
Spare Mount: Included
All Weather Proof Harness
Market Lights: 3/4″ LED Bullet Lights
Rear Lights: 6″ Oval DOT Approved LED Lights
Paint: Powder Coated
Color: Midnight Black With Classic Orange Trim
5 Year Dexter Axle Warranty
3 Year Structural Warranty
1 Year Paint Warranty

Features for “LPXT16BP14K”

Length: 16‘
Width: 83“
Deck Height: 28“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,291 lbs.
Load Capacity: 10,015 lbs.
Main Frame: 8″ x 13 lb. I Beam
Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
Dump Bed Width: 83″
Side Height: 22″
Capacity: 9.20 Cubic Yards
Side Walls: 10G Formed Plate
Side Rail: 10G Formed Plate
Side Post: 10G Formed Plate
Flooring: 7G Plate
Fenders: 12G Diamond Plate Fenders
D-Rings: 4 D-Rings Standard (Welded Inside Corners)
State Pockets: 3 7/8″ x 1 13/16″ (ID)
Rear Gate: 3in1 Rear Gate
Latching System: EZ Slam Door Latches
Ramps: 6′ Slide Out Channel Ramps
Tarp: Manual Tarp Kit
Lift System: Hydraulic Power up / Gravity Down
Pump: KTI Hydraulic Pump
Telescopic: Telescopic 3 Stage Cylinder
Tilt Angle: 41°
Coupler: 2 5/16″ Adjustable Ball
Jacks: 10,000 lb. Side Wind Drop Leg Jack
Tool Box: Integrated In Tongue
Suspension: Leaf Spring
Axles: 2 – 7,000 lb. Electric Brake Axles
10 Ply ST235/80R16 Tires (3,520 lb. Rating)
16″ Black Mod Steel Wheels
Bolt Pattern: 8 on 6.5″
Safety Chains: 3/8″ G70 Chains
Spare Mount: Included
All Weather Proof Harness
Market Lights: 3/4″ LED Bullet Lights
Rear Lights: 6″ Oval DOT Approved LED Lights
Paint: Powder Coated
Color: Midnight Black With Classic Orange Trim
5 Year Dexter Axle Warranty
3 Year Structural Warranty
1 Year Paint Warranty

Features for “LPXT14BP16K”

Length: 14‘
Width: 83“
Deck Height: 28“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,414 lbs.
Load Capacity: 12,174 lbs.
Main Frame: 8″ x 13 lb. I Beam
Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
Dump Bed Width: 83″
Side Height: 22″
Capacity: 6.85 Cubic Yards
Side Walls: 10G Formed Plate
Side Rail: 10G Formed Plate
Side Post: 10G Formed Plate
Flooring: 7G Plate
Fenders: 12G Diamond Plate Fenders
D-Rings: 4 D-Rings Standard (Welded Inside Corners)
State Pockets: 3 7/8″ x 1 13/16″ (ID)
Rear Gate: 3in1 Rear Gate
Latching System: EZ Slam Door Latches
Ramps: 6′ Slide Out Channel Ramps
Tarp: Manual Tarp Kit
Lift System: Hydraulic Power up / Gravity Down
Pump: KTI Hydraulic Pump
Telescopic: Telescopic 3 Stage Cylinder
Tilt Angle: 41°
Coupler: 2 5/16″ Adjustable Ball
Jacks: 10,000 lb. Side Wind Drop Leg Jack
Tool Box: Integrated In Tongue
Suspension: Leaf Spring
Axles: 2 – 8,000 lb. Electric Brake Axles
14 Ply ST235/85R16 Tires
16″ Black Mod Steel Wheels
Bolt Pattern: 8 on 6.5″
Safety Chains: 3/8″ G70 Chains
Spare Mount: Included
All Weather Proof Harness
Market Lights: 3/4″ LED Bullet Lights
Rear Lights: 6″ Oval DOT Approved LED Lights
Paint: Powder Coated
Color: Midnight Black With Classic Orange Trim
5 Year Dexter Axle Warranty
3 Year Structural Warranty
1 Year Paint Warranty

Features for “LPXT16BP16K”

Length: 16‘
Width: 83“
Deck Height: 28“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,896 lbs.
Load Capacity: 11,620 lbs.
Main Frame: 8″ x 13 lb. I Beam
Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
Dump Bed Width: 83″
Side Height: 22″
Capacity: 9.20 Cubic Yards
Side Walls: 10G Formed Plate
Side Rail: 10G Formed Plate
Side Post: 10G Formed Plate
Flooring: 7G Plate
Fenders: 12G Diamond Plate Fenders
D-Rings: 4 D-Rings Standard (Welded Inside Corners)
State Pockets: 3 7/8″ x 1 13/16″ (ID)
Rear Gate: 3in1 Rear Gate
Latching System: EZ Slam Door Latches
Ramps: 6′ Slide Out Channel Ramps
Tarp: Manual Tarp Kit
Lift System: Hydraulic Power up / Gravity Down
Pump: KTI Hydraulic Pump
Telescopic: Telescopic 3 Stage Cylinder
Tilt Angle: 41°
Coupler: 2 5/16″ Adjustable Ball
Jacks: 10,000 lb. Side Wind Drop Leg Jack
Tool Box: Integrated In Tongue
Suspension: Leaf Spring
Axles: 2 – 8,000 lb. Electric Brake Axles
14 Ply ST235/85R16 Tires
16″ Black Mod Steel Wheels
Bolt Pattern: 8 on 6.5″
Safety Chains: 3/8″ G70 Chains
Spare Mount: Included
All Weather Proof Harness
Market Lights: 3/4″ LED Bullet Lights
Rear Lights: 6″ Oval DOT Approved LED Lights
Paint: Powder Coated
Color: Midnight Black With Classic Orange Trim
5 Year Dexter Axle Warranty
3 Year Structural Warranty
1 Year Paint Warranty

LPXT BP

Elevation

The Telescopic Dump That Changes the Way You Unload

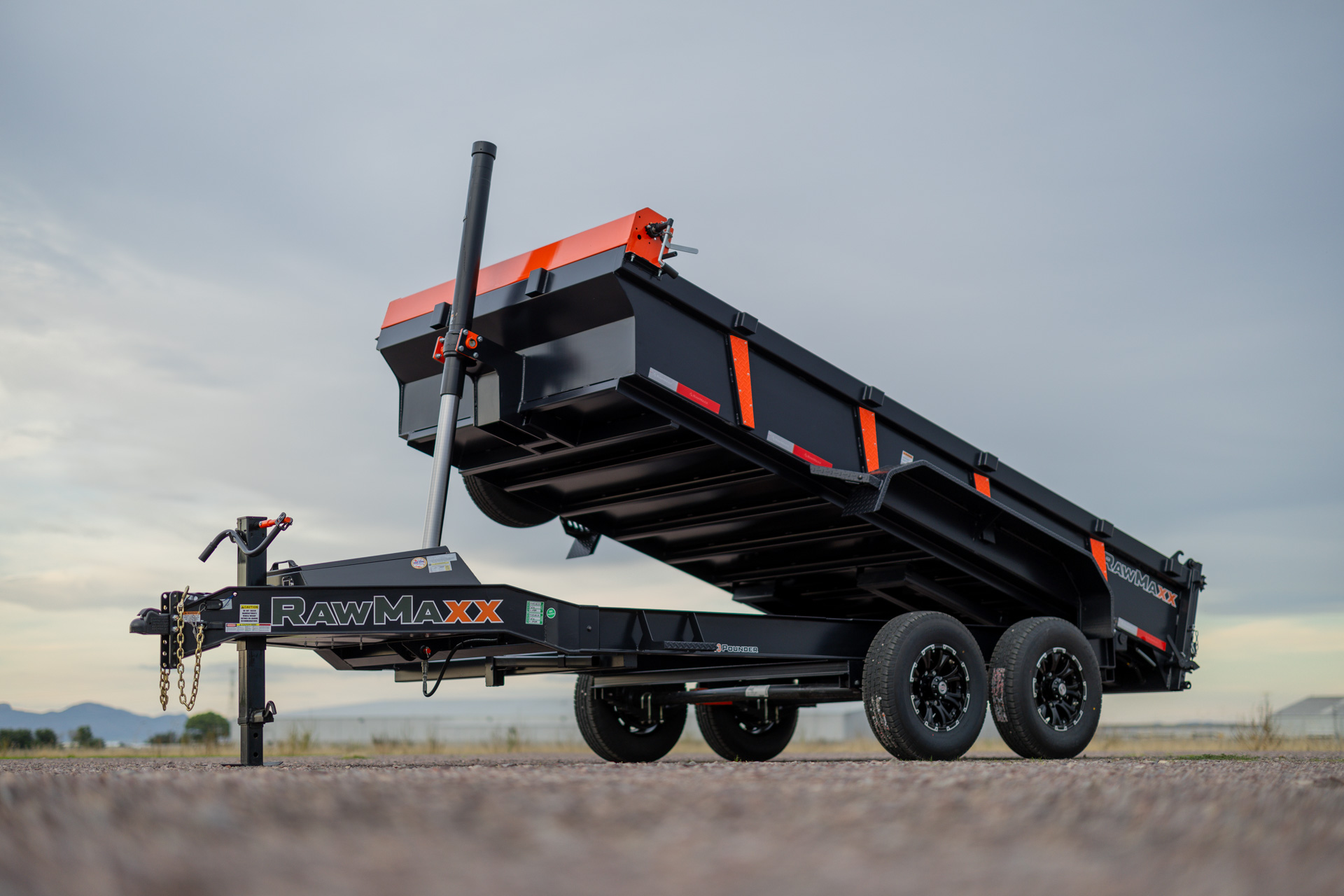

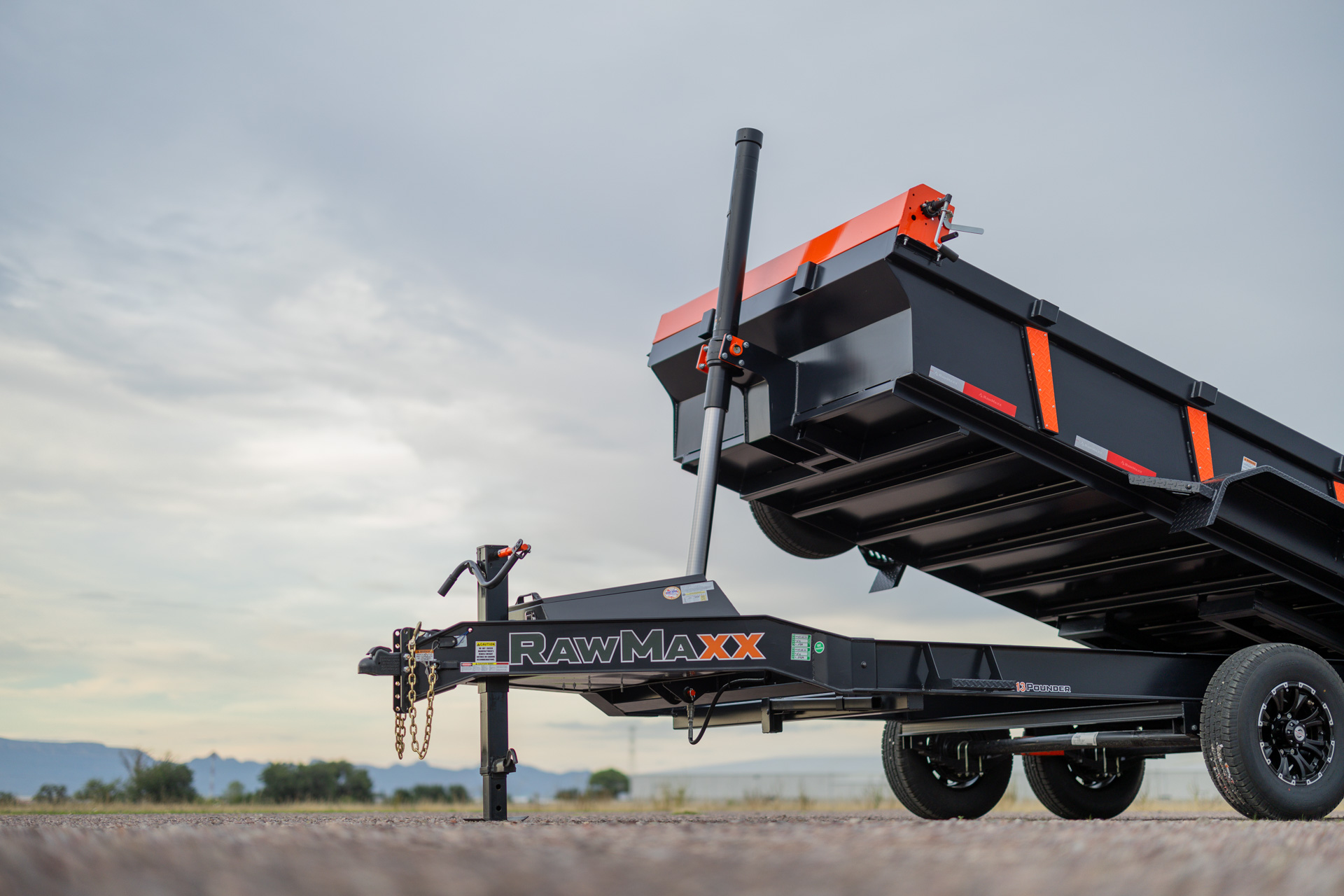

When standard scissor lifts reach their limit, the RawMaxx LPXT BP goes higher. Built with a 3-stage telescopic cylinder and engineered for controlled power, this bumper pull dump trailer is designed for contractors who need real lift height, clean material release, and zero hesitation under load.

Available in 12’, 14’, and 16’ lengths and rated at 14,000 lbs. GVWR, the LPXT BP delivers over 10,000 lbs. of usable payload capacity. An 8” I-beam main frame and reinforced cross-members create a solid foundation, while the 7-gauge steel floor and 10-gauge formed walls stand up to gravel, debris, and heavy construction material without flex or fatigue.

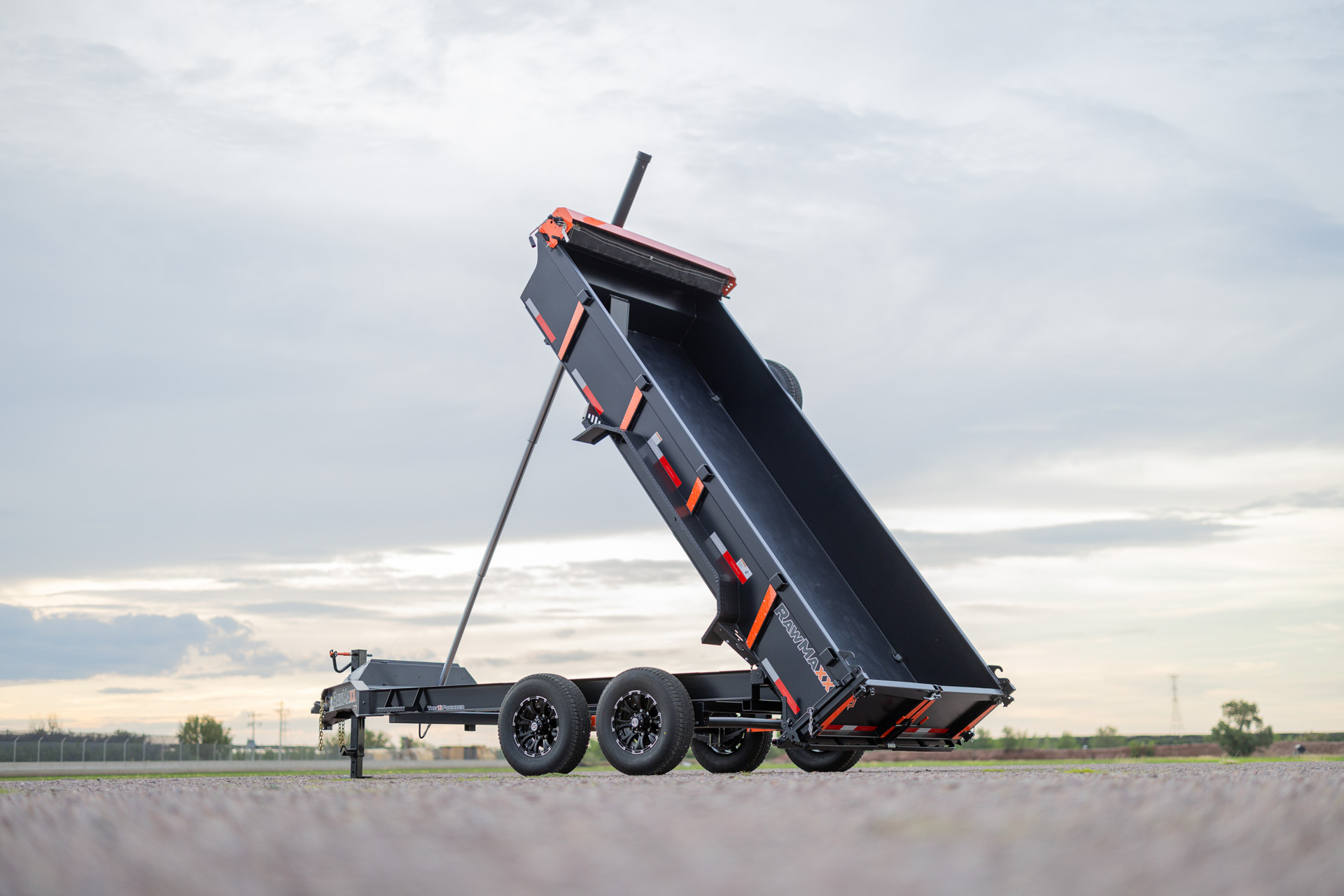

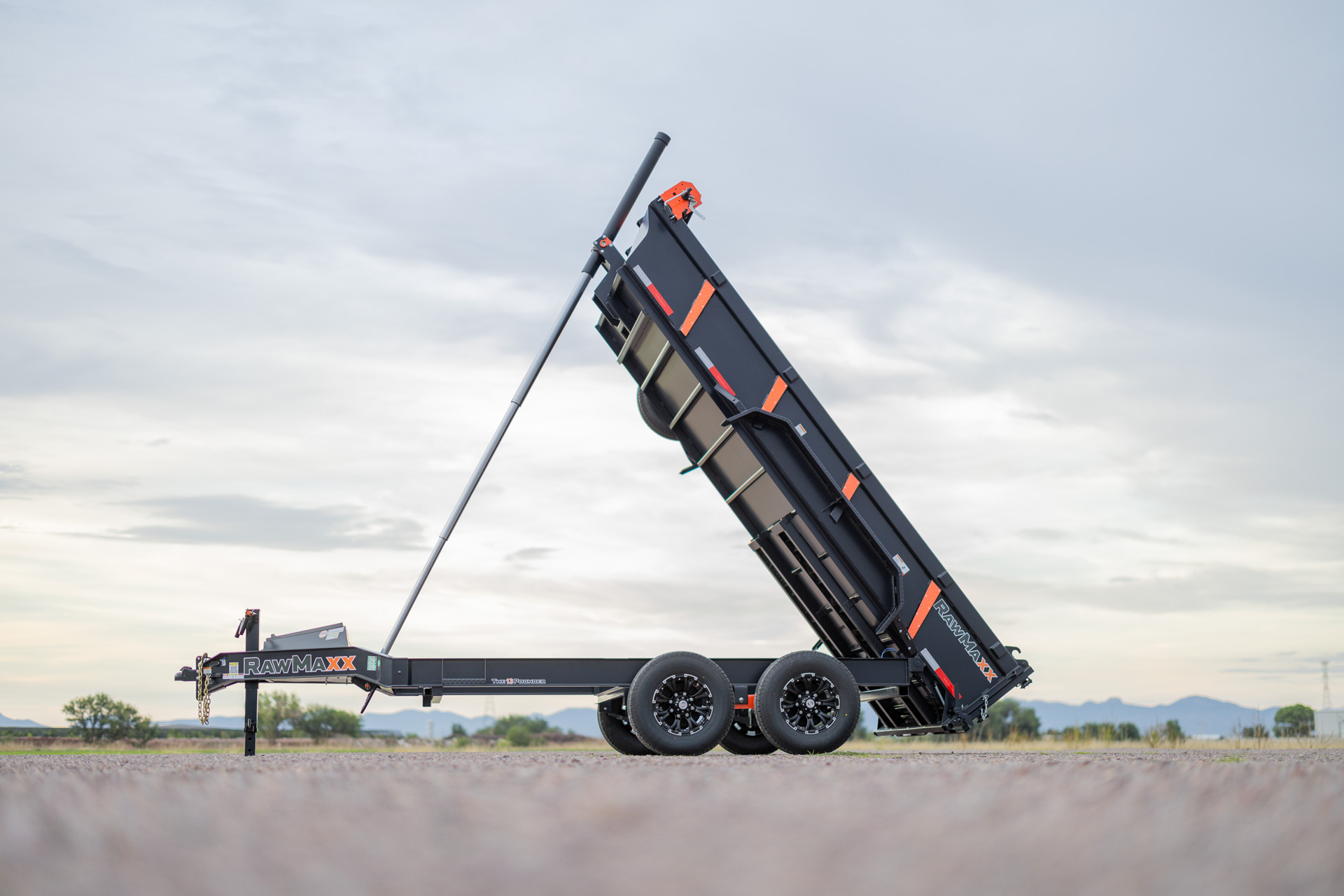

The telescopic lift system provides a 44° dump angle and extended vertical reach, making unloading faster, cleaner, and more efficient — especially in tight or uneven jobsite conditions. Power up / gravity down hydraulics driven by a KTI 12V pump give you smooth, controlled operation every time.

A 3-way rear gate with EZ Slam latches, 6’ slide-out ramps, integrated stake pockets, and welded D-rings offer flexibility for equipment loading and material handling in one platform.

LED lighting, all-weather wiring, Dexter axles, electric brakes, and a 110V integrated battery charging system come standard.

Available upgrades — including 8K axle packages, side height extensions, removable wall extensions, hydraulic jack options, aluminum wheels, wireless remote, and paint upgrades — allow you to configure the LPXT BP to match the way you work.
