Tongue Tool Box:Mega Boxx for Pump, Battery & Charger
Tongue
Tongue:8" x 13 lb. I-beam
Tongue Length:65"
Safety System
Safety Chains:3/8" G70 Safety Chains
Breakaway System:Electric Breakaway Kit
Reflective Tape:3M DOT Compliant Reflective Tape
Coupler & Chains
The RawMaxx LPX Trailer is equipped with a durable 2-5/16” adjustable ball coupler, providing a secure attachment to a variety of towing vehicles. Additionally, the trailer features a safety system consisting of 3/8″ G70 safety chains, ensuring the trailer remains connected in the event of a hitch or coupler failure. This safety feature provides peace of mind for users while on the road.
Jack
The LPX trailer comes standard with a single 10,000 lbs. side wind drop leg jack. However, there are several jack options available, including a 10K hydraulic operated jack, dual 10K hydraulic operated jacks, and 7,000 lbs. stabilizer jacks. These options provide additional support and convenience for users when loading and unloading heavy materials. The hydraulic jacks offer easy and quick operation, making it convenient for users to hook the trailer on and off their towing vehicle.
Tool Box
The LPX trailer comes equipped with a Mega Boxx tongue tool box that is designed to accommodate a pump, battery, and charger. This feature allows for convenient and secure storage of essential equipment needed for the trailer, ensuring that it is always readily available when needed. The tool box is built with high-quality materials and is securely mounted to the trailer’s tongue, providing a reliable storage solution for heavy-duty use.
Chassis
Frame
Main Frame:8" x 13 lb. I-beam Frame
Cross-Member:4" x 6" x 3/16" Tubing
Side Step:12G formed plate located at the front on both sides
Side Step
The LPX trailer features side steps located on both front sides, providing easy access to the trailer bed. These steps ensure safe and convenient loading and unloading of materials, especially for users who need to frequently step on and off the trailer. Additionally, the side steps also add an extra layer of safety by reducing the risk of slipping and falling when accessing the trailer bed.

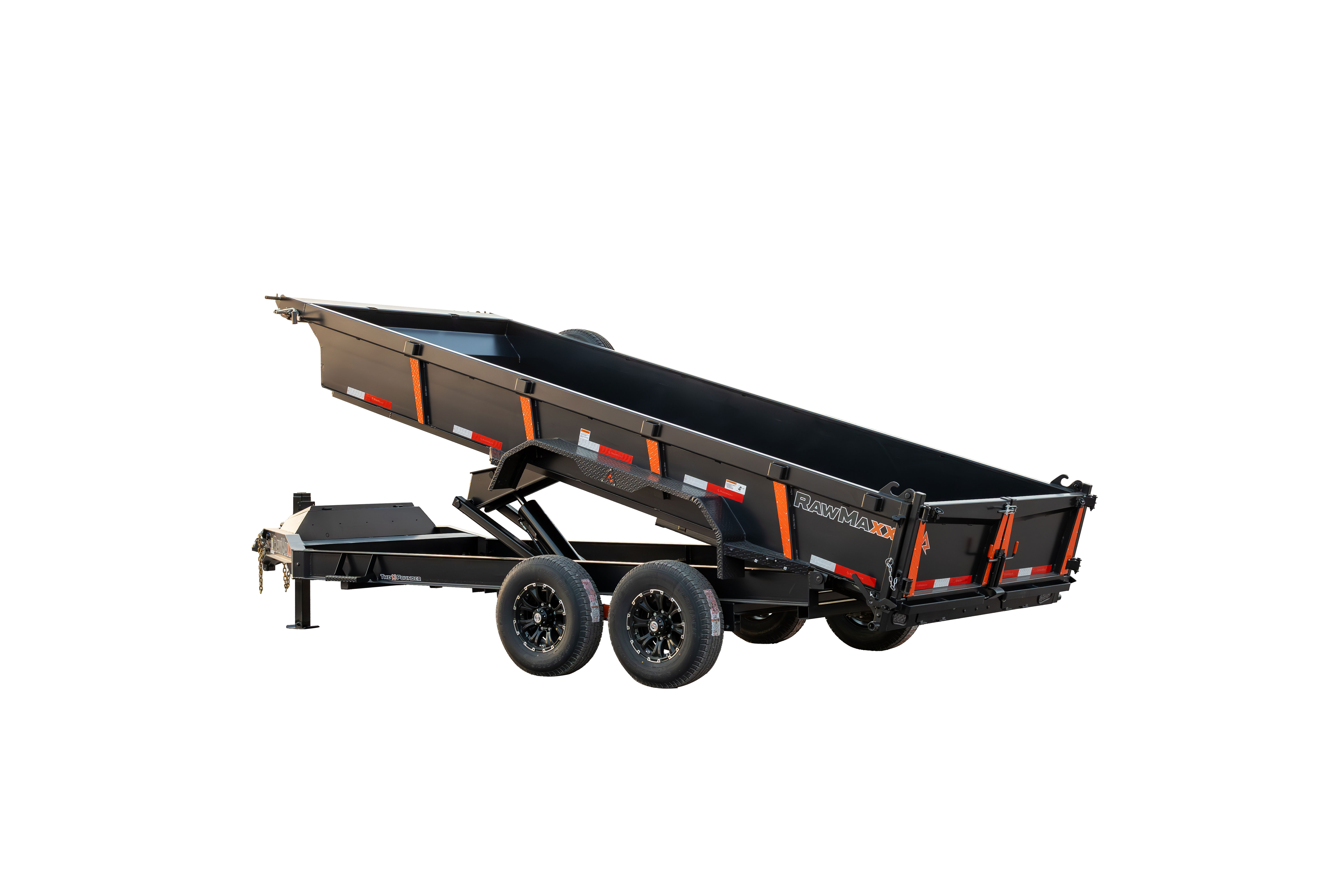

Dump Bed
Tilt Frame
Type:5' x 5" x 3/8" Angle
Cross-Members:3" Channel / 16" Spacings
Dump Bed
Inside Width:83"
Side Height:22"
Side Walls:10G Formed Walls
Flooring:7G One Piece Floor
Fenders:12G Diamond Plate Steel
D-Rings:4 D-Rings (Welded Inside Corners)
Side Posts:10G formed plate (3 per side)
Stake Pockets:10G formed plate (3 per side)
Side Rail:10G formed plate
Spare Tire Mount:Located at front Passenger Side Wall
Cargo Capacity:
5.89 Cubic Yards
Rear Gate
Gate:3 Way Doors
Latching System:EZ Slam Door Latches
Ramps:6' Slide-In Channel Ramps
Lift System
Power:Hydraulic - Power Up - Down
Pump:KTI 12V Hydraulic Pump
Controller:14' Cable with Control
Scissor:Heavy Duty Scissor Lift
Cylinder:5" x 16" Cylinder
Tilt Angle:48°
Tarp
Manual Tarp Kit

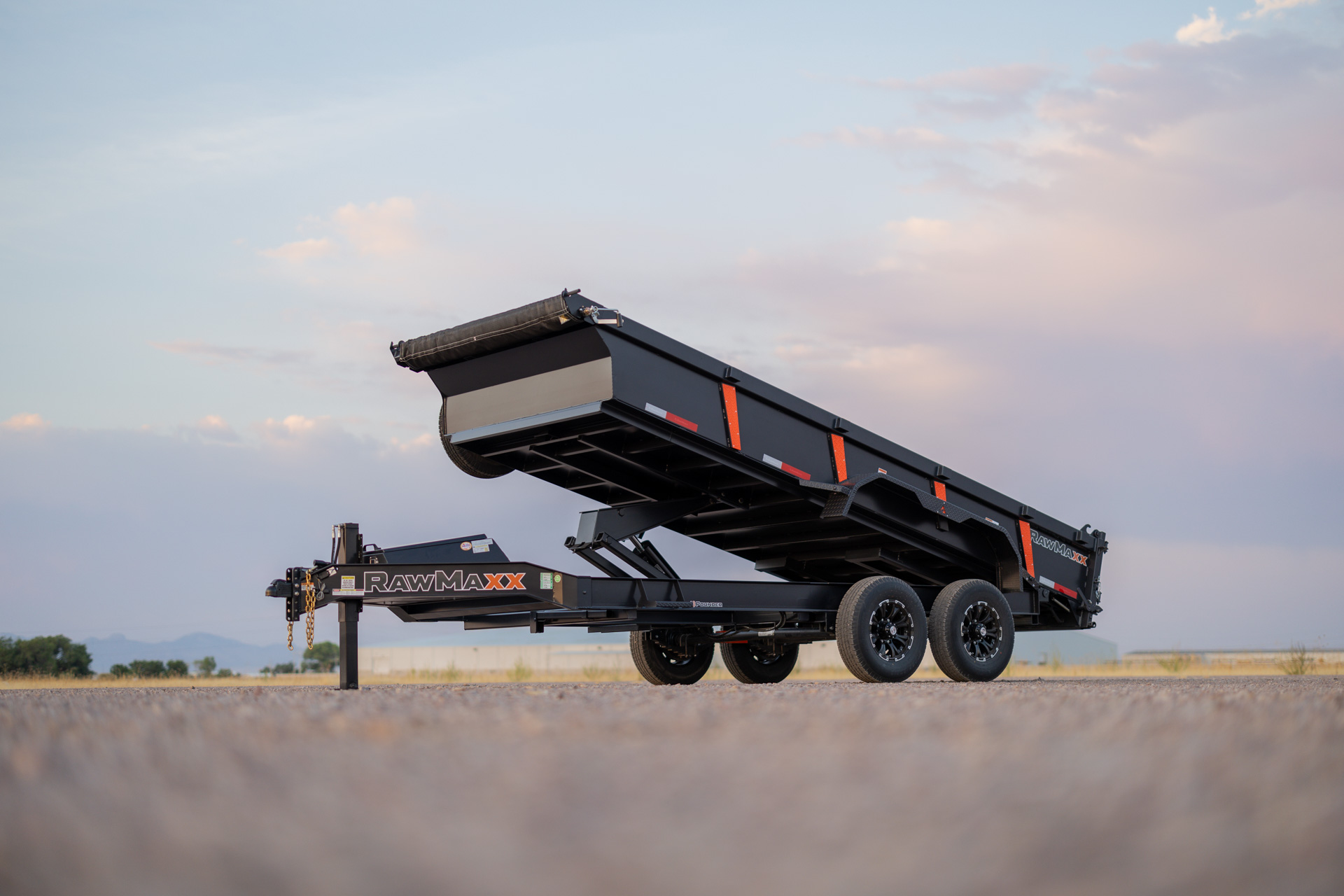

Bed
The LPX Dump Bed features a Tilt Frame constructed from 5′ x 5″ x 3/8″ Angle, along with 3″ Channel cross-members with 16″ spacings. It comes in three available sizes – 12′ x 83″, 14′ x 83″, and 16′ x 83″. The heavy-duty construction of the LPX Dump Bed makes it a reliable choice for hauling and dumping large loads.

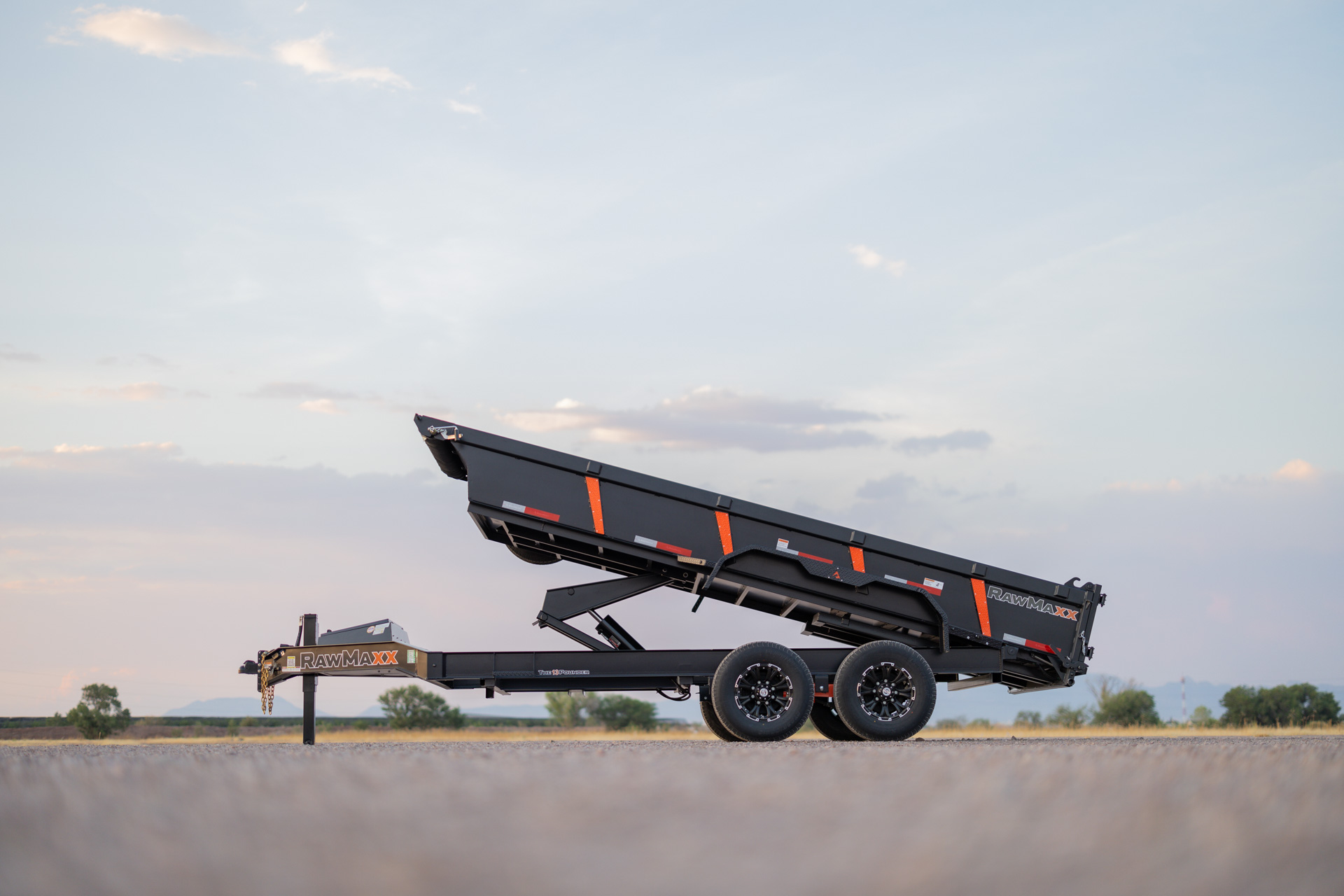

Fenders
The drive-over fenders are made of sturdy 12-gauge diamond plate steel, which not only protects the tires but also provides a sleek look to the trailer. These features make the LPX dump bed trailer a reliable and efficient choice for hauling heavy loads.
Spare Tire Mount
The LPX trailer comes equipped with a spare tire mount conveniently located on the right side (or passenger side) of the trailer. This ensures that in the event of a tire failure, drivers have easy access to a spare tire and can quickly replace it without delay or the need for a separate spare tire carrier.
D-Rings
The RawMaxx LPX trailer comes equipped with four welded inside corner D-rings, providing secure anchor points for hauling and transporting heavy equipment and materials. The D-rings are strategically placed for optimal load balance and stability during transport, ensuring that your cargo stays in place and does not shift or tip over while on the road. Whether you’re hauling construction equipment or bulk materials, these D-rings offer added peace of mind and convenience for safe and efficient transport.
Stake Pockets
The LPX trailer is equipped with stake pockets to allow for the addition of extensions, with the number of pockets ranging from 8 to 12 depending on the size of the trailer. These pockets provide versatility for users, allowing them to customize the trailer to meet their specific needs and transport a variety of materials safely and securely.
Stake Pockets
These pockets provide versatility for users, allowing them to customize the trailer to meet their specific needs and transport a variety of materials safely and securely.

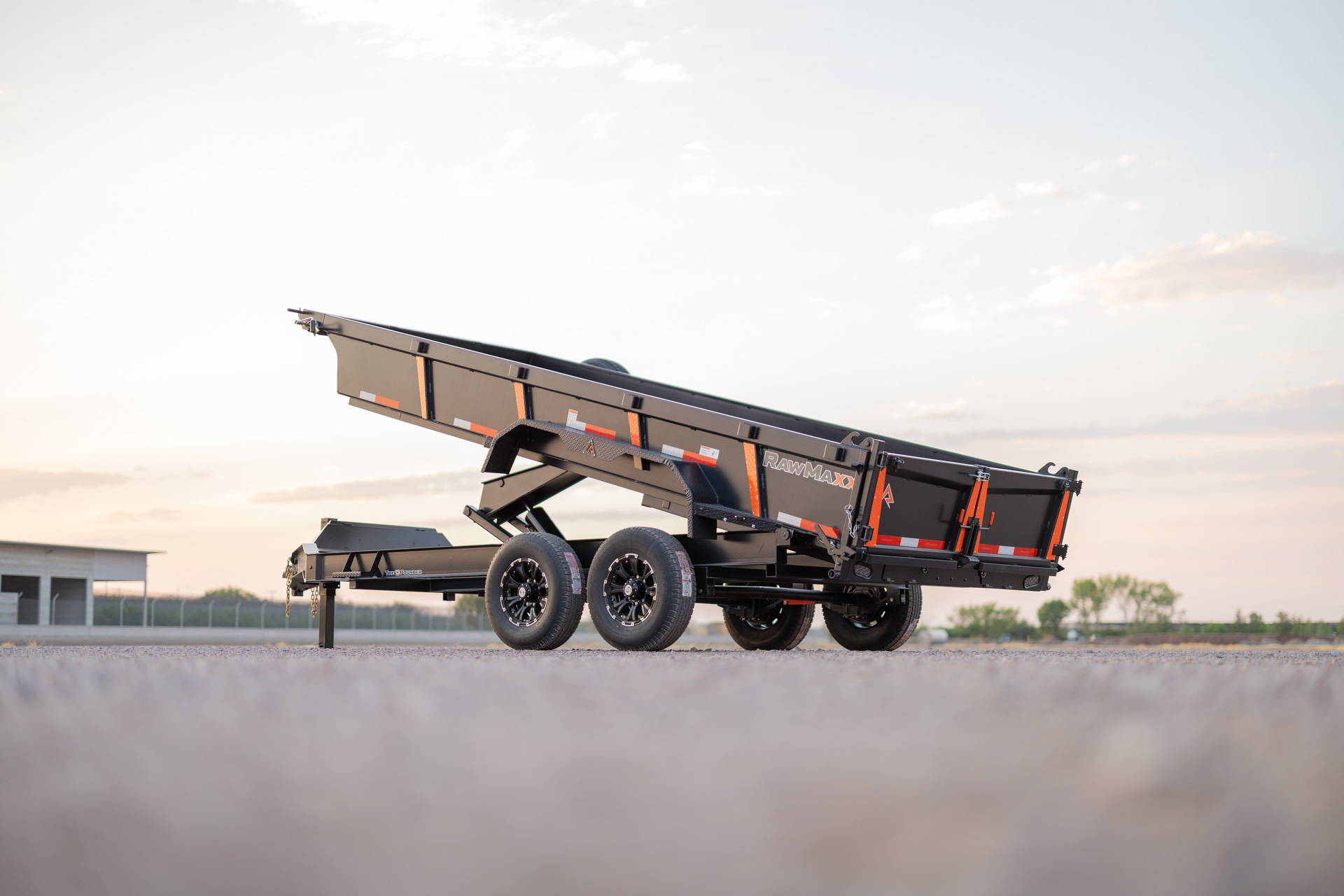

Rear Gate
The LPX trailer features a 3-1 spreader gate with a 3-way door design for added versatility when unloading materials. The gate is secured with EZ Slam door latches, ensuring a tight and secure closure. This design allows for efficient unloading of a wide range of materials and helps to prevent any spillage or accidents during transport.
Ramps
The LPX comes equipped with 6′ slide-in channel ramps, providing users with easy access for loading and unloading heavy equipment and materials. These ramps are designed to be sturdy and durable, with a channel design that helps to prevent slipping and provides extra traction. With the ability to easily slide in and out of place, these ramps offer added convenience for users, making the process of loading and unloading equipment and materials faster and more efficient.

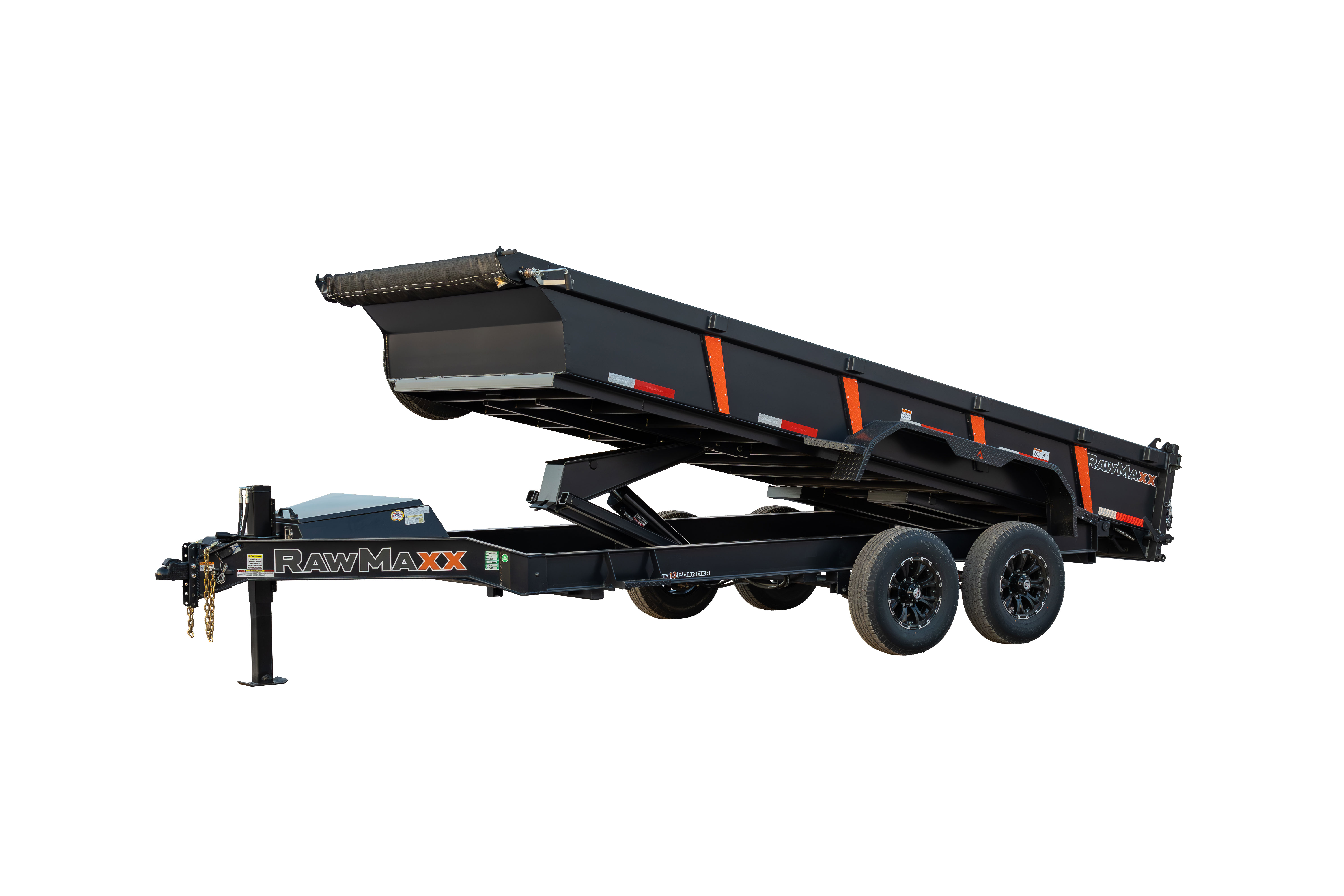

Cylinder & Hoist
The lift system of this trailer is powered by a hydraulic system, allowing for smooth and efficient operation. The KTI 12V hydraulic pump and heavy-duty scissor lift work together to provide reliable lifting power. The system is controlled by a 14-foot cable with a user-friendly control, making it easy to operate. With a tilt angle of 48 degrees, this lift system is capable of handling a wide range of materials and equipment.

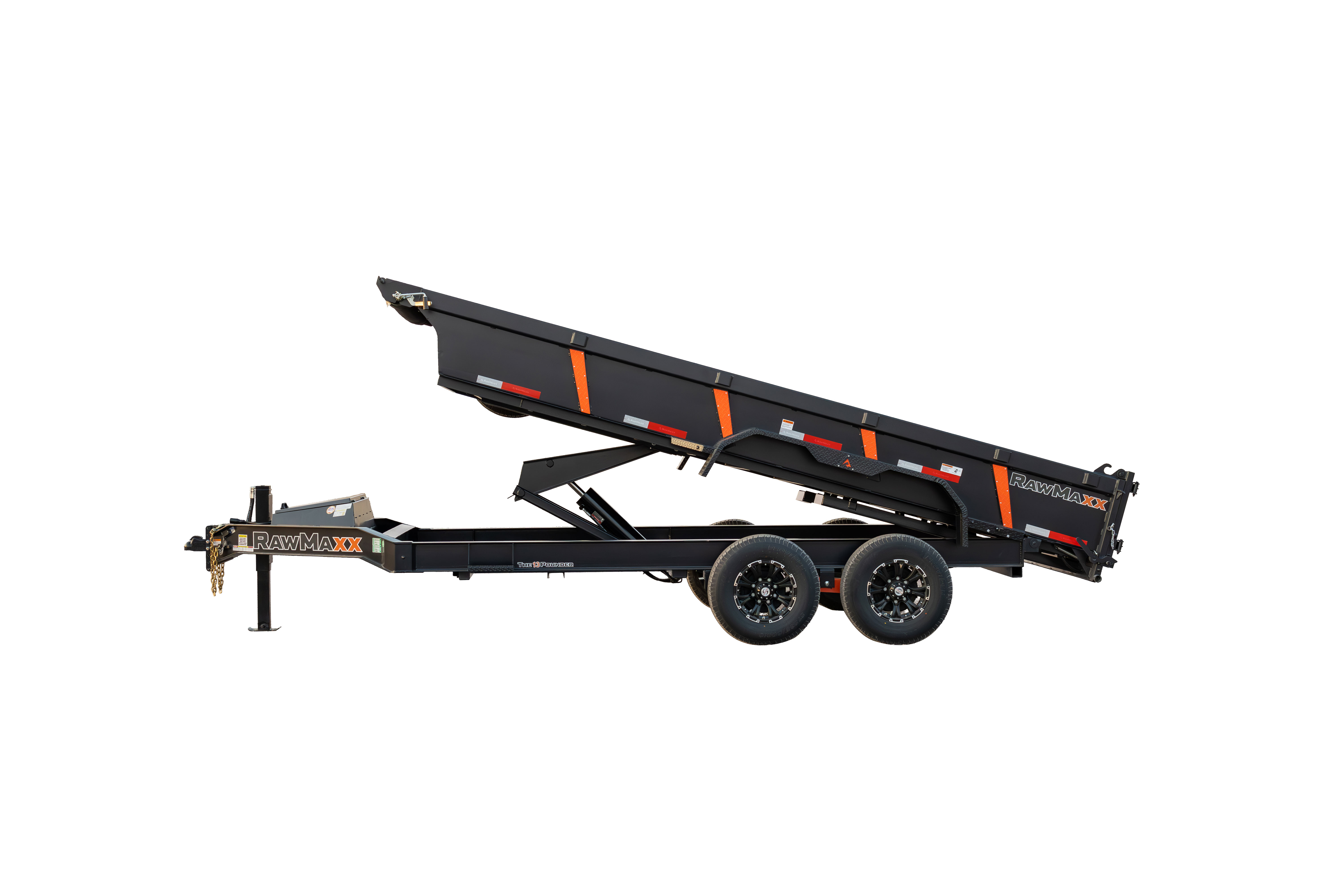

Tilt Angle 48°
Tarp Kit
The LPX trailer comes equipped with a manual tarp kit that provides easy and convenient covering for transported materials. The tarp helps to keep the load secure and protected from the elements, while also enhancing safety by preventing debris from flying out and potentially causing harm to other drivers on the road.
Running Gear
Tires
Type:Radial Tires
Size:ST235/80R16
Ply:10 Ply
Rating:3,520 lbs.
Rims:16” Black Mod Wheels
Bolt Pattern:8 on 6.5”
Suspension
Axle Type:Spring
Axles:2
Rating:7,000 lbs.
Brakes:Electric
Tires
The LPX trailer is equipped with high-quality radial tires, rated for 3,520 lbs. each, providing reliable performance and durability. The ST235/80R16 tires are 10-ply rated and mounted on 16″ black mod wheels with an 8 on 6.5″ bolt pattern.
Electrical & Lighting
Wiring
Front Plug:7 - Way Plug
Frame Wiring:All Weather Wiring Harness
Lighting
Side Markers:3/4" LED Bullet Lights
Rear Lights:DOT Approved LED Lights
Battery & Charging
Battery:27M Deep Cycle Marine Battery
Charging System:110V Integrated Trickle Charger
Lights
The LPX trailer is equipped with highly visible lighting to enhance safety on the road. The side markers feature 3/4″ LED bullet lights, while the rear lights are DOT approved LED lights. These lights provide bright illumination and enhance visibility for the driver and other motorists, ensuring safer travels.
Available Upgrades
Axle Options
Tire Upgrades
Spare Tire Options
Side Height Options
Removable Extensions
Jack Options
Paint Upgrades
Other Options
2 Tone Color
Elevate the look of your LPX Trailer by adding this 2 tone color option.
Trailer Specs
Dimensions
Length:14'
Width:83"
Deck Height:28"
Weight Rating
GVWR:14,000 lbs.
GAWR:7,000 lbs.
Empty Weight:5,091 lbs.
Load Capacity:10,245 lbs.
Finish
Type:Powder Coat
Prep:Grit Blast
Standard Color:Jet Black
Warranty
Axle:5 Year Dexter
Trailer:3 Year Structural / 1 Year Paint
Tongue
Coupler
Coupler:2-5/16” Adjustable Ball Coupler
Jacks
Jack:1 Side Wind Drop Leg - 10,000 lbs.
Tool Box
Tongue Tool Box:Mega Boxx for Pump, Battery & Charger
Tongue
Tongue:8" x 13 lb. I-beam
Tongue Length:65"
Safety System
Safety Chains:3/8" G70 Safety Chains
Breakaway System:Electric Breakaway Kit
Reflective Tape:3M DOT Compliant Reflective Tape
Chassis
Frame
Main Frame:8" x 13 lb. I-beam Frame
Cross-Member:4" x 6" x 3/16" Tubing
Dump Bed
Tilt Frame
Type:5' x 5" x 3/8" Angle
Cross-Members:3" Channel / 16" Spacings
Dump Bed
Inside Width:83"
Side Height:19"
Side Walls:10G Formed Walls
Flooring:7G One Piece Floor
Fenders:12G Diamond Plate Steel
D-Rings:4 D-Rings (Welded Inside Corners)
Side Posts:10G formed plate (4 per side)
Stake Pockets:10G formed plate (5 per side)
Side Rail:10G formed plate
Cargo Capacity:
6.85 Cubic Yards
Rear Gate
Gate:3 Way Doors
Latching System:EZ Slam Door Latches
Ramps:6' Slide-In Channel Ramps
Lift System
Power:Hydraulic - Powder Up - Down
Pump:KTI 12V Hydraulic Pump
Controller:14' Cable with Control
Scissor:Heavy Duty Scissor Lift
Cylinder:6" x 20" Cylinder
Tilt Angle:48°
Tarp
Manual Tarp Kit
Running Gear
Tires
Type:Radial Tires
Size:ST235/80R16
Ply:10 Ply
Rating:3,520 lbs.
Rims:16” Black Mod Wheels
Bolt Pattern:8 on 6.5”
Suspension
Axle Type:Spring
Axles:2
Rating:7,000 lbs.
Brakes:Electric
Electrical & Lighting
Wiring
Front Plug:7 - Way
Frame Wiring:All Weather Wiring Harness
Lighting
Side Markers:3/4" LED Bullet Lights
Rear Lights:DOT Approved LED Lights
Battery & Charging
Battery:27M Deep Cycle Marine Battery
Charging System:110V Integrated Trickle Charger
Available Upgrades
Axle Options
Tire Upgrades
Spare Tire Options
Side Height Options
Removable Extensions
Jack Options
Paint Upgrades
Other Options
Trailer Specs
Dimensions
Length:16'
Width:83"
Deck Height:28"
Weight Rating
GVWR:14,000 lbs.
GAWR:7,000 lbs.
Empty Weight:5,291 lbs.
Load Capacity:10,015 lbs.
Finish
Type:Powder Coat
Prep:Grit Blast
Standard Color:Jet Black
Warranty
Axle:5 Year Dexter
Trailer:3 Year Structural / 1 Year Paint
Tongue
Coupler
Coupler:2-5/16” Adjustable Ball Coupler
Jacks
Jack:1 Side Wind Drop Leg - 10,000 lbs.
Tool Box
Tongue Tool Box:Mega Boxx for Pump, Battery & Charger
Tongue
Tongue:8" x 13 lb. I-beam
Tongue Length:65"
Safety System
Safety Chains:3/8" G70 Safety Chains
Breakaway System:Electric Breakaway Kit
Reflective Tape:3M DOT Compliant Reflective Tape
Chassis
Frame
Main Frame:8" x 13 lb. I-beam Frame
Cross-Member:4" x 6" x 3/16" Tubing
Dump Bed
Tilt Frame
Type:5' x 5" x 3/8" Angle
Cross-Members:3" Channel / 16" Spacings
Dump Bed
Inside Width:83"
Side Height:22"
Flooring:7G One Piece Floor
Side Walls:10G Formed Walls
Fenders:12G Diamond Plate Steel
D-Rings: 4 D-Rings (Welded Inside Corners)
Side Posts:10G formed plate (4 per side)
Stake Pockets:10G formed plate (5 per side)
Side Rail:10G formed plate
Cargo Capacity:
9.5 Cubic Yards
Rear Gate
Gate:3 Way Doors
Latching System:EZ Slam Door Latches
Ramps:6' Slide-In Channel Ramps
Lift System
Power:Hydraulic - Powder Up - Down
Pump:KTI 12V Hydraulic Pump
Controller:14' Cable with Control
Scissor:Heavy Duty Scissor Lift
Cylinder:6" x 20" Cylinder
Tilt Angle:48°
Tarp
Manual Tarp Kit
Running Gear
Tires
Type:Radial Tires
Size:ST235/80R16
Ply:10 Ply
Rating:3,520 lbs.
Rims:16” Black Mod Wheels
Bolt Pattern:8 on 6.5”
Suspension
Axle Type:Spring
Axles:2
Rating:7,000 lbs.
Brakes:Electric
Electrical & Lighting
Wiring
Front Plug:7 - Way
Frame Wiring:All Weather Wiring Harness
Lighting
Side Markers:3/4" LED Bullet Lights
Rear Lights:DOT Approved LED Lights
Battery & Charging
Battery:27M Deep Cycle Marine Battery
Charging System:110V Integrated Trickle Charger
Available Options
Axle Options
Tire Upgrades
Spare Tire Options
Side Height Options
Removable Extensions
Jack Options
Paint Upgrades
Other Options

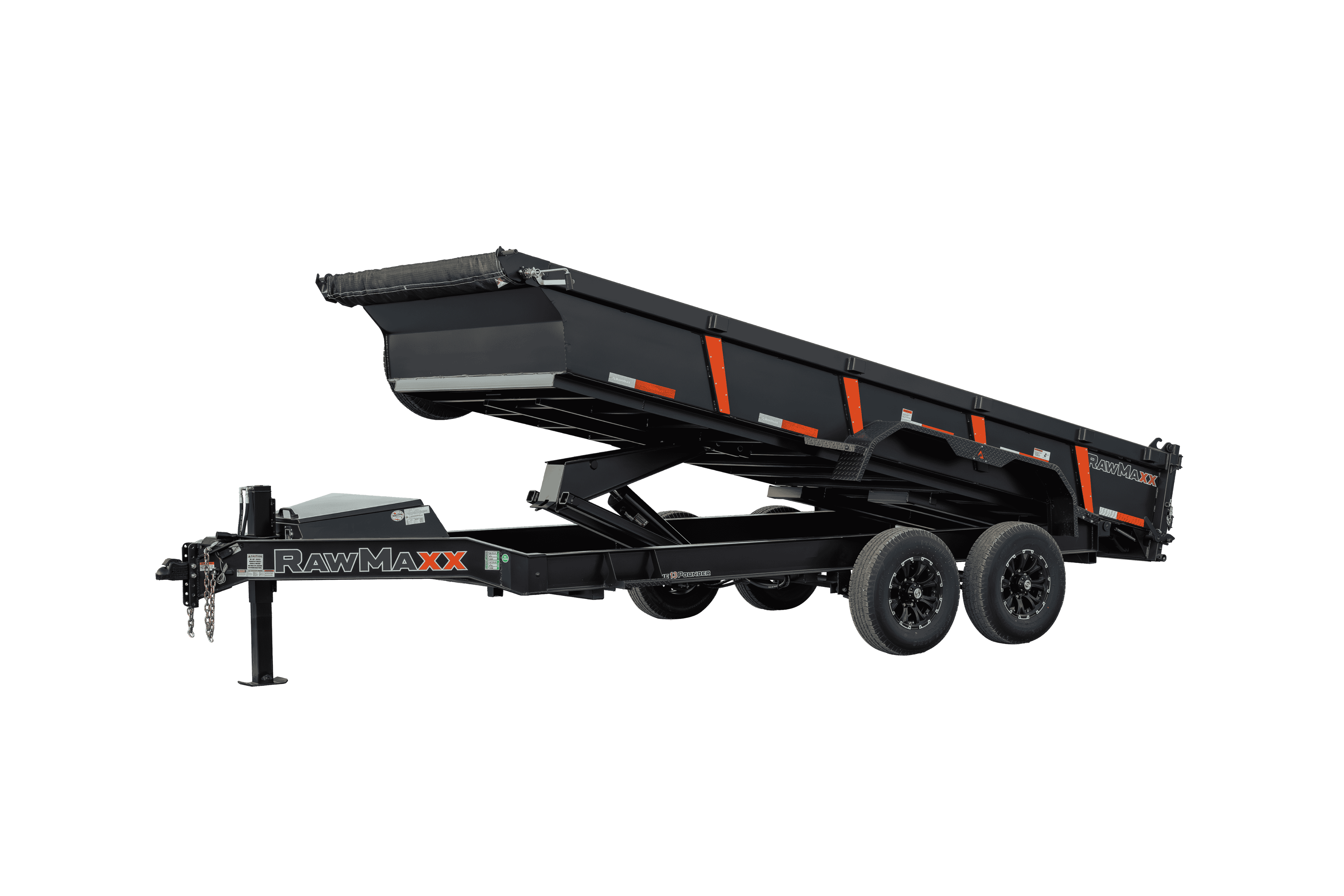

LPX Video
The LPX dump trailer, a reliable and sturdy option for hauling heavy loads. With its 5′ x 5″ x 3/8″ angle type tilt frame and 3″ channel cross-members with 16″ spacings, this trailer can handle even the toughest jobs. The scissor lift system, powered by a KTI 12V hydraulic pump, provides smooth and easy operation. The trailer’s safety features, including 3/8″ G70 safety chains and DOT-approved LED lights, ensure the safety of both the driver and other vehicles on the road. The 3-1 spreader gate with EZ slam door latches makes loading and unloading a breeze, while the 6′ slide-in channel ramps allow for easy access. The LPX also includes a convenient tongue tool box and stake pockets for extensions, adding to its versatility. With a manual tarp kit and a spare tire mount located on the right side, this trailer is ready for any job.
