Features for “LPXT14GN16K”

  • Length: 14‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,650 lbs.
  • Load Capacity: 10,438 lbs.
  • 2-5/16” Ball 25,000 lbs Square Coupler
  • 8″ x 13 lbs I Beam Frame
  • 3″ Channel / 16″ OC
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Hydraulic – Power Up – Down
  • 120″ Telescopic Cylinder
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX16GN14K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,886 lbs.
  • Load Capacity: 10,143 lbs.
  • 2-5/16” Ball 25,000 lbs Square Coupler
  • 8″ x 13 lbs I Beam Frame
  • 3″ Channel / 16″ OC
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Hydraulic – Power Up – Down
  • 120″ Telescopic Cylinder
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPXT14GN16K”

  • Length: 14‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,650 lbs.
  • Load Capacity: 12,428 lbs.
  • 2-5/16” Ball 25,000 lbs Square Coupler
  • 8″ x 13 lbs I Beam Frame
  • 3″ Channel / 16″ OC
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Hydraulic – Power Up – Down
  • 120″ Telescopic Cylinder
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPXT16GN16K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,886 lbs.
  • Load Capacity: 12,143 lbs.
  • 2-5/16” Ball 25,000 lbs Square Coupler
  • 8″ x 13 lbs I Beam Frame
  • 3″ Channel / 16″ OC
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Hydraulic – Power Up – Down
  • 120″ Telescopic Cylinder
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

LPXT GN 3D

360° View

Order Now

Features for “LPXT14GN16K”

  • Length: 14‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,650 lbs.
  • Load Capacity: 10,438 lbs.
  • 2-5/16” Ball 25,000 lbs Square Coupler
  • 8″ x 13 lbs I Beam Frame
  • 3″ Channel / 16″ OC
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Hydraulic – Power Up – Down
  • 120″ Telescopic Cylinder
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX16GN14K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,886 lbs.
  • Load Capacity: 10,143 lbs.
  • 2-5/16” Ball 25,000 lbs Square Coupler
  • 8″ x 13 lbs I Beam Frame
  • 3″ Channel / 16″ OC
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Hydraulic – Power Up – Down
  • 120″ Telescopic Cylinder
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPXT14GN16K”

  • Length: 14‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,650 lbs.
  • Load Capacity: 12,428 lbs.
  • 2-5/16” Ball 25,000 lbs Square Coupler
  • 8″ x 13 lbs I Beam Frame
  • 3″ Channel / 16″ OC
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Hydraulic – Power Up – Down
  • 120″ Telescopic Cylinder
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPXT16GN16K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,886 lbs.
  • Load Capacity: 12,143 lbs.
  • 2-5/16” Ball 25,000 lbs Square Coupler
  • 8″ x 13 lbs I Beam Frame
  • 3″ Channel / 16″ OC
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Hydraulic – Power Up – Down
  • 120″ Telescopic Cylinder
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

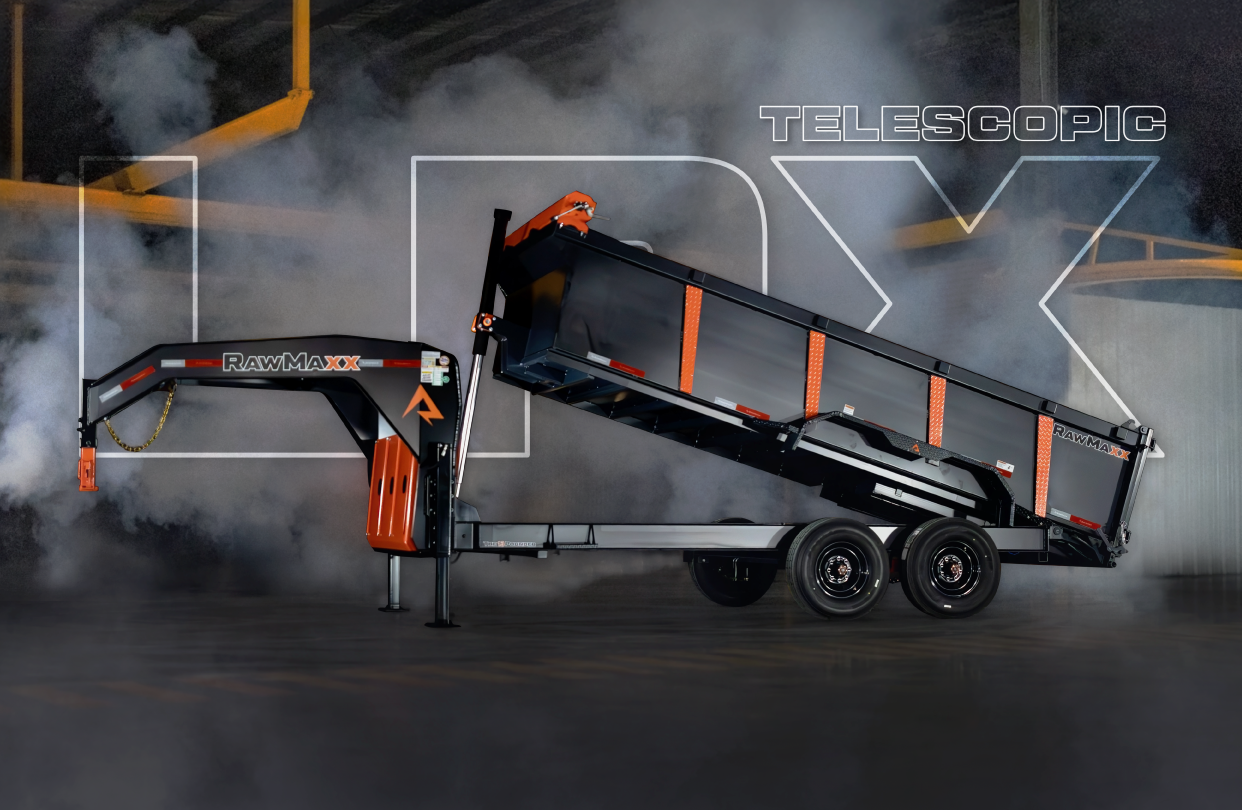

LPXT GN Telescopic

LPX GN Telescopic

Elevated

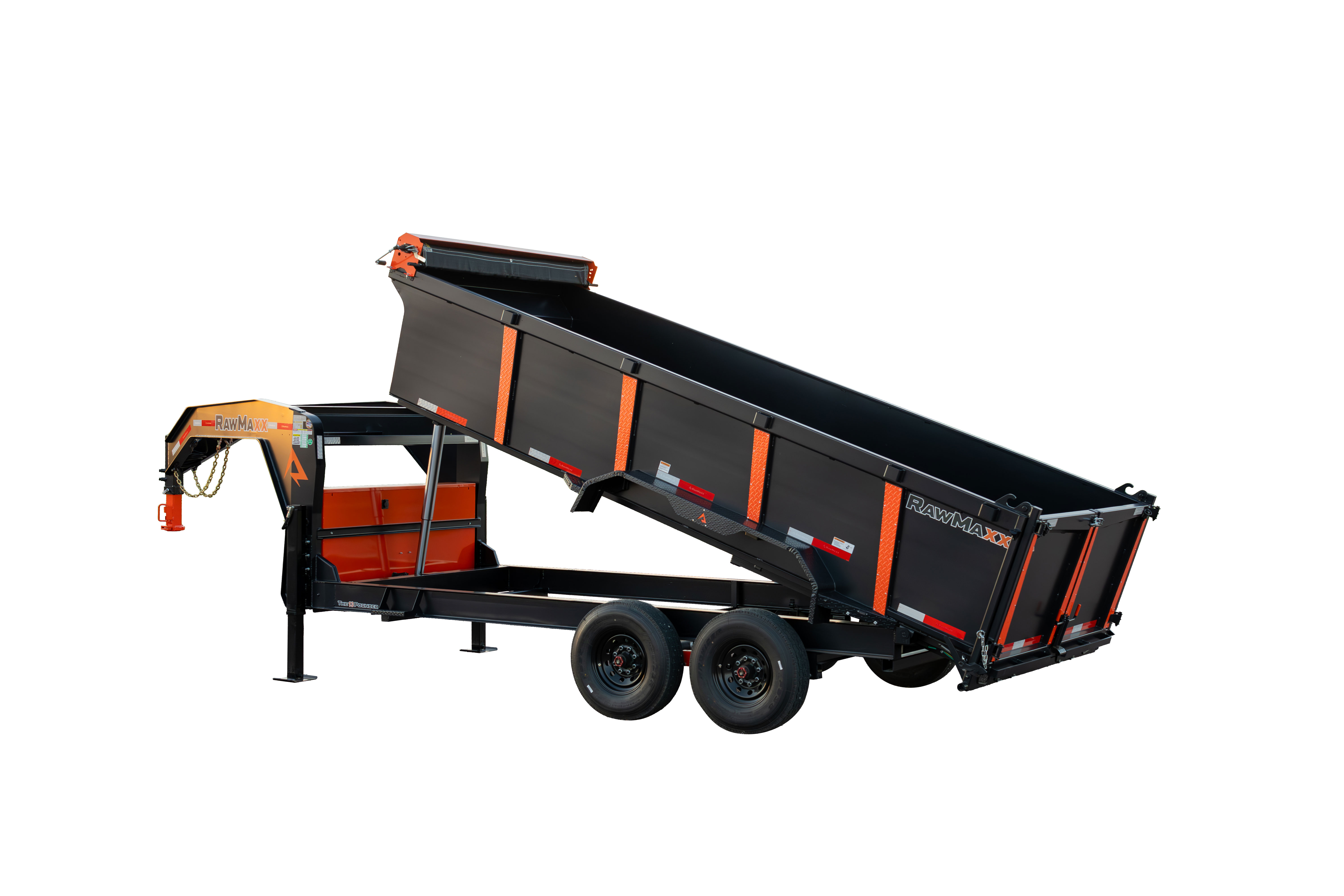

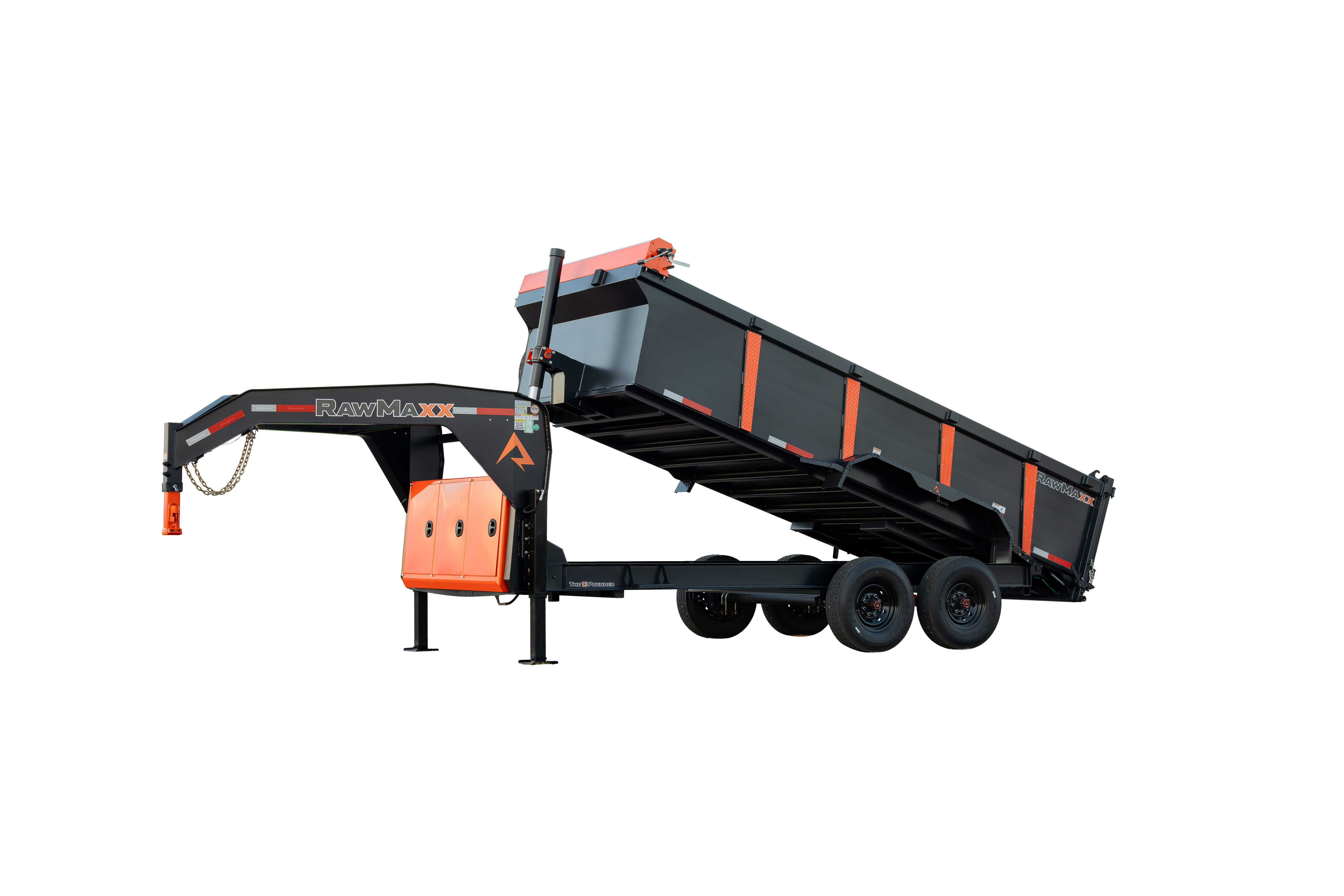

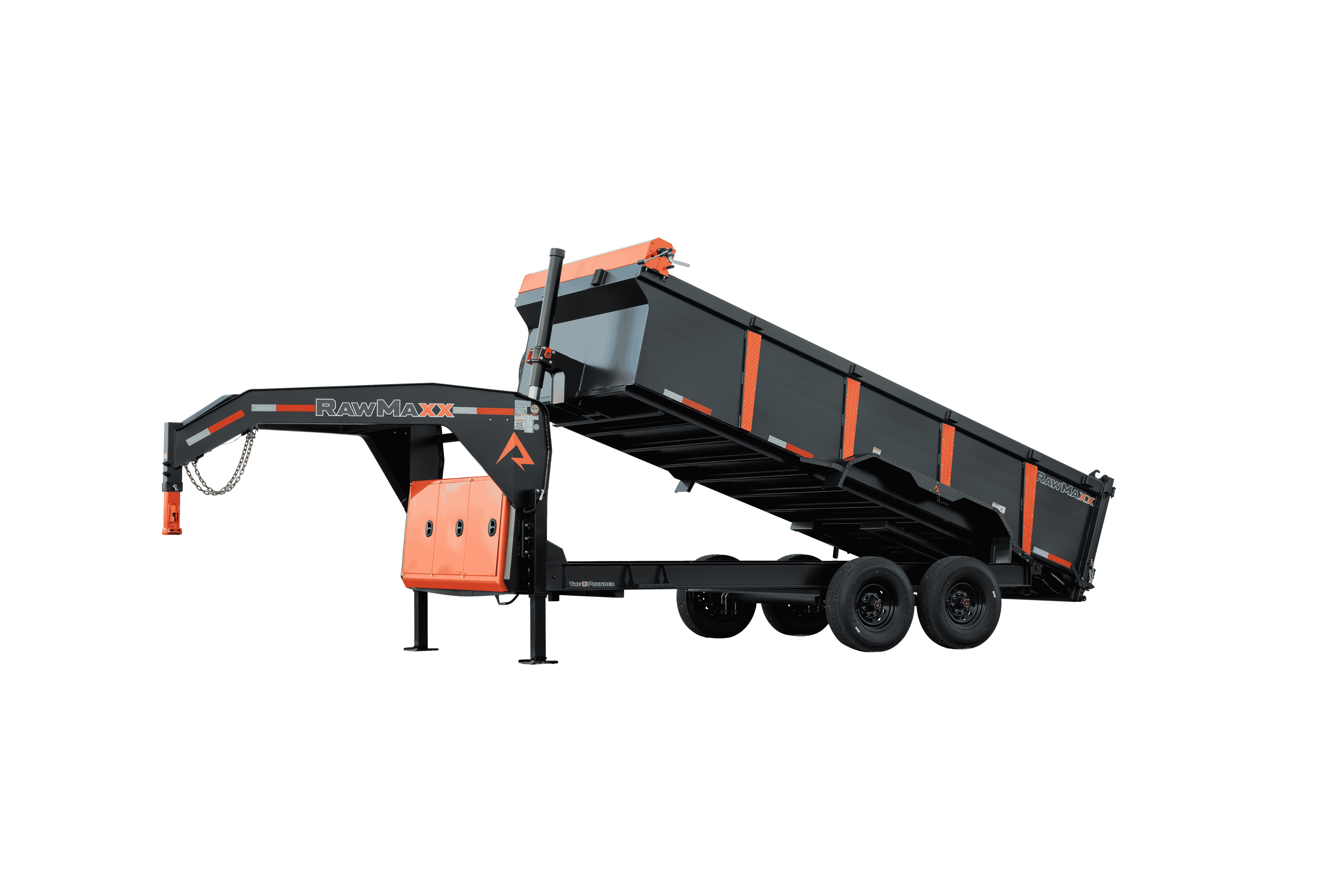

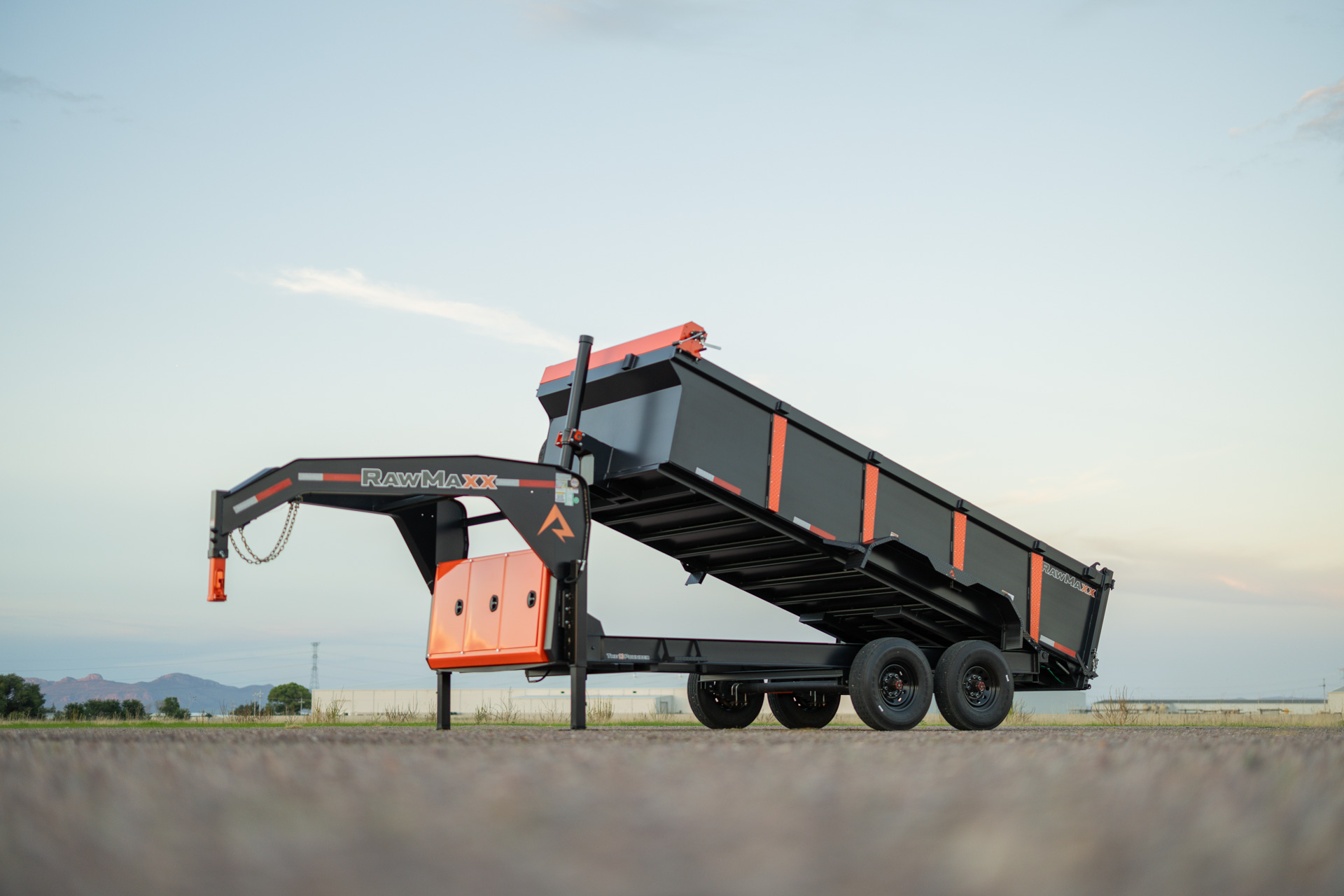

The Gooseneck Dump Built for Higher Reach and Cleaner Dumps

When the job calls for more dumping height and stronger lift performance, the RawMaxx LPX GN Telescopic steps in. Available in 12’, 14’, and 16’ lengths and rated at 14,000 lbs. GVWR, this gooseneck dump is built for operators who need controlled power and dependable cycle times on demanding loads.

At its core is an 8″ x 13 lb. I-beam frame supported by 4″ x 6″ tubing cross-members and a full 7-gauge steel floor. The 10-gauge formed walls, reinforced side structure, and integrated stake pockets give the bed the rigidity needed for real material work — from dirt and aggregate to demolition debris. With 5.89 cubic yards of capacity and an 83″ inside width, it balances volume and maneuverability for daily commercial use.

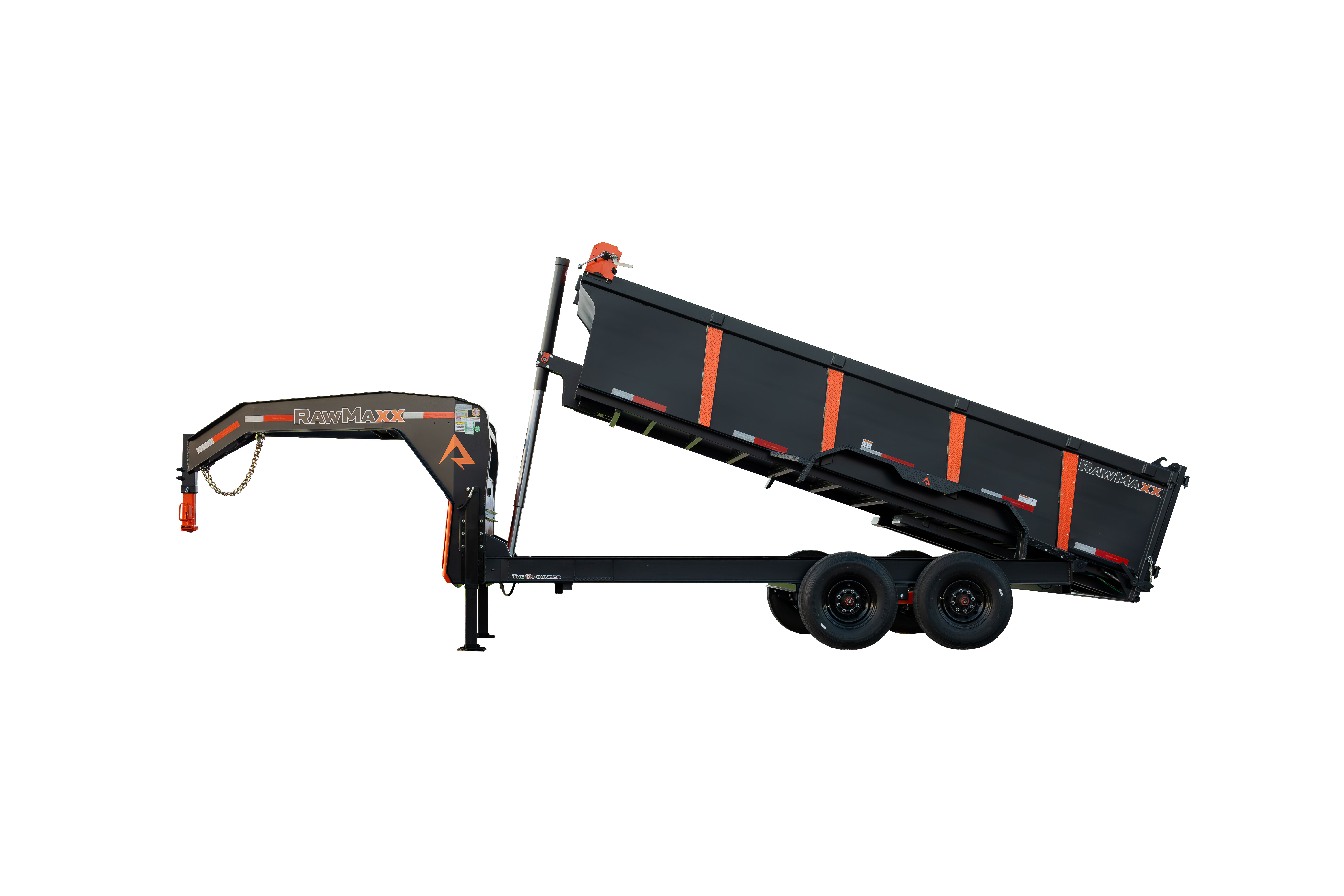

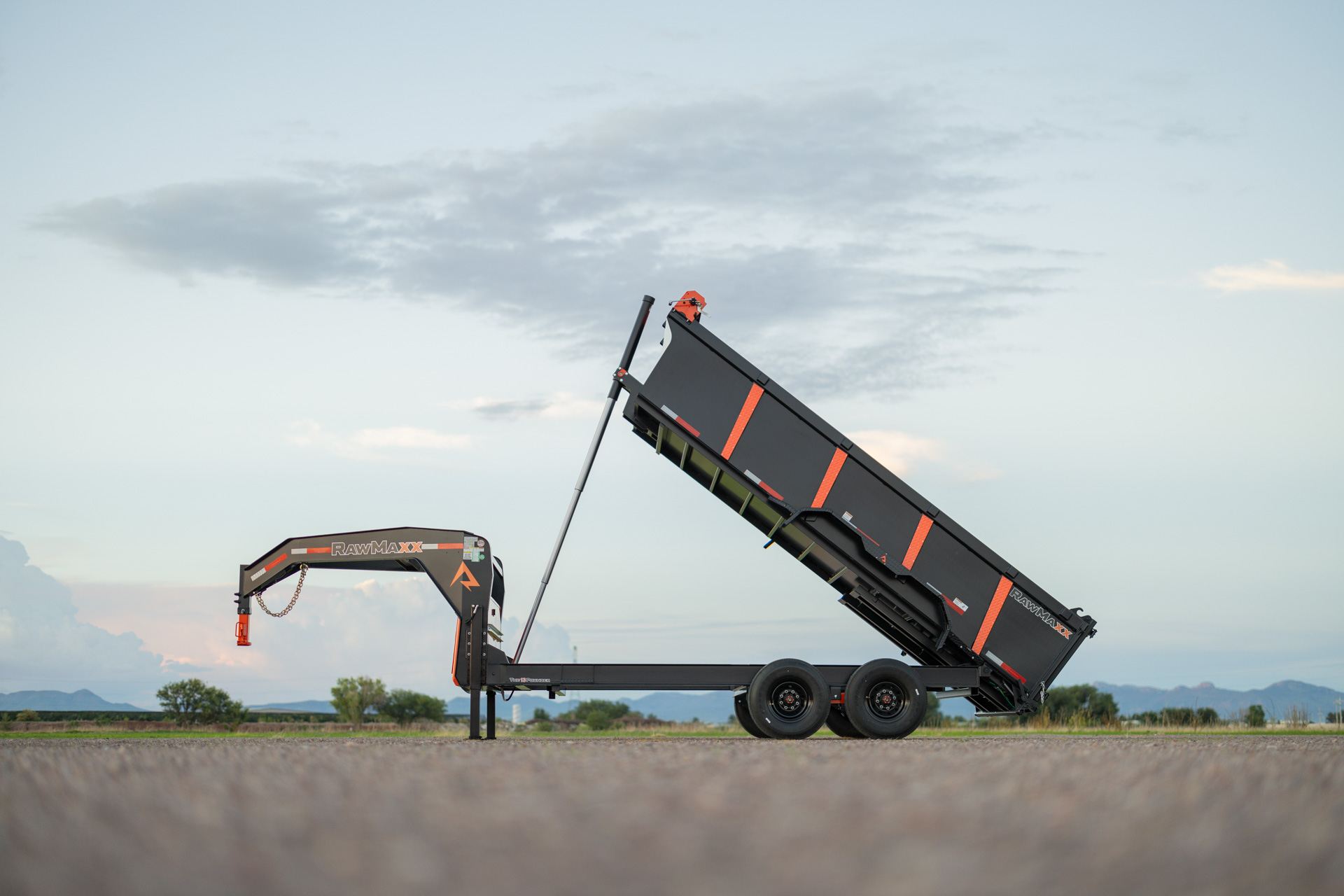

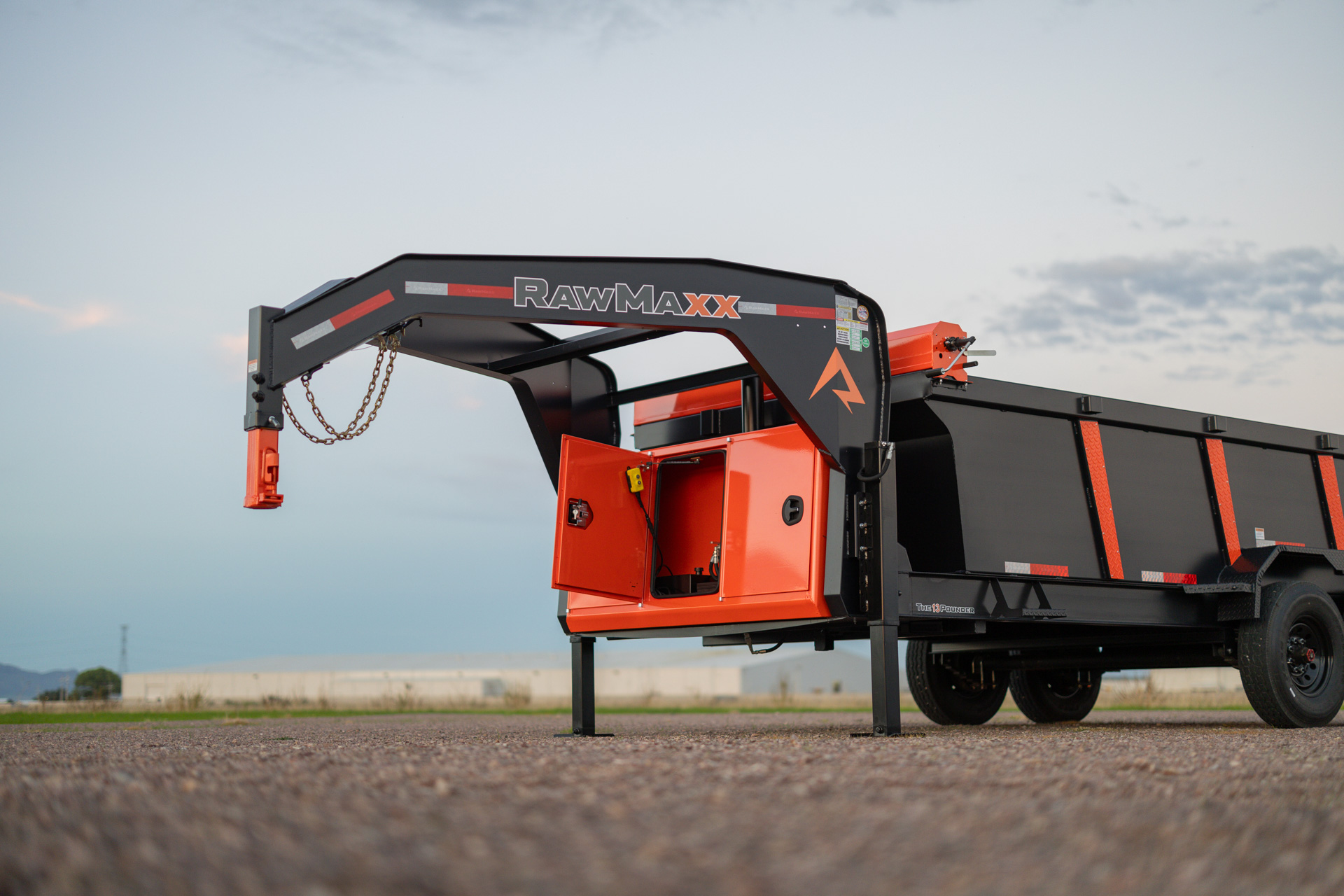

The defining feature is the 3-stage telescopic cylinder delivering hydraulic power up and gravity down operation. This longer stroke lift provides stronger dump angles and smoother material release, especially on sticky or heavy loads. The KTI 12V hydraulic system, protected inside the Mega Boxx toolbox, keeps the system reliable and easy to service, while the 44° tilt angle helps ensure clean bed emptying.

Dual 7K spring axles, electric brakes, radial tires, and full DOT lighting keep the LPX GN Telescopic stable on the road and predictable under load. The 3-way rear gate with EZ Slam latches and slide-out ramps round out a package built for crews who expect their equipment to work every day without drama.

The RawMaxx LPX GN Telescopic — higher lift, controlled power, and built for serious material work.
