Standard Features

Features for “LPX12GN14K”

  • Length: 12‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,440 lbs.
  • Load Capacity: 10,700 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 5.89 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 5″ x 16″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX14GN14K”

  • Length: 14‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,650 lbs.
  • Load Capacity: 10,438 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 6.85 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 6″ x 20″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX16GN14K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,886 lbs.
  • Load Capacity: 10,143 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 9.20 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 6″ x 20″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX12GN16K”

  • Length: 12‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,440 lbs.
  • Load Capacity: 12,700 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 5.89 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 5″ x 16″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX14GN16K”

  • Length: 14‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,650 lbs.
  • Load Capacity: 12,428 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 6.85 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 6″ x 20″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX16GN16K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,886 lbs.
  • Load Capacity: 12,143 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 9.20 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 6″ x 20″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

LPX GN 3D

360° View

Order Now

Standard Features

Features for “LPX12GN14K”

  • Length: 12‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,440 lbs.
  • Load Capacity: 10,700 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 5.89 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 5″ x 16″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX14GN14K”

  • Length: 14‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,650 lbs.
  • Load Capacity: 10,438 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 6.85 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 6″ x 20″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX16GN14K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,886 lbs.
  • Load Capacity: 10,143 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 9.20 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 6″ x 20″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX12GN16K”

  • Length: 12‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,440 lbs.
  • Load Capacity: 12,700 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 5.89 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 5″ x 16″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX14GN16K”

  • Length: 14‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,650 lbs.
  • Load Capacity: 12,428 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 6.85 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 6″ x 20″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “LPX16GN16K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 28“
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: 5,886 lbs.
  • Load Capacity: 12,143 lbs.
  • Main Frame: 8″ x 13 lb. I Beam
  • Cross-Bracing: 4″ x 6″ x 3/16″ Tubing
  • Dump Bed Width: 83″
  • Side Height: 22″
  • Capacity: 9.20 Cubic Yards
  • Side Walls: 10G Formed Plate
  • Side Rail: 10G Formed Plate
  • Side Post: 10G Formed Plate
  • Flooring: 7G Plate
  • Fenders: 12G Diamond Plate Fenders
  • D-Rings: 4 D-Rings Standard (Welded Inside Corners)
  • State Pockets: 3 7/8″ x 1 13/16″ (ID)
  • Rear Gate: 3in1 Rear Gate
  • Latching System: EZ Slam Door Latches
  • Ramps: 6′ Slide Out Channel Ramps
  • Tarp: Manual Tarp Kit
  • Lift System: Hydraulic Power up / Down
  • Pump: KTI Hydraulic Pump
  • Scissor: 6″ x 20″ Cylinder Hoist
  • Tilt Angle: 48°
  • Coupler: 2 5/16″ Adjustable Ball
  • Jacks: Dual 10,000 lb. Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Leaf Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • Safety Chains: 3/8″ G70 Chains
  • Spare Mount: Included
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

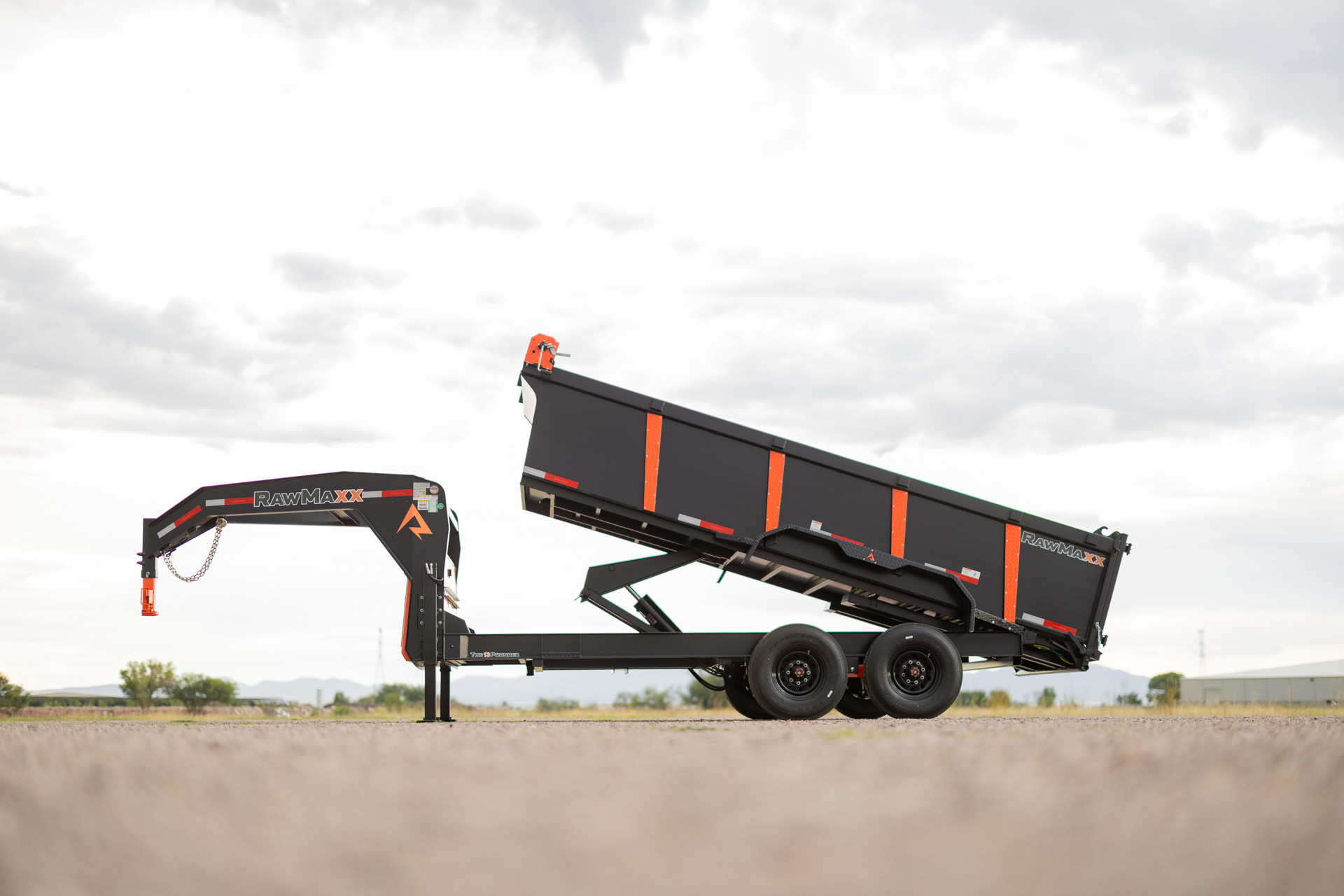

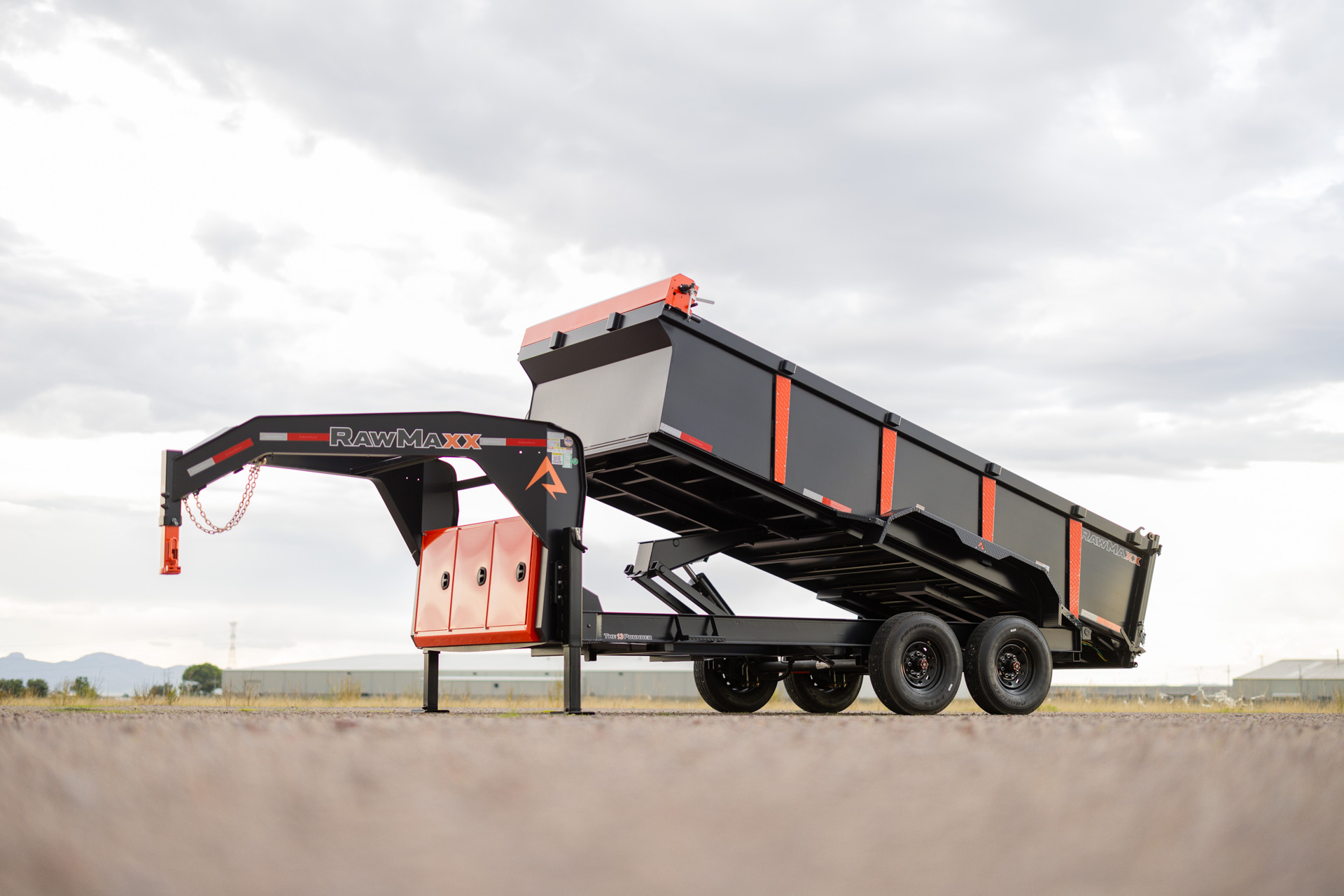

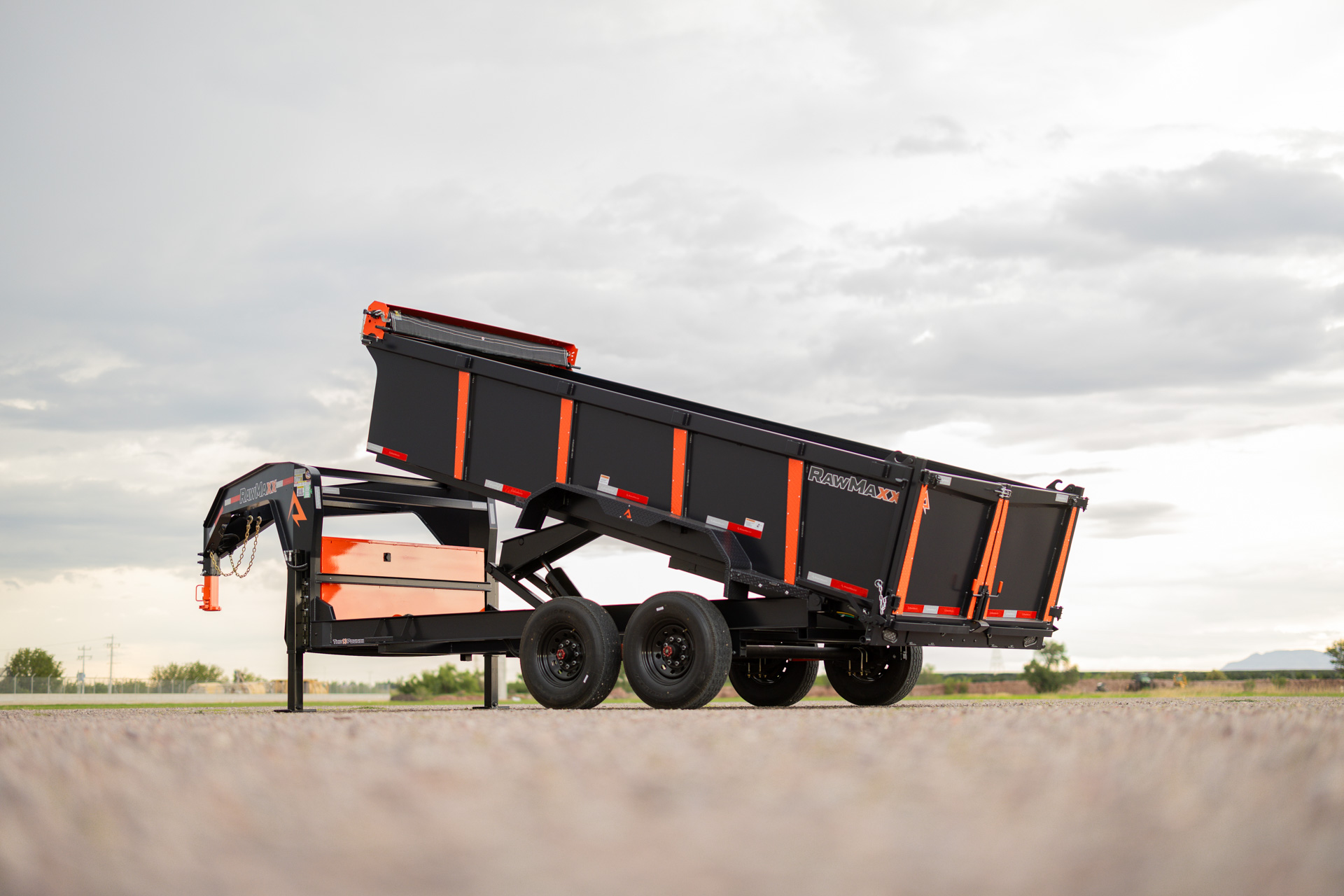

LPX GN

Muscle

The Ultimate Heavy-Duty Dump Trailer for Any Job

When the job demands power, stability, and efficiency, the RawMaxx LPX GN delivers. Available in 12’, 14’, and 16’ lengths with a full 83” width, this heavy-duty gooseneck dump trailer packs a GVWR of 14,000 lbs. and over 10,000 lbs. of load capacity. Built on an 8″ I-beam frame with reinforced cross-members and a 7-gauge steel floor, the LPX GN is engineered to handle whatever you throw at it.

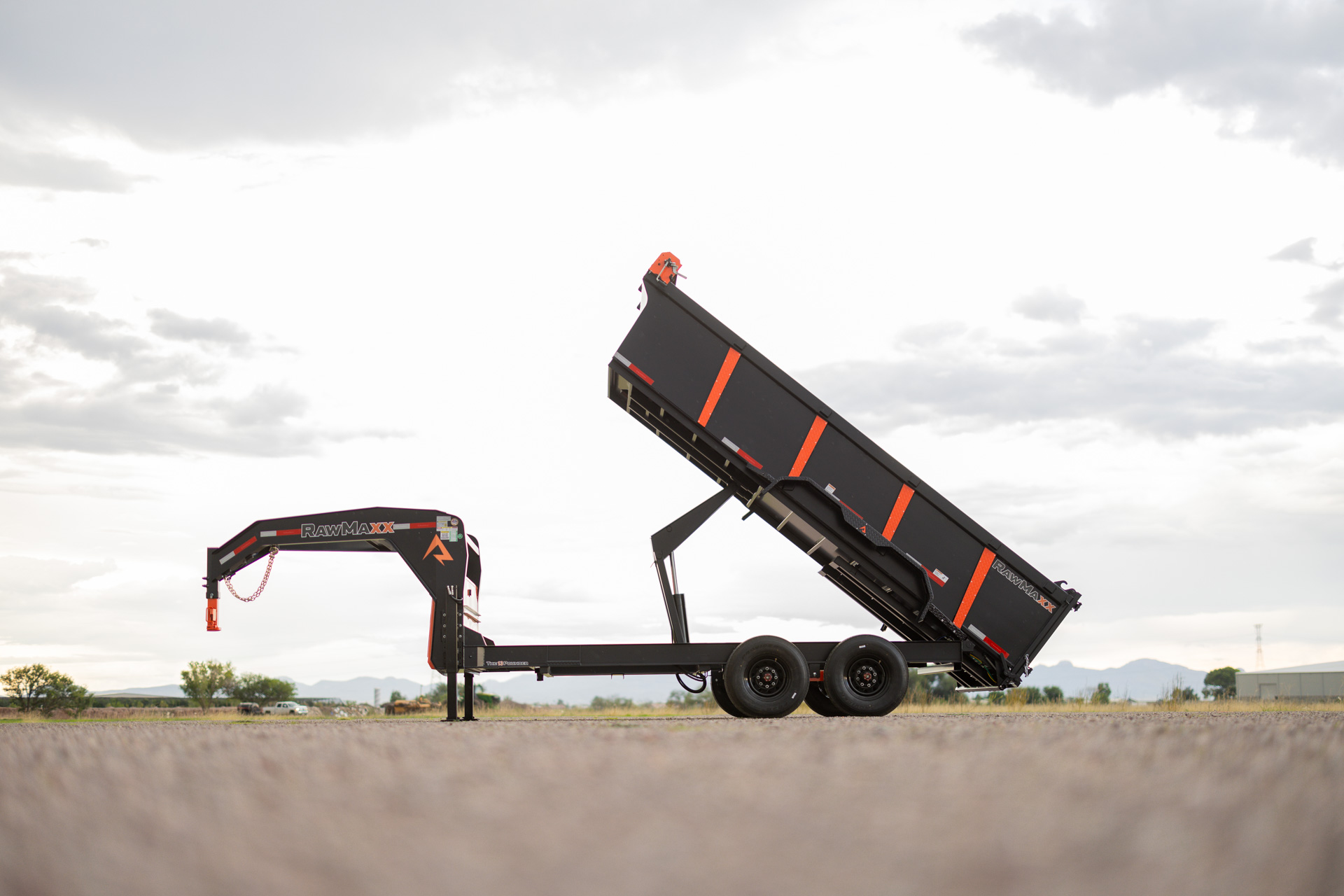

The dump system is where the LPX GN sets itself apart. Featuring a heavy-duty scissor lift, a 5” x 16” cylinder, and a 48° tilt angle, it makes dumping fast, controlled, and efficient. The EZ Slam rear gate and 6’ slide-out channel ramps ensure easy loading and unloading for everything from debris to equipment.

Safety and performance are standard on every model. With 3/8″ G70 safety chains, an electric breakaway kit, DOT-approved LED lighting, and a 27M deep cycle marine battery with integrated trickle charger, you’re always prepared. Dual 10,000 lb. jacks provide rock-solid stability, while radial ST235/80R16 tires and a 6-leaf slipper spring suspension keep the ride smooth under pressure.

And with RawMaxx, customization is always at your fingertips. Upgrade with taller sides, removable extensions, hydraulic jacks, wireless remote controls, aluminum wheels, or even a two-tone paint finish to make it uniquely yours.

The RawMaxx LPX GN – built for serious work, trusted for heavy loads, and ready to perform day after day.

LPX GN

Muscle

The Ultimate Heavy-Duty Dump Trailer for Any Job

When the job demands power, stability, and efficiency, the RawMaxx LPX GN delivers. Available in 12’, 14’, and 16’ lengths with a full 83” width, this heavy-duty gooseneck dump trailer packs a GVWR of 14,000 lbs. and over 10,000 lbs. of load capacity. Built on an 8″ I-beam frame with reinforced cross-members and a 7-gauge steel floor, the LPX GN is engineered to handle whatever you throw at it.

The dump system is where the LPX GN sets itself apart. Featuring a heavy-duty scissor lift, a 5” x 16” cylinder, and a 48° tilt angle, it makes dumping fast, controlled, and efficient. The EZ Slam rear gate and 6’ slide-out channel ramps ensure easy loading and unloading for everything from debris to equipment.

Safety and performance are standard on every model. With 3/8″ G70 safety chains, an electric breakaway kit, DOT-approved LED lighting, and a 27M deep cycle marine battery with integrated trickle charger, you’re always prepared. Dual 10,000 lb. jacks provide rock-solid stability, while radial ST235/80R16 tires and a 6-leaf slipper spring suspension keep the ride smooth under pressure.

And with RawMaxx, customization is always at your fingertips. Upgrade with taller sides, removable extensions, hydraulic jacks, wireless remote controls, aluminum wheels, or even a two-tone paint finish to make it uniquely yours.

The RawMaxx LPX GN – built for serious work, trusted for heavy loads, and ready to perform day after day.
