Standard Features

Features for “LPX12BP14K”

  • Length: 12′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,891 lbs.
  • Load Capacity: 10,475 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 5 16 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX14BP14K”

  • Length: 14′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,091 lbs.
  • Load Capacity: 10,245 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX16BP14K”

  • Length: 16′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,291 lbs.
  • Load Capacity: 10,015 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX12BP16K”

  • Length: 12′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,891 lbs.
  • Load Capacity: 10,475 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX14BP16K”

  • Length: 14′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,414 lbs.
  • Load Capacity: 12,174 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX14BP16K”

  • Length: 16′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,896 lbs.
  • Load Capacity: 11,620 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

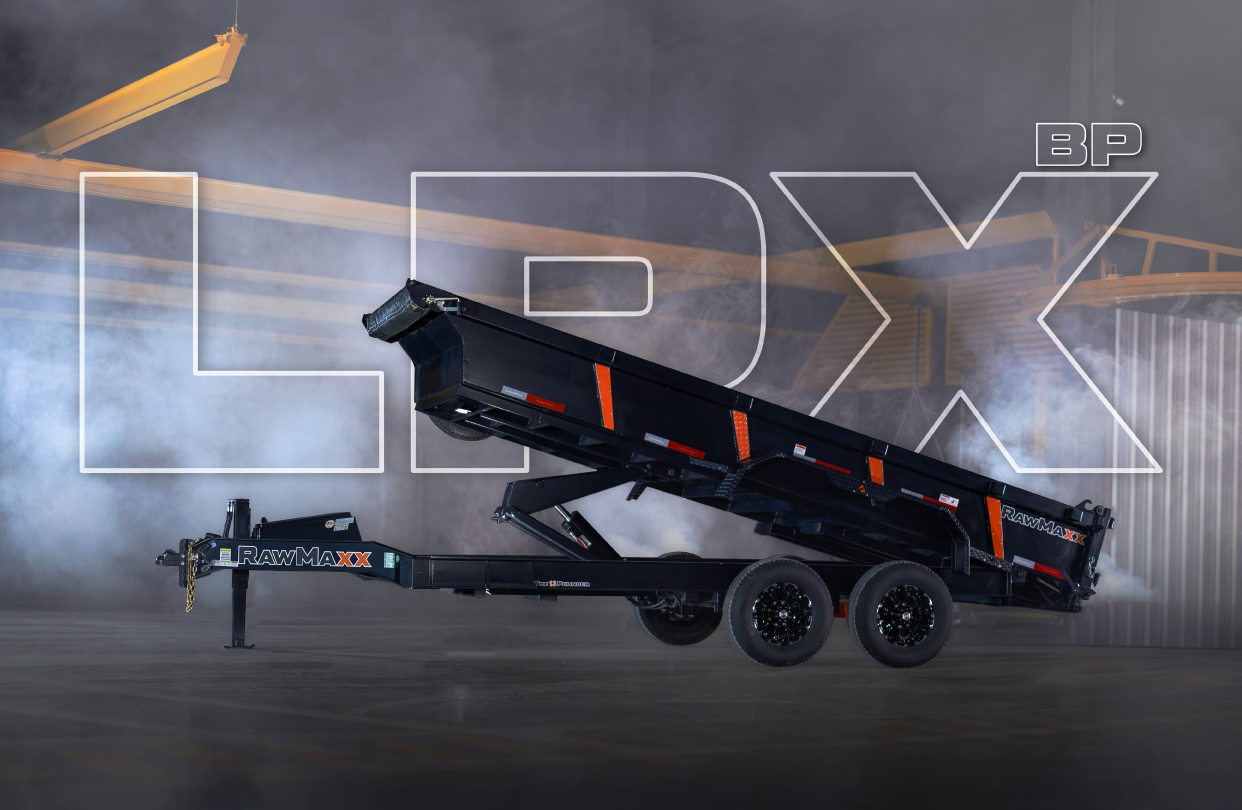

LPX BP 3D

360° View

Order Now

Standard Features

Features for “LPX12BP14K”

  • Length: 12′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,891 lbs.
  • Load Capacity: 10,475 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 5 16 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX14BP14K”

  • Length: 14′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,091 lbs.
  • Load Capacity: 10,245 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX16BP14K”

  • Length: 16′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,291 lbs.
  • Load Capacity: 10,015 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX12BP16K”

  • Length: 12′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,891 lbs.
  • Load Capacity: 10,475 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX14BP16K”

  • Length: 14′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,414 lbs.
  • Load Capacity: 12,174 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “LPX14BP16K”

  • Length: 16′
  • Width: 83″
  • Deck Height: 28″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 5,896 lbs.
  • Load Capacity: 11,620 lbs.
  • 2 5/16″ Ball Adjustable Coupler
  • 8″ x 13 lbs I Beam Frame
  • Engineered I Beam Tongue
  • 3″ Channel / 16″ OC
  • 1 Side Wind Drop Leg Jack – 10,000 lbs
  • Tool Box with Pump, Battery & Charger
  • Inside Width: 83″ – Side Height: 22″
  • 10G Formed Walls – Grade 50 8G Steel Floor
  • 12G Thread Plate Steel Fenders
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • 4 D-Rings (Welded Inside Corners)
  • 3 Way Doors
  • 6′ Slide-In Channel Ramps
  • Hydraulic – Power Up – Down
  • 6 20 Cylinder Scissor Lift
  • Manual Tarp Kit
  • 5 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

LPX BP

Proven

The Bumper Pull Dump Built for Everyday Work

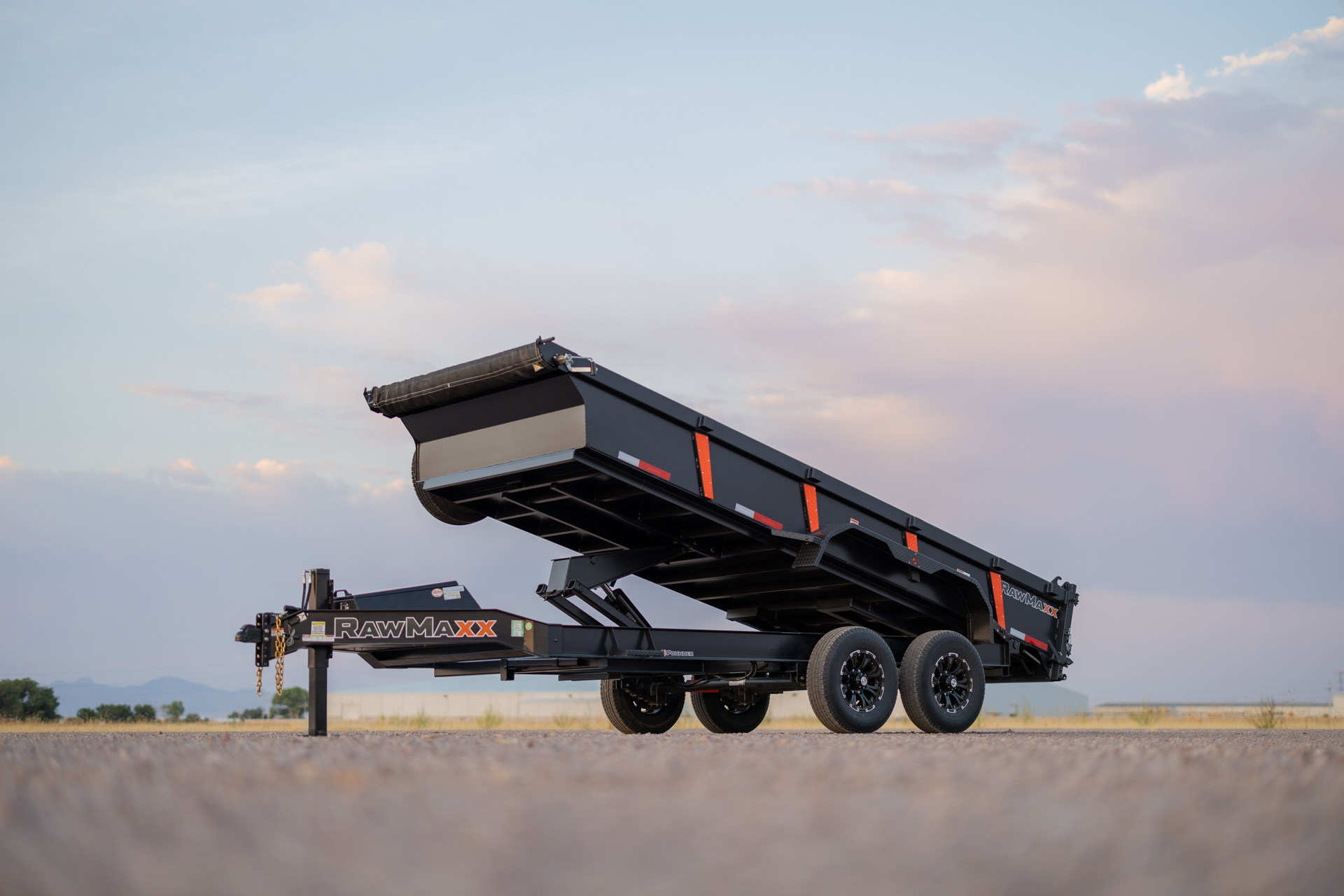

When the job calls for dependable dump performance without extra complexity, the RawMaxx LPX BP delivers. Available in 12’, 14’, and 16’ lengths and rated at 14,000 lbs. GVWR, it’s built for crews that need a dump trailer that shows up ready and keeps moving load after load.

The LPX BP is built on an 8″ x 13 lb. I-beam main frame with 4″ x 6″ tubing cross-members and a fully formed 7-gauge floor. With 10-gauge formed walls, reinforced side posts, and integrated stake pockets, it’s designed to take real jobsite use from concrete debris to gravel, dirt, and daily cleanup. An 83″ inside width and 5.89 cubic yards of capacity gives you the volume to stay efficient without stepping up to a bigger unit.

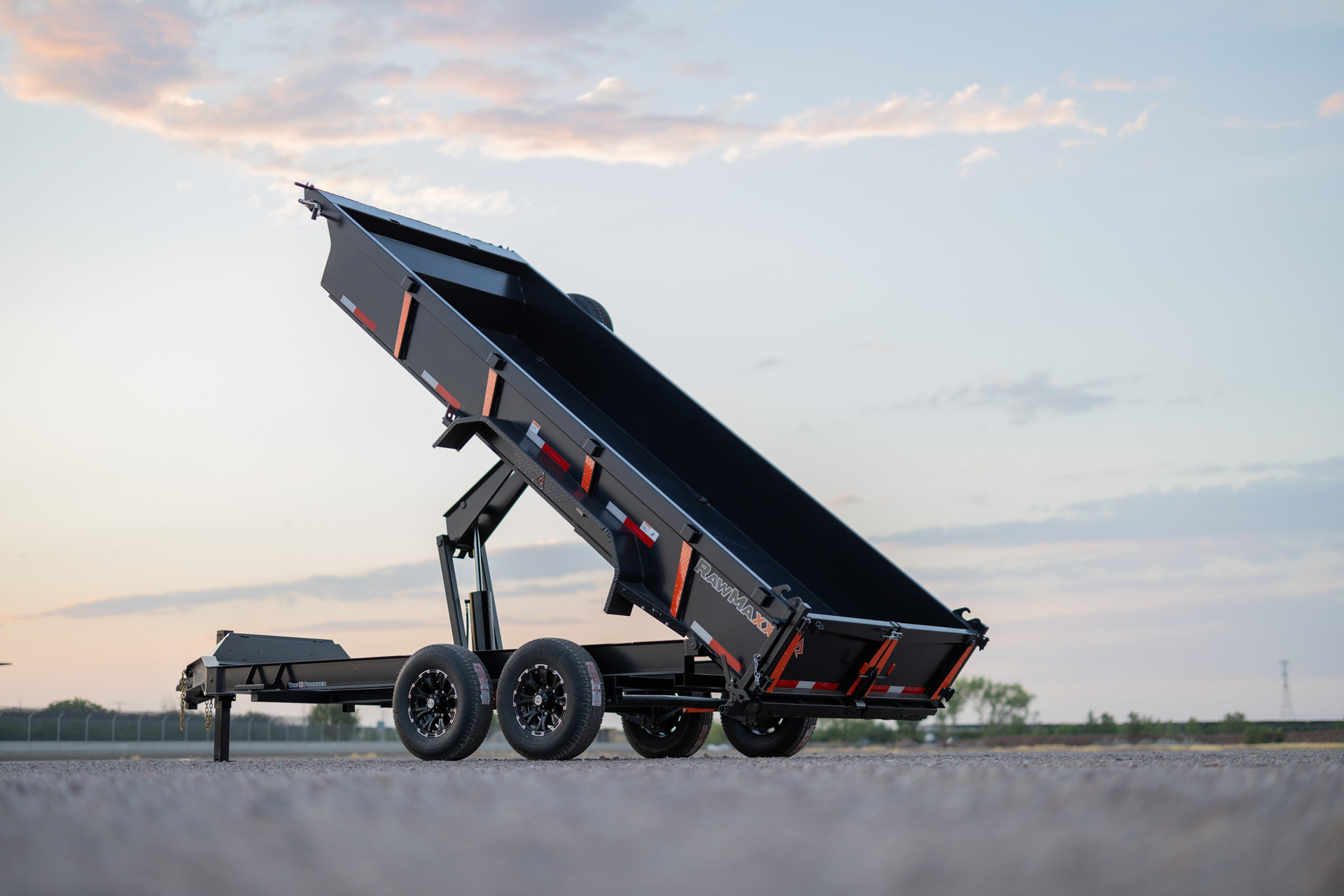

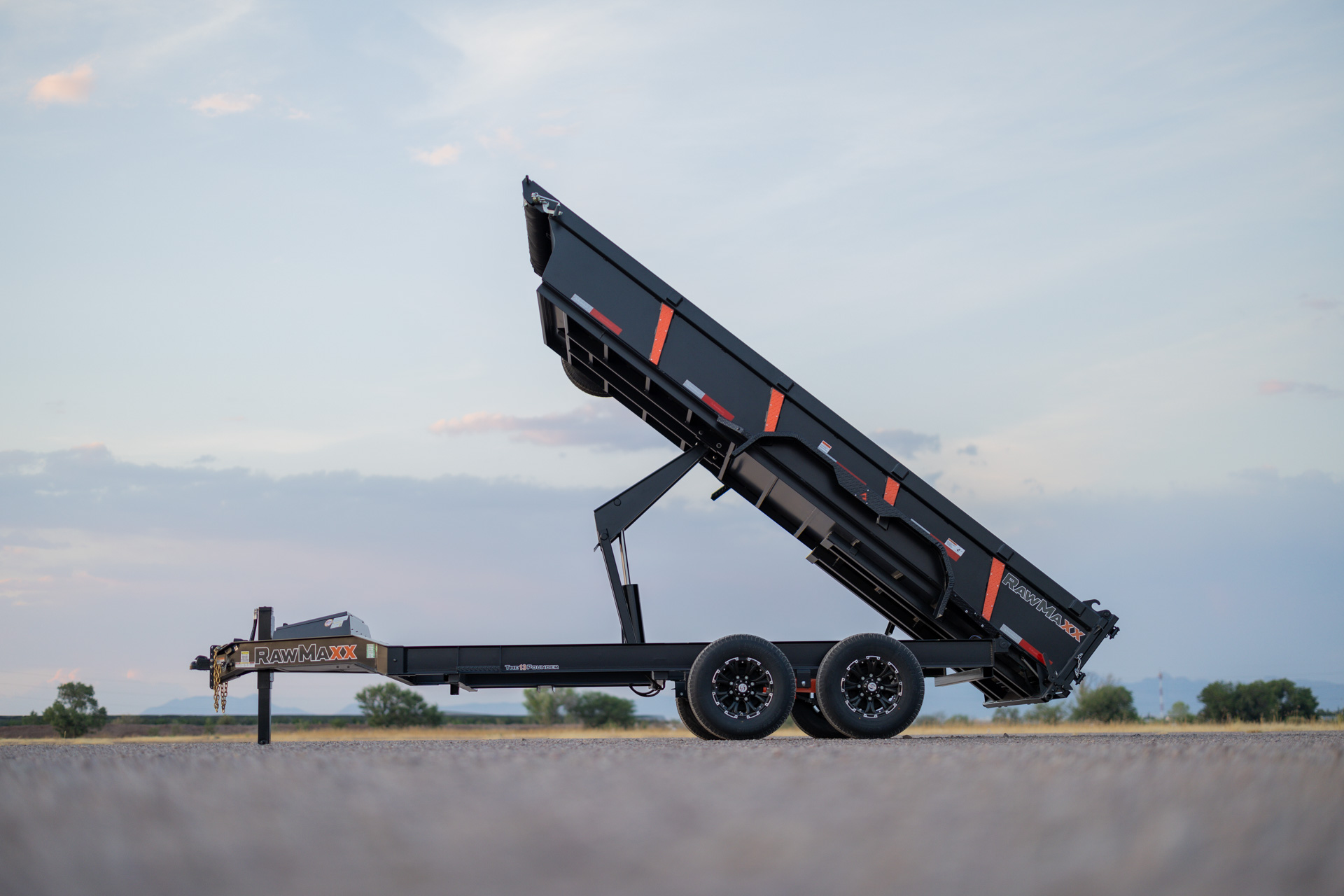

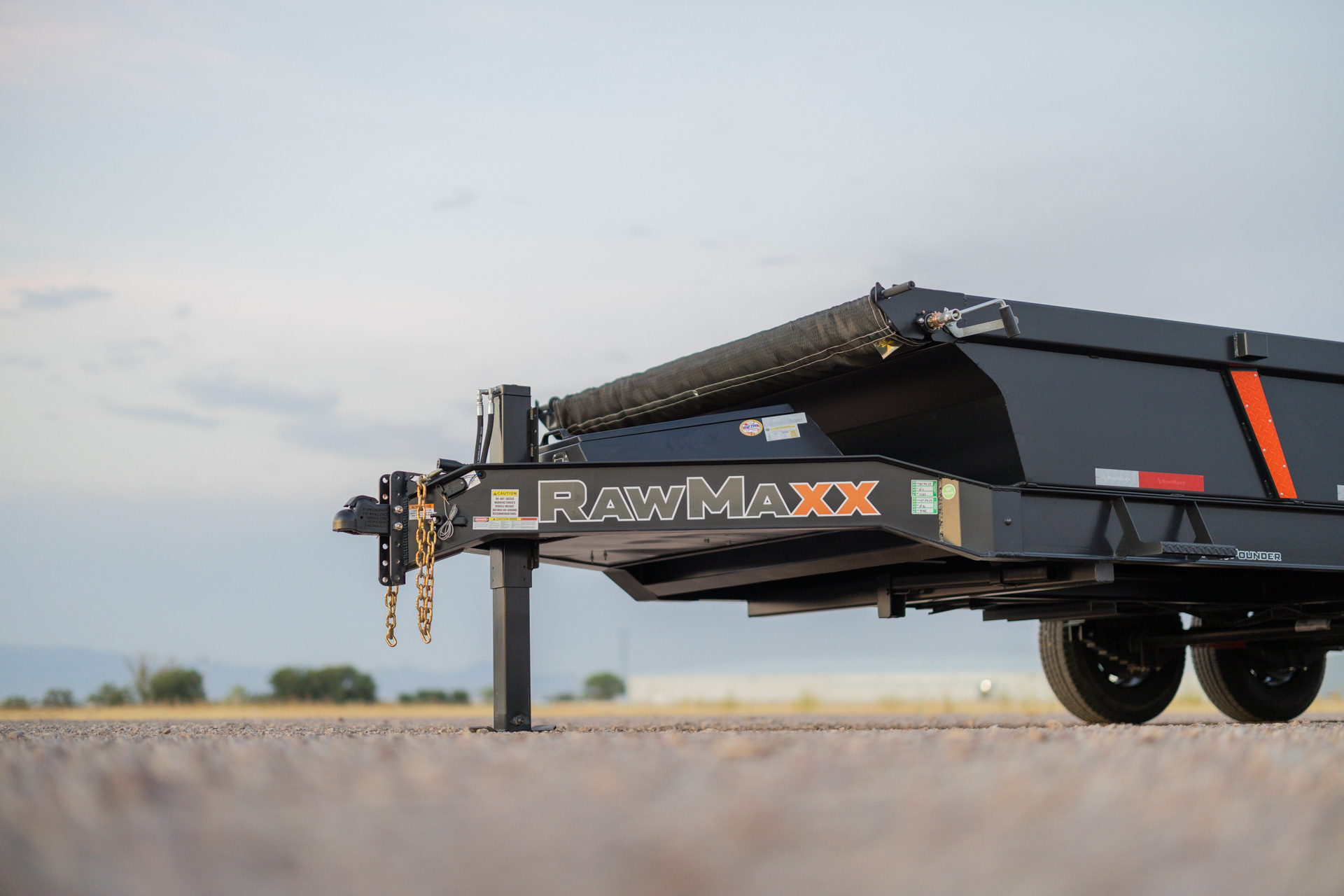

Dumping power is controlled and consistent with a hydraulic power up / power down system driven by a KTI 12V pump and a heavy-duty scissor lift. A 48° tilt angle helps material clear clean, while the Mega Boxx tongue toolbox keeps the pump, battery, and charger protected and organized. Dual 7K spring axles, electric brakes, and 10-ply radial tires keep it stable on the road and confident under load.

It’s finished off with the practical details that matter: a 3-way rear gate with EZ Slam latches, slide-in ramps, DOT LED lighting, all-weather wiring, and full safety equipment. Straightforward, strong, and built for the kind of work that doesn’t stop.

The RawMaxx LPX BP — proven performance, serious structure, and built to work.
