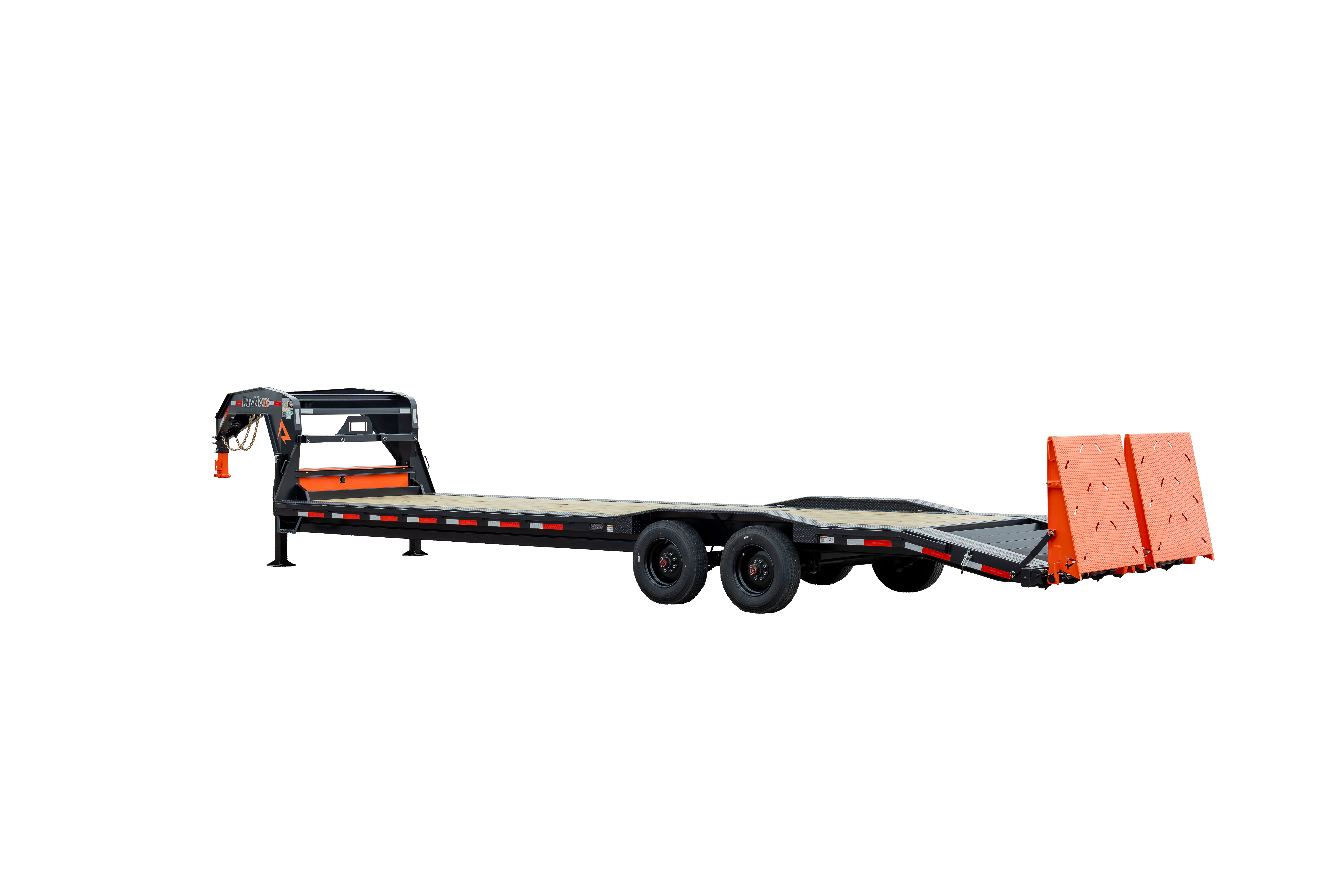

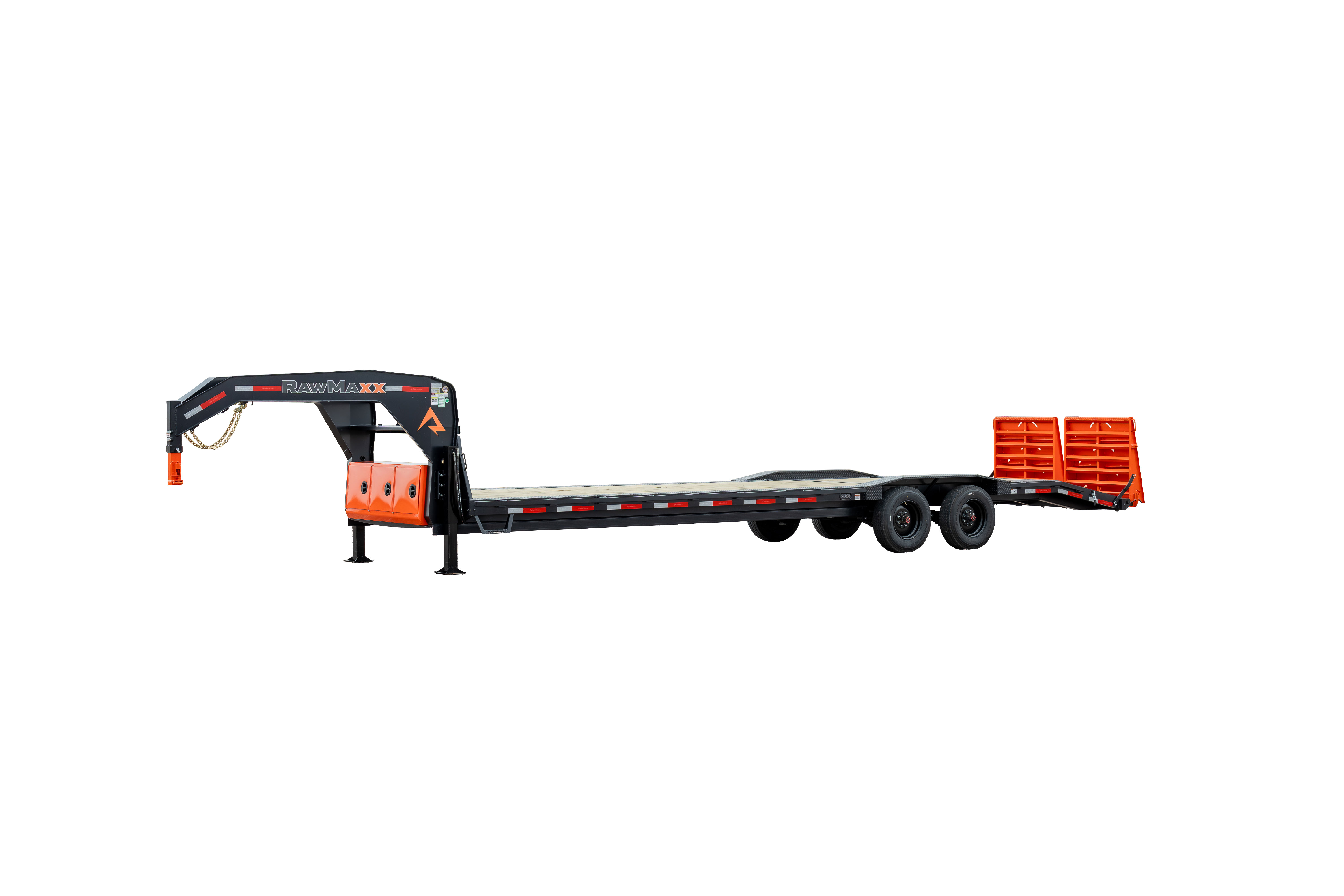

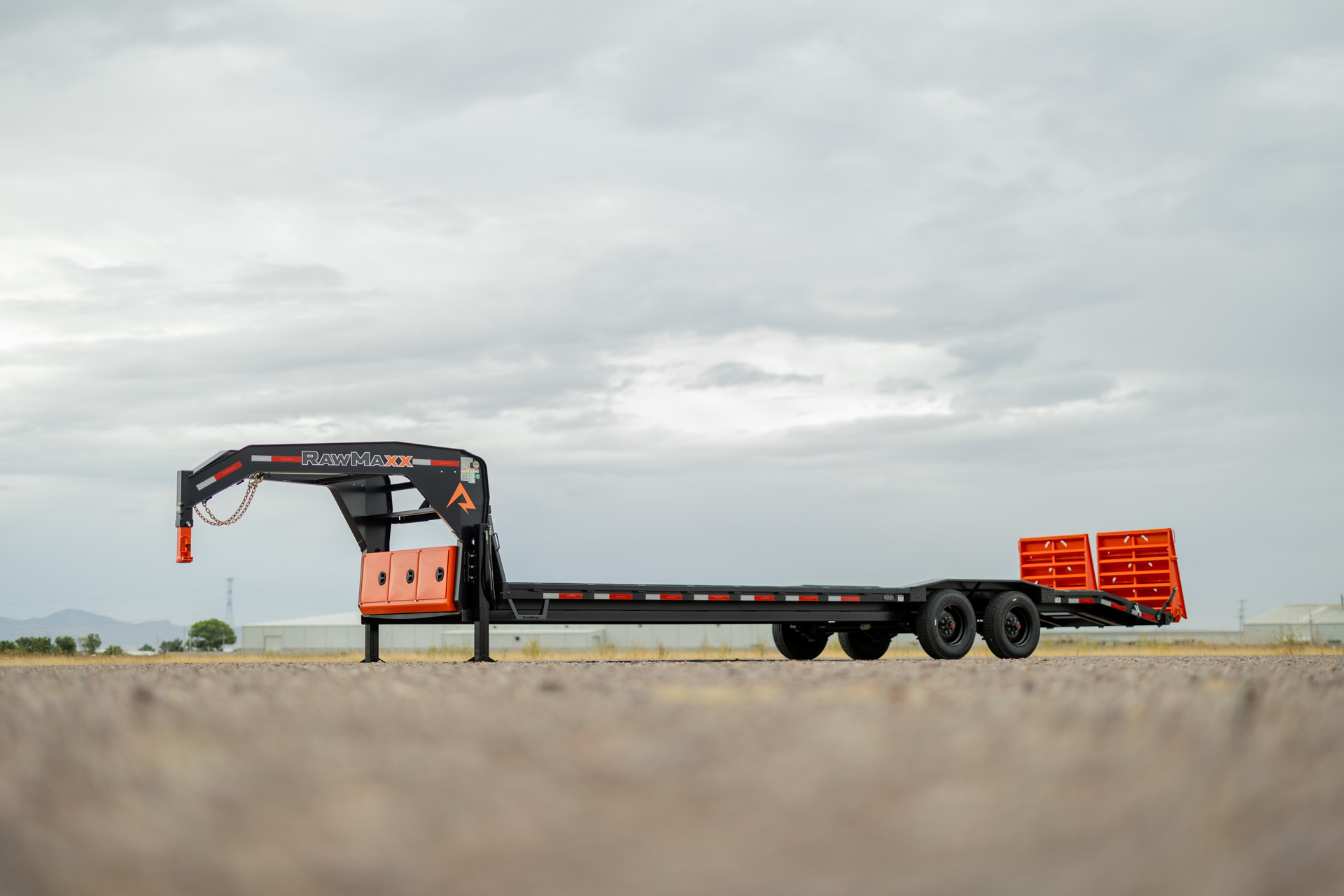

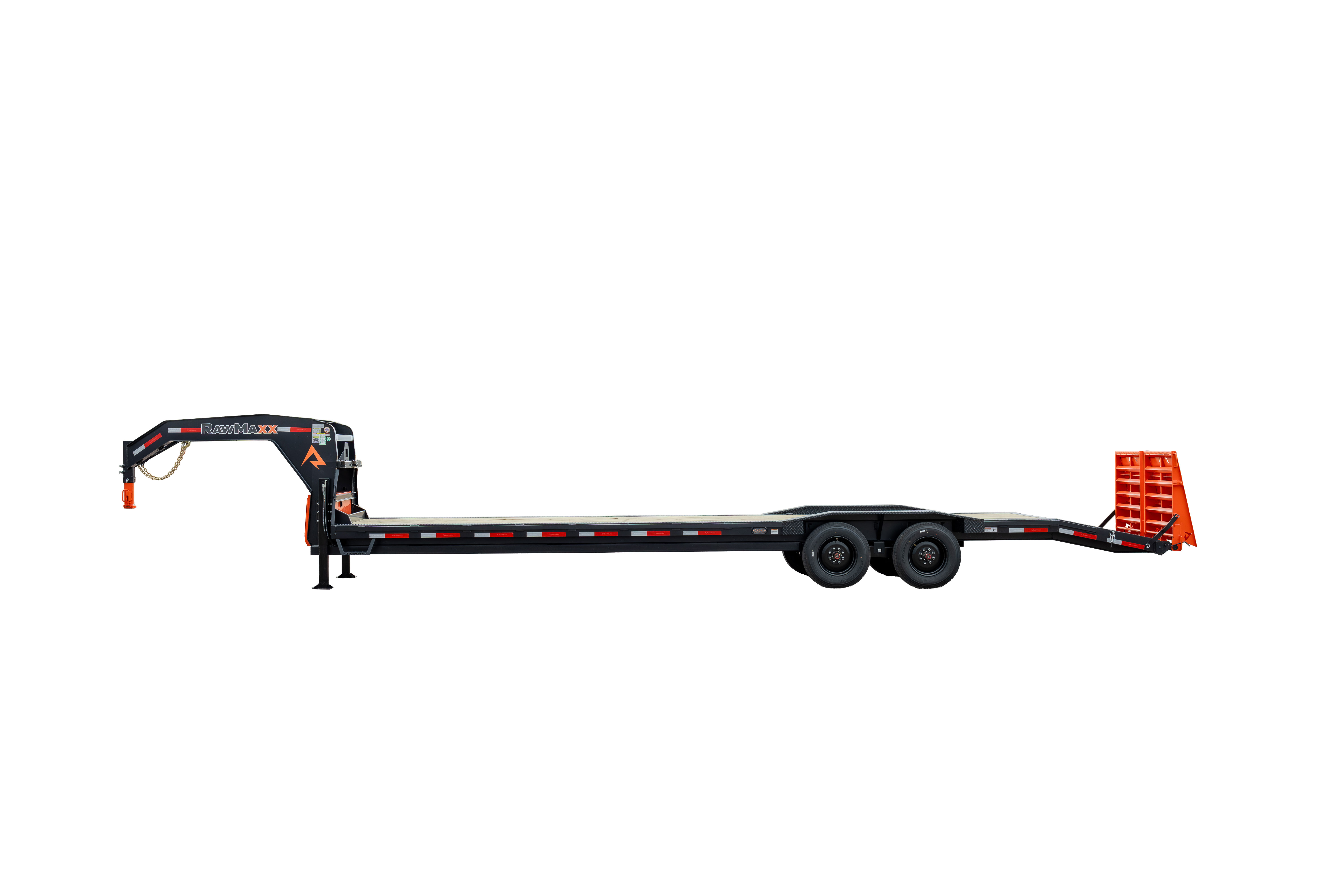

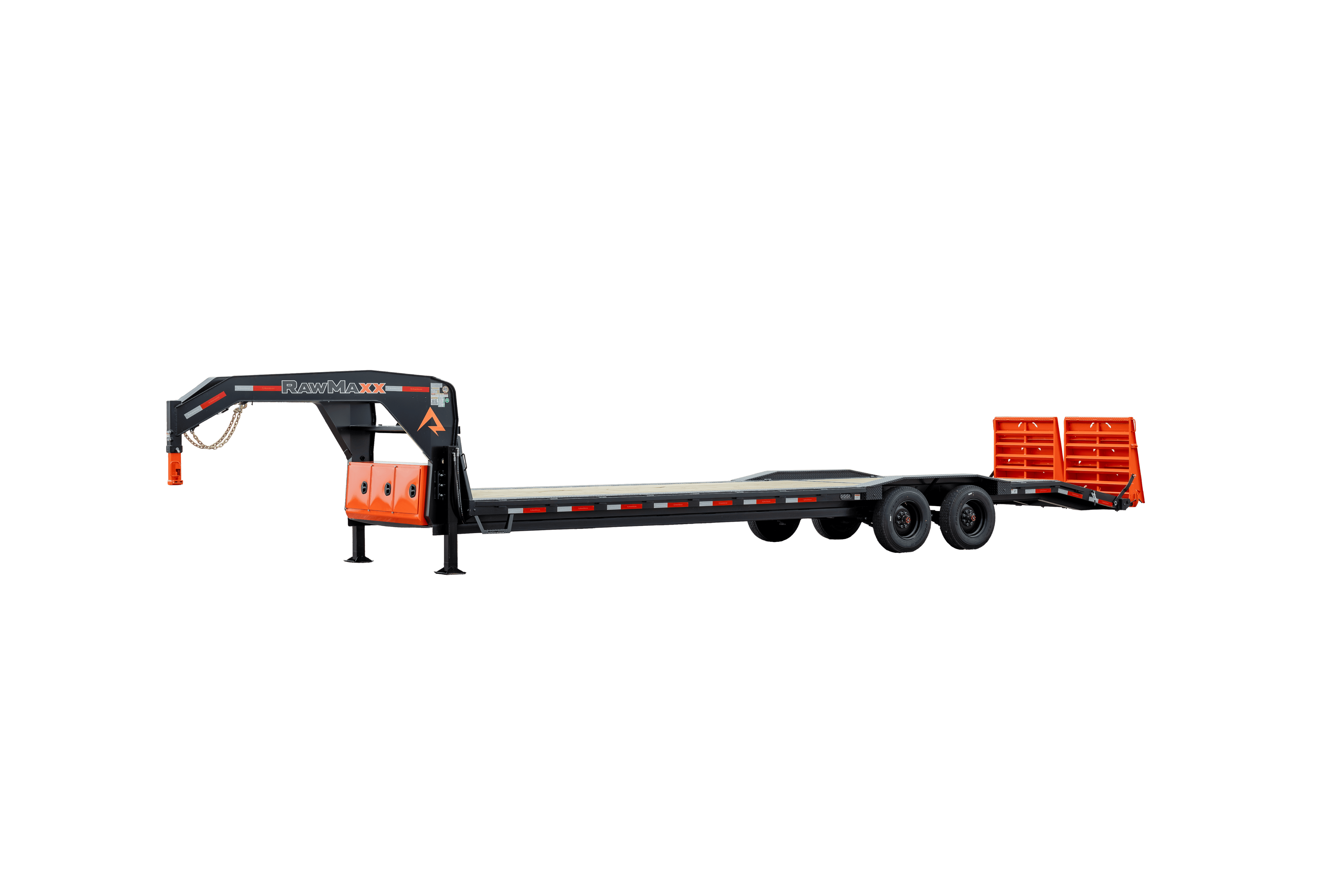

LDX

Available Sizes

20' x 102"
22' x 102"
24' x 102"
26' x 102"
28' x 102"
30' x 102"
32' x 102"
34' x 102"
36' x 102"
38' x 102"
40' x 102"
44' x 102"

Trailer Specs

Dimensions

Length: 20'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 4,080 lbs.

Load Capacity: 11,904 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

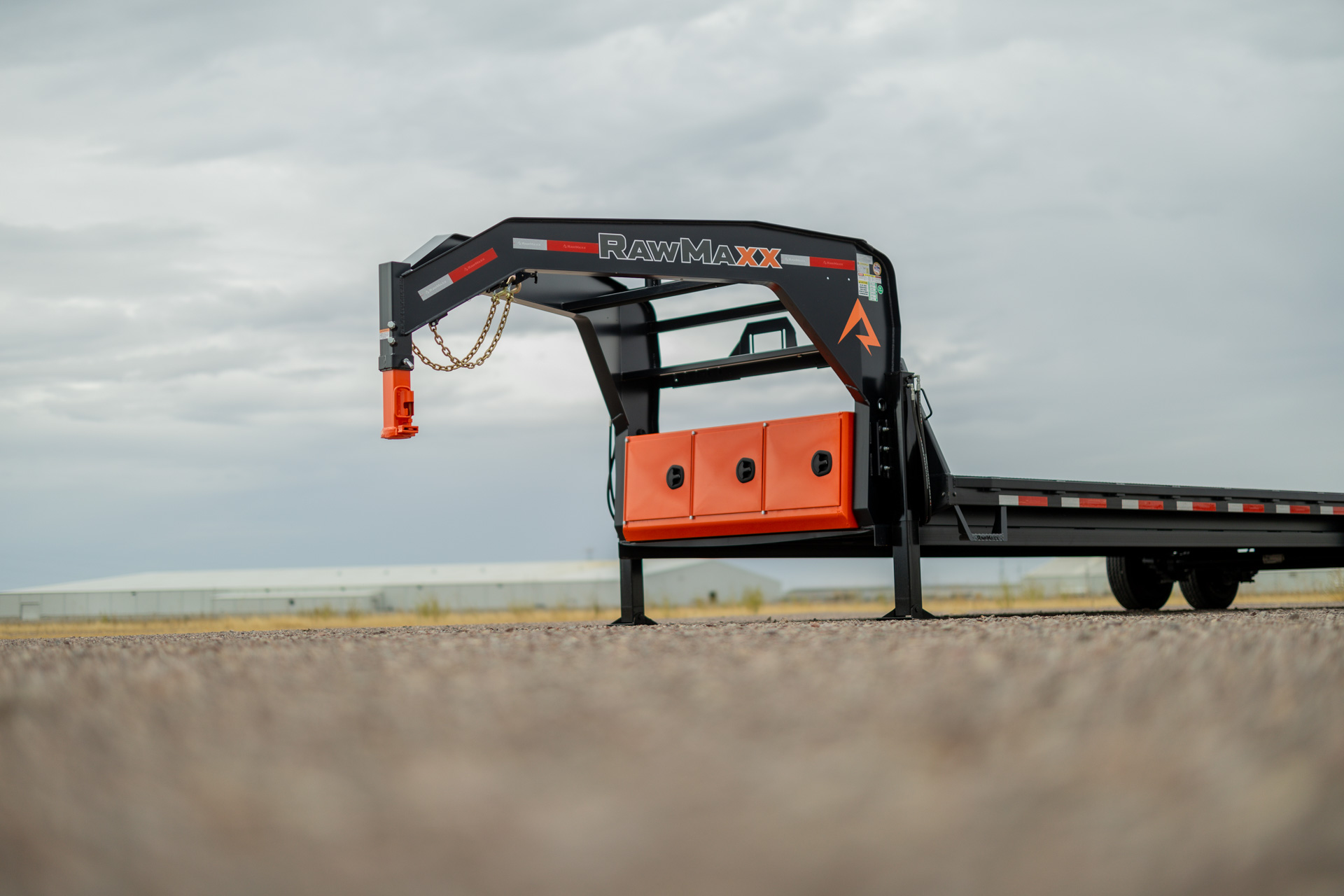

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

4 – 18Ply Tires 235/80/R17.5

($486.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 20′ Trailer )

($270.00)

12G Steel Floor ( 20′ Trailer )

($945.00)

Pro Wood ( 20′ Trailer )

($756.00)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Options

20′ – Slide Track For Ratchets

($405.00)

4 – Slide Ratchets

($189.00)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 22'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 5,144 lbs.

Load Capacity: 10,587 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 22′ Trailer )

($297.00)

12G Steel Floor ( 22′ Trailer )

($1,039.50)

Pro Wood ( 22′ Trailer )

($831.60)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Options

22′ – Slide Track For Ratchets

($445.50)

4 – Slide Ratchets

($189.00)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 24'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 5,344 lbs.

Load Capacity: 10,387 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 24′ Trailer )

($324.00)

12G Steel Floor ( 24′ Trailer )

($1,134.00)

Pro Wood ( 24′ Trailer )

($907.20)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Options

24′ – Slide Track For Ratchets

($486.00)

4 – Slide Ratchets

($189.00)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 26'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 5,485 lbs.

Load Capacity: 10,158 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

6 – 18Ply Tires 235/80/R17.5

($729.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 26′ Trailer )

($351.00)

Pro Wood ( 26′ Trailer )

($982.80)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Options

26′ – Slide Track For Ratchets

($526.50)

4 – Slide Ratchets

($189.00)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 28'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 5,785 lbs.

Load Capacity: 9,858 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Triple 7,000 Lbs. Spring Axles

($1,620.00)

Triple 8,000 Lbs. Lippert Hybrid Spring Axles

($3,665.25)

2 – 10,000 Lbs. Spring Axles ( 18 Ply Tires )

($3,780.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

6 – 14Ply Tires 235/80/R16

($324.00)

6 – 18Ply Tires 235/80/R17.5

($729.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 28′ Trailer )

($378.00)

Pro Wood ( 28′ Trailer )

($1,058.40)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Options

28′ – Slide Track For Ratchets

($567.00)

4 – Slide Ratchets

($189.00)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 30'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 6,131 lbs.

Load Capacity: 9,382 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

2 – 10,000 Lbs. Spring Axles ( 18 Ply Tires )

($3,780.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

4 – 18Ply Tires 235/80/R17.5

($486.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 30′ Trailer )

($405.00)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Options

30′ – Slide Track For Ratchets

($607.50)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

12 – Slide Ratchets

($567.00)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,362.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

3 – Underbody Toolbox

($1,518.75)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 32'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 6,431 lbs.

Load Capacity: 9,082 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Triple 7,000 Lbs. Spring Axles

($1,620.00)

Triple 8,000 Lbs. Lippert Hybrid Spring Axles

($3,665.25)

2 – 10,000 Lbs. Spring Axles ( 18 Ply Tires )

($3,780.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

4 – 18Ply Tires 235/80/R17.5

($486.00)

6 – 14Ply Tires 235/80/R16

($324.00)

6 – 18Ply Tires 235/80/R17.5

($729.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 32′ Trailer )

($432.00)

Pro Wood ( 32′ Trailer )

($1,209.60)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Options

32′ – Slide Track For Ratchets

($648.00)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

12 – Slide Ratchets

($567.00)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,362.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

3 – Underbody Toolbox

($1,518.75)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 34'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 6,818 lbs.

Load Capacity: 8,578 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate ( Drive-Over )

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Triple 7,000 Lbs. Spring Axles

($1,620.00)

Triple 8,000 Lbs. Lippert Hybrid Spring Axles

($3,665.25)

2 – 10,000 Lbs. Spring Axles ( 18 Ply Tires )

($3,780.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

6 – 14Ply Tires 235/80/R16

($324.00)

6 – 18Ply Tires 235/80/R17.5

($729.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 34′ Trailer )

($459.00)

Pro Wood ( 34′ Trailer )

($1,285.20)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Options

34′ – Slide Track For Ratchets

($688.50)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

12 – Slide Ratchets

($567.00)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,362.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

3 – Underbody Toolbox

($1,518.75)

4 – Underbody Toolbox

($2,025.00)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 36'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 7,018 lbs.

Load Capacity: 8,378 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate ( Drive-Over )

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Triple 7,000 Lbs. Spring Axles

($1,620.00)

Triple 8,000 Lbs. Lippert Hybrid Spring Axles

($3,665.25)

2 – 10,000 Lbs. Spring Axles ( 18 Ply Tires )

($3,780.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

6 – 14Ply Tires 235/80/R16

($324.00)

6 – 18Ply Tires 235/80/R17.5

($729.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 36′ Trailer )

($486.00)

Pro Wood ( 36′ Trailer )

($1,360.80)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Options

36′ – Slide Track For Ratchets

($729.00)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

12 – Slide Ratchets

($567.00)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,362.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

3 – Underbody Toolbox

($1,518.75)

4 – Underbody Toolbox

($2,025.00)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 38'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 7,110 lbs.

Load Capacity: 8,228 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Triple 7,000 Lbs. Spring Axles

($1,620.00)

Triple 8,000 Lbs. Lippert Hybrid Spring Axles

($3,665.25)

2 – 10,000 Lbs. Spring Axles ( 18 Ply Tires )

($3,780.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

6 – 14Ply Tires 235/80/R16

($324.00)

6 – 18Ply Tires 235/80/R17.5

($729.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 38′ Trailer )

($513.00)

Pro Wood ( 38′ Trailer )

($1,436.40)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Option

38′ – Slide Track For Ratchets

($769.50)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

12 – Slide Ratchets

($567.00)

14 – Slide Ratchets

($661.50)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,362.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

3 – Underbody Toolbox

($1,518.75)

4 – Underbody Toolbox

($2,025.00)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 40'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 7,310 lbs.

Load Capacity: 8,028 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Triple 7,000 Lbs. Spring Axles

($1,620.00)

Triple 8,000 Lbs. Lippert Hybrid Spring Axles

($3,665.25)

2 – 10,000 Lbs. Spring Axles ( 18 Ply Tires )

($3,780.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

6 – 14Ply Tires 235/80/R16

($324.00)

6 – 18Ply Tires 235/80/R17.5

($729.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 40′ Trailer )

($540.00)

Pro Wood ( 40′ Trailer )

($1,512.00)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Option

40′ – Slide Track For Ratchets

($810.00)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

12 – Slide Ratchets

($567.00)

14 – Slide Ratchets

($661.50)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,362.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

3 – Underbody Toolbox

($1,518.75)

4 – Underbody Toolbox

($2,025.00)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

Trailer Specs

Dimensions

Length: 44'

Width: 102"

Deck Height: 30"

Weight Rating

GVWR: 14,000 lbs.

GAWR: 7,000 lbs.

Empty Weight: 7,810 lbs.

Load Capacity: 7,528 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Maxx Ramps. Ramps that make loading so much easier. Lightweight design so you can easily lift them without a struggle.

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 98"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Thread Plate (Drive-Over)

Frame

Frame: 10" x 12 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Bridge Frame: 4" x 4" Angle Iron

Rear Tail

Strait deck: 8' Slide-In Channel Ramps

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axle Type: Spring

Axles: 2

Rating: 7,000 lbs.

Brakes: Electric

Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Axle Options

2 – 8,000 Lbs. Lippert Hybrid Spring Axles ( 14 Ply Tires )

($1,971.00)

Triple 7,000 Lbs. Spring Axles

($1,620.00)

Triple 8,000 Lbs. Lippert Hybrid Spring Axles

($3,665.25)

2 – 10,000 Lbs. Spring Axles ( 18 Ply Tires )

($3,780.00)

Tire Options

4 – 14Ply Tires 235/80/R16

($216.00)

6 – 14Ply Tires 235/80/R16

($324.00)

6 – 18Ply Tires 235/80/R17.5

($729.00)

Spare Tire Options

Spare – 10Ply Tire 235/80/R16

($216.00)

Spare – 14Ply Tire 235/80/R16

($270.00)

Spare – 18Ply Tire 235/80/R17.5

($337.50)

Deck Options

12″ Center Cross-members ( 44′ Trailer )

($594.00)

Pro Wood ( 44′ Trailer )

($1,663.20)

Tail Options

Dove Tail With Maxx Ramps

($1,012.50)

Tie Down Options

4 – Weld on D-Rings

($81.00)

6 – Weld on D-Rings

($121.50)

8 – Weld on D-Rings

($162.00)

Slide Track Option

44′ – Slide Track For Ratchets

($891.00)

6 – Slide Ratchets

($283.50)

8 – Slide Ratchets

($378.00)

10 – Slide Ratchets

($472.50)

12 – Slide Ratchets

($567.00)

14 – Slide Ratchets

($661.50)

Weld On Ratchets

4 – Weld-On Ratchets

($270.00)

6 – Weld-On Ratchets

($405.00)

8 – Weld-On Ratchets

($540.00)

10 – Weld-On Ratchets

($675.00)

Jack Options

Dual 12,000 Lbs. Hydraulic Jacks ( Includes Pump, Battery & Charger )

($2,700.00)

Winch Options

12,000 Lbs. Electric Winch ( Includes Battery & Charger )

($1,687.50)

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,362.50)

Tool Box Options

1 – Underbody Toolbox

($506.25)

2 – Underbody Toolbox

($1,012.50)

3 – Underbody Toolbox

($1,518.75)

4 – Underbody Toolbox

($2,025.00)

Dunnage Rack

($303.75)

GN ToolMaxx

($607.50)

Light Options

1 – Top LED Light Bar

($506.25)

2 – Side LED Pod Lights

($337.50)

Extra Marker Lights ( Every 4′ )

($270.00)

Extra Marker Lights ( Every 8′ )

($135.00)

LDX Video

Say Hello to the LDX Trailer, the perfect solution for hauling heavy loads. Available in various sizes, from 20′ to 40′, with a weight capacity of up to 11,904 lbs. The LDX is equipped with a durable powder coat finish and 2″ treated lumber deck flooring with tie-downs D-rings for added security.

Featuring a sturdy 10″ x 12 lbs. I-beam main frame with 3″ channel cross-members and 5″ round tube torque tube, the LDX is built to withstand tough conditions. The trailer also comes with reliable Dexter axles and 10-ply radial tires with a 3,520 lb. rating on each tire, ensuring a smooth ride on any terrain.

Safety is a top priority with the LDX, including 3/8″ G70 safety chains, an electric breakaway kit, and 3M DOT compliant reflective tape. The trailer also comes with a lockable front tool box and 2-5/16” ball coupler for added convenience.

With various optional add-ons, such as electric winches and hydraulic jacks, the LDX can be customized to fit your specific needs. Backed by a 3-year structural and 1-year paint warranty, the LDX is a reliable and durable option for your hauling needs.
