Standard Features

Features for “LDX16GN14K”

Length: 16‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,480 lbs.
Load Capacity: 17,500 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings

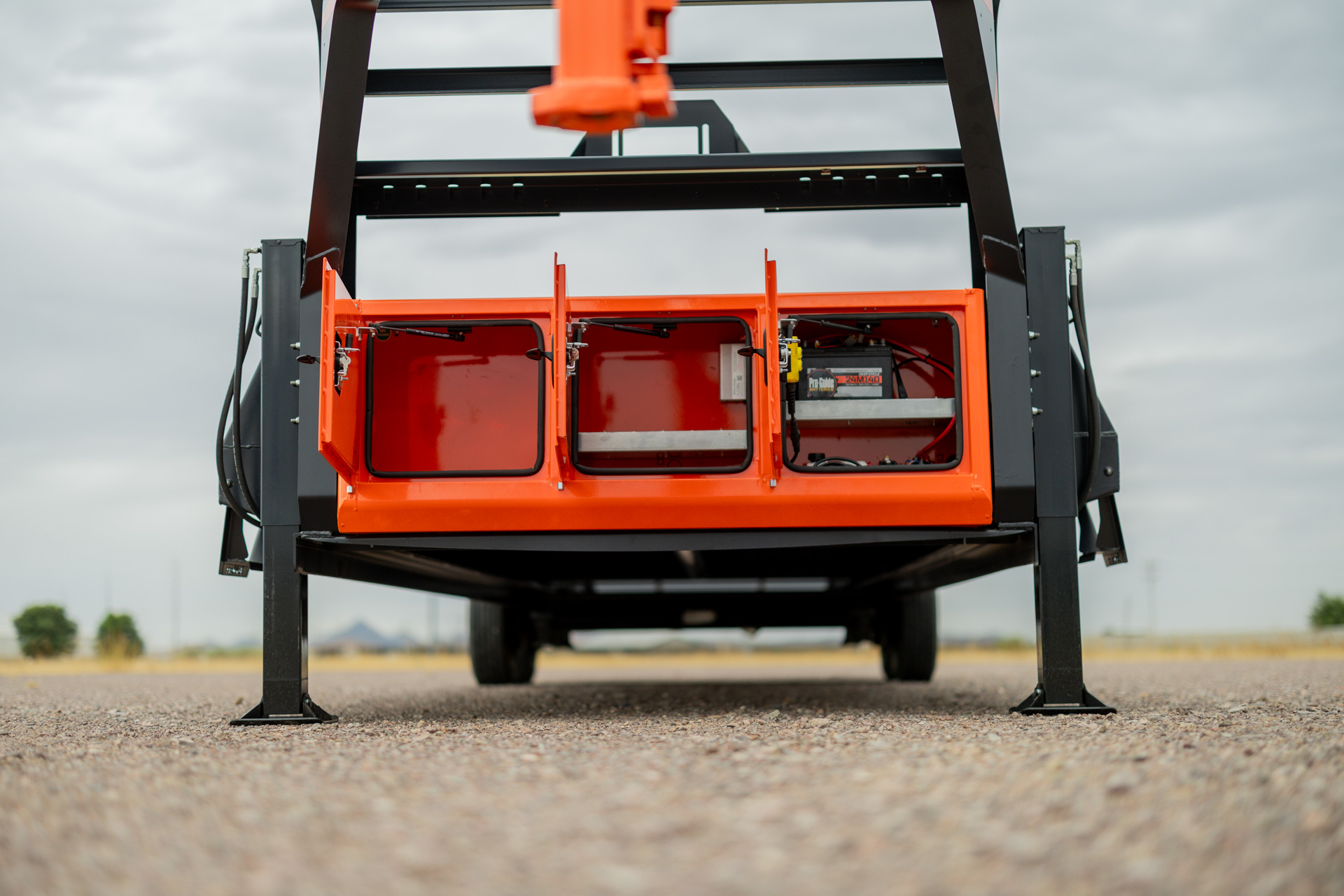

Front Tool Box: Between Risers

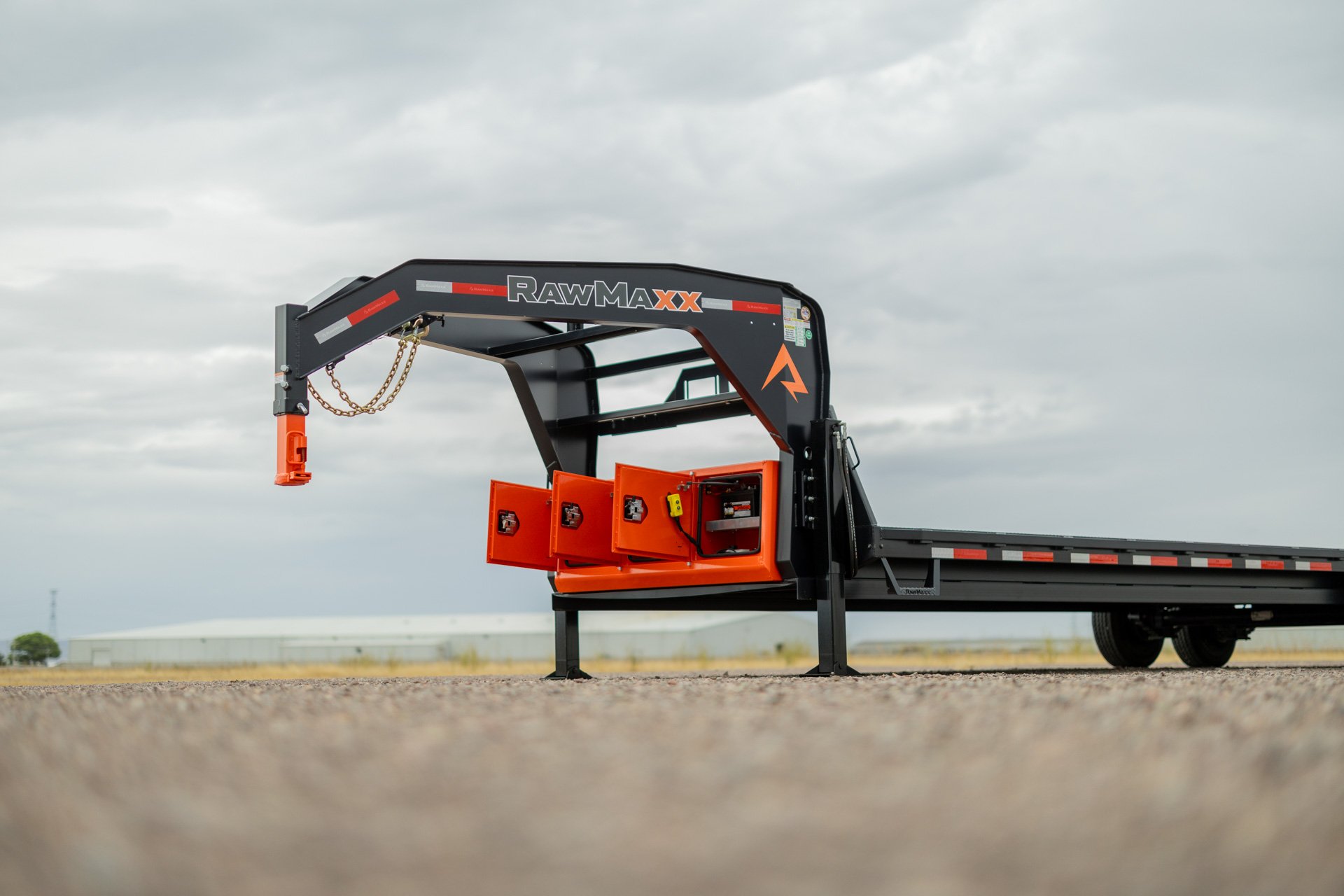

Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX18GN14K”

Length: 18‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,628 lbs.
Load Capacity: 11,715 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX20GN14K”

Length: 20‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,080 lbs.
Load Capacity: 11,904 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX22GN14K”

Length: 22‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,144 lbs.
Load Capacity: 10,587 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX24GN14K”

Length: 24‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,344 lbs.
Load Capacity: 10,387 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX26GN14K”

Length: 26‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,485 lbs.
Load Capacity: 10,158 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX28GN14K”

Length: 28‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,785 lbs.
Load Capacity: 9,858 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX30GN14K”

Length: 30‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,131 lbs.
Load Capacity: 9,382 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX32GN14K”

Length: 32‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,431 lbs.
Load Capacity: 9,082 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX34GN14K”

Length: 34‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,818 lbs.
Load Capacity: 8,578 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX36GN14K”

Length: 36‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,018 lbs.
Load Capacity: 8,378 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX38GN14K”

Length: 38‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,110 lbs.
Load Capacity: 8,228 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX40GN14K”

Length: 40‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,310 lbs.
Load Capacity: 8,028 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX16GN16K”

Length: 16‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,620 lbs.
Load Capacity: 11,380 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX18GN16K”

Length: 18‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,829 lbs.
Load Capacity: 11,171 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX20GN16K”

Length: 20‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,010 lbs.
Load Capacity: 10,990 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX22GN16K”

Length: 22‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,191 lbs.
Load Capacity: 10,809 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX24GN16K”

Length: 24‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,530 lbs.
Load Capacity: 9,470 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX26GN16K”

Length: 26‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,530 lbs.
Load Capacity: 9,470 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX28GN16K”

Length: 28‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,629 lbs.
Load Capacity: 10,371 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX30GN16K”

Length: 30‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,263 lbs.
Load Capacity: 9,737 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX32GN16K”

Length: 32‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,431 lbs.
Load Capacity: 9,569 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX34GN16K”

Length: 34‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,530 lbs.
Load Capacity: 9,470 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX36GN16K”

Length: 36‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,341 lbs.
Load Capacity: 8,659 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX38GN16K”

Length: 38‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,162 lbs.
Load Capacity: 8,838 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX40GN16K”

Length: 40‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,310 lbs.
Load Capacity: 8,690 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX16GN20K”

Length: 16‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,980 lbs.
Load Capacity: 15,020 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX18GN20K”

Length: 18‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,190 lbs.
Load Capacity: 14,810 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX20GN20K”

Length: 20‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,430 lbs.
Load Capacity: 14,570 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX22GN20K”

Length: 22‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,667 lbs.
Load Capacity: 14,334 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX24GN20K”

Length: 24‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,900 lbs.
Load Capacity: 14,100 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX26GN20K”

Length: 26‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,120 lbs.
Load Capacity: 13,880 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX28GN20K”

Length: 28‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,320 lbs.
Load Capacity: 13,680 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX30GN20K”

Length: 30‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,560 lbs.
Load Capacity: 13,440 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX32GN20K”

Length: 32‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,731 lbs.
Load Capacity: 13,269 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX34GN20K”

Length: 34‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,980 lbs.
Load Capacity: 13,020 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX36GN20K”

Length: 36‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,180 lbs.
Load Capacity: 12,820 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX38GN20K”

Length: 38‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,270 lbs.
Load Capacity: 12,730 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX40GN20K”

Length: 40‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,350 lbs.
Load Capacity: 12,650 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX42GN20K”

Length: 42‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 8,215 lbs.
Load Capacity: 11,785 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX44GN20K”

Length: 44‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 9,083 lbs.
Load Capacity: 10,917 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX30GN21K”

Length: 30‘
Width: 102″
Deck Height: 30″
GVWR: 21,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,563 lbs.
Load Capacity: 18,046 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
6 – 10 Ply ST235/80R16 Tires
Spring Suspension
3 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX36GN21K”

Length: 36‘
Width: 102″
Deck Height: 30″
GVWR: 21,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,416 lbs.
Load Capacity: 16,980 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
6 – 10 Ply ST235/80R16 Tires
Spring Suspension
3 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX40GN21K”

Length: 40‘
Width: 102″
Deck Height: 30″
GVWR: 21,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,610 lbs.
Load Capacity: 16,738 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
6 – 10 Ply ST235/80R16 Tires
Spring Suspension
3 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

LDX 3D

360° View

Order Now

Standard Features

Features for “LDX16GN14K”

Length: 16‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,480 lbs.
Load Capacity: 17,500 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX18GN14K”

Length: 18‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,628 lbs.
Load Capacity: 11,715 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX20GN14K”

Length: 20‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,080 lbs.
Load Capacity: 11,904 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX22GN14K”

Length: 22‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,144 lbs.
Load Capacity: 10,587 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX24GN14K”

Length: 24‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,344 lbs.
Load Capacity: 10,387 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX26GN14K”

Length: 26‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,485 lbs.
Load Capacity: 10,158 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX28GN14K”

Length: 28‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,785 lbs.
Load Capacity: 9,858 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX30GN14K”

Length: 30‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,131 lbs.
Load Capacity: 9,382 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX32GN14K”

Length: 32‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,431 lbs.
Load Capacity: 9,082 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX34GN14K”

Length: 34‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,818 lbs.
Load Capacity: 8,578 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX36GN14K”

Length: 36‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,018 lbs.
Load Capacity: 8,378 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX38GN14K”

Length: 38‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,110 lbs.
Load Capacity: 8,228 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX40GN14K”

Length: 40‘
Width: 102″
Deck Height: 30″
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,310 lbs.
Load Capacity: 8,028 lbs.
2-5/16” Ball 25,000 lbs. Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX16GN16K”

Length: 16‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,620 lbs.
Load Capacity: 11,380 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX18GN16K”

Length: 18‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,829 lbs.
Load Capacity: 11,171 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX20GN16K”

Length: 20‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,010 lbs.
Load Capacity: 10,990 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX22GN16K”

Length: 22‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,191 lbs.
Load Capacity: 10,809 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX24GN16K”

Length: 24‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,530 lbs.
Load Capacity: 9,470 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX26GN16K”

Length: 26‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,530 lbs.
Load Capacity: 9,470 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX28GN16K”

Length: 28‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,629 lbs.
Load Capacity: 10,371 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX30GN16K”

Length: 30‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,263 lbs.
Load Capacity: 9,737 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX32GN16K”

Length: 32‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,431 lbs.
Load Capacity: 9,569 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX34GN16K”

Length: 34‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,530 lbs.
Load Capacity: 9,470 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX36GN16K”

Length: 36‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,341 lbs.
Load Capacity: 8,659 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX38GN16K”

Length: 38‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,162 lbs.
Load Capacity: 8,838 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX40GN16K”

Length: 40‘
Width: 102″
Deck Height: 30″
GVWR: 16,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,310 lbs.
Load Capacity: 8,690 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 12 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX16GN20K”

Length: 16‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,980 lbs.
Load Capacity: 15,020 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX18GN20K”

Length: 18‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,190 lbs.
Load Capacity: 14,810 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX20GN20K”

Length: 20‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,430 lbs.
Load Capacity: 14,570 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX22GN20K”

Length: 22‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,667 lbs.
Load Capacity: 14,334 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX24GN20K”

Length: 24‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,900 lbs.
Load Capacity: 14,100 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX26GN20K”

Length: 26‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,120 lbs.
Load Capacity: 13,880 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX28GN20K”

Length: 28‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,320 lbs.
Load Capacity: 13,680 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX30GN20K”

Length: 30‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,560 lbs.
Load Capacity: 13,440 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX32GN20K”

Length: 32‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,731 lbs.
Load Capacity: 13,269 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX34GN20K”

Length: 34‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,980 lbs.
Load Capacity: 13,020 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX36GN20K”

Length: 36‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,180 lbs.
Load Capacity: 12,820 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX38GN20K”

Length: 38‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,270 lbs.
Load Capacity: 12,730 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX40GN20K”

Length: 40‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,350 lbs.
Load Capacity: 12,650 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX42GN20K”

Length: 42‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 8,215 lbs.
Load Capacity: 11,785 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX44GN20K”

Length: 44‘
Width: 102″
Deck Height: 30″
GVWR: 20,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 9,083 lbs.
Load Capacity: 10,917 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs.
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX30GN21K”

Length: 30‘
Width: 102″
Deck Height: 30″
GVWR: 21,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,563 lbs.
Load Capacity: 18,046 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
6 – 10 Ply ST235/80R16 Tires
Spring Suspension
3 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX36GN21K”

Length: 36‘
Width: 102″
Deck Height: 30″
GVWR: 21,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,416 lbs.
Load Capacity: 16,980 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
6 – 10 Ply ST235/80R16 Tires
Spring Suspension
3 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “LDX40GN21K”

Length: 40‘
Width: 102″
Deck Height: 30″
GVWR: 21,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,610 lbs.
Load Capacity: 16,738 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
2 Side Wind Drop Leg Jacks -10,000 lbs
10″ x 15 lbs I-Beam Main Frame
3″ Channel / 16″ OC
Bridge Frame: 4″ x 4″ Angle Iron
Strait deck: 7.5′ Slide-In Channel Ramps
6″ Channel Outer Deck Frame
3-5/8″ x 1-1/2″ (ID) Stake Pockets
Fenders: 3/16” Thread Plate (Drive-Over)
Flooring: 2” Treated Lumber Deck
D-Rings: 4 D-Rings
Front Tool Box: Between Risers
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
3/8″ G70 Safety Chains
6 – 10 Ply ST235/80R16 Tires
Spring Suspension
3 – 7,000 lbs Axles With Brakes
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

LDX

Long Haul

The Deckover Built for Length, Stability, and Serious Payloads

When the job demands deck space and dependable strength, the RawMaxx LDX delivers a clean, no-nonsense solution. Available from 20’ all the way up to 44’ lengths, the LDX is built for crews hauling equipment, materials, and wide loads that don’t fit on standard trailers. With a 14,000 lb. GVWR and over 11,900 lbs. of usable capacity, it’s designed to move real weight without overcomplicating the setup.

The foundation starts with a 10″ x 12 lb. I-beam main frame supported by 3″ channel cross-members on 16″ centers and a reinforced bridge frame. Up top, a full 102″ wide deck with treated lumber flooring gives operators the space and confidence to load equipment cleanly. Drive-over tread plate fenders and the outer deck tubing frame add durability where trailers typically take the most abuse.

Built for daily tie-down flexibility, the LDX includes stake pockets, rub rail structure, and welded D-rings positioned around the deck perimeter. The 8′ slide-in channel ramps store cleanly and deploy quickly when it’s time to load. Dual 7K spring axles, electric brakes, radial tires, and full DOT lighting keep the trailer predictable on long pulls and heavy runs.

From jobsite hauling to equipment transport, the LDX focuses on what working crews actually need: deck space, structural integrity, and straightforward reliability.

The RawMaxx LDX — long deck capacity built for real hauling days.

LDX Video

Say Hello to the LDX Trailer, the perfect solution for hauling heavy loads. Available in various sizes, from 20′ to 40′, with a weight capacity of up to 11,904 lbs. The LDX is equipped with a durable powder coat finish and 2″ treated lumber deck flooring with tie-downs D-rings for added security.

Featuring a sturdy 10″ x 12 lbs. I-beam main frame with 3″ channel cross-members and 5″ round tube torque tube, the LDX is built to withstand tough conditions. The trailer also comes with reliable Dexter axles and 10-ply radial tires with a 3,520 lb. rating on each tire, ensuring a smooth ride on any terrain.

Safety is a top priority with the LDX, including 3/8″ G70 safety chains, an electric breakaway kit, and 3M DOT compliant reflective tape. The trailer also comes with a lockable front tool box and 2-5/16” ball coupler for added convenience.

With various optional add-ons, such as electric winches and hydraulic jacks, the LDX can be customized to fit your specific needs. Backed by a 3-year structural and 1-year paint warranty, the LDX is a reliable and durable option for your hauling needs.
