Standard Features

Features for “GTX20GN14K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,500 lbs.
  • Load Capacity: 11,875 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary

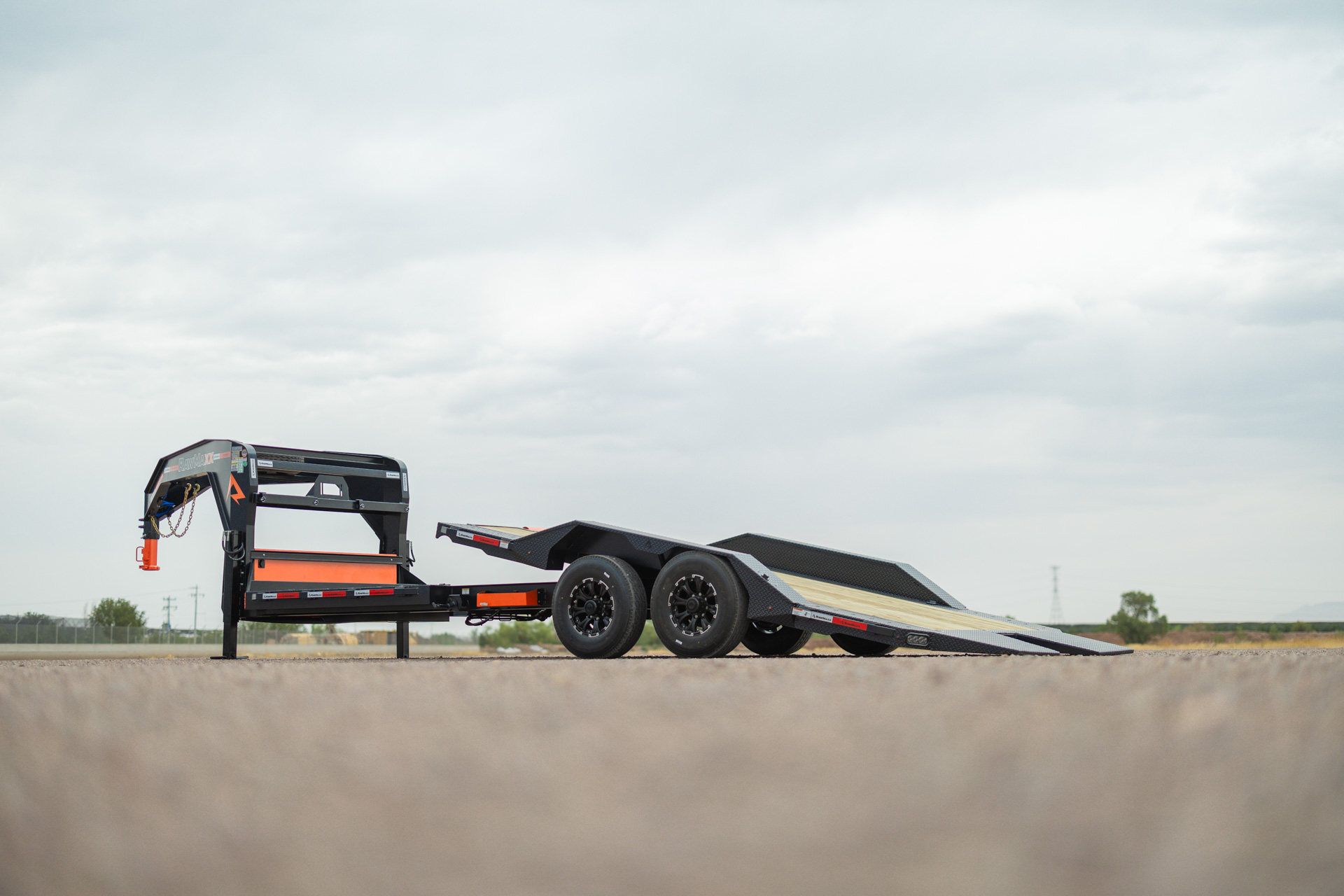

  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks

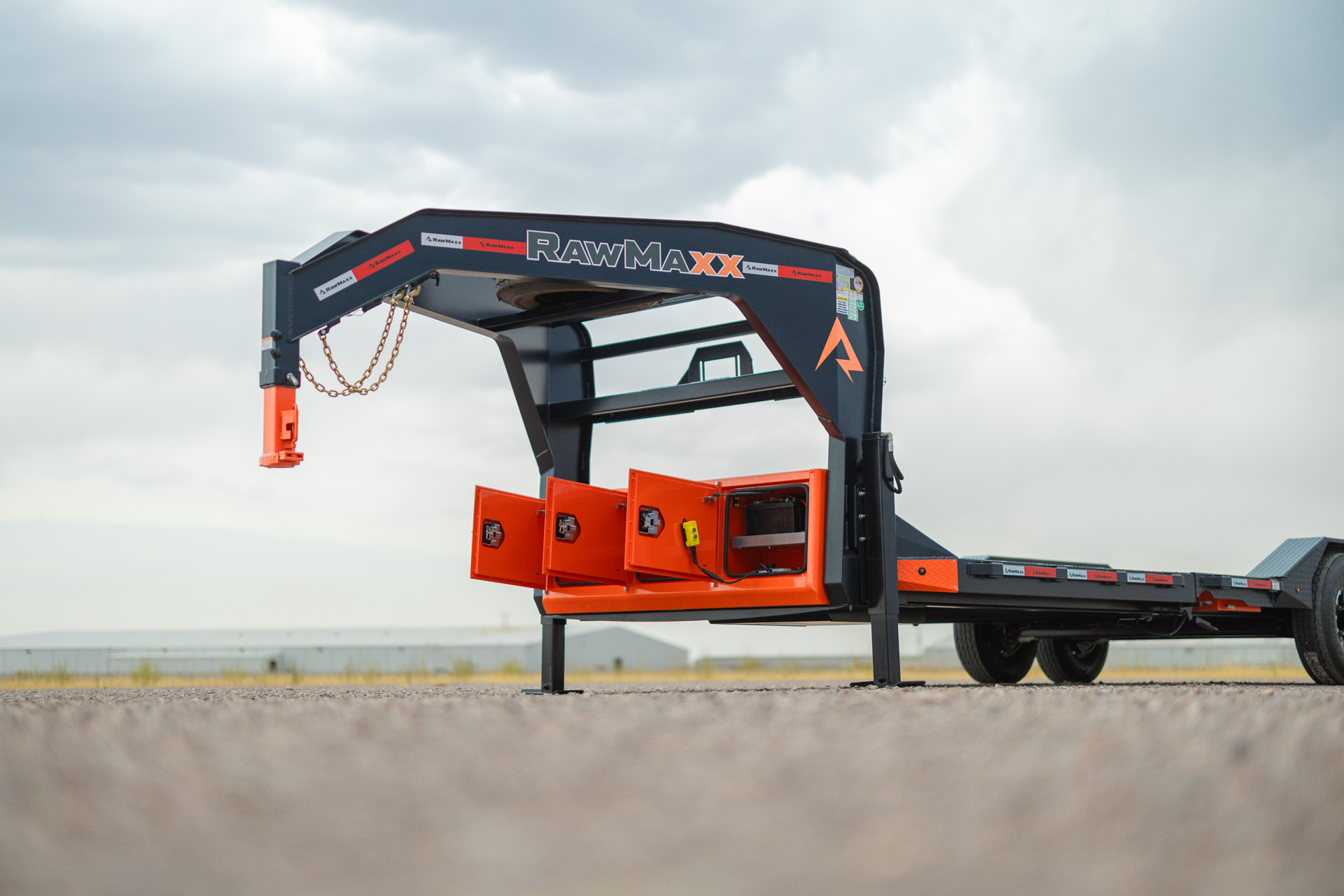

  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX22GN14K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,700 lbs.
  • Load Capacity: 11,675 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX24GN14K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,200 lbs.
  • Load Capacity: 11,000 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX26GN14K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,450 lbs.
  • Load Capacity: 10,688 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX28GN14K”

  • Length: 28′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,600 lbs.
  • Load Capacity: 10,500 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 12′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX20GN16K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,700 lbs.
  • Load Capacity: 14,125 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX22GN16K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,950 lbs.
  • Load Capacity: 13,813 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX24GN16K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,200 lbs.
  • Load Capacity: 13,500 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX26GN16K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,450 lbs.
  • Load Capacity: 13,188 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX28GN16K”

  • Length: 28′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,700 lbs.
  • Load Capacity: 12,875 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 12′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX20GN20K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 4,900 lbs.
  • Load Capacity: 18,875 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX22GN20K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,150 lbs.
  • Load Capacity: 18,563 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX24GN20K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,400 lbs.
  • Load Capacity: 18,250 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX26GN20K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,650 lbs.
  • Load Capacity: 17,938 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX28GN20K”

  • Length: 28′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,900 lbs.
  • Load Capacity: 17,625 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 12′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

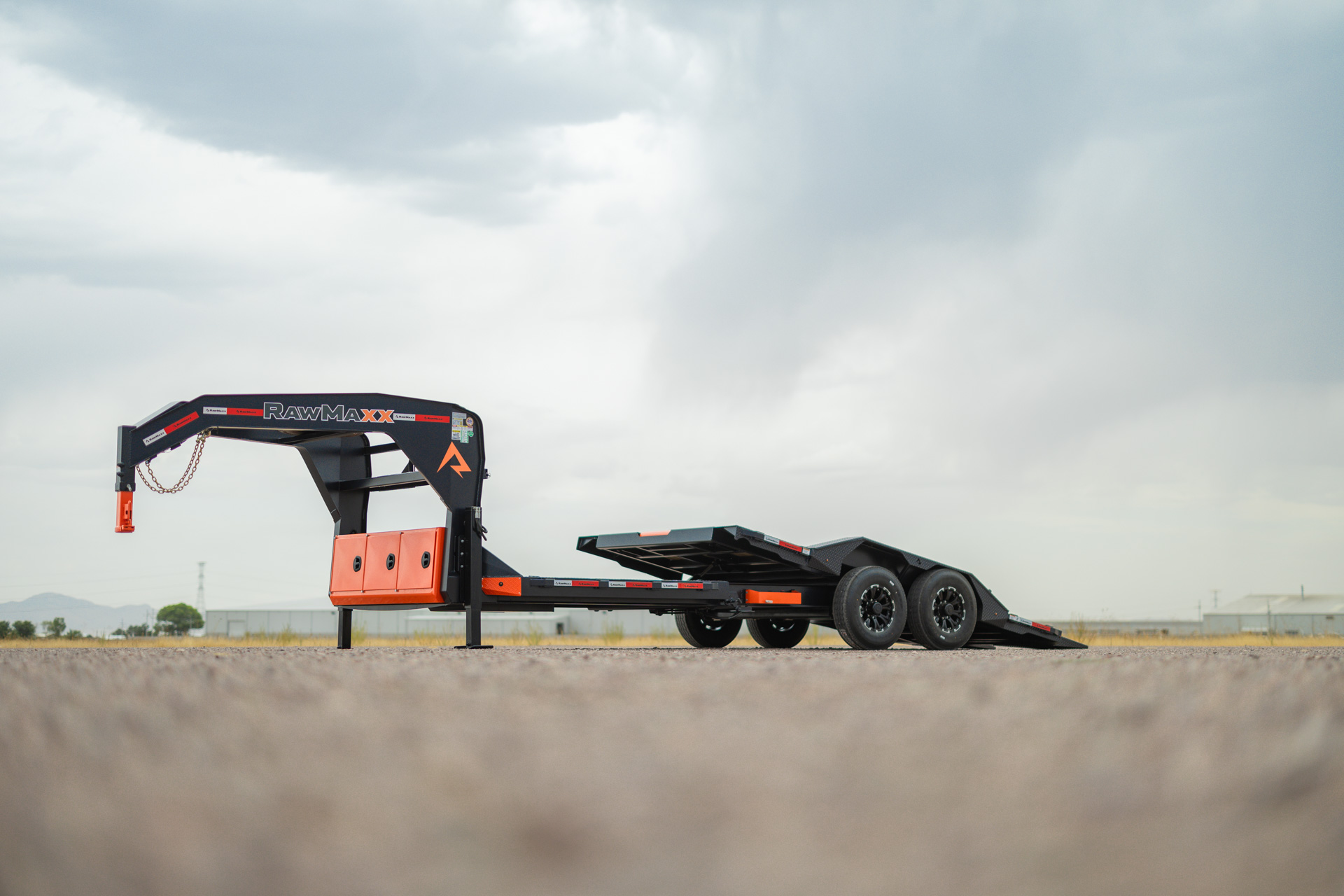

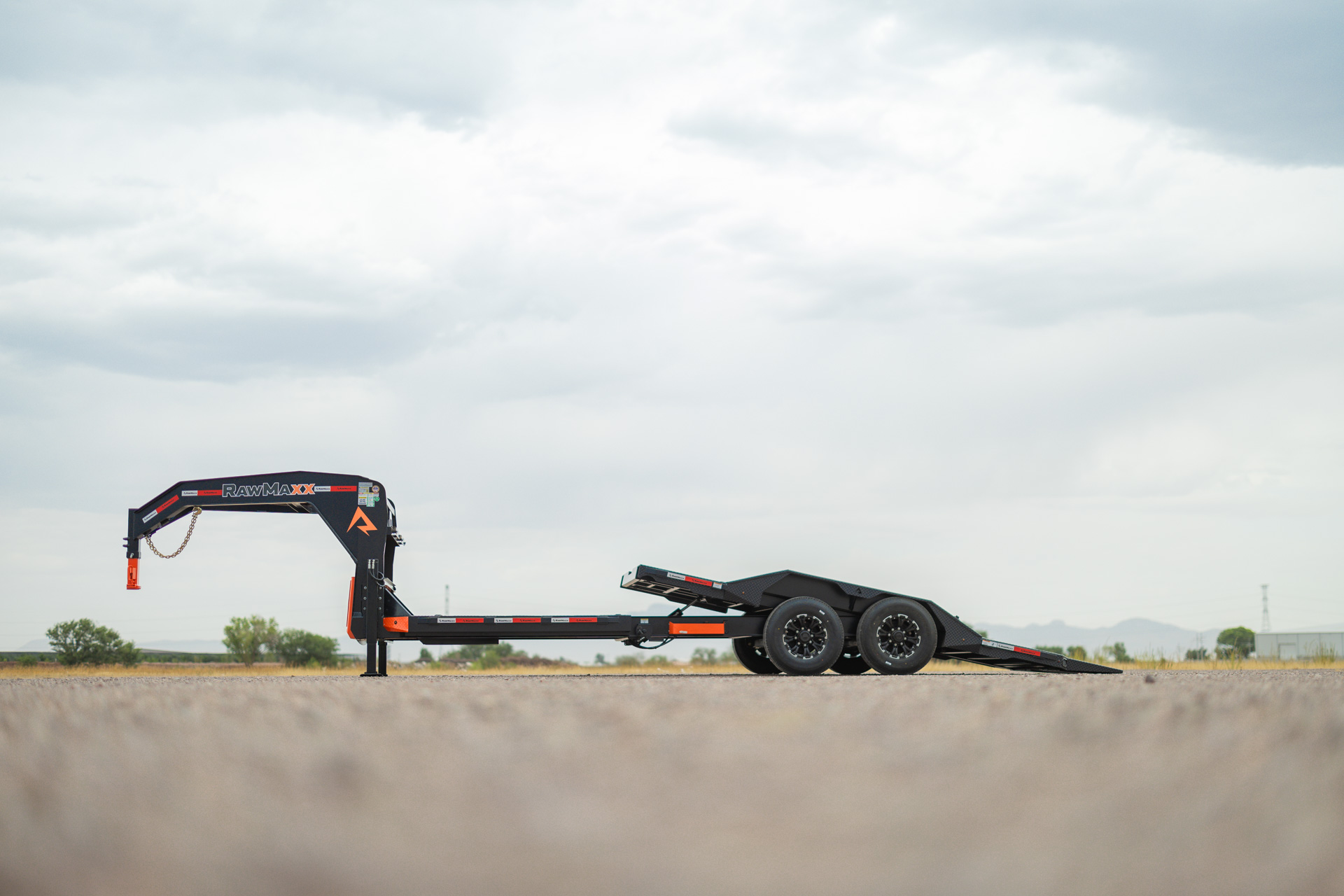

GTX GN 3D

360° View

Order Now

Standard Features

Features for “GTX20GN14K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,500 lbs.
  • Load Capacity: 11,875 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX22GN14K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,700 lbs.
  • Load Capacity: 11,675 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX24GN14K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,200 lbs.
  • Load Capacity: 11,000 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX26GN14K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,450 lbs.
  • Load Capacity: 10,688 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX28GN14K”

  • Length: 28′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,600 lbs.
  • Load Capacity: 10,500 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 12′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX20GN16K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,700 lbs.
  • Load Capacity: 14,125 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX22GN16K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,950 lbs.
  • Load Capacity: 13,813 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX24GN16K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,200 lbs.
  • Load Capacity: 13,500 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX26GN16K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,450 lbs.
  • Load Capacity: 13,188 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX28GN16K”

  • Length: 28′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,700 lbs.
  • Load Capacity: 12,875 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 12′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX20GN20K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 4,900 lbs.
  • Load Capacity: 18,875 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX22GN20K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,150 lbs.
  • Load Capacity: 18,563 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX24GN20K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,400 lbs.
  • Load Capacity: 18,250 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX26GN20K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,650 lbs.
  • Load Capacity: 17,938 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “GTX28GN20K”

  • Length: 28′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,900 lbs.
  • Load Capacity: 17,625 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 12′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

GTX GN

Balance

Meet the RawMaxx GTX GN, the gravity tilt gooseneck built to handle serious work with absolute efficiency. Available in sizes from 20’ to 28’, this trailer carries a 14,000 lb. GVWR and is engineered to make loading and unloading seamless. With its 4’ stationary deck and 16’ gravity tilt deck, you get the flexibility to haul equipment without the hassle of ramps. Just drive up, lock down, and get moving.

Durability comes standard. The GTX GN is built on an 8” I-beam frame with 3” channel cross-members on 16” spacings, a grit-blasted and powder-coated finish, and rugged drive-over treadplate fenders. Add in the torsion axle suspension, 10-ply radial tires, and electric brakes, and you’ve got a setup that stays smooth, steady, and strong under heavy loads.

RawMaxx didn’t stop there. The GTX GN comes winch-ready, with a built-in chain rack, tool box between risers, and D-rings welded inside the fenders. With optional upgrades like 8K torsion axles, hydraulic jacks, steel floors, X-Track tie-downs, or a 12K electric winch, you can tailor this trailer to whatever the job demands.

Whether you’re hauling equipment, machinery, or oversized loads, the GTX GN is built to back in, load up, and roll out without wasted time.

RawMaxx GTX GN – Strength that tilts the balance in your favor.

GTX GN

Balance

Meet the RawMaxx GTX GN, the gravity tilt gooseneck built to handle serious work with absolute efficiency. Available in sizes from 20’ to 28’, this trailer carries a 14,000 lb. GVWR and is engineered to make loading and unloading seamless. With its 4’ stationary deck and 16’ gravity tilt deck, you get the flexibility to haul equipment without the hassle of ramps. Just drive up, lock down, and get moving.

Durability comes standard. The GTX GN is built on an 8” I-beam frame with 3” channel cross-members on 16” spacings, a grit-blasted and powder-coated finish, and rugged drive-over treadplate fenders. Add in the torsion axle suspension, 10-ply radial tires, and electric brakes, and you’ve got a setup that stays smooth, steady, and strong under heavy loads.

RawMaxx didn’t stop there. The GTX GN comes winch-ready, with a built-in chain rack, tool box between risers, and D-rings welded inside the fenders. With optional upgrades like 8K torsion axles, hydraulic jacks, steel floors, X-Track tie-downs, or a 12K electric winch, you can tailor this trailer to whatever the job demands.

Whether you’re hauling equipment, machinery, or oversized loads, the GTX GN is built to back in, load up, and roll out without wasted time.

RawMaxx GTX GN – Strength that tilts the balance in your favor.
