Standard Features
Features for “GDXK14BP14K”
- Length: 14‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 4,916 lbs.
- Load Capacity: 10,447 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 32″
- Capacity: 9.73 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 38°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “GDXK16BP14K”
- Length: 16‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 5,335 lbs.
- Load Capacity: 9,965 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 32″
- Capacity: 11.09 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 20″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
GDX Knight 3D
Standard Features
Features for “GDXK14BP14K”
- Length: 14‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 4,916 lbs.
- Load Capacity: 10,447 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 32″
- Capacity: 9.73 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 38°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “GDXK16BP14K”
- Length: 16‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 5,335 lbs.
- Load Capacity: 9,965 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 32″
- Capacity: 11.09 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 20″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty

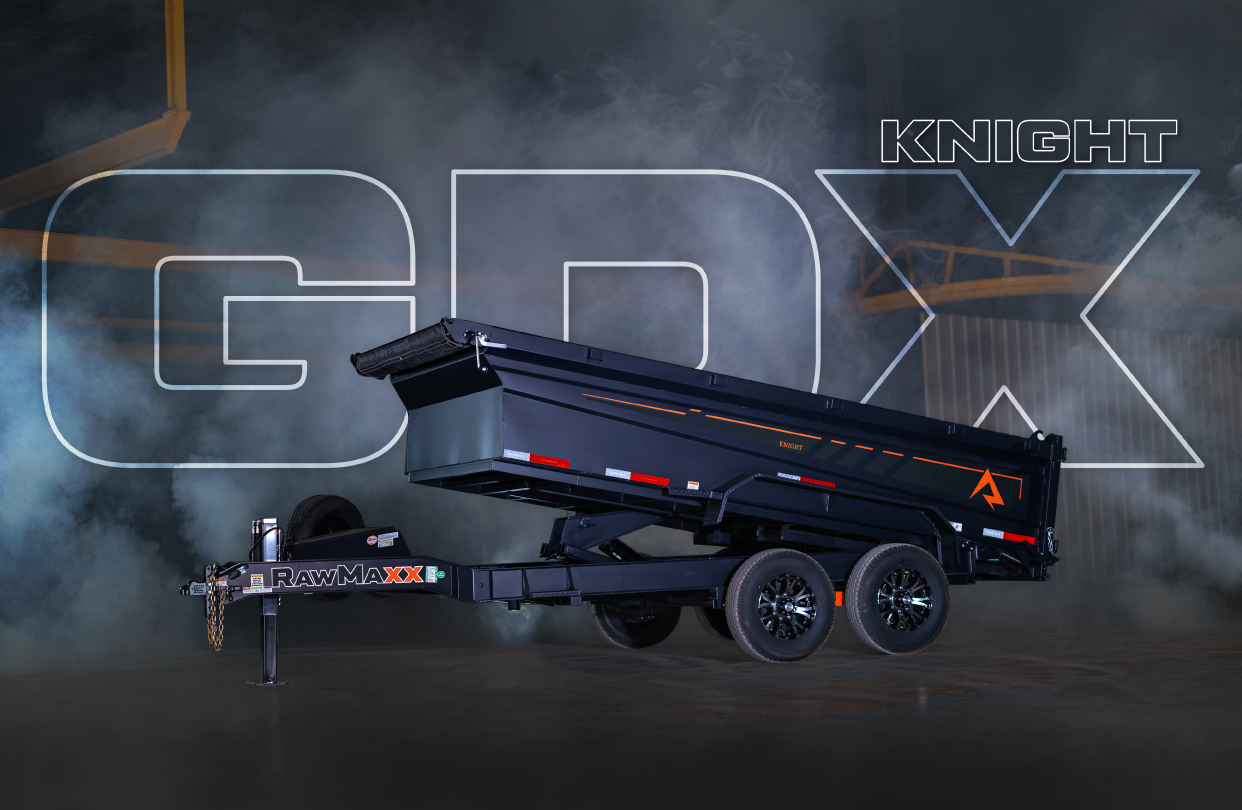

GDX Knight
Unyielding

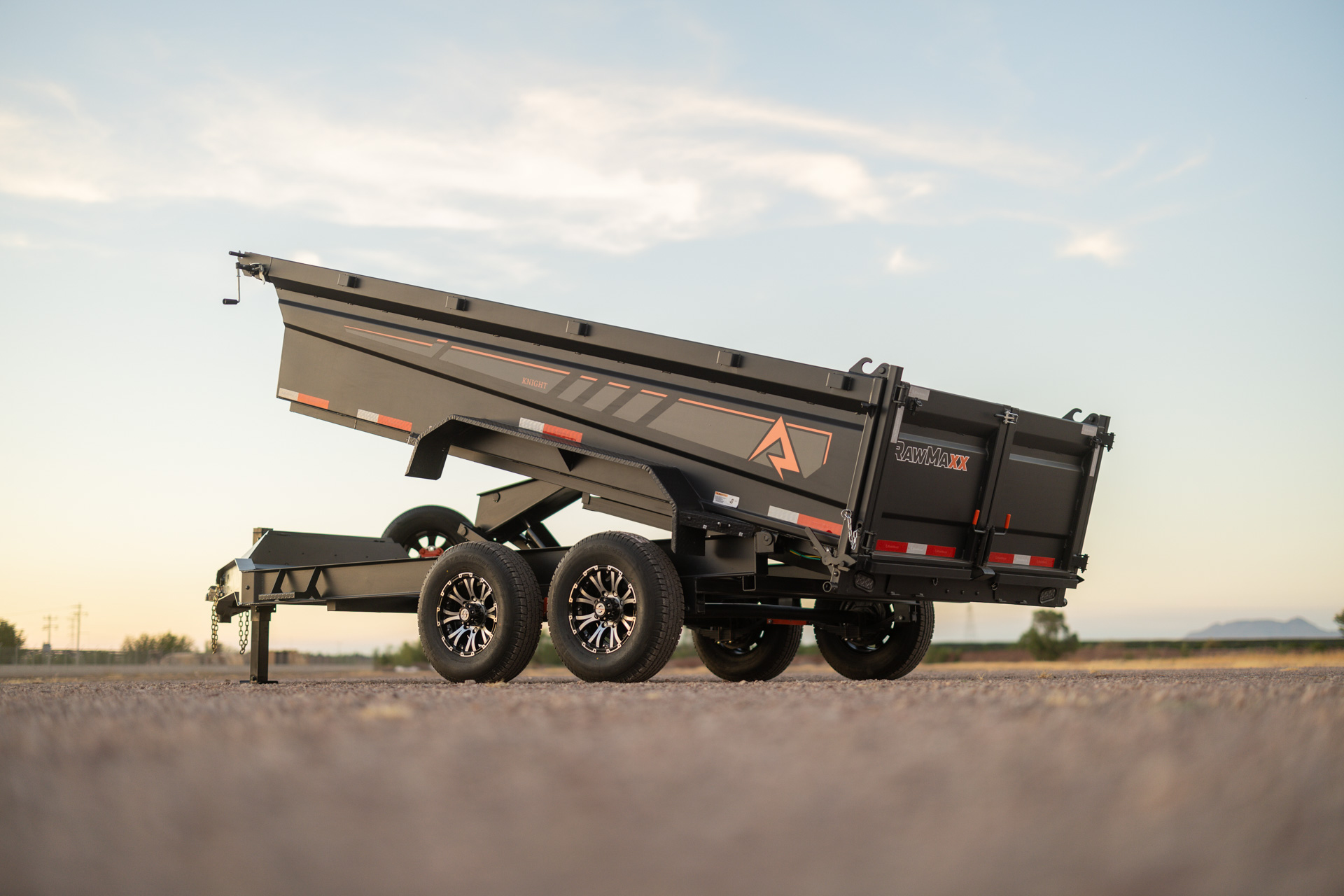

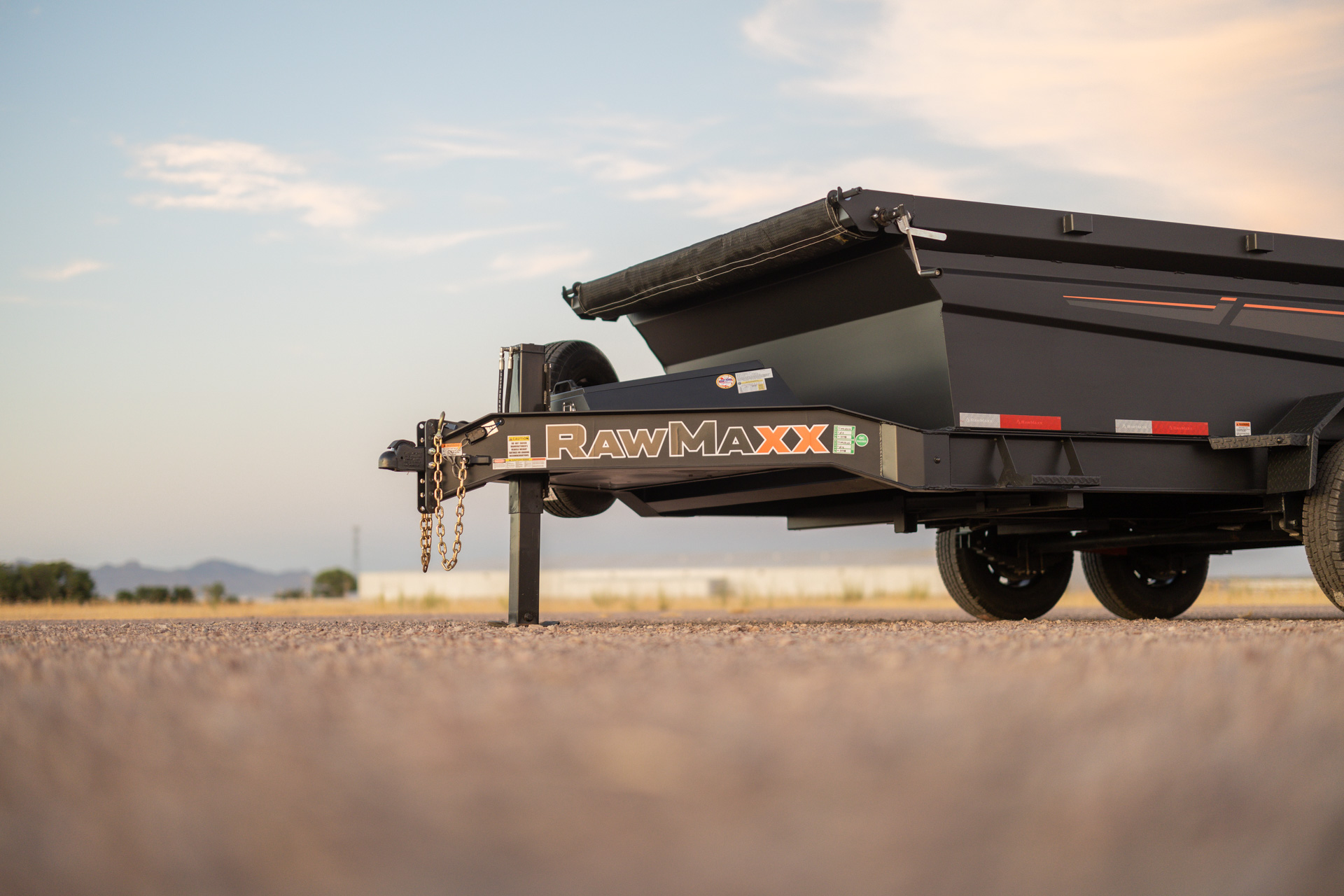

The Heavy-Duty Dump Trailer That Stands Guard on Every Job
When the workload is heavy and the demands are high, the RawMaxx GDX Knight is built to defend your productivity. At 14’ long and 83” wide, this heavy-duty dump trailer brings a GVWR of 14,000 lbs. and over 10,500 lbs. of load capacity — making it the dependable workhorse for contractors and crews who can’t afford downtime.
Strength starts with its foundation. Built on an 8″ I-beam frame with reinforced cross-members, the GDX Knight pairs toughness with balance. A 9-gauge steel floor, 12-gauge formed walls, and diamond plate fenders create a bed that’s ready for anything — from rock and debris to equipment and materials.

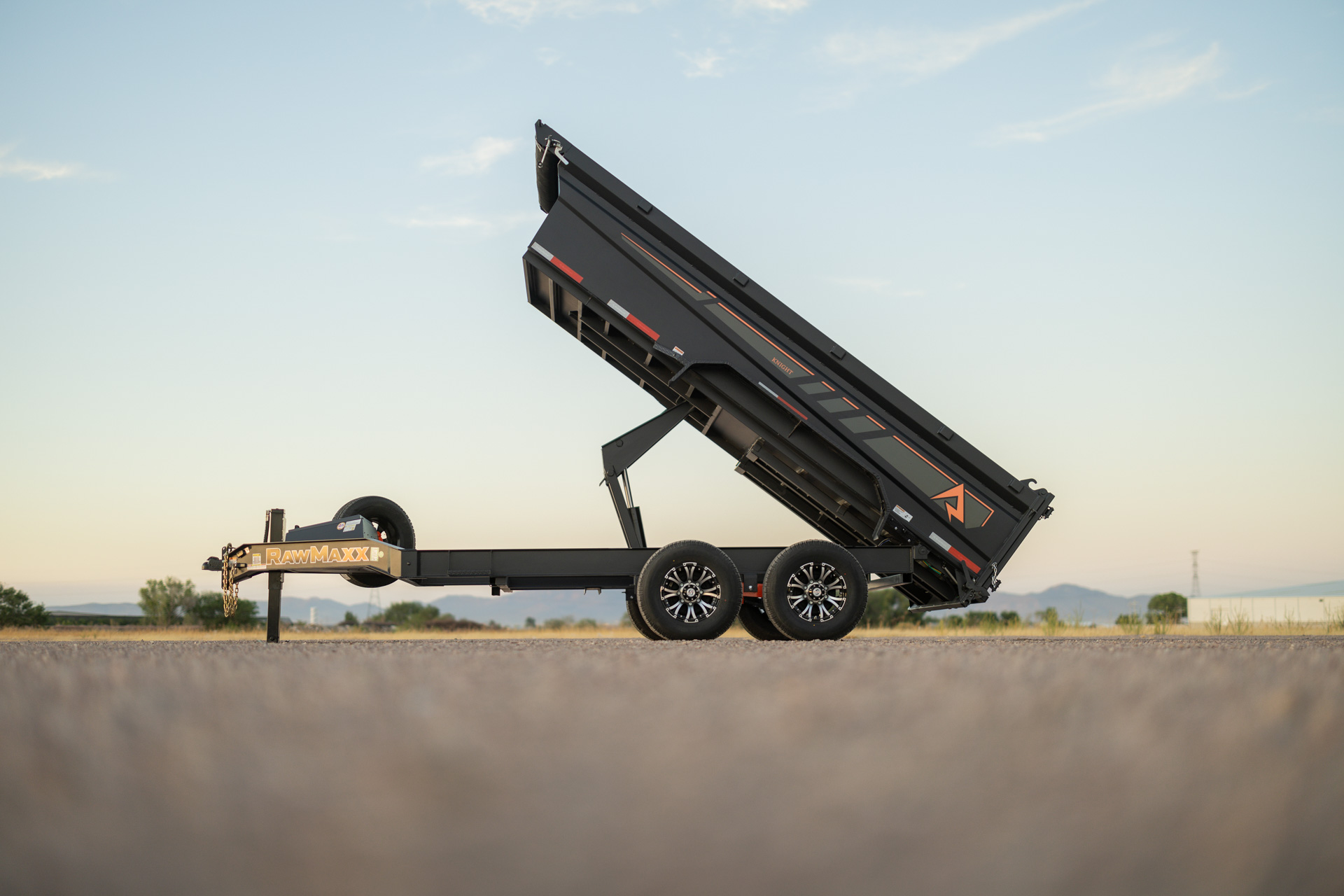

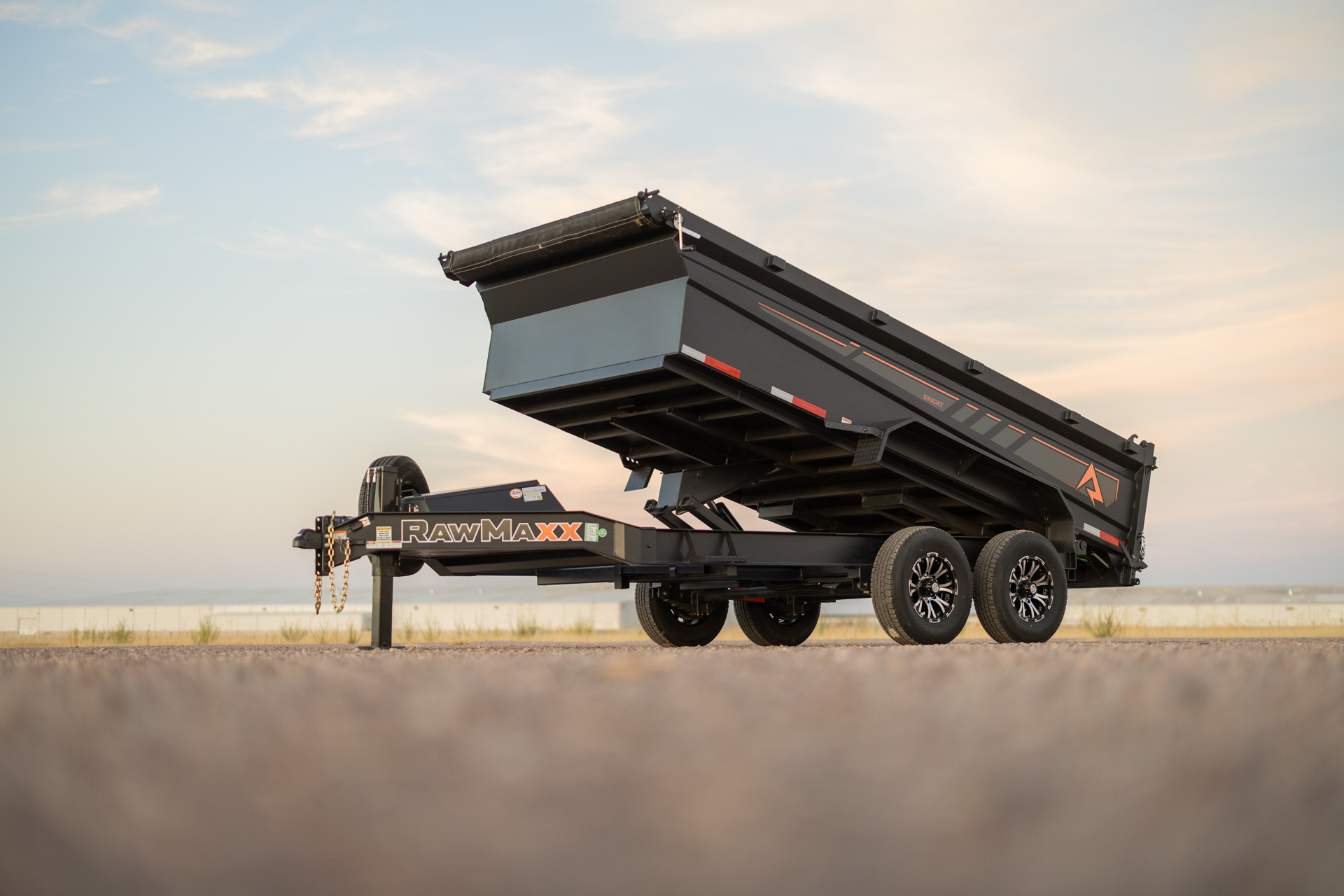

The Knight’s hydraulic system gives you controlled power when you need it most. A heavy-duty scissor lift, 5” x 16” cylinder, and a 41° tilt angle make dumping efficient and reliable. Add in EZ Slam rear gates, 3-way door versatility, and 6’ slide-in ramps, and loading/unloading becomes fast, simple, and safe.
Safety and reliability are built into every detail. Equipped with G70 safety chains, an electric breakaway kit, DOT-approved LED lighting, and a 27M deep cycle marine battery with integrated charger, the GDX Knight is always ready for battle. With radial ST235/80R16 tires, dual 7,000 lb. axles, and electric brakes, it delivers stability and confidence mile after mile.
And because every job is different, customization is in your hands. Choose hydraulic jacks, a wireless remote, or upgraded tire packages to match your workflow and maximize efficiency.
The RawMaxx GDX Knight — unyielding strength, unwavering reliability, and built to guard your success every step of the way.
