Standard Features
Features for “GDX12BP14K”
- Length: 12‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 4,350 lbs.
- Load Capacity: 11,098 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 19″
- Capacity: 5 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 38°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “GDX14BP14K”
- Length: 14‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 4,607 lbs.
- Load Capacity: 10,802 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 19″
- Capacity: 5.81 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 38°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “GDX16BP14K”
- Length: 16‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 4,983 lbs.
- Load Capacity: 10,370 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 19″
- Capacity: 6.62 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 20″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
GDX 3D
Standard Features
Features for “GDX12BP14K”
- Length: 12‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 4,350 lbs.
- Load Capacity: 11,098 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 19″
- Capacity: 5 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 38°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “GDX14BP14K”
- Length: 14‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 4,607 lbs.
- Load Capacity: 10,802 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 19″
- Capacity: 5.81 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 5″ x 16″ Cylinder Hoist
- Tilt Angle: 38°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
Features for “GDX16BP14K”
- Length: 16‘
- Width: 83“
- Deck Height: 28“
- GVWR: 14,000 lbs.
- GAWR: 7,000 lbs.
- Empty Weight: 4,983 lbs.
- Load Capacity: 10,370 lbs.
- Main Frame: 8″ x 13 lb I Beam
- Cross-Bracing: 4″ x 3″ x 3/16″ Tubing
- Dump Bed Width: 83″
- Side Height: 19″
- Capacity: 6.62 Cubic Yards
- Side Walls: 12G Formed Plate
- Side Rail: 12G Formed Plate
- Side Post: 12G Formed Plate
- Flooring: 10G Plate
- Fenders: 12G Diamond Plate Fenders
- D-Rings: 4 D-Rings Standard (Welded Inside Corners)
- State Pockets: 3 7/8″ x 1 13/16″ (ID)
- Rear Gate: 3in1 Rear Gate
- Latching System: EZ Slam Door Latches
- Ramps: 6′ Slide Out Channel Ramps
- Tarp: Manual Tarp Kit
- Lift System: Hydraulic Power up / Down
- Pump: KTI Hydraulic Pump
- Scissor: 6″ x 20″ Cylinder Hoist
- Tilt Angle: 41°
- Coupler: 2 5/16″ Adjustable Ball
- Jacks: 10,000 lb. Side Wind Drop Leg Jack
- Tool Box: Integrated In Tongue
- Suspension: Leaf Spring
- Axles: 2 – 7,000 lb. Electric Brake Axles
- 10 Ply ST235/80R16 Tires
- 16″ Black Mod Steel Wheels
- Bolt Pattern: 8 on 6.5
- Safety Chains: 3/8″ Chains
- Spare Mount: Included
- All Weather Proof Harness
- Market Lights: 3/4″ LED Bullet Lights
- Rear Lights: 6″ Oval DOT Approved LED Lights
- Paint: Powder Coated
- Color: Midnight Black With Classic Orange Trim
- 5 Year Dexter Axle Warranty
- 3 Year Structural Warranty
- 1 Year Paint Warranty
GDX
Supreme

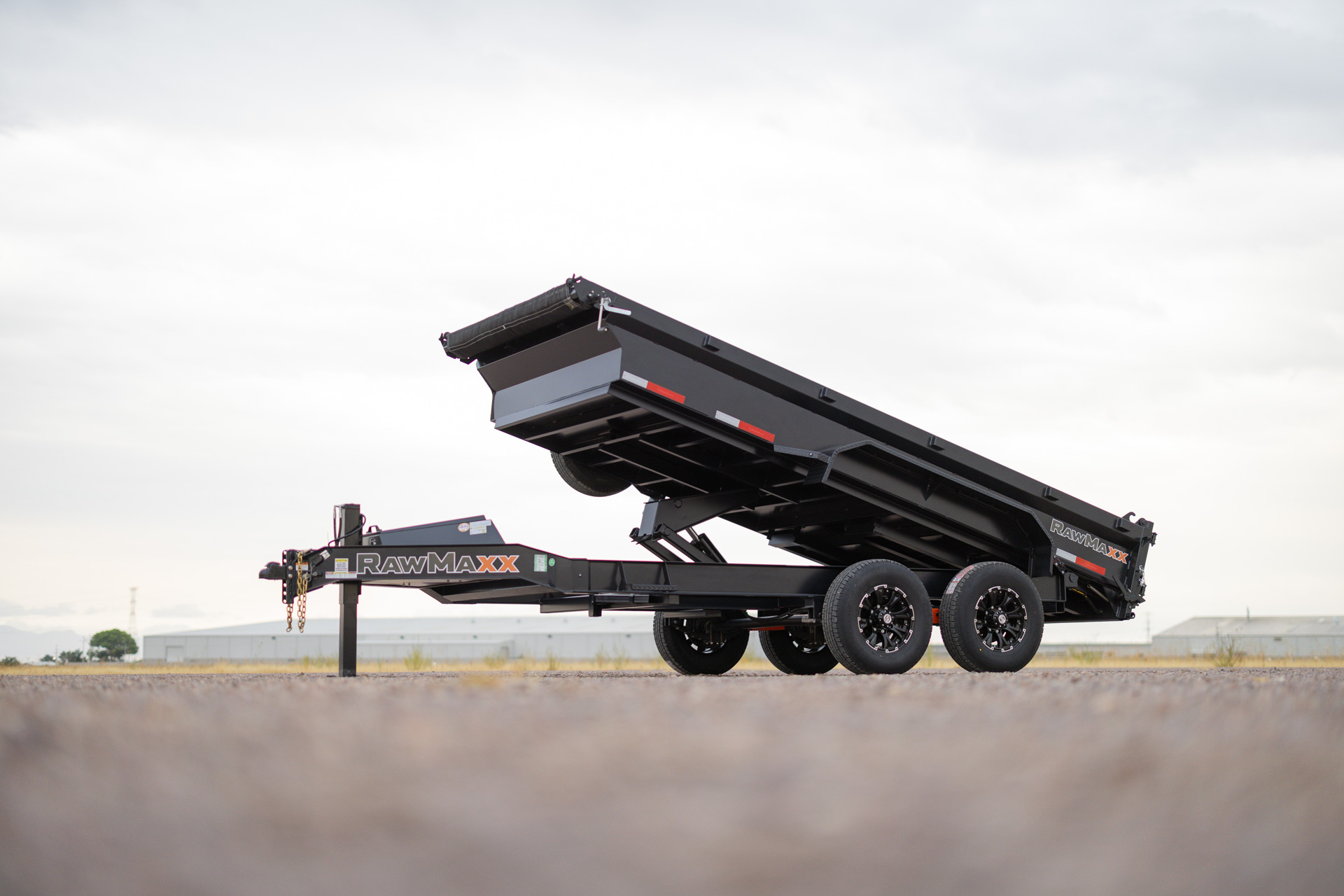

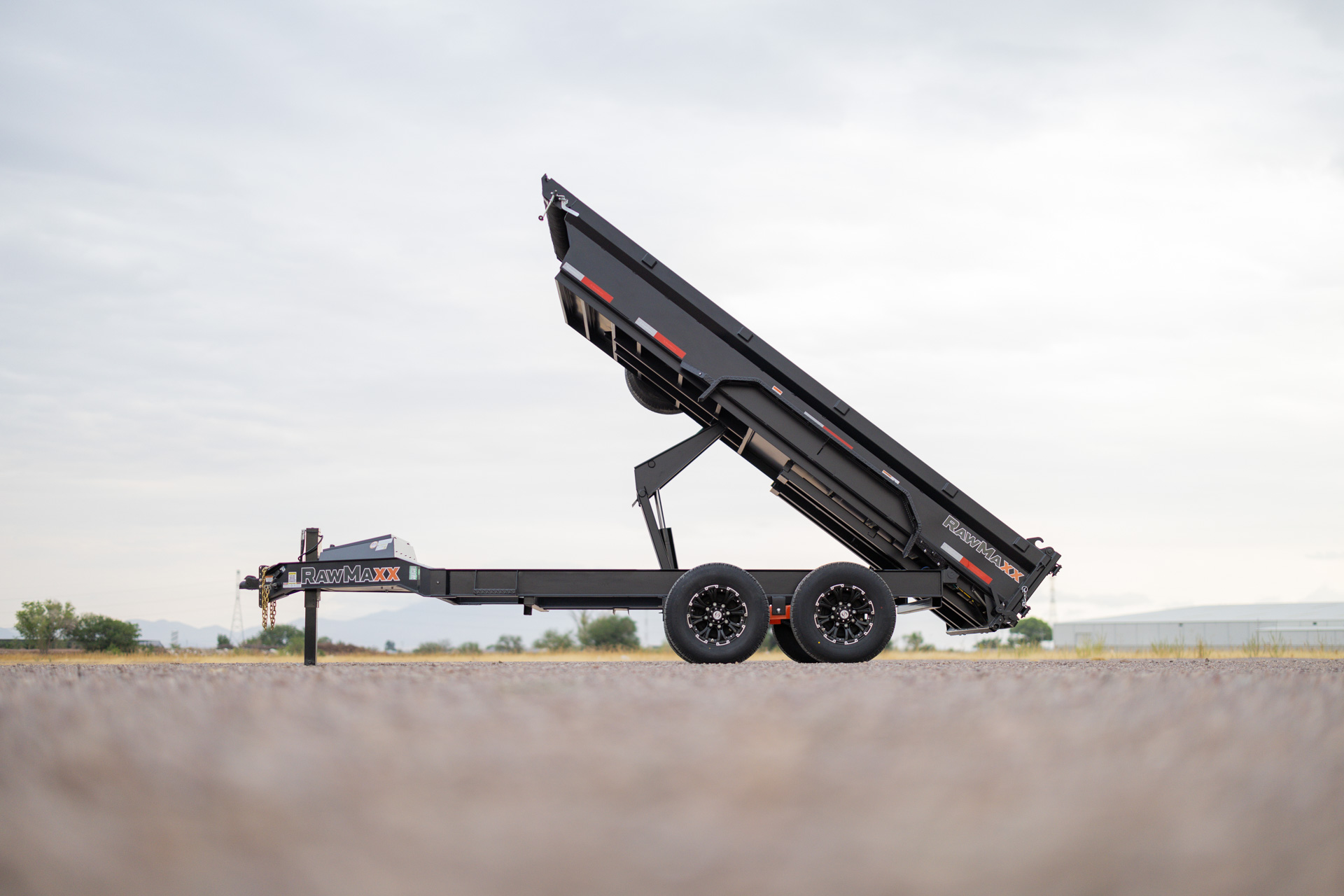

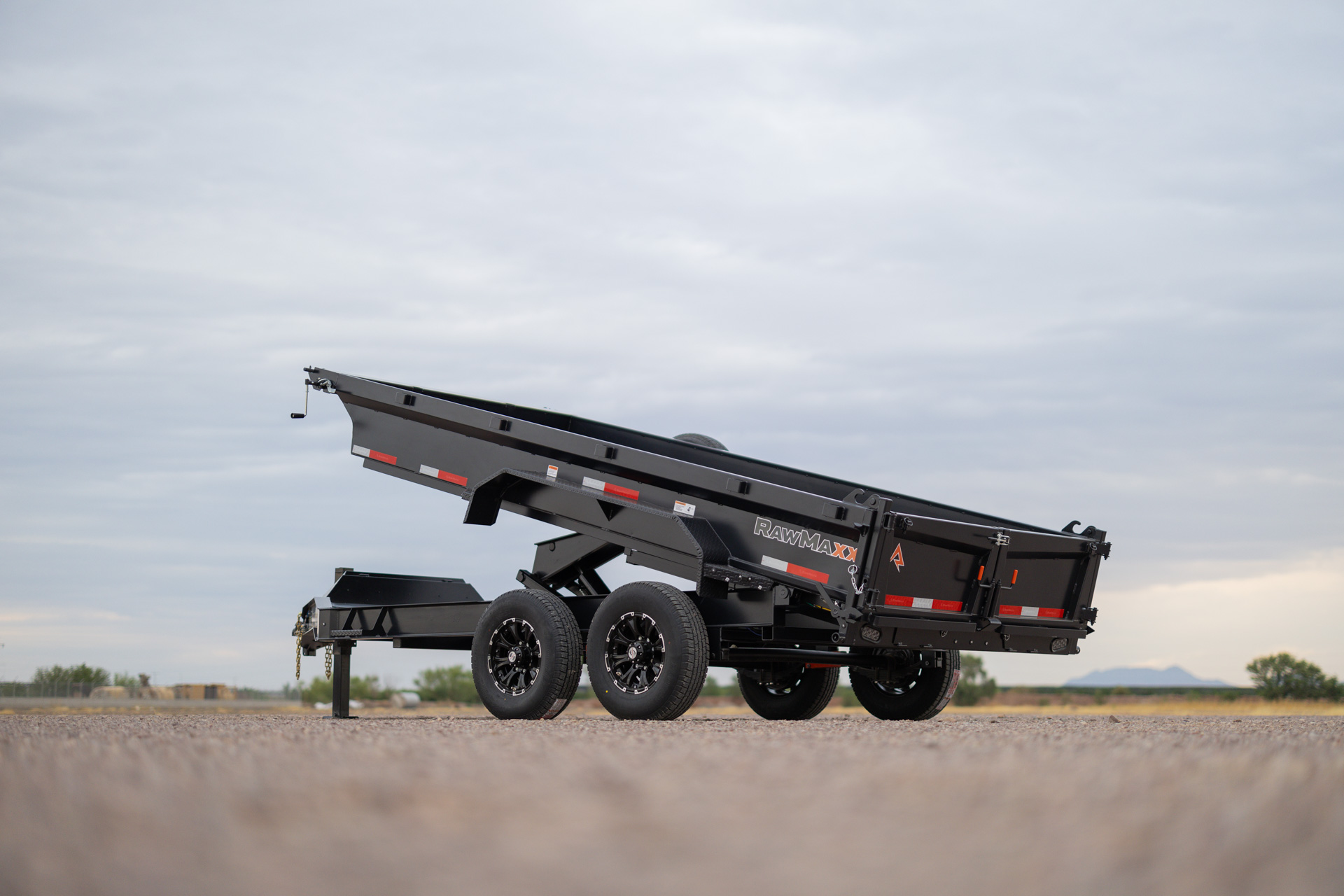

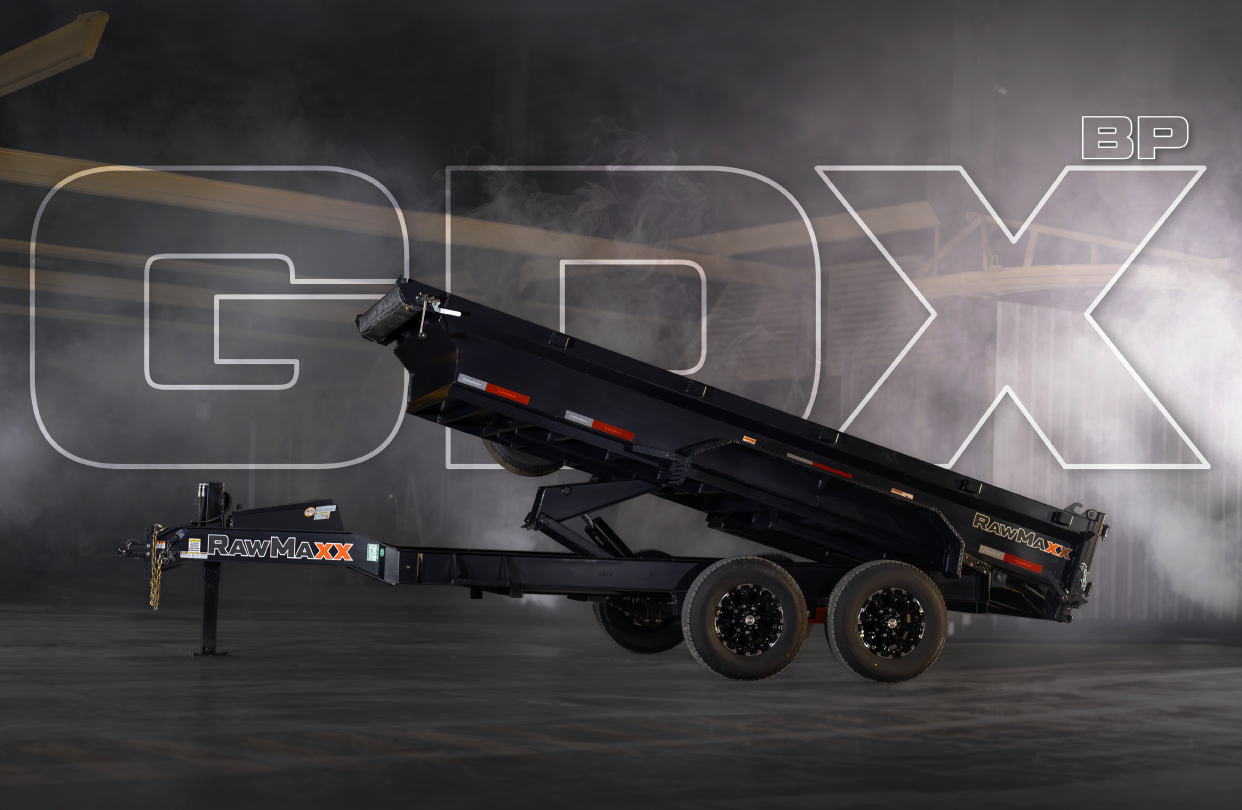

The Heavy-Duty Dump Trailer That Rules the Jobsite
When the biggest jobs demand the strongest trailer, the RawMaxx GDX answers. Available in 12’ and 14’ lengths with a full 83” width, the GDX is built to move serious material. With a GVWR of 14,000 lbs. and over 11,000 lbs. of load capacity, this trailer is engineered for maximum performance under pressure.

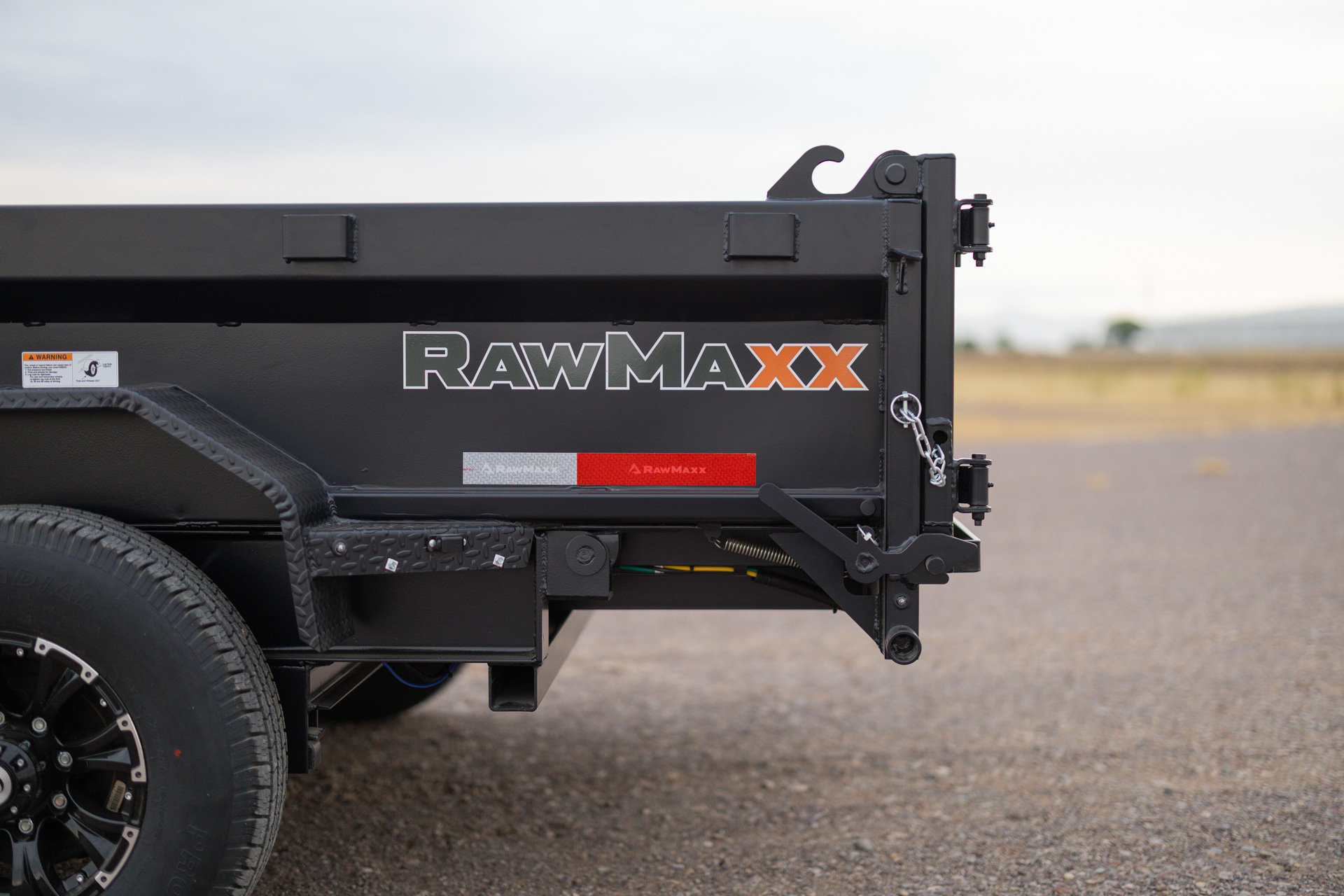

Built on an 8″ I-beam frame with reinforced cross-members and a 9-gauge steel floor, the GDX is supreme in strength and durability. Its 12-gauge formed walls, heavy-duty diamond plate fenders, and EZ Slam rear gate are designed to handle rock, debris, and equipment day in and day out.
The hydraulic system takes efficiency to the next level. With a heavy-duty scissor lift, a 5” x 16” cylinder, and a 41° tilt angle, the GDX delivers fast, controlled dumps every time. Paired with 6’ slide-in ramps and a versatile 3-way rear gate, loading and unloading has never been easier.
Safety and reliability are never optional. Equipped with G70 safety chains, an electric breakaway kit, DOT-approved LED lighting, and a deep cycle marine battery with integrated charger, the GDX is ready to go to work the moment you hook up. Radial ST235/80R16 tires on dual 7,000 lb. axles keep you rolling with confidence, load after load.
And because no two jobs are alike, the GDX offers customization to fit your work. From removable extensions and hydraulic jack upgrades to wireless remotes and heavy-duty tire options, you can build the GDX to match your workflow.
The RawMaxx GDX — supreme strength, supreme performance, and supreme confidence for the heaviest jobs.
