Standard Features

Features for “G7X20GN14K”

  • Length: 20′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,710 lbs.
  • Load Capacity: 11,613 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks

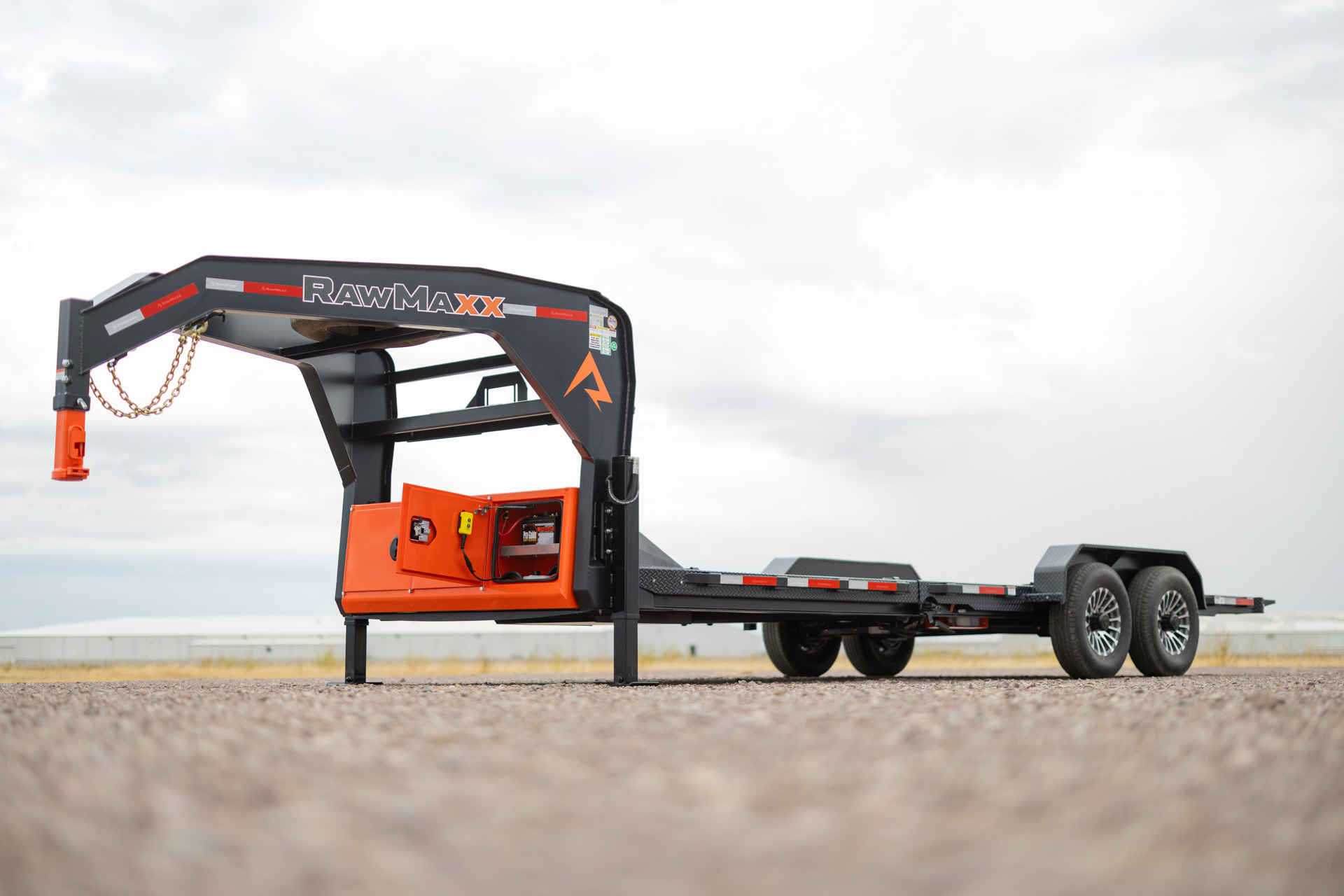

  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22GN14K”

  • Length: 22′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,810 lbs.
  • Load Capacity: 11,488 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24GN14K”

  • Length: 24′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,180 lbs.
  • Load Capacity: 11,025 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X20GN16K”

  • Length: 20′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,960 lbs.
  • Load Capacity: 13,800 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22GN16K”

  • Length: 22′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,445 lbs.
  • Load Capacity: 13,194 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24GN16K”

  • Length: 24′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,520 lbs.
  • Load Capacity: 13,100 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X20GN20K”

  • Length: 20′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,247 lbs.
  • Load Capacity: 18,441 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22GN20K”

  • Length: 22′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,423 lbs.
  • Load Capacity: 18,221 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24GN20K”

  • Length: 24′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,622 lbs.
  • Load Capacity: 17,973 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

G7X GN 3D

360° View

Order Now

Standard Features

Features for “G7X20GN14K”

  • Length: 20′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,710 lbs.
  • Load Capacity: 11,613 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22GN14K”

  • Length: 22′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,810 lbs.
  • Load Capacity: 11,488 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24GN14K”

  • Length: 24′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,180 lbs.
  • Load Capacity: 11,025 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X20GN16K”

  • Length: 20′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,960 lbs.
  • Load Capacity: 13,800 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22GN16K”

  • Length: 22′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,445 lbs.
  • Load Capacity: 13,194 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24GN16K”

  • Length: 24′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,520 lbs.
  • Load Capacity: 13,100 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X20GN20K”

  • Length: 20′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,247 lbs.
  • Load Capacity: 18,441 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22GN20K”

  • Length: 22′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,423 lbs.
  • Load Capacity: 18,221 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24GN20K”

  • Length: 24′
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,622 lbs.
  • Load Capacity: 17,973 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Dual Side Wind Drop Leg Jacks
  • Tool Box: Bolt On Tool Box Between Risers
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

G7X GN

Gravity

Meet the New Face of Gravity

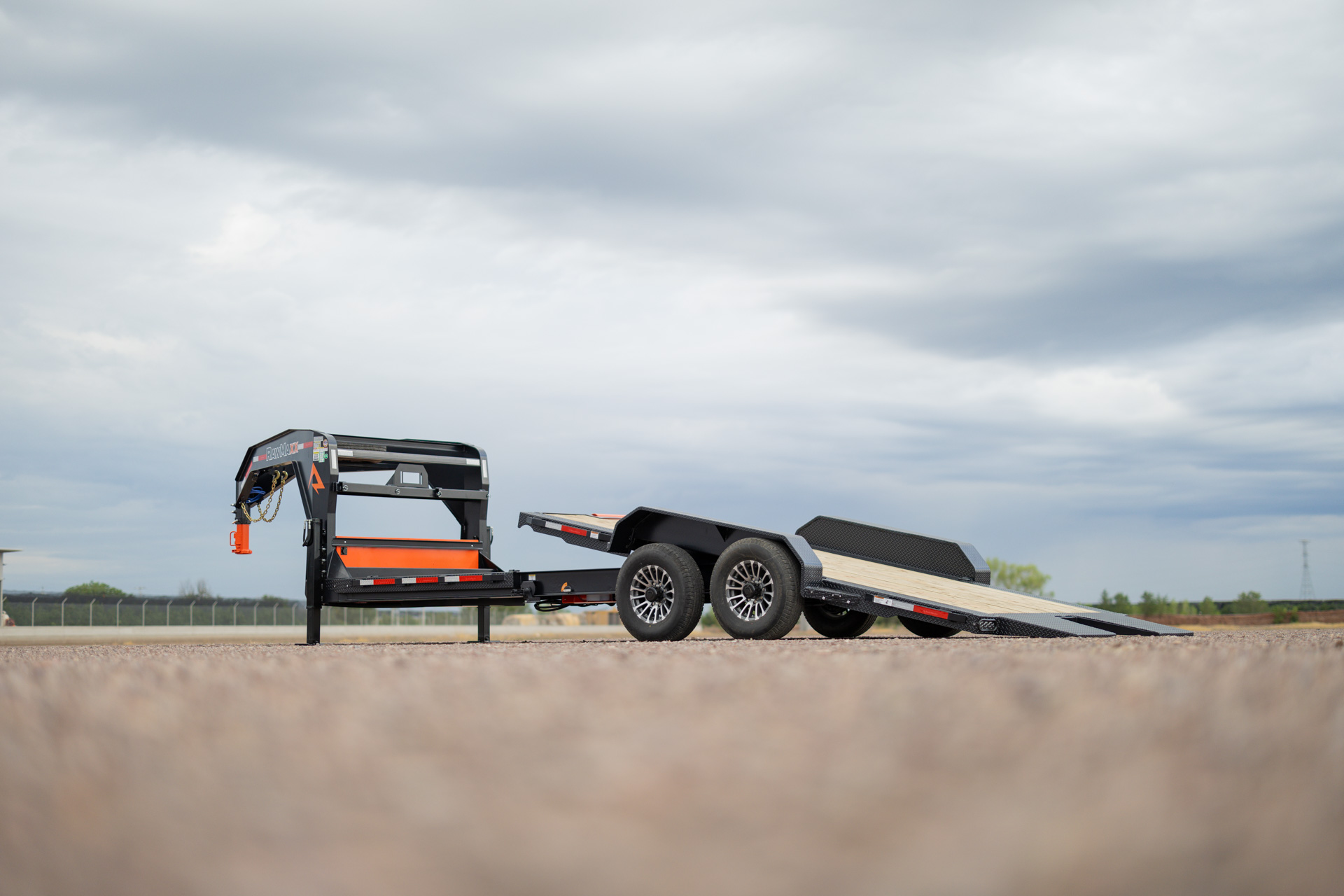

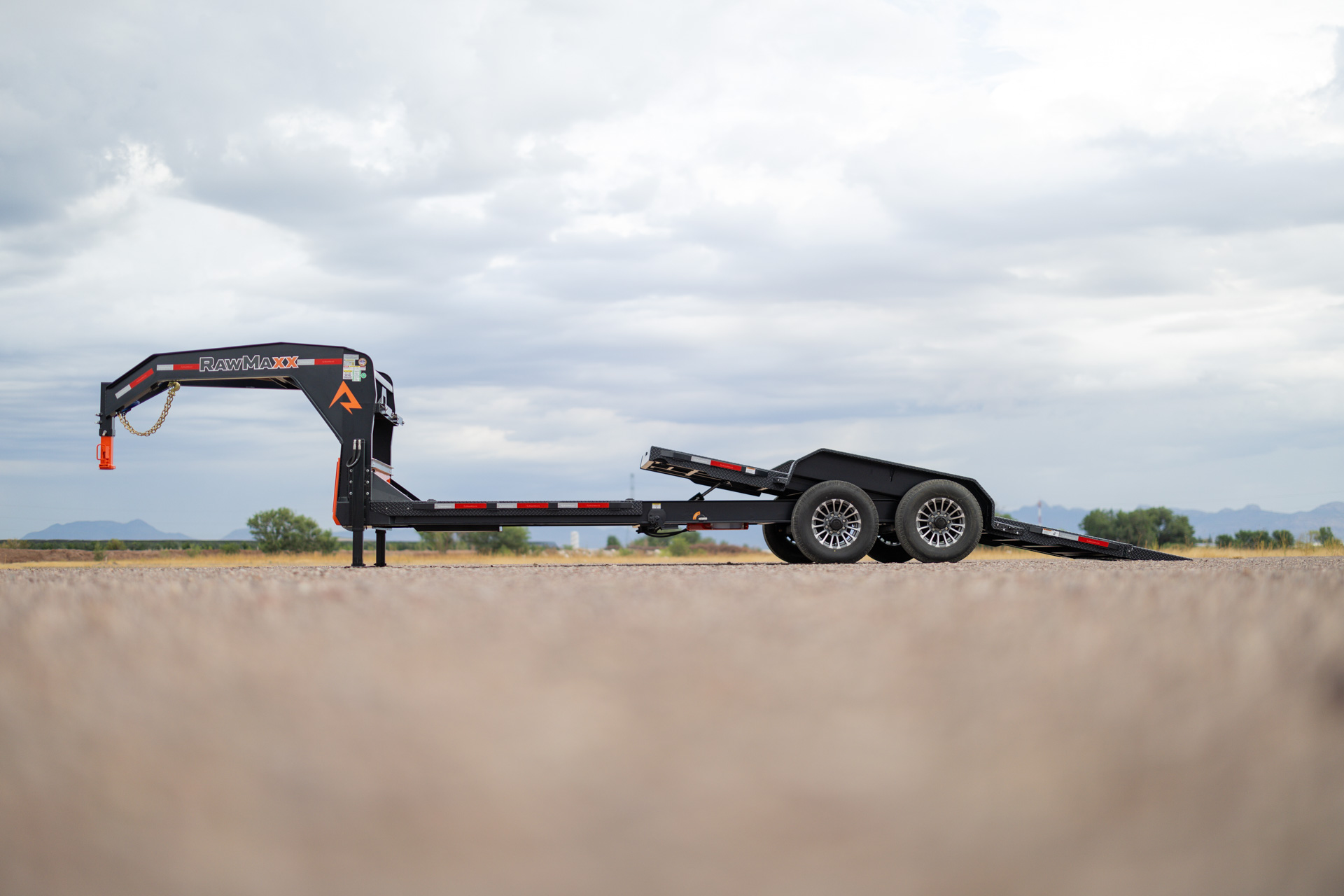

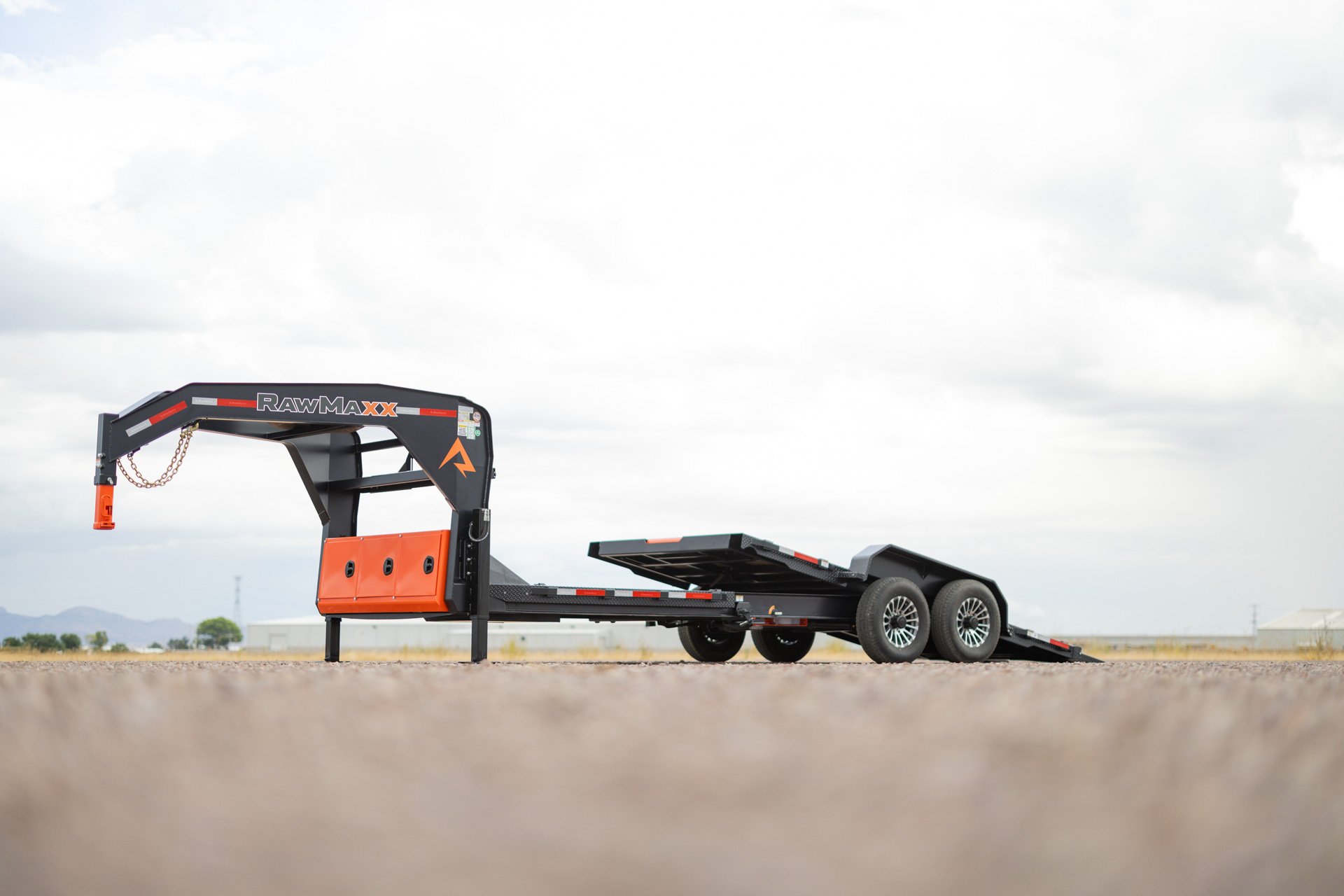

The RawMaxx G7X GN isn’t just a tilt trailer — it’s controlled gravity, engineered for real work. Available in 20’, 22’, and 24’ lengths at a full 102″ wide, the G7X GN delivers 14,000 lbs. GVWR and over 11,600 lbs. of usable load capacity, built for equipment, vehicles, and serious daily hauling.

At its core is an 8″ x 13 lb. I-beam frame paired with 3″ channel cross-members on tight 12″ centers, creating a rigid platform that doesn’t flex under pressure. The 4′ stationary front deck houses a spare tire compartment, while the 16′ gravity tilt deck operates smoothly up and down with no hydraulics to maintain — just clean, mechanical function and an 11° tilt angle that loads fast and resets automatically.

A 96″ gooseneck tongue, 2-5/16″ adjustable coupler, dual 10,000 lb. drop-leg jacks, and integrated front toolbox keep the front end strong and practical. The formed thread plate perimeter, rub rail, stake pockets, and chain spool give you flexible tie-down points without cluttering the deck.

The G7X GN rides on dual 7,000 lb. torsion axles with Torflex suspension for a smoother pull and better load stability. Radial 10-ply tires, LED lighting, all-weather wiring, and DOT-compliant safety systems come standard.

With available 8K torsion axles, hydraulic jack upgrades, winch options, aluminum wheels, steel floor upgrades, and X-Liner fenders, the G7X GN can be built heavier, tougher, and more tailored to your operation.

The RawMaxx G7X GN — gravity, refined. Built to load fast. Built to hold steady. Built to work.

G7X GN

Gravity

Meet the New Face of Gravity

The RawMaxx G7X GN isn’t just a tilt trailer — it’s controlled gravity, engineered for real work. Available in 20’, 22’, and 24’ lengths at a full 102″ wide, the G7X GN delivers 14,000 lbs. GVWR and over 11,600 lbs. of usable load capacity, built for equipment, vehicles, and serious daily hauling.

At its core is an 8″ x 13 lb. I-beam frame paired with 3″ channel cross-members on tight 12″ centers, creating a rigid platform that doesn’t flex under pressure. The 4′ stationary front deck houses a spare tire compartment, while the 16′ gravity tilt deck operates smoothly up and down with no hydraulics to maintain — just clean, mechanical function and an 11° tilt angle that loads fast and resets automatically.

A 96″ gooseneck tongue, 2-5/16″ adjustable coupler, dual 10,000 lb. drop-leg jacks, and integrated front toolbox keep the front end strong and practical. The formed thread plate perimeter, rub rail, stake pockets, and chain spool give you flexible tie-down points without cluttering the deck.

The G7X GN rides on dual 7,000 lb. torsion axles with Torflex suspension for a smoother pull and better load stability. Radial 10-ply tires, LED lighting, all-weather wiring, and DOT-compliant safety systems come standard.

With available 8K torsion axles, hydraulic jack upgrades, winch options, aluminum wheels, steel floor upgrades, and X-Liner fenders, the G7X GN can be built heavier, tougher, and more tailored to your operation.

The RawMaxx G7X GN — gravity, refined. Built to load fast. Built to hold steady. Built to work.
