Standard Features

Features for “G7X20BP14K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,860 lbs.
  • Load Capacity: 11,661 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22BP14K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,925 lbs.
  • Load Capacity: 11,586 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24BP14K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,696 lbs.
  • Load Capacity: 10,700 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X20BP16K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,145 lbs.
  • Load Capacity: 13,633 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22BP16K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,165 lbs.
  • Load Capacity: 13,610 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24BP16K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,520 lbs.
  • Load Capacity: 13,202 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X20BP20K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 4,550 lbs.
  • Load Capacity: 17,768 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22BP20K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 4,916 lbs.
  • Load Capacity: 17,347 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24BP20K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,100 lbs.
  • Load Capacity: 17,135 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

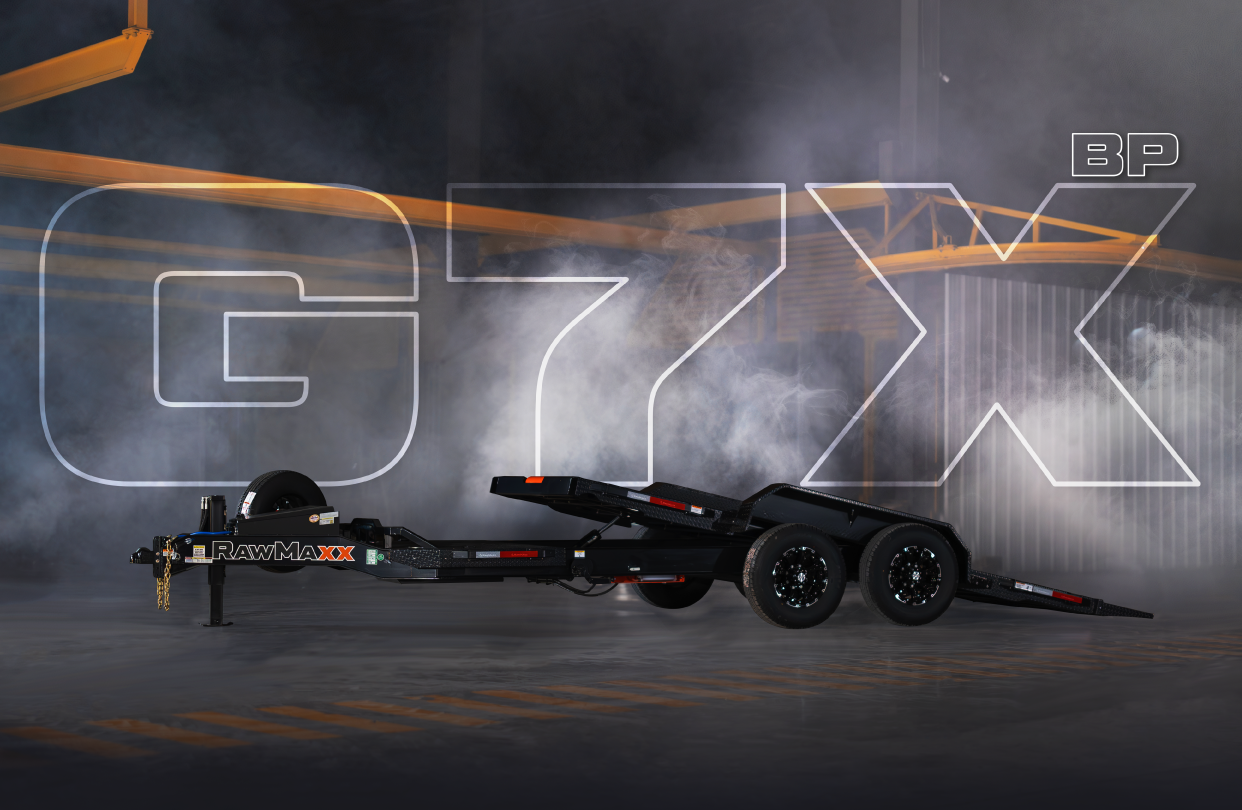

G7X BP 3D

Order Now

Standard Features

Features for “G7X20BP14K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,860 lbs.
  • Load Capacity: 11,661 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22BP14K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,925 lbs.
  • Load Capacity: 11,586 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24BP14K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 4,696 lbs.
  • Load Capacity: 10,700 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X20BP16K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,145 lbs.
  • Load Capacity: 13,633 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22BP16K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,165 lbs.
  • Load Capacity: 13,610 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24BP16K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 4,520 lbs.
  • Load Capacity: 13,202 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X20BP20K”

  • Length: 20′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 4,550 lbs.
  • Load Capacity: 17,768 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 4′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X22BP20K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 4,916 lbs.
  • Load Capacity: 17,347 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 6′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G7X24BP20K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: – 5,100 lbs.
  • Load Capacity: 17,135 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Torsion
  • Axles: 2 – 10,000 lb. Electric Brake Axles
  • 18 Ply ST235/75R17.5 Tires
  • 17.5″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

G7X BP

Balanced

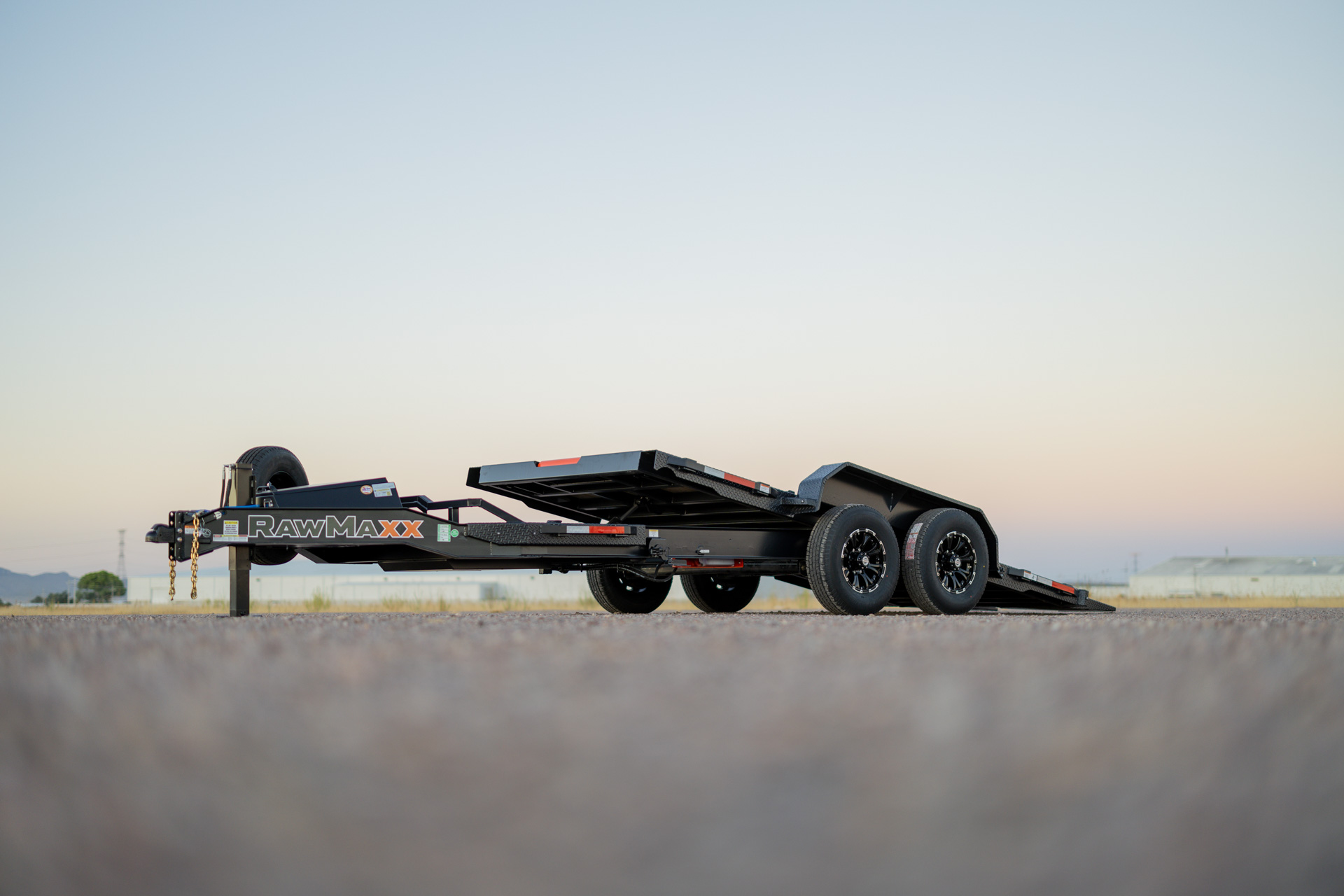

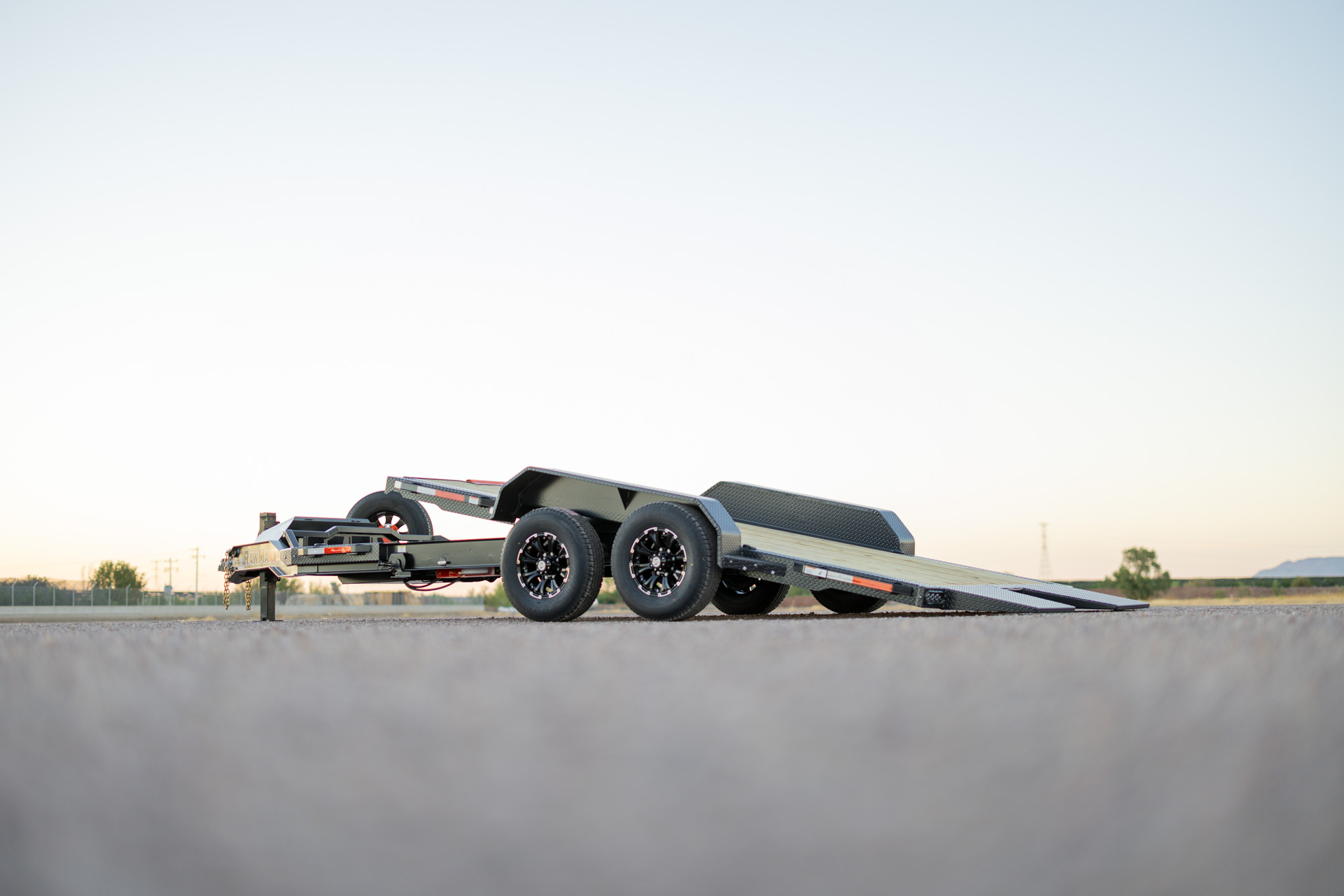

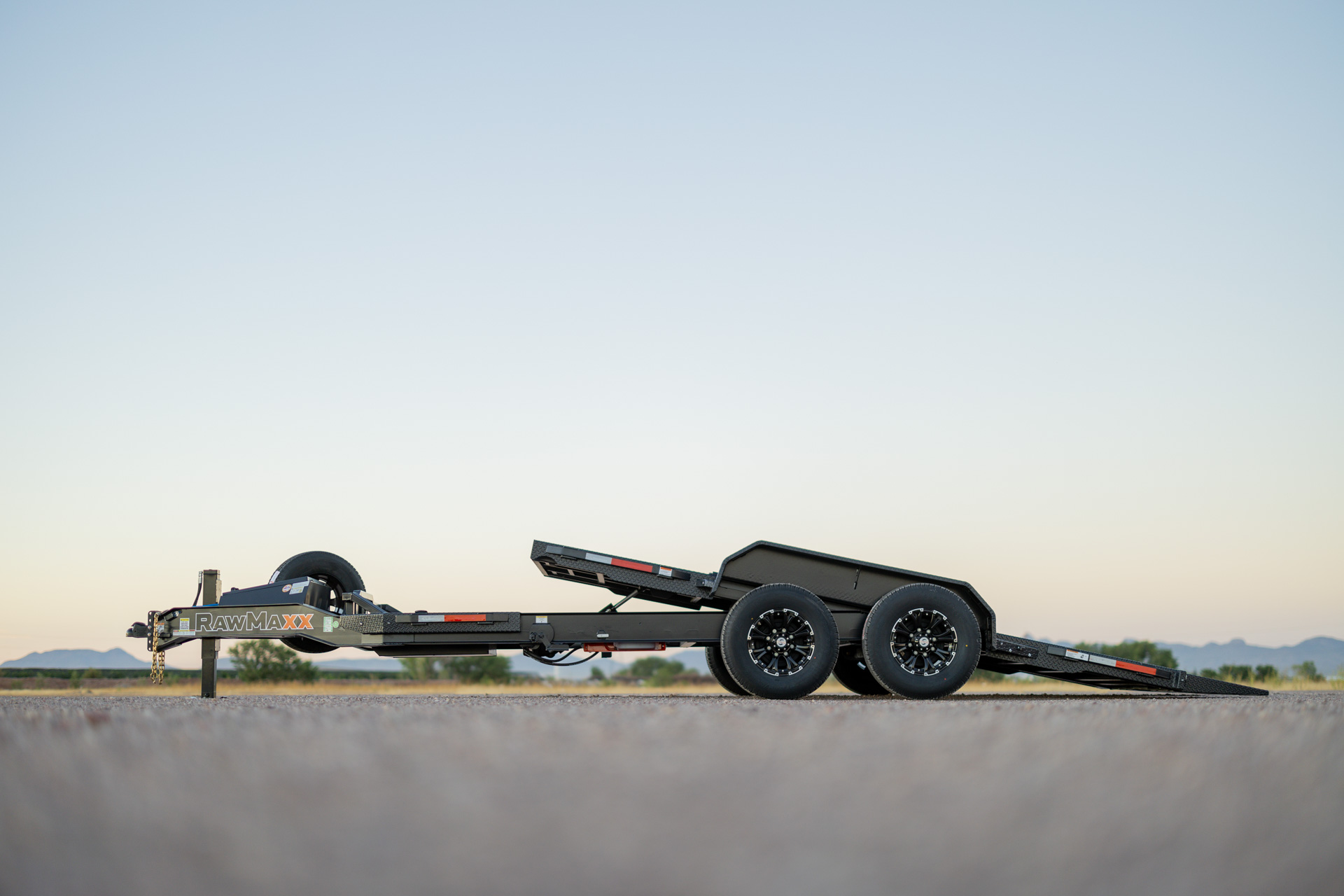

The Gravity Tilt Trailer Built for Effortless Loading

When loading speed, balance, and simplicity matter most, the RawMaxx G7X BP delivers. Available in 20’, 22’, and 24’ lengths, this gravity tilt bumper pull is rated at 14,000 lbs. GVWR with over 11,600 lbs. of usable load capacity, making it an ideal solution for hauling vehicles, equipment, and machinery without the need for ramps or hydraulics.

Built on an 8″ x 13 lb. I-beam frame with 3″ channel cross-members on 16″ centers, the G7X BP offers the strength and rigidity you expect from RawMaxx. A 4’ stationary front deck paired with a 16’ gravity tilt deck creates a naturally balanced platform that tilts smoothly under load and settles flat when secured. The 11° tilt angle allows for low-clearance loading while keeping operation fast and maintenance minimal.

A 2” treated lumber deck, 12-gauge steel fenders, formed tread plate side perimeter, and integrated rub rail with stake pockets and chain spools give the G7X BP durability where it counts. Inside the fenders, welded D-rings and swivel D-rings at the front corners provide flexible tie-down options for a wide range of loads.

Running on dual 7,000 lb. torsion axles with electric brakes, ST235/80R16 10-ply tires, and all-weather wiring with DOT-approved LED lighting, the G7X BP delivers a smooth, controlled ride mile after mile. With available upgrades like 8K torsion axles, steel flooring, electric winch, hydraulic jack, and aluminum wheels, it’s easy to tailor the trailer to your exact needs.

The RawMaxx G7X BP — balanced, efficient, and built to make loading easier without sacrificing strength.
