Standard Features

Features for “G3X24BP21K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 21,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,760 lbs.
  • Load Capacity: 17,526 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G3X26BP21K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 21,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,974 lbs.
  • Load Capacity: 17,280 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G3X26BP24K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 24,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 6,283 lbs.
  • Load Capacity: 20,375 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G3X28BP24K”

  • Length: 28′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 24,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 6,475 lbs.
  • Load Capacity: 20,154 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 12′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G3X30BP24K”

  • Length: 30‘
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 24,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 6,870 lbs.
  • Load Capacity: 19,700 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 14′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

G3X 3D

Order Now

Standard Features

Features for “G3X24BP21K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 21,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,760 lbs.
  • Load Capacity: 17,526 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 8′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G3X26BP21K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 21,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,974 lbs.
  • Load Capacity: 17,280 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G3X26BP24K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 24,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 6,283 lbs.
  • Load Capacity: 20,375 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 10′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G3X28BP24K”

  • Length: 28′
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 24,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 6,475 lbs.
  • Load Capacity: 20,154 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 12′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “G3X30BP24K”

  • Length: 30‘
  • Width: 102″
  • Deck Height: 24″
  • GVWR: 24,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 6,870 lbs.
  • Load Capacity: 19,700 lbs.
  • Frame: Engineered I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Front Deck: 14′ Stationary
  • Deck: 16′ Tilt Deck
  • Tilt System: Gravity Up / Down
  • Tilt Angle: 11°
  • Flooring: 2″ Treated Lumber Deck
  • X Track Ready
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated In Tongue
  • Suspension: Torsion
  • Axles: 3 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

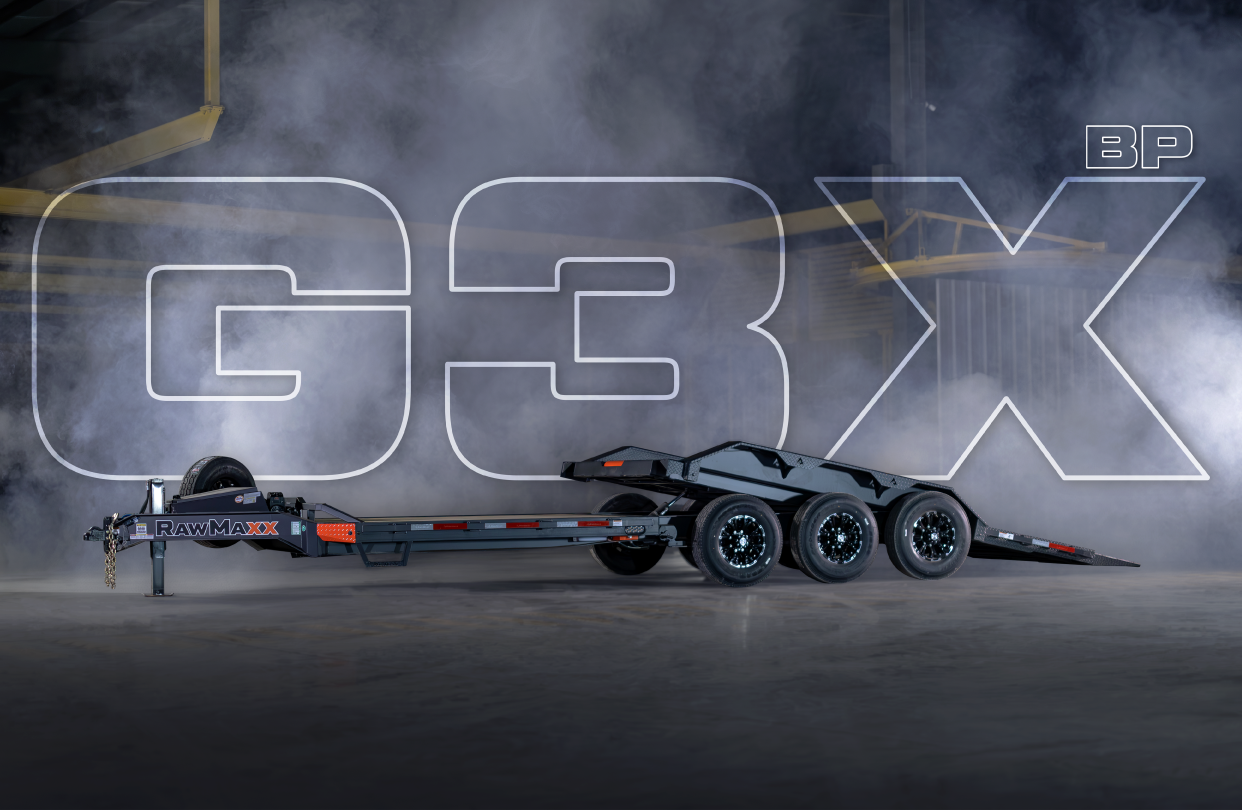

G3X

Dominance

The Triple-Axle Gravity Tilt Car Hauler That Owns the Road

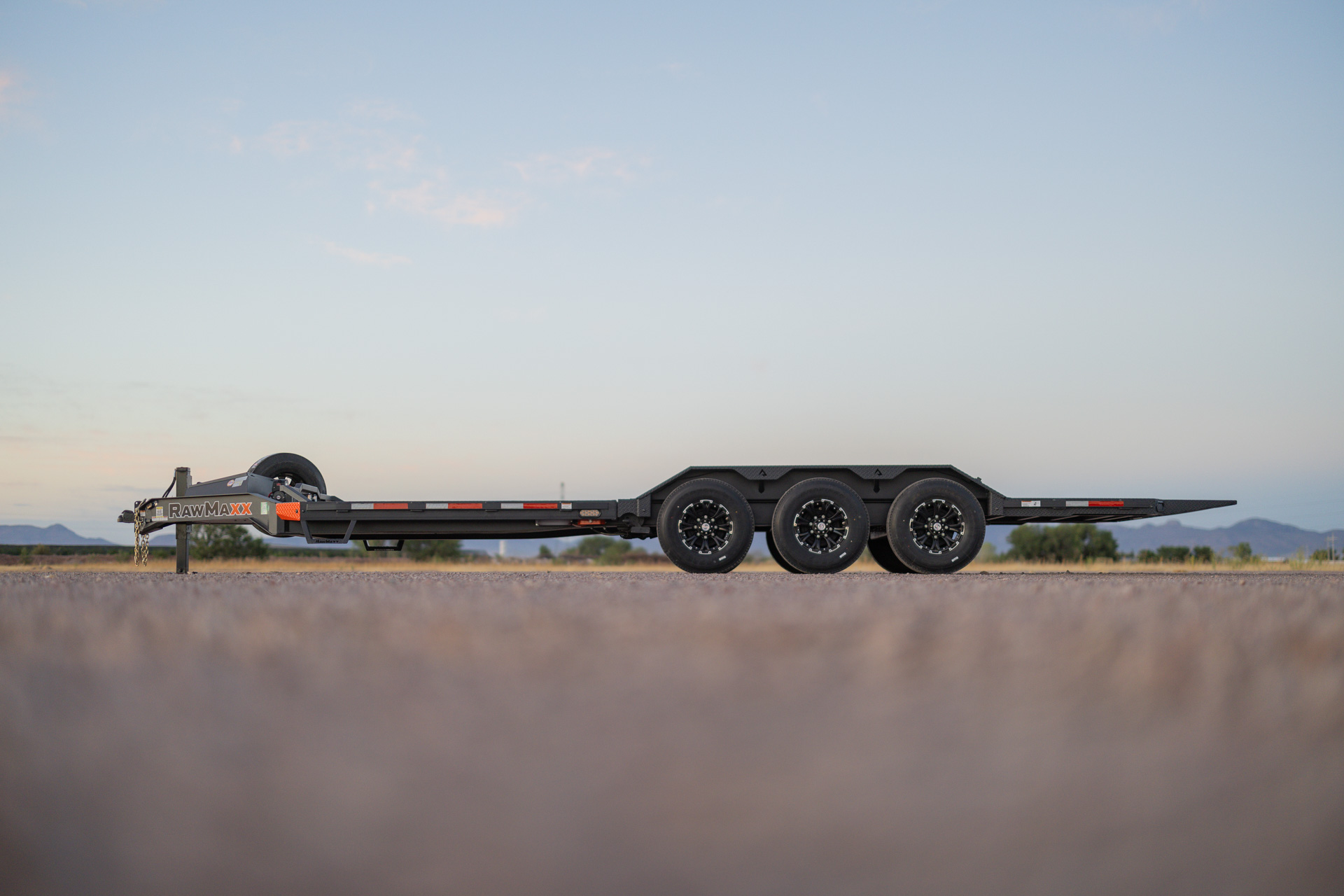

When the load is bigger, heavier, and demands absolute control, the RawMaxx G3X steps up. At 26’ long and 102” wide, this triple-axle gravity tilt car hauler is built for serious hauling power. With a GVWR of 21,000 lbs. and over 18,400 lbs. of load capacity, the G3X is engineered to dominate long pulls, heavy loads, and the toughest jobs.

Its foundation is a Force 10” I-beam frame with 3” channel cross-members spaced every 12” for unmatched strength and rigidity. The 2” treated lumber deck provides a durable platform, while 3/16” drive-over treadplate fenders, heavy-duty rub rail with spools, and multiple stake pockets make this trailer as versatile as it is tough.

The G3X’s tilt system takes the work out of loading. With a 10’ stationary front deck, 16’ tilt deck, and an 11° tilt angle, it’s gravity-driven simplicity that gets cars, trucks, or equipment on and off without ramps or wasted time. Four welded D-rings plus X-Track compatibility ensure secure tie-downs no matter what you’re hauling.

Performance and reliability are standard. Triple 7,000 lb. torsion axles, radial ST235/80R16 tires, and electric brakes keep you steady mile after mile. Safety features like G70 chains, an electric breakaway kit, DOT-approved LED lights, and an all-weather wiring harness come standard — because confidence isn’t optional.

Customization lets you take the G3X further. Upgrade to triple 8,000 lb. axles with 14-ply tires, add a steel floor or pro wood deck, equip a 12,000 lb. hydraulic jack, or fit a 12,000 lb. winch for extra pulling power. Even finish it off with X-Liner fenders for added durability and style.

The RawMaxx G3X — dominance in design, built for those who demand maximum strength, capacity, and control.
