Standard Features

Features for “FYH22BP14K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,291 lbs.
  • Load Capacity: 10,015 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 22′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “FYH24BP14K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,450 lbs.
  • Load Capacity: 9,833 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 24′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “FYH26BP14K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,775 lbs.
  • Load Capacity: 9,459 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 26′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “FYH24BP16K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,556 lbs.
  • Load Capacity: 12,011 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 24′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “FYH24BP16K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,775 lbs.
  • Load Capacity: 11,759 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 26′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

FYH 3D

360° View

Order Now

Standard Features

Features for “FYH22BP14K”

  • Length: 22′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,291 lbs.
  • Load Capacity: 10,015 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 22′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “FYH24BP14K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,450 lbs.
  • Load Capacity: 9,833 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 24′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “FYH26BP14K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 5,775 lbs.
  • Load Capacity: 9,459 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 26′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires (3,520 lb. Rating)
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “FYH24BP16K”

  • Length: 24′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,556 lbs.
  • Load Capacity: 12,011 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 24′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “FYH24BP16K”

  • Length: 26′
  • Width: 102″
  • Deck Height: 27″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 5,775 lbs.
  • Load Capacity: 11,759 lbs.
  • Frame: 8″ x 13 lb. I Beam
  • Side Perimeter: 3/16″ Formed Plate
  • Cross-Members: 3″ Channel on 16″ Centers
  • Rub Rail: 2″ Rub Rail With Spools
  • Fenders: 3/16″ Diamond Plate (Drive Over)
  • Deck: 26′  Full Tilt Deck
  • Tilt System: Power Up / Down
  • Dual 3″ x 20″ Cylinders
  • Tilt Angle: 13°
  • Flooring: 2″ Treated Lumber Deck
  • Winch Ready (Winch Not Included)
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single 10,000 lbs Side Wind Drop Leg Jack
  • Tool Box: Bolt On In Tongue
  • Suspension: Torsion
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5″
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

FYH

Original

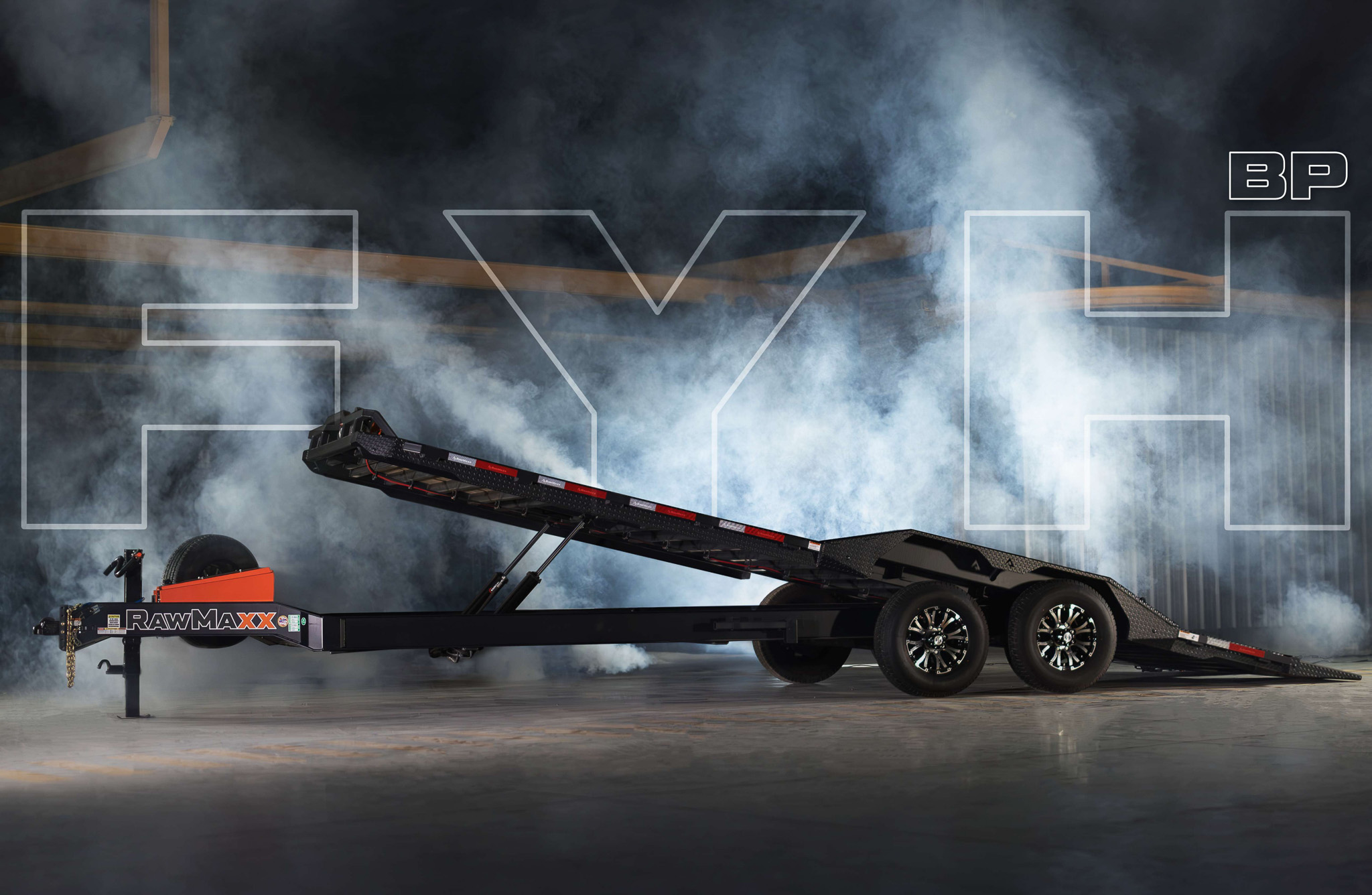

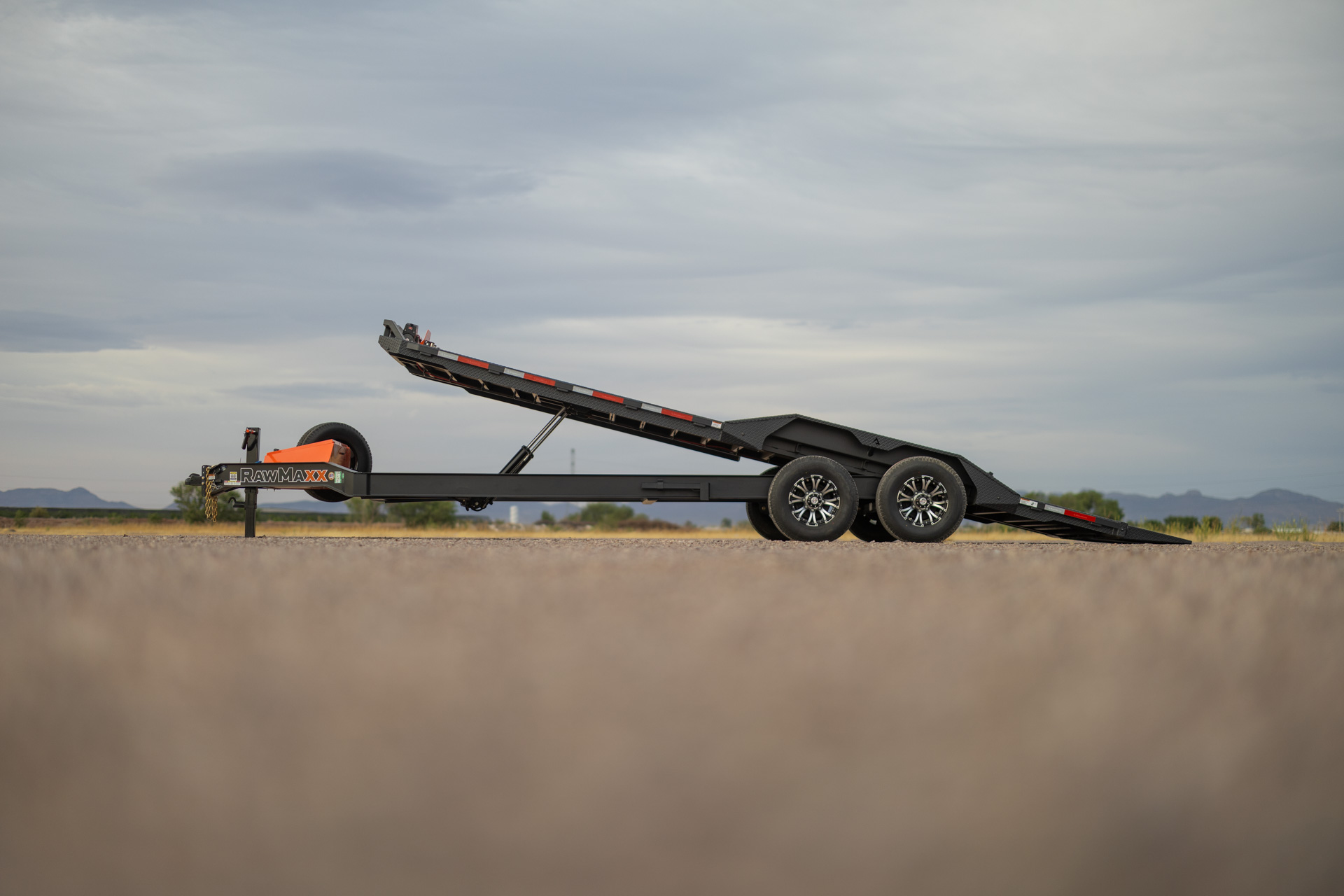

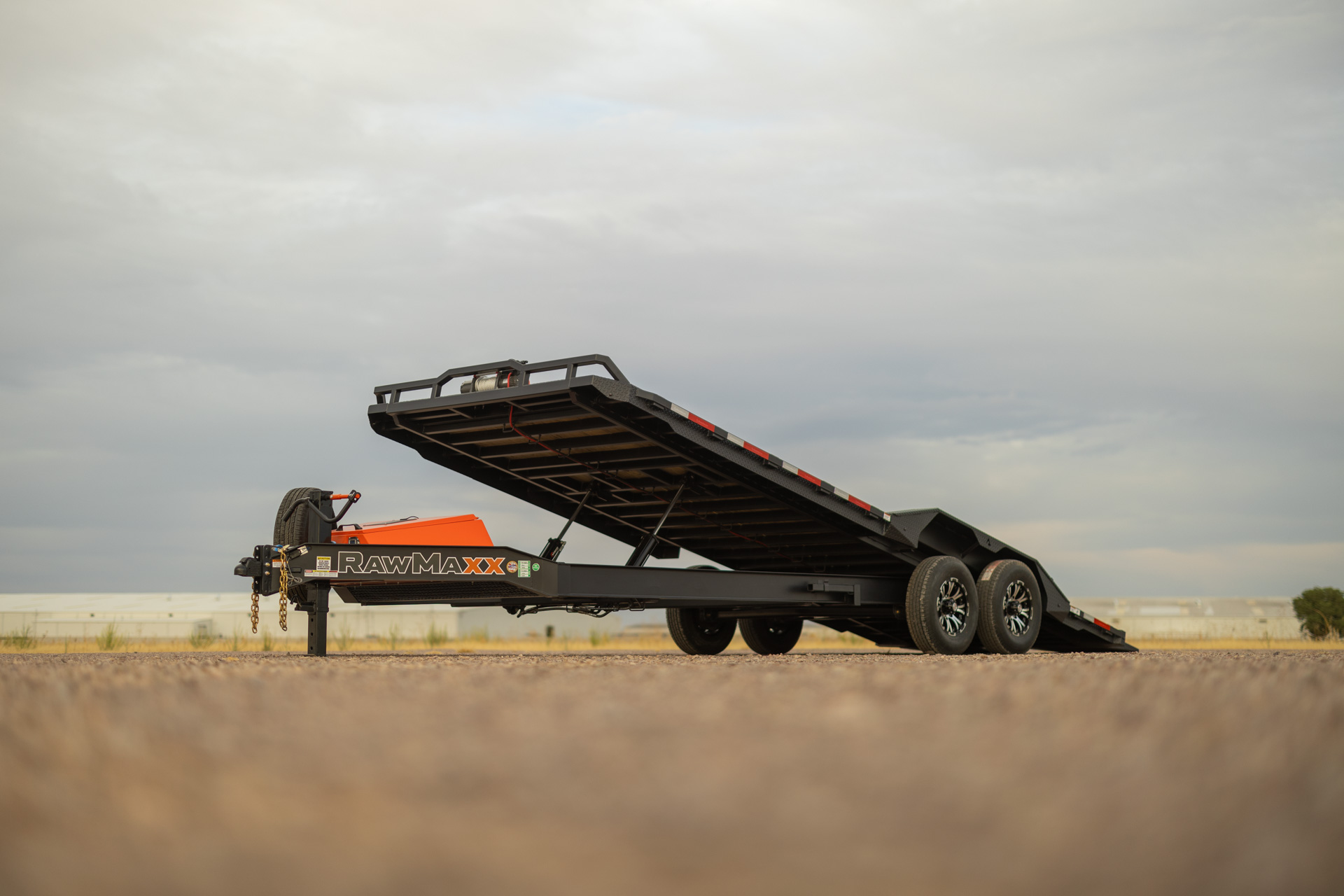

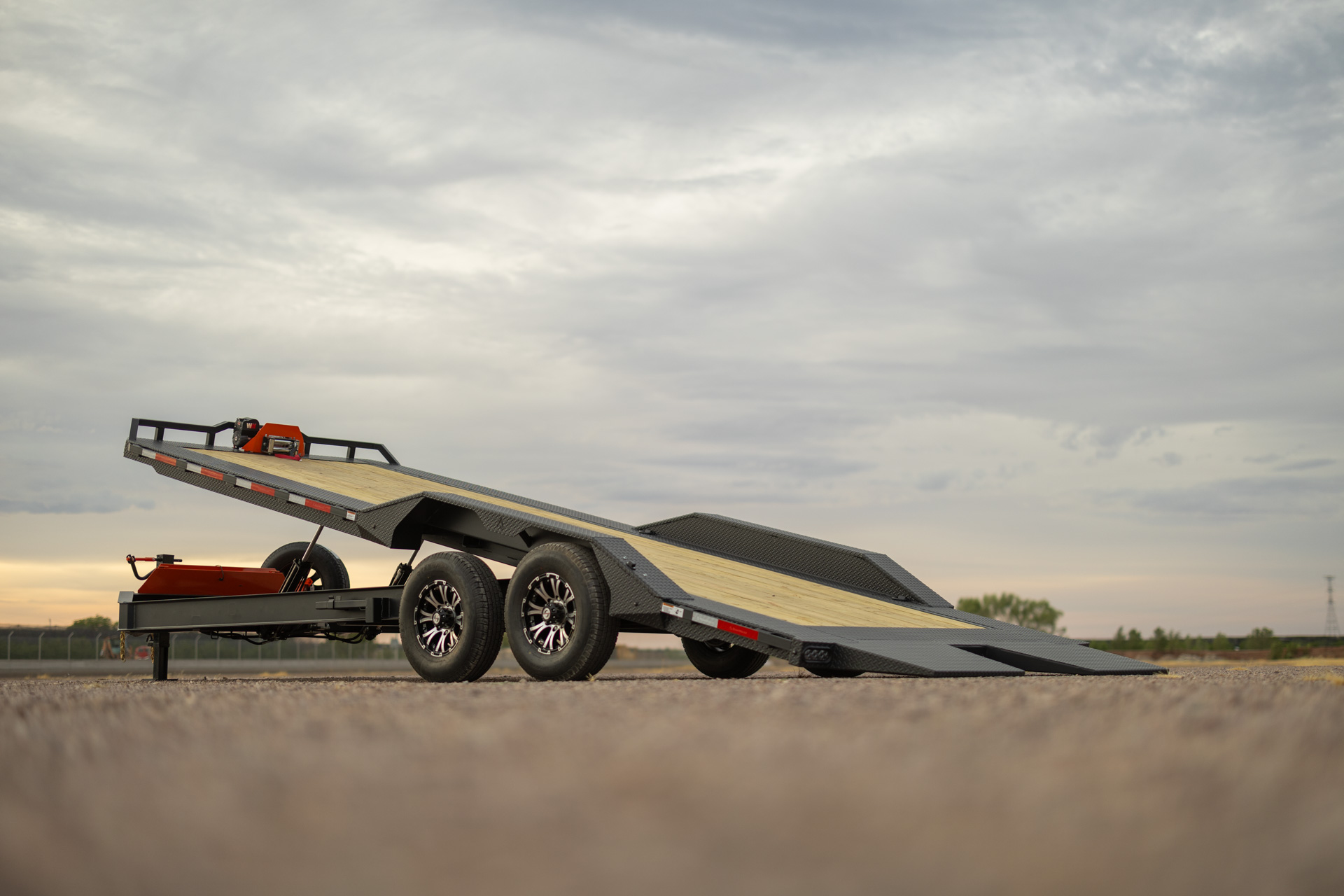

When efficiency matters and every second counts, the RawMaxx FYH delivers. Built for serious equipment haulers, this trailer brings together speed, strength, and simplicity with a 24′ or 26′ full-tilt deck designed for smooth, hassle-free loading.

With a GVWR of 14,000 lbs. and dual 7K torsion axles, the FYH balances raw hauling power with a stable, controlled ride. Its 8” I-beam frame and 3” channel cross-members give it the backbone to handle heavy machinery with confidence, while the gravity tilt system ensures effortless operation without unnecessary complications.

The FYH doesn’t just perform—it protects your investment. Features like drive-over treadplate fenders, EZ latch coupler, and 4 welded D-rings make strapping down equipment secure and stress-free. The powder-coated jet-black finish and all-weather wiring harness ensure it looks sharp and runs reliably, haul after haul.

And because every hauler’s needs are different, the FYH comes ready to customize—with available upgrades like 8K torsion axles, steel deck flooring, hydraulic jack packages, and even electric winches for total versatility.

The FYH isn’t just a tilt trailer—it’s a no-nonsense workhorse built for pros who demand speed, durability, and maximum uptime.

FYH

 Original

When efficiency matters and every second counts, the RawMaxx FYH delivers. Built for serious equipment haulers, this trailer brings together speed, strength, and simplicity with a 24′ or 26′ full-tilt deck designed for smooth, hassle-free loading.

With a GVWR of 14,000 lbs. and dual 7K torsion axles, the FYH balances raw hauling power with a stable, controlled ride. Its 8” I-beam frame and 3” channel cross-members give it the backbone to handle heavy machinery with confidence, while the gravity tilt system ensures effortless operation without unnecessary complications.

The FYH doesn’t just perform—it protects your investment. Features like drive-over treadplate fenders, EZ latch coupler, and 4 welded D-rings make strapping down equipment secure and stress-free. The powder-coated jet-black finish and all-weather wiring harness ensure it looks sharp and runs reliably, haul after haul.

And because every hauler’s needs are different, the FYH comes ready to customize—with available upgrades like 8K torsion axles, steel deck flooring, hydraulic jack packages, and even electric winches for total versatility.

The FYH isn’t just a tilt trailer—it’s a no-nonsense workhorse built for pros who demand speed, durability, and maximum uptime.
