Standard Features

Features for “FDXS16GN14K”

Length: 16‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,732 lbs.
Load Capacity: 9,268 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs

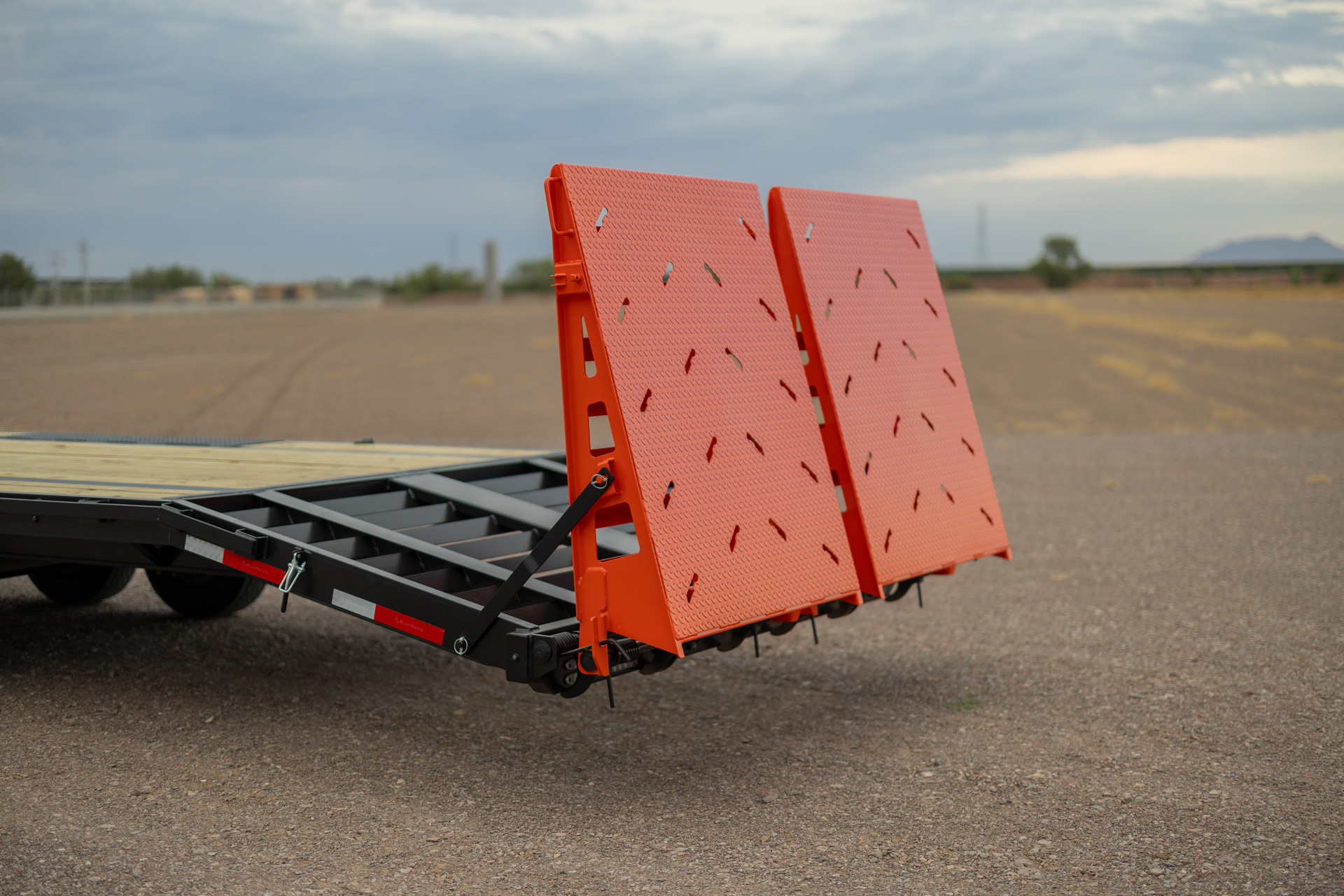

Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings

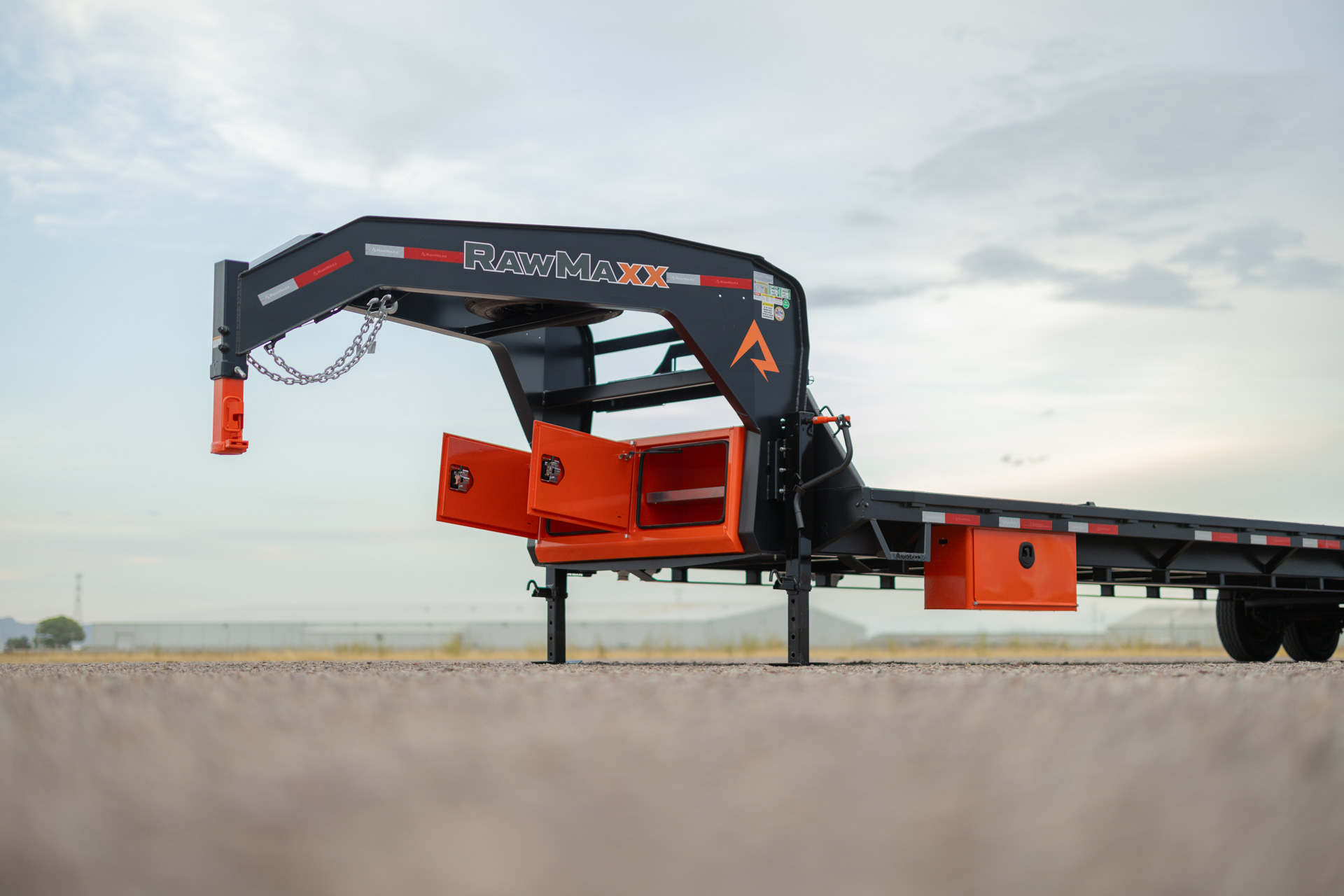

Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS18GN14K”

Length: 18‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,885 lbs.
Load Capacity:9,115 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS20GN14K”

Length: 20‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,038 lbs.
Load Capacity: 11,203 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS22GN14K”

Length: 22‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,191 lbs.
Load Capacity: 11,011 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS24GN14K”

Length: 24‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,344 lbs.
Load Capacity: 10,820 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS26GN14K”

Length: 26‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,629 lbs.
Load Capacity: 10,464 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS28GN14K”

Length: 28‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,785 lbs.
Load Capacity: 10,269 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS30GN14K”

Length: 30‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,263 lbs.
Load Capacity: 9,671 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS32GN14K”

Length: 32‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,431 lbs.
Load Capacity: 9,461 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS34GN14K”

Length: 34‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,688 lbs.
Load Capacity: 9,140 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS36GN14K”

Length: 36‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,015 lbs.
Load Capacity: 8,731 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS38GN14K”

Length: 38‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,162 lbs.
Load Capacity: 8,548 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS40GN14K”

Length: 40‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,310 lbs.
Load Capacity: 8,363 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS42GN14K”

Length: 42‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,458 lbs.
Load Capacity: 6,542 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS44GN14K”

Length: 44‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,606 lbs.
Load Capacity: 6,394 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS16GN16K”

Length: 16‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 4,732 lbs.
Load Capacity: 11,268 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS18GN16K”

Length: 18‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 4,885 lbs.
Load Capacity: 11,115 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS20GN16K”

Length: 20‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,038 lbs.
Load Capacity: 13,703 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS22GN16K”

Length: 22‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,191 lbs.
Load Capacity: 13,511 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS24GN16K”

Length: 24‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,344 lbs.
Load Capacity: 13,320 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS26GN16K”

Length: 26‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,629 lbs.
Load Capacity: 12,964 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS28GN16K”

Length: 28‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,785 lbs.
Load Capacity: 12,769 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS30GN16K”

Length: 30‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 6,263 lbs.
Load Capacity: 12,171 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS32GN16K”

Length: 32‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 6,431 lbs.
Load Capacity: 11,961 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS34GN16K”

Length: 34‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 6,688 lbs.
Load Capacity: 11,640 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS36GN16K”

Length: 36‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 7,015 lbs.
Load Capacity: 11,231 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS38GN16K”

Length: 38‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 7,015 lbs.
Load Capacity: 11,231 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS40GN16K”

Length: 40‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 8,335 lbs.
Load Capacity: 9,581 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS42GN16K”

Length: 42‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 7,458 lbs.
Load Capacity: 8,542 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS44GN16K”

Length: 44‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 7,606 lbs.
Load Capacity: 8,394 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS16GN20K”

Length: 16‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 6,675 lbs.
Load Capacity: 13,325 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS18GN20K”

Length: 18‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 6,890 lbs.
Load Capacity: 13,110 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS20GN20K”

Length: 20‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,105 lbs.
Load Capacity: 12,895 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS22GN20K”

Length: 22‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,320 lbs.
Load Capacity: 12,680 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS24GN20K”

Length: 24‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,535 lbs.
Load Capacity: 12,465 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS26GN20K”

Length: 26‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,750 lbs.
Load Capacity: 12,250 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS28GN20K”

Length: 28‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,965 lbs.
Load Capacity: 12,035 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS30GN20K”

Length: 30‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,180 lbs.
Load Capacity: 14,775 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS32GN20K”

Length: 32‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,267 lbs.
Load Capacity: 14,666 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS34GN20K”

Length: 34‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,565 lbs.
Load Capacity: 11,435 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS36GN20K”

Length: 36‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,862 lbs.
Load Capacity: 11,138 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS38GN20K”

Length: 38‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,160 lbs.
Load Capacity: 10,840 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS40GN20K”

Length: 40‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,457 lbs.
Load Capacity: 13,179 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS42GN20K”

Length: 42‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,979 lbs.
Load Capacity: 10,021 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS44GN20K”

Length: 44‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 10,500 lbs.
Load Capacity: 11,875 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

FDX Single 3D

360° View

Order Now

Standard Features

Features for “FDXS16GN14K”

Length: 16‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,732 lbs.
Load Capacity: 9,268 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS18GN14K”

Length: 18‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 4,885 lbs.
Load Capacity:9,115 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS20GN14K”

Length: 20‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,038 lbs.
Load Capacity: 11,203 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS22GN14K”

Length: 22‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,191 lbs.
Load Capacity: 11,011 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS24GN14K”

Length: 24‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,344 lbs.
Load Capacity: 10,820 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS26GN14K”

Length: 26‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,629 lbs.
Load Capacity: 10,464 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS28GN14K”

Length: 28‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 5,785 lbs.
Load Capacity: 10,269 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS30GN14K”

Length: 30‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,263 lbs.
Load Capacity: 9,671 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS32GN14K”

Length: 32‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,431 lbs.
Load Capacity: 9,461 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS34GN14K”

Length: 34‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 6,688 lbs.
Load Capacity: 9,140 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS36GN14K”

Length: 36‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,015 lbs.
Load Capacity: 8,731 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS38GN14K”

Length: 38‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,162 lbs.
Load Capacity: 8,548 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS40GN14K”

Length: 40‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,310 lbs.
Load Capacity: 8,363 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS42GN14K”

Length: 42‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,458 lbs.
Load Capacity: 6,542 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS44GN14K”

Length: 44‘
Width: 102″
Deck Height: 33“
GVWR: 14,000 lbs.
GAWR: 7,000 lbs.
Empty Weight: 7,606 lbs.
Load Capacity: 6,394 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Legs Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 10 Ply ST235/80R16 Tires
Spring Suspension
2 – 7,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS16GN16K”

Length: 16‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 4,732 lbs.
Load Capacity: 11,268 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS18GN16K”

Length: 18‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 4,885 lbs.
Load Capacity: 11,115 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS20GN16K”

Length: 20‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,038 lbs.
Load Capacity: 13,703 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS22GN16K”

Length: 22‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,191 lbs.
Load Capacity: 13,511 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS24GN16K”

Length: 24‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,344 lbs.
Load Capacity: 13,320 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS26GN16K”

Length: 26‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,629 lbs.
Load Capacity: 12,964 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS28GN16K”

Length: 28‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 5,785 lbs.
Load Capacity: 12,769 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS30GN16K”

Length: 30‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 6,263 lbs.
Load Capacity: 12,171 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS32GN16K”

Length: 32‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 6,431 lbs.
Load Capacity: 11,961 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS34GN16K”

Length: 34‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 6,688 lbs.
Load Capacity: 11,640 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS36GN16K”

Length: 36‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 7,015 lbs.
Load Capacity: 11,231 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS38GN16K”

Length: 38‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 7,015 lbs.
Load Capacity: 11,231 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS40GN16K”

Length: 40‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 8,335 lbs.
Load Capacity: 9,581 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS42GN16K”

Length: 42‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 7,458 lbs.
Load Capacity: 8,542 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS44GN16K”

Length: 44‘
Width: 102″
Deck Height: 33“
GVWR: 16,000 lbs.
GAWR: 8,000 lbs.
Empty Weight: 7,606 lbs.
Load Capacity: 8,394 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 14 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 14 Ply ST235/85R16 Tires
Spring Suspension
2 – 8,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS16GN20K”

Length: 16‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 6,675 lbs.
Load Capacity: 13,325 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS18GN20K”

Length: 18‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 6,890 lbs.
Load Capacity: 13,110 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS20GN20K”

Length: 20‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,105 lbs.
Load Capacity: 12,895 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS22GN20K”

Length: 22‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,320 lbs.
Load Capacity: 12,680 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS24GN20K”

Length: 24‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,535 lbs.
Load Capacity: 12,465 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS26GN20K”

Length: 26‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,750 lbs.
Load Capacity: 12,250 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS28GN20K”

Length: 28‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,965 lbs.
Load Capacity: 12,035 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS30GN20K”

Length: 30‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,180 lbs.
Load Capacity: 14,775 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS32GN20K”

Length: 32‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,267 lbs.
Load Capacity: 14,666 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS34GN20K”

Length: 34‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,565 lbs.
Load Capacity: 11,435 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS36GN20K”

Length: 36‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,862 lbs.
Load Capacity: 11,138 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS38GN20K”

Length: 38‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,160 lbs.
Load Capacity: 10,840 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS40GN20K”

Length: 40‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,457 lbs.
Load Capacity: 13,179 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS42GN20K”

Length: 42‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,979 lbs.
Load Capacity: 10,021 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDXS44GN20K”

Length: 44‘
Width: 102″
Deck Height: 33“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 10,500 lbs.
Load Capacity: 11,875 lbs.
2-5/16” Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2″ Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
4 – 18 Ply ST235/75R17.5 Tires
Spring Suspension
2 – 10,000 lbs Axles With Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

FDX

Everyday

The gooseneck flatdeck built for daily hauling, straightforward loading, and dependable work.

When the job calls for a flatdeck that stays simple, hauls clean, and works day after day, the RawMaxx FDX is built to do exactly that. Available in 16′ to 44′ lengths with 14K, 16K, and 20K configurations, the FDX is designed for contractors, equipment operators, and everyday haulers who need a dependable gooseneck flatdeck without unnecessary complication.

At the core of the trailer is a 12″ x 14 lb. I-beam main frame with 3″ channel cross-members on 16″ centers, a 2″ treated wood deck, and a 6″ channel outer deck frame built to give the platform real structure across a wide range of lengths. A full 102″ deck width, 2″ x 3/8″ rub rail, stake pockets, chain spools, and welded D-rings at the corners give crews the space and securement points needed for equipment, materials, and everyday freight. On longer models, the added torque tube helps maintain stability and confidence across extended deck lengths.

Up front, the FDX is built around a 93″ gooseneck, adjustable 2-5/16″ ball coupler, dual 10,000 lb. drop-leg jacks, and a lockable toolbox between the risers for practical day-to-day use. In the rear, the straight deck with 8′ slide-in channel ramps keeps loading simple and proven. Electric brake axles, all-weather wiring, LED lighting, G70 safety chains, and a spare tire mount round out a trailer built for steady work and repeat use.

For operators who need more from the platform, the FDX can be upgraded with 8K or 10K axle packages, heavier tire options, steel floor or pro wood, dovetail ramp packages, slide-track ratchet systems, additional D-rings, winches, underbody storage, and extra lighting. It is a gooseneck flatdeck built for crews who want clean structure, straightforward loading, and a trailer that earns its keep every day.

The RawMaxx FDX — simple where it should be, strong where it matters, and built for the work that needs to keep moving.

FDX Trailer

Get ready to take your hauling game to the next level with the RawMaxx trailer! This beast of a trailer comes in six sizes ranging from 20 to 40 feet long and 102 inches wide, with a maximum load capacity of over 10,000 pounds. The sturdy 12″ x 14 lbs. I-Beam main frame and 2″ treated lumber deck flooring can handle even the toughest loads. Plus, with options like 8′ slide-in channel ramps and Maxx Ramps on the 5′ dovetail model, loading and unloading has never been easier. And don’t forget about the safety features, like the electric breakaway kit and 3/8″ G70 safety chains. With the RawMaxx trailer, you’ll be ready to tackle any hauling challenge with ease and style.
