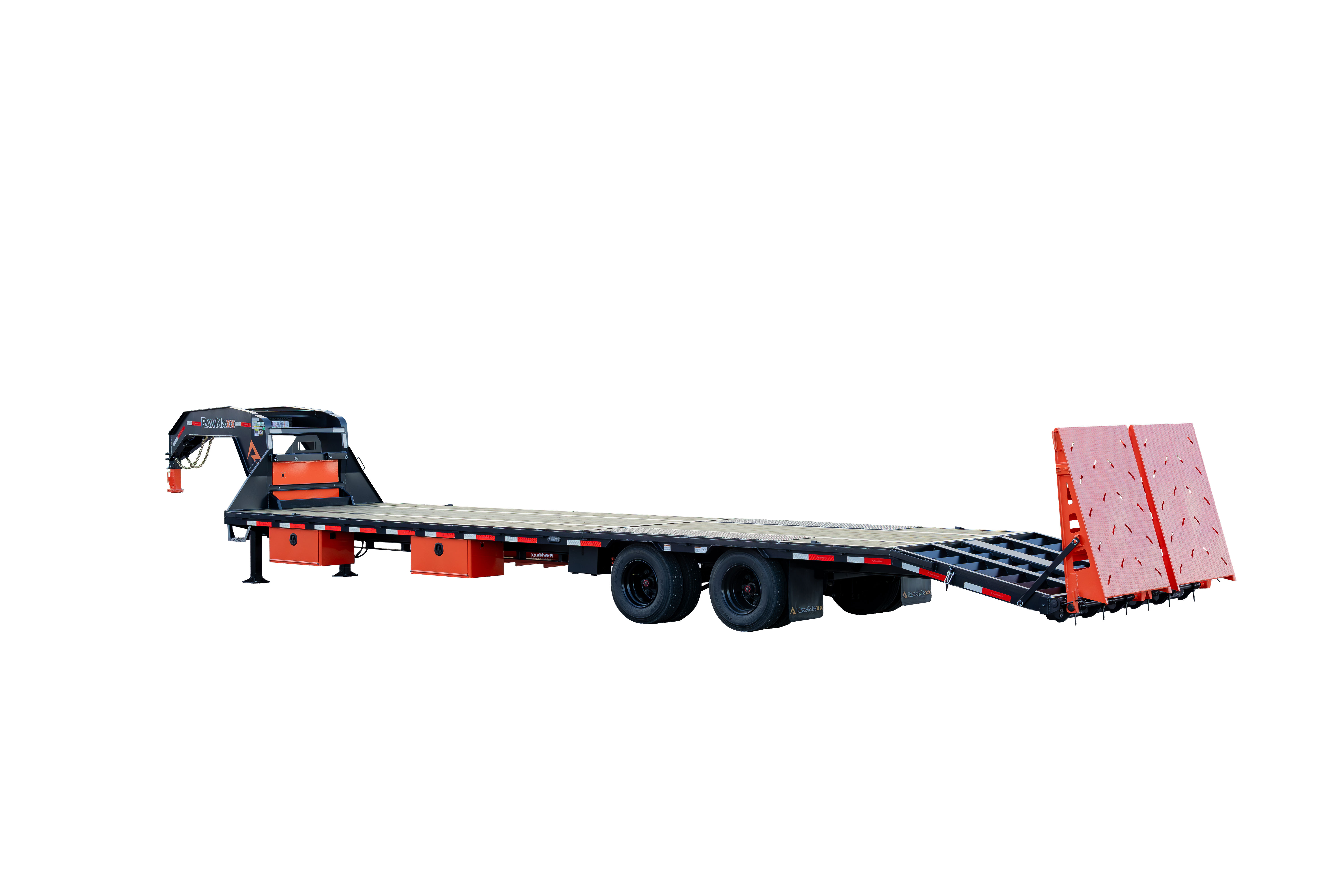

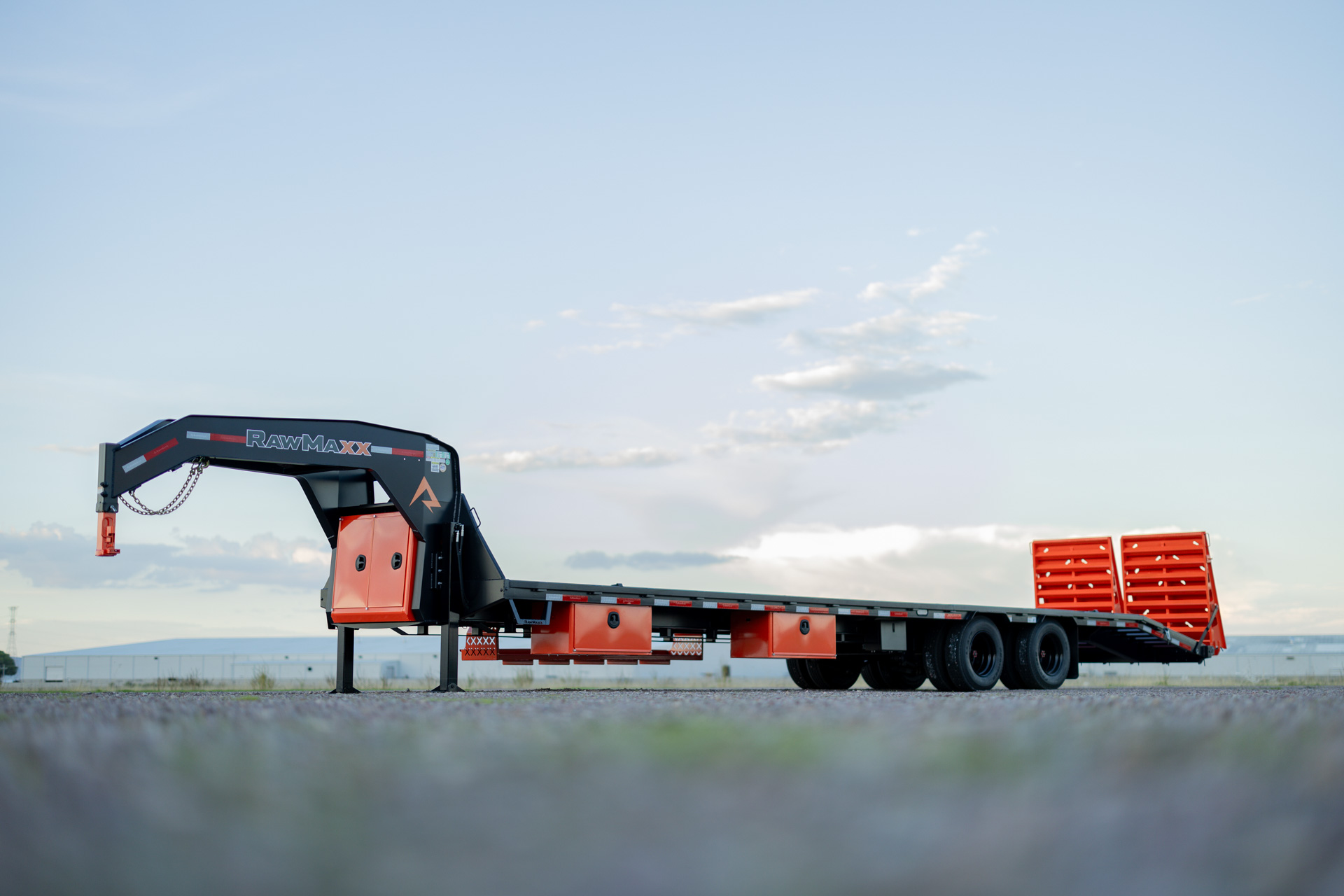

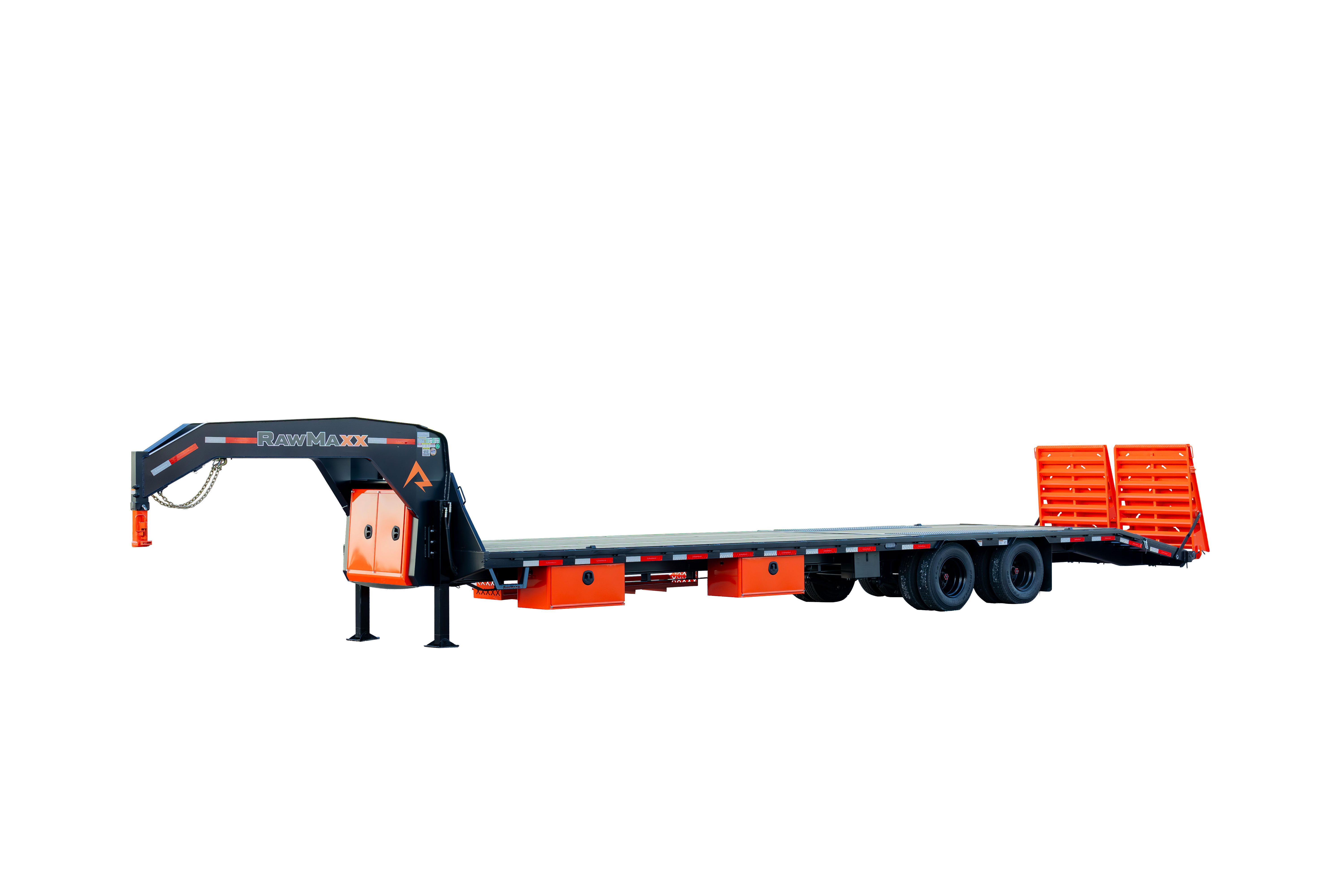

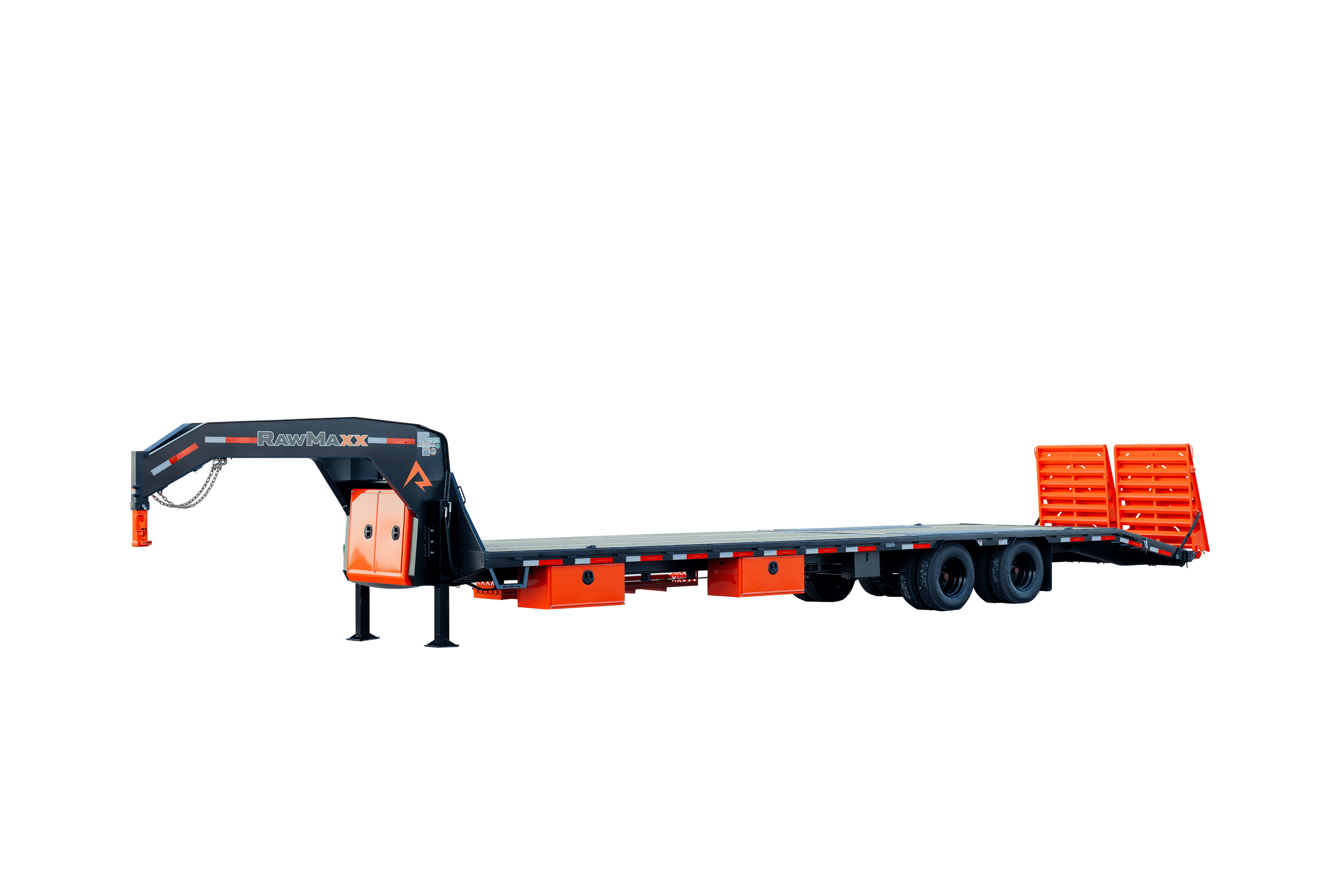

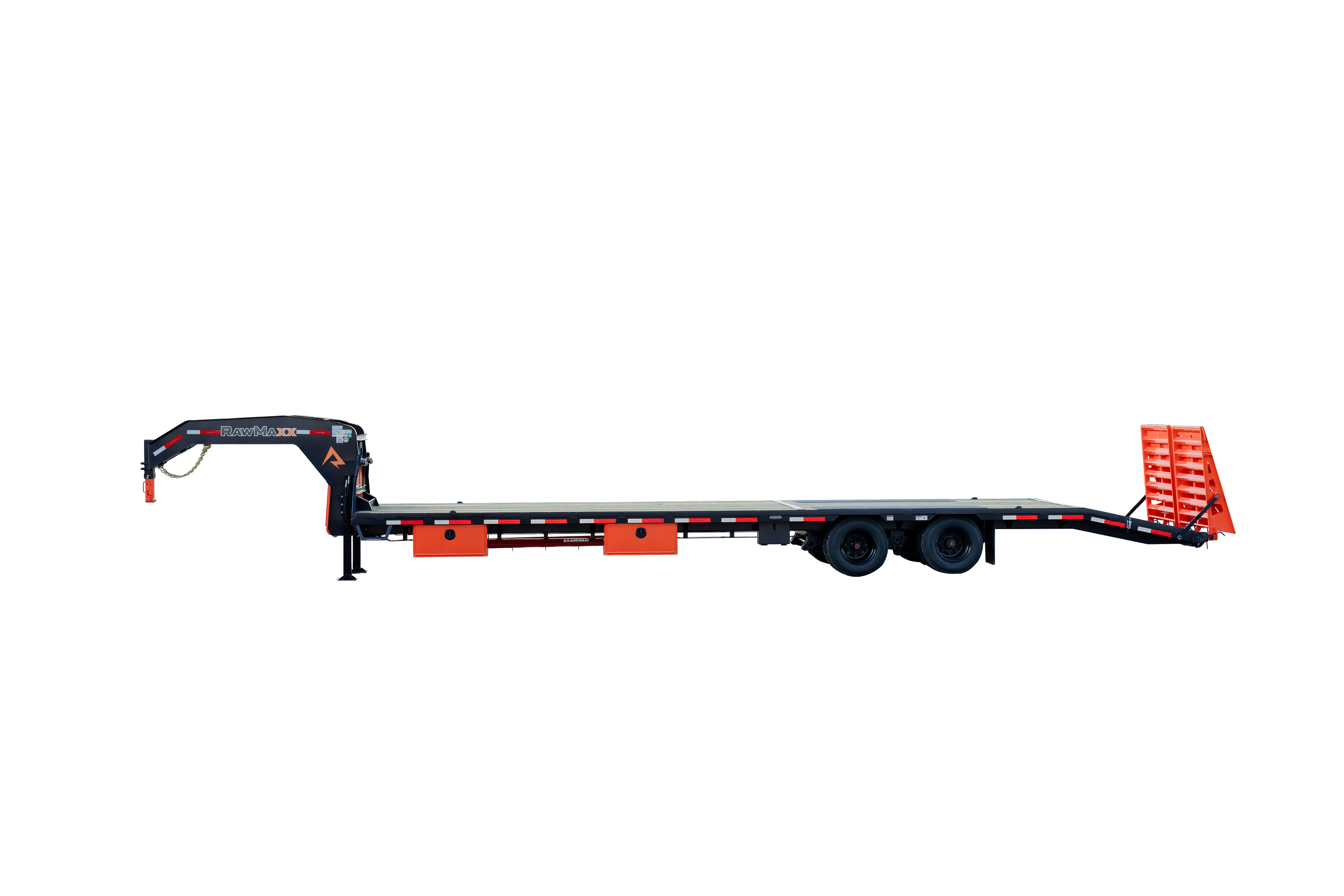

FDX Dual

Available Sizes

20' x 102"
22' x 102"
24' x 102"
26' x 102"
28' x 102"
30' x 102"
32' x 102"
34' x 102"
36' x 102"
38' x 102"
40' x 102"
44' x 102"

Trailer Specs

Dimensions

Length: 20'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 5,580 lbs.

Load Capacity: 17,304 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

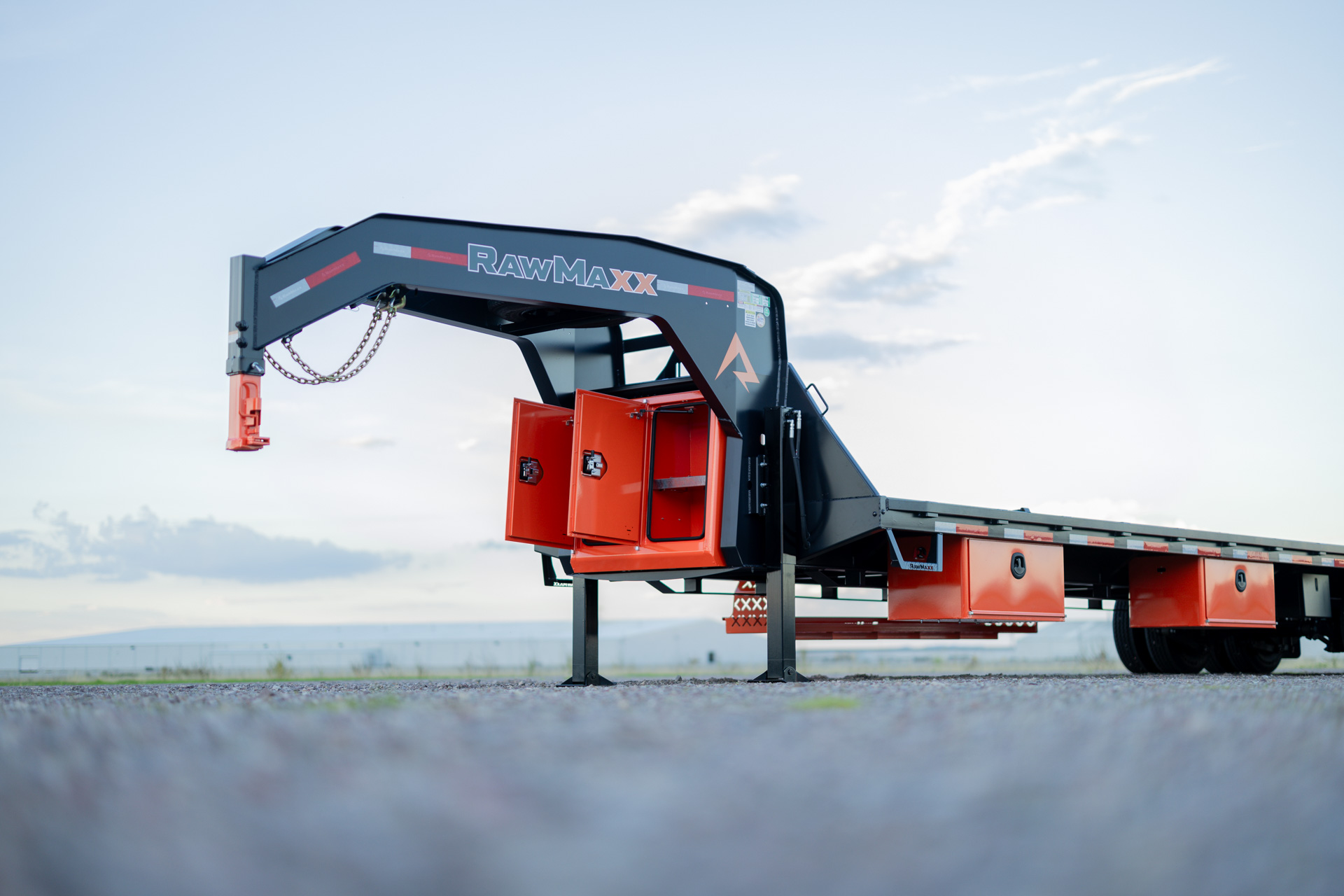

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 20′ Trailer )

($308.00)

Pro Wood ( 20′ Trailer )

($864.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

20′ – Slide Track For Ratchets

($462.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 22'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 5,620 lbs.

Load Capacity: 17,196 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 22′ Trailer )

($339.00)

Pro Wood ( 22′ Trailer )

($950.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

22′ – Slide Track For Ratchets

($509.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 24'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 5,920 lbs.

Load Capacity: 16,896 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 24′ Trailer )

($370.00)

Pro Wood ( 24′ Trailer )

($1,036.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

24′ – Slide Track For Ratchets

($555.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 26'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 6,460 lbs.

Load Capacity: 17,540 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 26′ Trailer )

($401.00)

Pro Wood ( 26′ Trailer )

($1,121.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

26′ – Slide Track For Ratchets

($601.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

10 – Slide Ratchets

($540.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

10 – Weld-On Ratchets

($770.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 28'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 6,790 lbs.

Load Capacity: 17,210 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 28′ Trailer )

($432.00)

Pro Wood ( 28′ Trailer )

($1,208.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

28′ – Slide Track For Ratchets

($648.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

10 – Slide Ratchets

($540.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

10 – Weld-On Ratchets

($770.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 30'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 7,231 lbs.

Load Capacity: 16,769 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 30′ Trailer )

($462.00)

Pro Wood ( 30′ Trailer )

($1,294.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

30′ – Slide Track For Ratchets

($694.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

10 – Slide Ratchets

($540.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

10 – Weld-On Ratchets

($770.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 32'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 6,990 lbs.

Load Capacity: 15,612 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Triple Hutch Suspension

($1,503.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Triple 10,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($3,005.00)

Triple 12,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($5,123.00)

Triple 15,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($8,228.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

12 – 14Ply Tires 235/85/R16 – Dual Wheels

($740.00)

12 – 18Ply Tires 235/75/R17.5 – Dual Wheels

($1,756.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 32′ Trailer )

($493.00)

Pro Wood ( 32′ Trailer )

($1,380.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

32′ – Slide Track For Ratchets

($740.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

10 – Slide Ratchets

($540.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

10 – Weld-On Ratchets

($770.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 34'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 7,190 lbs.

Load Capacity: 15,412 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Triple Hutch Suspension

($1,503.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Triple 10,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($3,005.00)

Triple 12,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($5,123.00)

Triple 15,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($8,228.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

12 – 14Ply Tires 235/85/R16 – Dual Wheels

($740.00)

12 – 18Ply Tires 235/75/R17.5 – Dual Wheels

($1,756.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 34′ Trailer )

($524.00)

Pro Wood ( 34′ Trailer )

($1,467.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

34′ – Slide Track For Ratchets

($786.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

10 – Slide Ratchets

($540.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

10 – Weld-On Ratchets

($770.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

3 – Underbody Toolbox

($1,733.00)

4 – Underbody Toolbox

($2,311.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 36'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 8,150 lbs.

Load Capacity: 14,850 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Triple Hutch Suspension

($1,503.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Triple 10,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($3,005.00)

Triple 12,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($5,123.00)

Triple 15,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($8,228.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

12 – 14Ply Tires 235/85/R16 – Dual Wheels

($740.00)

12 – 18Ply Tires 235/75/R17.5 – Dual Wheels

($1,756.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 36′ Trailer )

($555.00)

Pro Wood ( 36′ Trailer )

($1,553.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

36′ – Slide Track For Ratchets

($832.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

10 – Slide Ratchets

($540.00)

12 – Slide Ratchets

($648.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

10 – Weld-On Ratchets

($770.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

3 – Underbody Toolbox

($1,733.00)

4 – Underbody Toolbox

($2,311.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 38'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 8,350 lbs.

Load Capacity: 14,550 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Triple Hutch Suspension

($1,503.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Triple 10,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($3,005.00)

Triple 12,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($5,123.00)

Triple 15,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($8,228.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

12 – 14Ply Tires 235/85/R16 – Dual Wheels

($740.00)

12 – 18Ply Tires 235/75/R17.5 – Dual Wheels

($1,756.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 38′ Trailer )

($586.00)

Pro Wood ( 38′ Trailer )

($1,640.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

38′ – Slide Track For Ratchets

($878.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

10 – Slide Ratchets

($540.00)

12 – Slide Ratchets

($648.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

10 – Weld-On Ratchets

($770.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

3 – Underbody Toolbox

($1,733.00)

4 – Underbody Toolbox

($2,311.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 40'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 9,093 lbs.

Load Capacity: 13,634 lbs

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Triple Hutch Suspension

($1,503.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Triple 10,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($3,005.00)

Triple 12,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($5,123.00)

Triple 15,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($8,228.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

12 – 14Ply Tires 235/85/R16 – Dual Wheels

($740.00)

12 – 18Ply Tires 235/75/R17.5 – Dual Wheels

($1,756.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 40′ Trailer )

($616.00)

Pro Wood ( 40′ Trailer )

($1,726.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

40′ – Slide Track For Ratchets

($924.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

10 – Slide Ratchets

($540.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

10 – Weld-On Ratchets

($770.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

3 – Underbody Toolbox

($1,733.00)

4 – Underbody Toolbox

($2,311.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

Trailer Specs

Dimensions

Length: 44'

Width: 102"

Deck Height: 35"

Weight Rating

GVWR: 20,000 lbs.

GAWR: 10,000 lbs.

Empty Weight: 9,693 lbs.

Load Capacity: 12,884 lbs.

Finish

Type: Powder Coat

Prep: Grit Blast

Standard Color: Jet Black

Warranty

Axle: 5 Year Dexter

Trailer: 3 Year Structural / 1 Year Paint

Gooseneck

Coupler

Coupler: 2-5/16” Ball Coupler

Jacks

Front Jacks: 2 Side Wind Drop Legs - 10,000 lbs.

Tool Box

Front Tool Box: Between Risers / Lockable Latch

Gooseneck

Neck Length: 96"

Safety System

Safety Chains: 3/8" G70 Safety Chains

Breakaway System: Electric Breakaway Kit

Reflective Tape: 3M DOT Compliant Reflective Tape

Frame

Deck

Flooring: 2” Treated Lumber Deck

D-Rings: 4 D-Rings (Welded Outside Perimeter)

Side

Side Perimeter: 2" x 5" x 1/8" Tubing Outer Deck Frame

Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets

Fenders: 3/16” Treadplate

Frame

Frame: 12" x 19 lbs. I-Beam Main Frame

Cross-Members: 3" Channel / 16" Spacings

Torque Tube: 5” Round Tube

Rear Tail

Strait deck: 7' Slide-In Channel Ramps

Side Step & Handle

Side Step: G10 Sides / G12 Diamond Plate Step

Handle: 1/2" Round Rod

Running Gear

Tires

Type: Radial Tires

Size: ST235/80R16

Ply: 10 Ply

Rating: 3,520 lbs.

Rims: 16” Dual Black Mod Wheels

Bolt Pattern: 8 on 6.5”

Suspension

Axles: 2

Rating: 10,000 lbs.

Brakes: Electric

Type: 6 - Leaf Slipper Spring

Electrical & Lighting

Wiring

Front Plug: 7 - Way Plug

Frame Wiring: All Weather Wiring Harness

Lighting

Side Markers: 3/4" LED Bullet Lights

Turn Flashers: 2" x 6" Amber Side Turn Lights

Rear Lights: DOT Approved LED Lights

Available Upgrades

Suspension Options

Hutch Suspension

($1,002.00)

Triple Hutch Suspension

($1,503.00)

Axle Options

2 – 12,000 Lbs. Spring Axles ( 10 Ply Dual Tires )

($3,852.00)

2 – 15,000 Lbs. Spring Axles ( 18 Ply Dual Tires )

($9,014.00)

2 – 16,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($11,325.00)

Triple 10,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($3,005.00)

Triple 12,000 lbs Electric Brake Axles ( 10 Ply Dual Tires )

($5,123.00)

Triple 15,000 lbs Electric Brake Axles ( 18 Ply Dual Tires )

($8,228.00)

Brake Options

Electric / Hydraulic Brake System

($1,475.00)

Tire Options

8 – 14Ply Tires 235/80/R16 – Dual Wheels

($493.00)

8 – 18Ply Tires 235/75/R17.5 – Dual Wheel

($1,172.00)

12 – 14Ply Tires 235/85/R16 – Dual Wheels

($740.00)

12 – 18Ply Tires 235/75/R17.5 – Dual Wheels

($1,756.00)

Spare Tire Options

Spare – 14Ply Tire 235/80/R16 – Dual Wheel

($339.00)

Spare – 18Ply Tire 235/80/R17.5 – Dual Wheel

($424.00)

Deck Options

12″ Center Cross-members ( 44′ Trailer )

($678.00)

Pro Wood ( 44′ Trailer )

($1,899.00)

Tail Options

Dove Tail With Maxx Ramps

($1,156.00)

Dove Tail With HD Maxx Ramps

($1,540.00)

Tie Down Options

4 – Weld on D-Rings

($93.00)

6 – Weld on D-Rings

($139.00)

8 – Weld on D-Rings

($185.00)

Slide Track Options

44′ – Slide Track For Ratchets

($1,018.00)

4 – Slide Ratchets

($216.00)

6 – Slide Ratchets

($324.00)

8 – Slide Ratchets

($432.00)

10 – Slide Ratchets

($540.00)

12 – Slide Ratchets

($648.00)

Weld On Ratchets

4 – Weld-On Ratchets

($308.00)

6 – Weld-On Ratchets

($462.00)

8 – Weld-On Ratchets

($616.00)

10 – Weld-On Ratchets

($770.00)

Winch Options

17,500 Lbs. Electric Winch ( Includes Battery & Charger )

($2,697.00)

Tool Box Options

1 – Underbody Toolbox

($578.00)

2 – Underbody Toolbox

($1,156.00)

3 – Underbody Toolbox

($1,733.00)

4 – Underbody Toolbox

($2,311.00)

Dunnage Rack

($347.00)

GN ToolMaxx

($694.00)

Light Options

1 – Top LED Light Bar

($578.00)

2 – Side LED Pod Lights

($385.00)

Extra Marker Lights ( Every 4′ )

($308.00)

Extra Marker Lights ( Every 8′ )

($154.00)

The FDX Dual Trailer

The FDX Dual Trailer by Rawmaxx offers a durable and reliable solution for hauling heavy loads. Available in various sizes, this trailer has a weight rating of 20,000 lbs. with a load capacity of up to 17,304 lbs. The trailer is constructed with a 12″ x 19 lbs. I-beam main frame and features a 2″ treated lumber deck flooring, along with 4 welded D-rings for secure loading. The trailer is equipped with a 2-5/16″ ball coupler, 10,000 lbs. side wind drop legs, and safety chains for added security. Radial tires, electric brakes, and slipper spring suspension provide a smooth ride, while LED lighting ensures visibility and safety on the road. With additional options such as different axle and suspension types, tail configurations, and jack and winch options, the FDX Dual trailer can be customized to meet specific hauling needs. Overall, the FDX Dual trailer is a top choice for those seeking a rugged and versatile trailer for heavy-duty hauling.

Handle

360° View

Available Colors

Jet Black Shadow Gray Lava Gray Ghost White Chalk White Sunny Beige Desert Tan Army Green Limon Green Classic Orange Cobalt Blue Ruby Red

MSRP Price:

Request a quote

Request for: FDX Dual

Name *

Email*

Phone Number*

City*

State*

Zip code*

Message

Home
About Us
Product
Dealer Locator
Blog
Support
Register Warranty
- Register Warranty
Contact Us
Dealer Application
Parts Store
Parts Store
