Standard Features

Features for “FDX16GN20K”

Length: 16‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 5,200 lbs.
Load Capacity: 14,800 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs

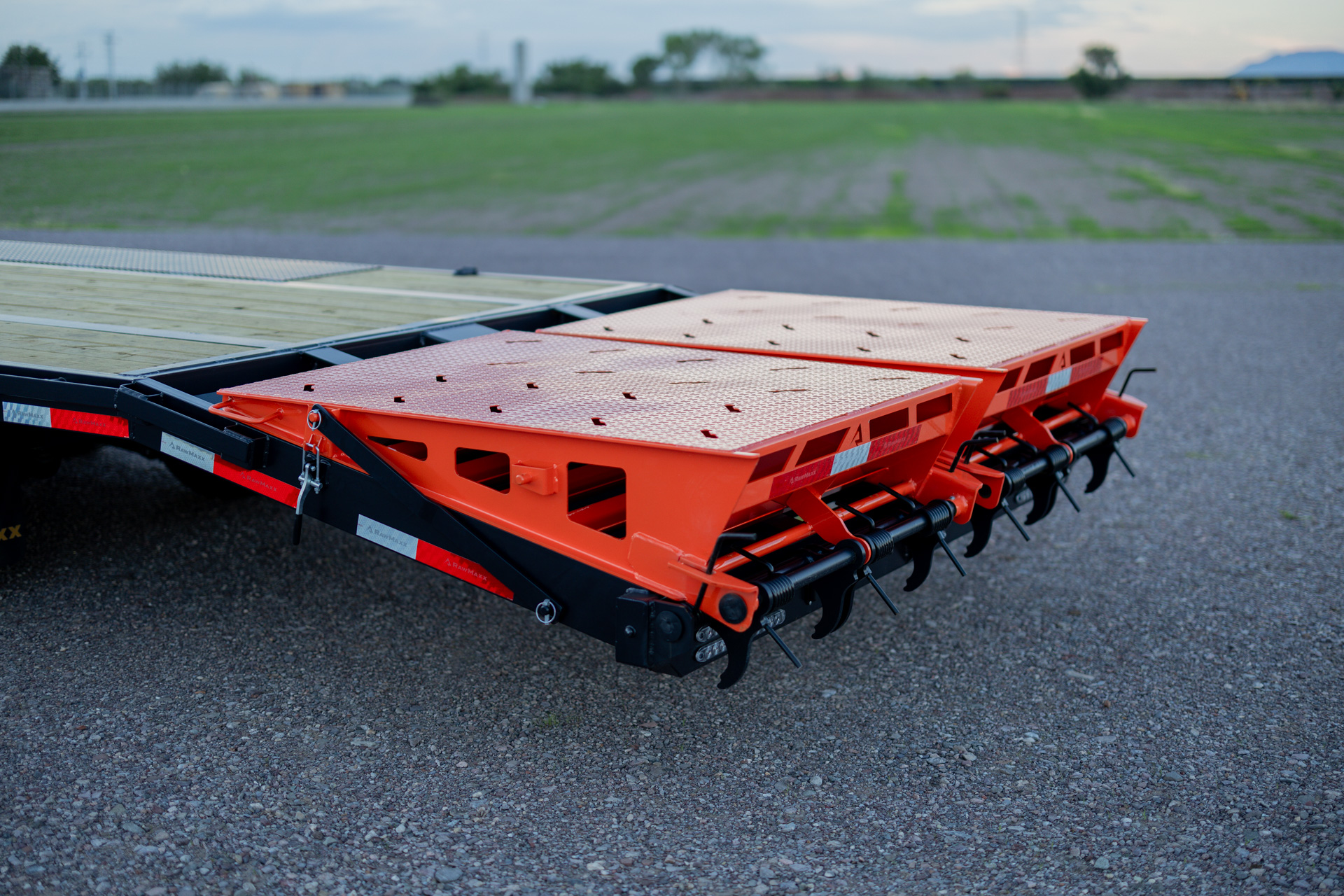

Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings

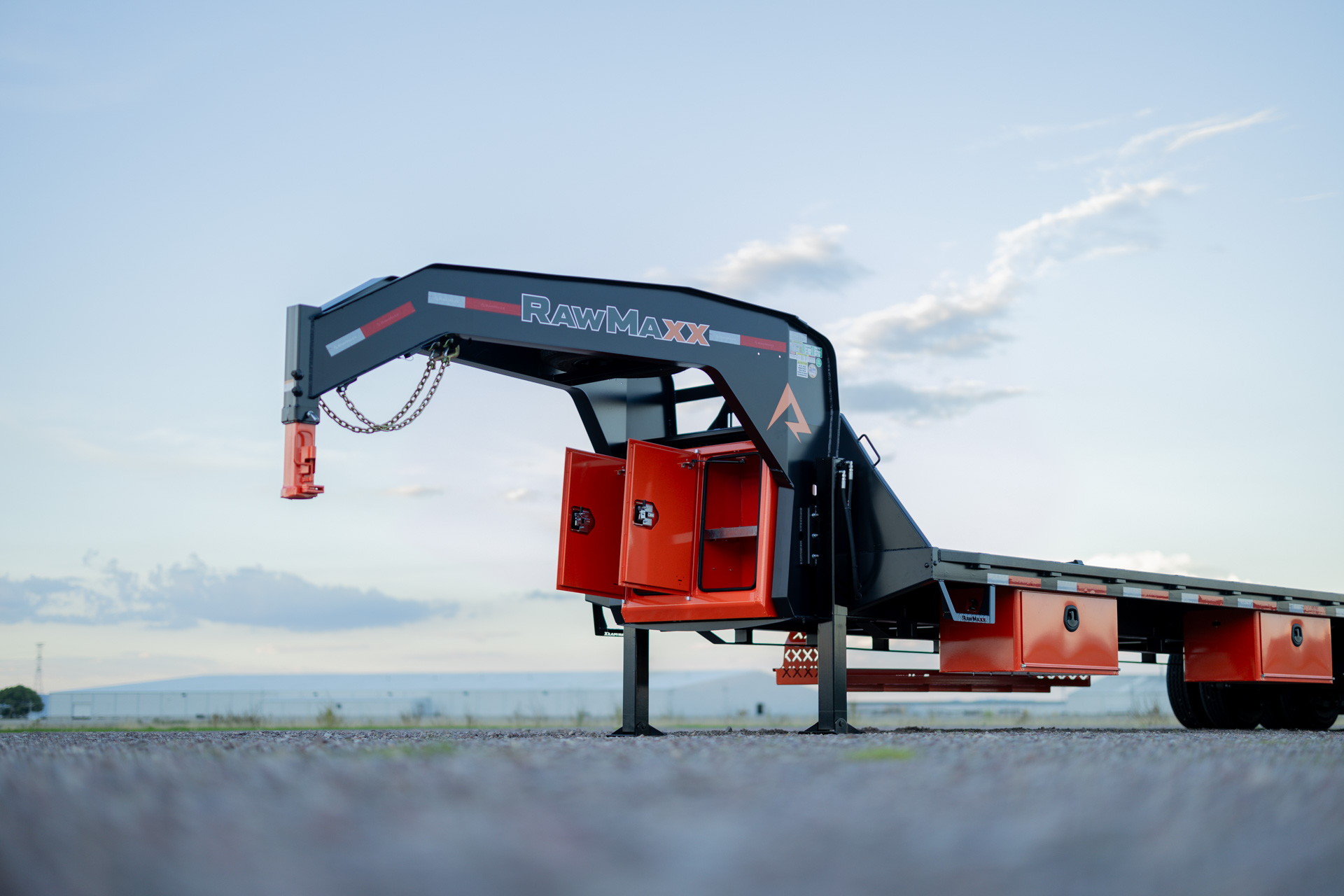

Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX20GN20K”

Length: 20‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 6,967 lbs.
Load Capacity: 13,033 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX22GN20K”

Length: 22‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,220 lbs.
Load Capacity: 12,780 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX24GN20K”

Length: 24‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,350 lbs.
Load Capacity: 12,650 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX25GN20K”

Length: 25‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,475 lbs.
Load Capacity: 12,525 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX26GN20K”

Length: 26‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 6,856 lbs.
Load Capacity: 13,144 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX28GN20K”

Length: 28‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,187 lbs.
Load Capacity: 12,813 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX30GN20K”

Length: 30‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,628 lbs.
Load Capacity: 12,372 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX32GN20K”

Length: 32‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,267 lbs.
Load Capacity: 11,733 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX34GN20K”

Length: 34‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,440 lbs.
Load Capacity: 11,560 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX36GN20K”

Length: 36‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,618 lbs.
Load Capacity: 11,382 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX38GN20K”

Length: 38‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,855 lbs.
Load Capacity: 11,145 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX40GN20K”

Length: 40‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,093 lbs.
Load Capacity: 10,907 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX42GN20K”

Length: 42‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,393 lbs.
Load Capacity: 10,607 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX44GN20K”

Length: 44‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,693 lbs.
Load Capacity: 10,307 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX16GN24K”

Length: 16‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,386 lbs.
Load Capacity: 16,614 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX20GN24K”

Length: 20‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 6,526 lbs.
Load Capacity: 17,474 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX22GN24K”

Length: 22‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,474 lbs.
Load Capacity: 16,526 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX24GN24K”

Length: 24‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,077 lbs.
Load Capacity: 16,923 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX25GN24K”

Length: 25‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,475 lbs.
Load Capacity: 16,525 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX26GN24K”

Length: 26‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,765 lbs.
Load Capacity: 16,235 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX28GN24K”

Length: 28‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 8,355 lbs.
Load Capacity: 15,645 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX30GN24K”

Length: 30‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 8,940 lbs.
Load Capacity: 15,060 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX32GN24K”

Length: 32‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,005 lbs.
Load Capacity: 14,995 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX34GN24K”

Length: 34‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,070 lbs.
Load Capacity: 14,930 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX36GN24K”

Length: 36‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,130 lbs.
Load Capacity: 14,870 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX38GN24K”

Length: 38‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,160 lbs.
Load Capacity: 14,840 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX40GN24K”

Length: 40‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,193 lbs
Load Capacity: 14,807 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX42GN24K”

Length: 42‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,493 lbs.
Load Capacity: 14,507 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX44GN24K”

Length: 44‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 11,620 lbs.
Load Capacity: 12,380 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX20GN30K”

Length: 20‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 7,980 lbs.
Load Capacity: 22,020 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX22GN30K”

Length: 22‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 8,170 lbs.
Load Capacity: 21,830 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX24GN30K”

Length: 24‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 8,360 lbs.
Load Capacity: 21,640 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX26GN30K”

Length: 26‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 8,554 lbs.
Load Capacity: 21,446 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX28GN30K”

Length: 28‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 9,030 lbs.
Load Capacity: 20,970 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX30GN30K”

Length: 30‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 9,502 lbs.
Load Capacity: 22,498 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX32GN30K”

Length: 32‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 9,740 lbs.
Load Capacity: 20,260 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX34GN30K”

Length: 34‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 9,980 lbs.
Load Capacity: 20,020 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX36GN30K”

Length: 36‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 10,220 lbs.
Load Capacity: 19,780 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX38GN30K”

Length: 38‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 10,460 lbs.
Load Capacity: 19,540 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX40GN30K”

Length: 40‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 10,700 lbs.
Load Capacity: 19,300 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

FDX Dual 3D

360° View

Order Now

Standard Features

Features for “FDX16GN20K”

Length: 16‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 5,200 lbs.
Load Capacity: 14,800 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX20GN20K”

Length: 20‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 6,967 lbs.
Load Capacity: 13,033 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX22GN20K”

Length: 22‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,220 lbs.
Load Capacity: 12,780 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX24GN20K”

Length: 24‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,350 lbs.
Load Capacity: 12,650 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX25GN20K”

Length: 25‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,475 lbs.
Load Capacity: 12,525 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX26GN20K”

Length: 26‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 6,856 lbs.
Load Capacity: 13,144 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX28GN20K”

Length: 28‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,187 lbs.
Load Capacity: 12,813 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX30GN20K”

Length: 30‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 7,628 lbs.
Load Capacity: 12,372 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX32GN20K”

Length: 32‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,267 lbs.
Load Capacity: 11,733 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX34GN20K”

Length: 34‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,440 lbs.
Load Capacity: 11,560 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX36GN20K”

Length: 36‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,618 lbs.
Load Capacity: 11,382 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX38GN20K”

Length: 38‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 8,855 lbs.
Load Capacity: 11,145 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX40GN20K”

Length: 40‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,093 lbs.
Load Capacity: 10,907 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX42GN20K”

Length: 42‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,393 lbs.
Load Capacity: 10,607 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX44GN20K”

Length: 44‘
Width: 102“
Deck Height: 35“
GVWR: 20,000 lbs.
GAWR: 10,000 lbs.
Empty Weight: 9,693 lbs.
Load Capacity: 10,307 lbs.
2-5/16″ Ball 25,000 lbs Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 10,000 lbs Axles With Ele. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX16GN24K”

Length: 16‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,386 lbs.
Load Capacity: 16,614 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX20GN24K”

Length: 20‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 6,526 lbs.
Load Capacity: 17,474 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX22GN24K”

Length: 22‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,474 lbs.
Load Capacity: 16,526 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX24GN24K”

Length: 24‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,077 lbs.
Load Capacity: 16,923 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX25GN24K”

Length: 25‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,475 lbs.
Load Capacity: 16,525 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX26GN24K”

Length: 26‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 7,765 lbs.
Load Capacity: 16,235 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX28GN24K”

Length: 28‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 8,355 lbs.
Load Capacity: 15,645 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX30GN24K”

Length: 30‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 8,940 lbs.
Load Capacity: 15,060 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX32GN24K”

Length: 32‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,005 lbs.
Load Capacity: 14,995 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX34GN24K”

Length: 34‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,070 lbs.
Load Capacity: 14,930 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX36GN24K”

Length: 36‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,130 lbs.
Load Capacity: 14,870 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX38GN24K”

Length: 38‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,160 lbs.
Load Capacity: 14,840 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX40GN24K”

Length: 40‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,193 lbs
Load Capacity: 14,807 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX42GN24K”

Length: 42‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 9,493 lbs.
Load Capacity: 14,507 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX44GN24K”

Length: 44‘
Width: 102“
Deck Height: 35“
GVWR: 24,000 lbs.
GAWR: 12,000 lbs.
Empty Weight: 11,620 lbs.
Load Capacity: 12,380 lbs.
2-5/16″ Ball 25,000 lb Square Coupler
12″ x 19 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 16″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 10 Ply ST235/80R16 Tires
HDSS Spring Suspension
2 – 12,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX20GN30K”

Length: 20‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 7,980 lbs.
Load Capacity: 22,020 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX22GN30K”

Length: 22‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 8,170 lbs.
Load Capacity: 21,830 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX24GN30K”

Length: 24‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 8,360 lbs.
Load Capacity: 21,640 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX26GN30K”

Length: 26‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 8,554 lbs.
Load Capacity: 21,446 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX28GN30K”

Length: 28‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 9,030 lbs.
Load Capacity: 20,970 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX30GN30K”

Length: 30‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 9,502 lbs.
Load Capacity: 22,498 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX32GN30K”

Length: 32‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 9,740 lbs.
Load Capacity: 20,260 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX34GN30K”

Length: 34‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 9,980 lbs.
Load Capacity: 20,020 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX36GN30K”

Length: 36‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 10,220 lbs.
Load Capacity: 19,780 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX38GN30K”

Length: 38‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 10,460 lbs.
Load Capacity: 19,540 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

Features for “FDX40GN30K”

Length: 40‘
Width: 102“
Deck Height: 35“
GVWR: 30,000 lbs.
GAWR: 15,000 lbs.
Empty Weight: 10,700 lbs.
Load Capacity: 19,300 lbs.
2-5/16” Ball 30,000 lbs Square Coupler
12″ x 22 lbs I-Beam Main Frame
Cross-Members: 3″ Channel / 12″ OC
6″ Channel Outer Deck Frame
Rub Rail: 2″ x 3/8″ Flat Bar
3-7/8″ x 1-13/16″ (ID) Stake Pockets
Chain Spool: 1 5/8″ OD
2 Side Wind Drop Leg Jacks – 10,000 lbs
Straight deck: 7.5′ Slide-In Channel Ramps
Flooring: 2” Treated Lumber Deck
4 D-Rings
Front Tool Box: Between Risers
Bridge Frame + Torque Tube
Grade 50, One-Piece Gooseneck
Winch Plate
Chain Rack
8 – 18 Ply ST235/75R17.5 Tires
HDSS Spring Suspension
2 – 16,000 lbs Axles With Ele./Hyd. Brakes
3/8″ G70 Safety Chains
3M DOT Compliant Reflective Tape
All Weather Wiring Harness
Powder Coat Paint
5 Year Dexter Axle Warranty
3 Year Structural / 1 Year Paint

FDX Dual

Big Deck Energy

The dual-wheel flatdeck gooseneck built for heavier payloads, longer decks, and serious hauling.

When the job calls for more deck, more carrying confidence, and more trailer under the load, the RawMaxx FDX Dual is built to answer. Available in lengths from 16′ to 44′ with 20K, 24K, and 30K configurations, the FDX Dual is designed for contractors, equipment operators, and haulers who need a flatdeck gooseneck that stays steady when the weight goes up and the miles get longer.

At the core of the platform is a heavy-duty I-beam frame with 16″ center cross-members, a 2″ treated wood deck, and a reinforced outer deck structure built to handle real work across a wide range of lengths. On longer models, the added torque tube helps keep the trailer stable under load and adds confidence across longer spans. A full 102″ deck width, dual-wheel stance, rub rail with spools and stake pockets, treadplate fenders, and welded D-rings give operators the room and securement points needed for equipment, materials, and heavier freight that demand more than a standard single-wheel platform.

Up front, the FDX Dual is built around a gooseneck with adjustable 2-5/16″ ball coupler, dual 12,000 lb. drop-leg jacks, and practical front storage options that keep the trailer ready for daily use. In the rear, the straight deck with slide-out ramps keeps loading simple and proven. Dual-wheel running gear, electric or electric-over-hydraulic brake configurations, all-weather wiring, LED lighting, and G70 safety chains round out a trailer made for repeat work, not occasional use.

For operators who need to push further, the FDX Dual can be configured with 12K, 15K, or 16K axle packages, heavier tire and wheel packages, electric-over-hydraulic brakes, dovetail ramp options, winches, additional D-rings, slide-track ratchet systems, and underbody storage. It is a flatdeck built for crews who need more capacity, more confidence, and a trailer that feels right under serious loads.

The RawMaxx FDX Dual — dual-wheel stability, long-deck confidence, and built to carry the work that keeps the day moving.

The FDX Dual Trailer

The FDX Dual Trailer by Rawmaxx offers a durable and reliable solution for hauling heavy loads. Available in various sizes, this trailer has a weight rating of 20,000 lbs. with a load capacity of up to 17,304 lbs. The trailer is constructed with a 12″ x 19 lbs. I-beam main frame and features a 2″ treated lumber deck flooring, along with 4 welded D-rings for secure loading. The trailer is equipped with a 2-5/16″ ball coupler, 10,000 lbs. side wind drop legs, and safety chains for added security. Radial tires, electric brakes, and slipper spring suspension provide a smooth ride, while LED lighting ensures visibility and safety on the road. With additional options such as different axle and suspension types, tail configurations, and jack and winch options, the FDX Dual trailer can be customized to meet specific hauling needs. Overall, the FDX Dual trailer is a top choice for those seeking a rugged and versatile trailer for heavy-duty hauling.
