Standard Features

Features for “EGX24BP14K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 3,602 lbs.
  • Load Capacity: 10,398 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Tongue Tool Box
  • Winch Ready
  • 3/8″ G70 Safety Chains
  • 4 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX26BP14K”

  • Length: 26‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 3,902 lbs.
  • Load Capacity: 10,098 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX24BP16K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 16,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 3,902 lbs.
  • Load Capacity: 12,098 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX26BP16K”

  • Length: 26‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 16,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,202 lbs.
  • Load Capacity: 11,798 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX24BP20K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 20,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,452 lbs.
  • Load Capacity: 15,548 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 18 Ply ST235/75R17.5 Tires
  • Spring Suspension
  • 2 – 10,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX26BP20K”

  • Length: 26‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 20,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,752 lbs.
  • Load Capacity: 15,248 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 18 Ply ST235/75R17.5 Tires
  • Spring Suspension
  • 2 – 10,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

EGX 3D

Order Now

Standard Features

Features for “EGX24BP14K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 3,602 lbs.
  • Load Capacity: 10,398 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Tongue Tool Box
  • Winch Ready
  • 3/8″ G70 Safety Chains
  • 4 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX26BP14K”

  • Length: 26‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 3,902 lbs.
  • Load Capacity: 10,098 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 10 Ply ST235/80R16 Tires
  • Spring Suspension
  • 2 – 7,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX24BP16K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 16,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 3,902 lbs.
  • Load Capacity: 12,098 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX26BP16K”

  • Length: 26‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 16,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,202 lbs.
  • Load Capacity: 11,798 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 14 Ply ST235/85R16 Tires
  • Spring Suspension
  • 2 – 8,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX24BP20K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 20,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,452 lbs.
  • Load Capacity: 15,548 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 18 Ply ST235/75R17.5 Tires
  • Spring Suspension
  • 2 – 10,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

Features for “EGX26BP20K”

  • Length: 26‘
  • Width: 102″
  • Deck Height: 28.5″
  • GVWR: 20,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: 4,752 lbs.
  • Load Capacity: 15,248 lbs.
  • Adjustable 2-5/16″ Ball Coupler
  • 1 Drop Leg Jack -10,000 lbs.
  • Engineered I beam
  • 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • 3-5/8″ x 1-1/2″ (ID) Stake Pockets
  • Fenders: 3/16” Thread Plate (Drive-Over)
  • Mini Maxx Ramps
  • Flooring: 2” Treated Lumber Deck
  • D-Rings: 4 D-Rings
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Chain Rack
  • 3/8″ G70 Safety Chains
  • 4 – 18 Ply ST235/75R17.5 Tires
  • Spring Suspension
  • 2 – 10,000 lbs Axles With Brakes
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint

EGX

Equipment

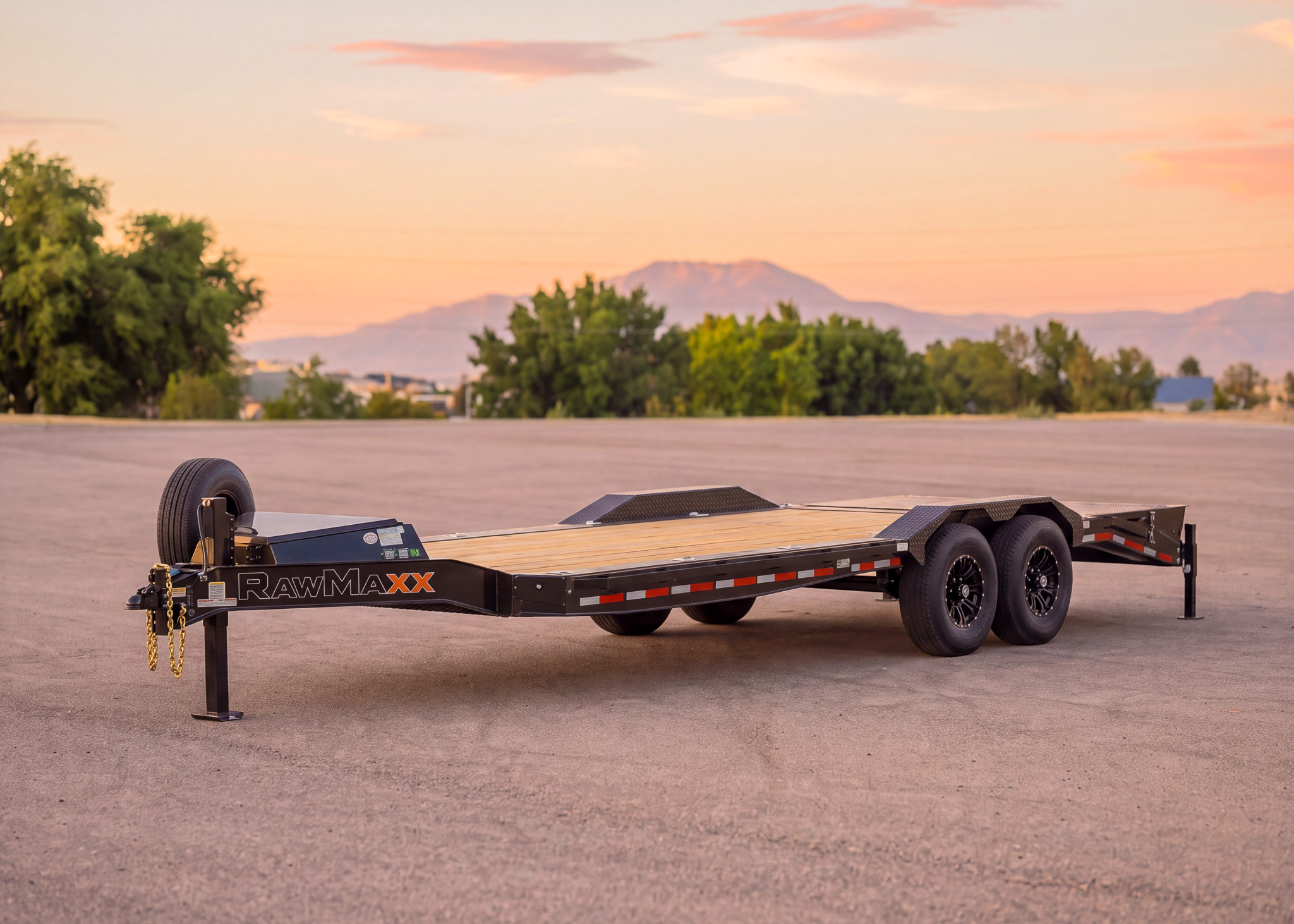

The Wide-Deck Equipment Trailer Built for More Ways to Load

When customers need more deck space, easier loading, and a strong bumper pull setup, the RawMaxx EGX gives them a clean answer.

Available in 24′ and 26′ lengths, the EGX is a 102″ wide HD equipment trailer built for hauling equipment, materials, machines, and jobsite loads without overcomplicating the trailer.

The EGX is available in 14,000 lb., 16,000 lb., and 20,000 lb. GVWR configurations, giving dealers more ways to match the trailer to the customer’s work. Each model is built with an engineered frame, 12″ center crossmembers, 2″ treated wood flooring, and a 2″ rub rail with spools for everyday tie-down flexibility.

A 102″ wide deck with drive-over fenders gives operators more usable loading room across the trailer, while Mini Maxx Ramps make loading equipment simple and direct. The front tongue toolbox gives customers built-in storage, and the adjustable 2-5/16″ ball coupler, 3/8″ safety chains, and 10,000 lb. drop-leg jack keep the setup practical for daily use.

The EGX comes equipped with spring electric brake axles, LED lights, 16″ black wheels, powder coat paint, and the working features customers expect from a RawMaxx equipment trailer.

From compact equipment and attachments to jobsite material and everyday hauling, the EGX is built for customers who need width, strength, and a trailer that is easy to sell because it is easy to understand.

The RawMaxx EGX — wide-deck equipment hauling, built straight to the point.
