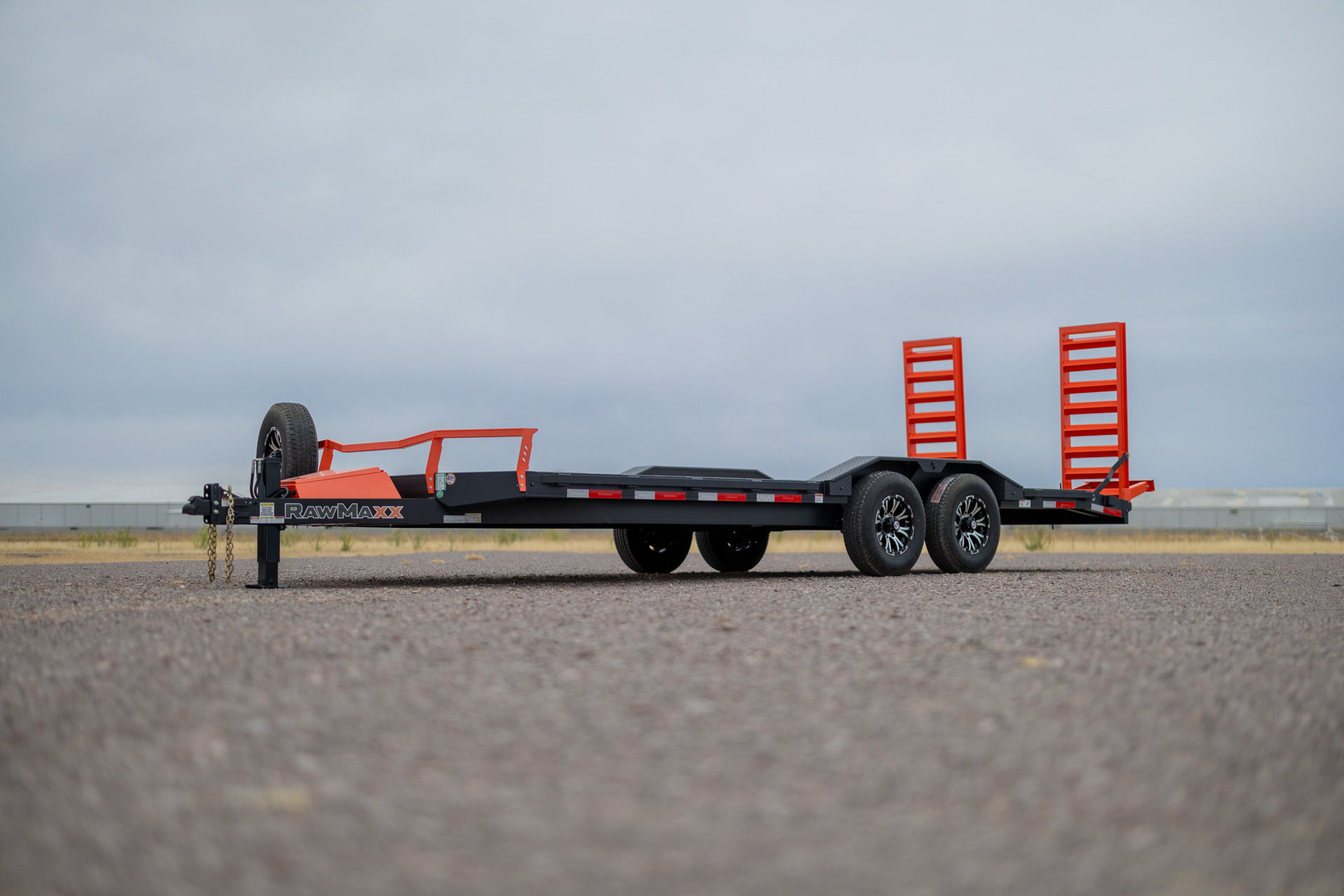

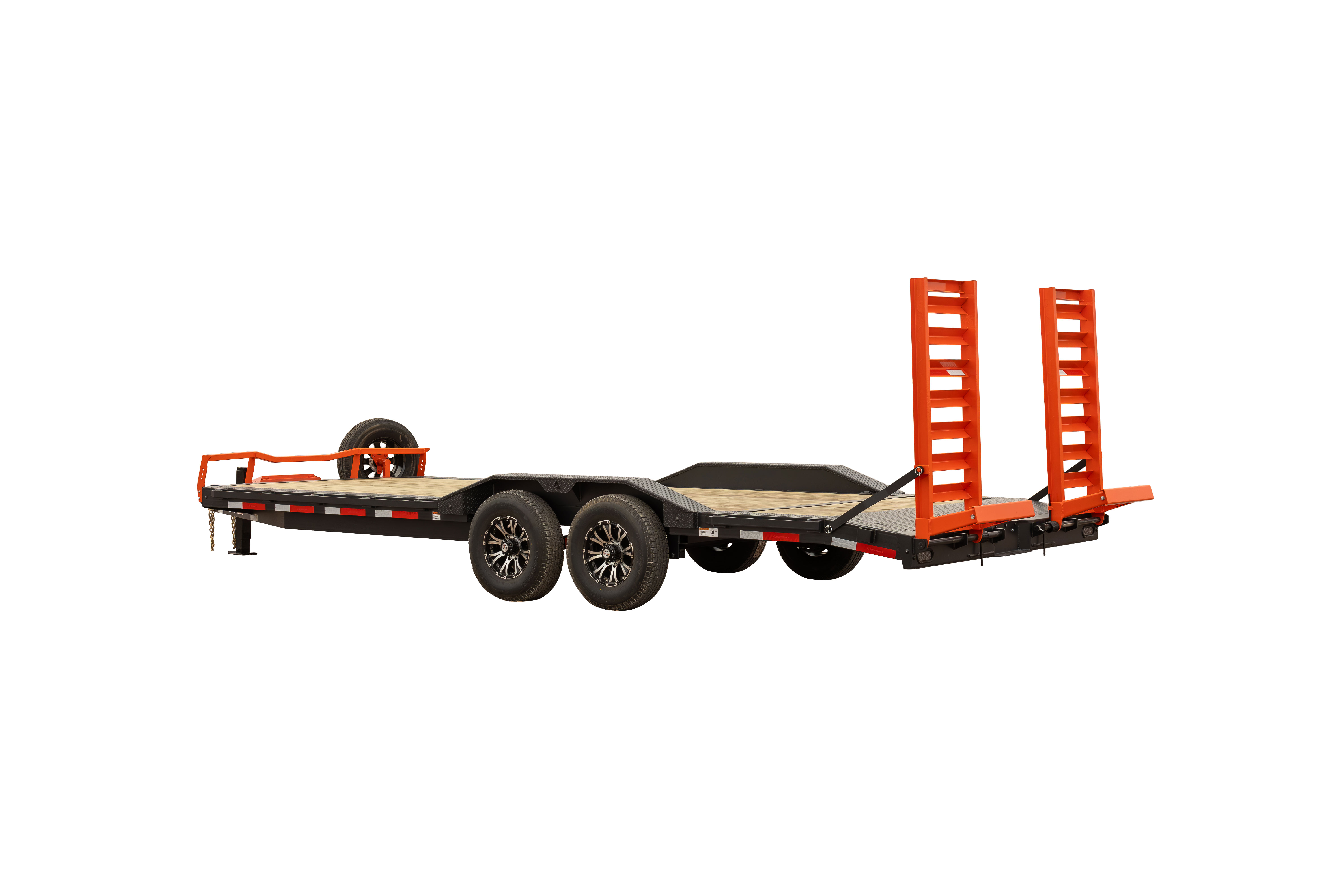

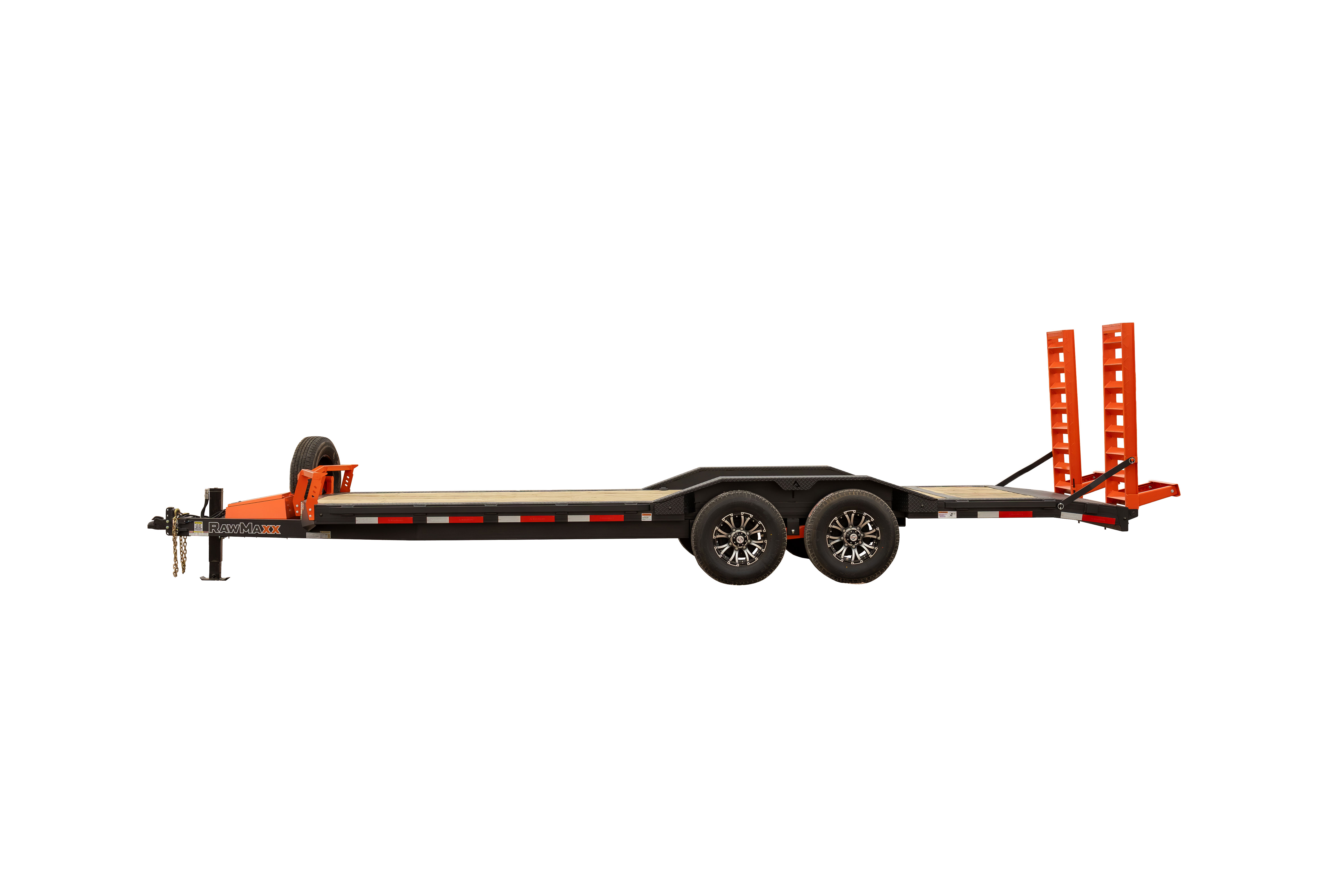

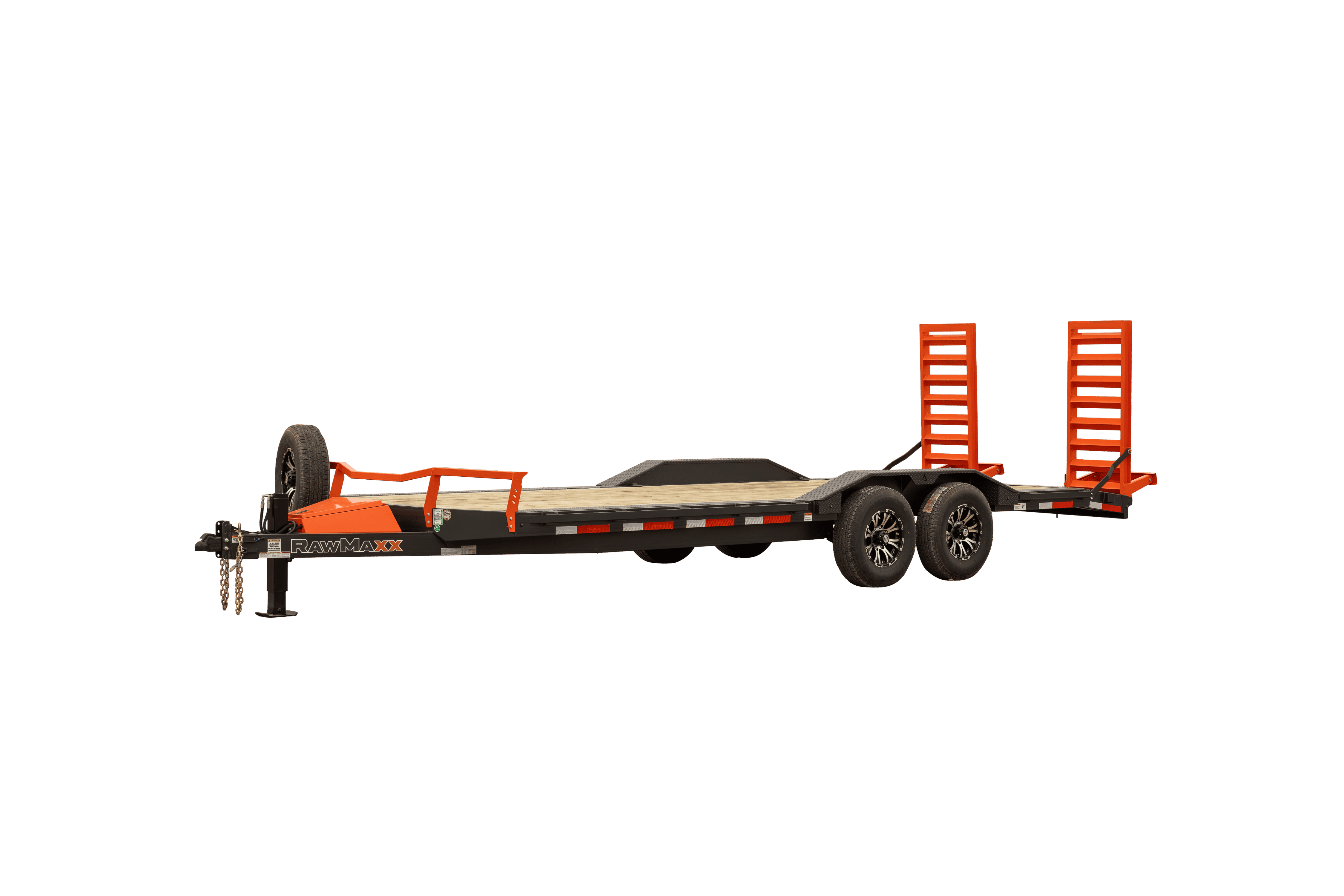

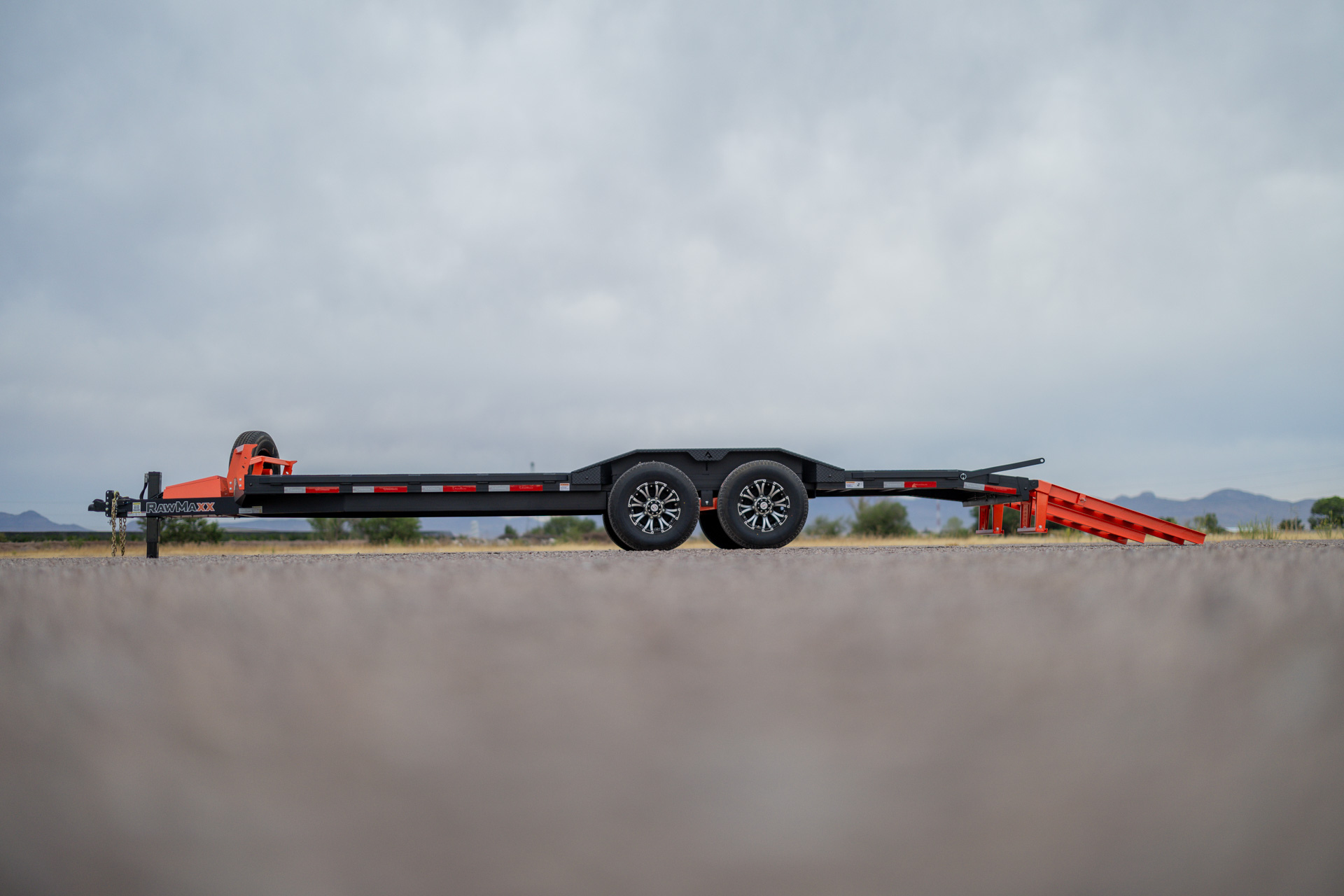

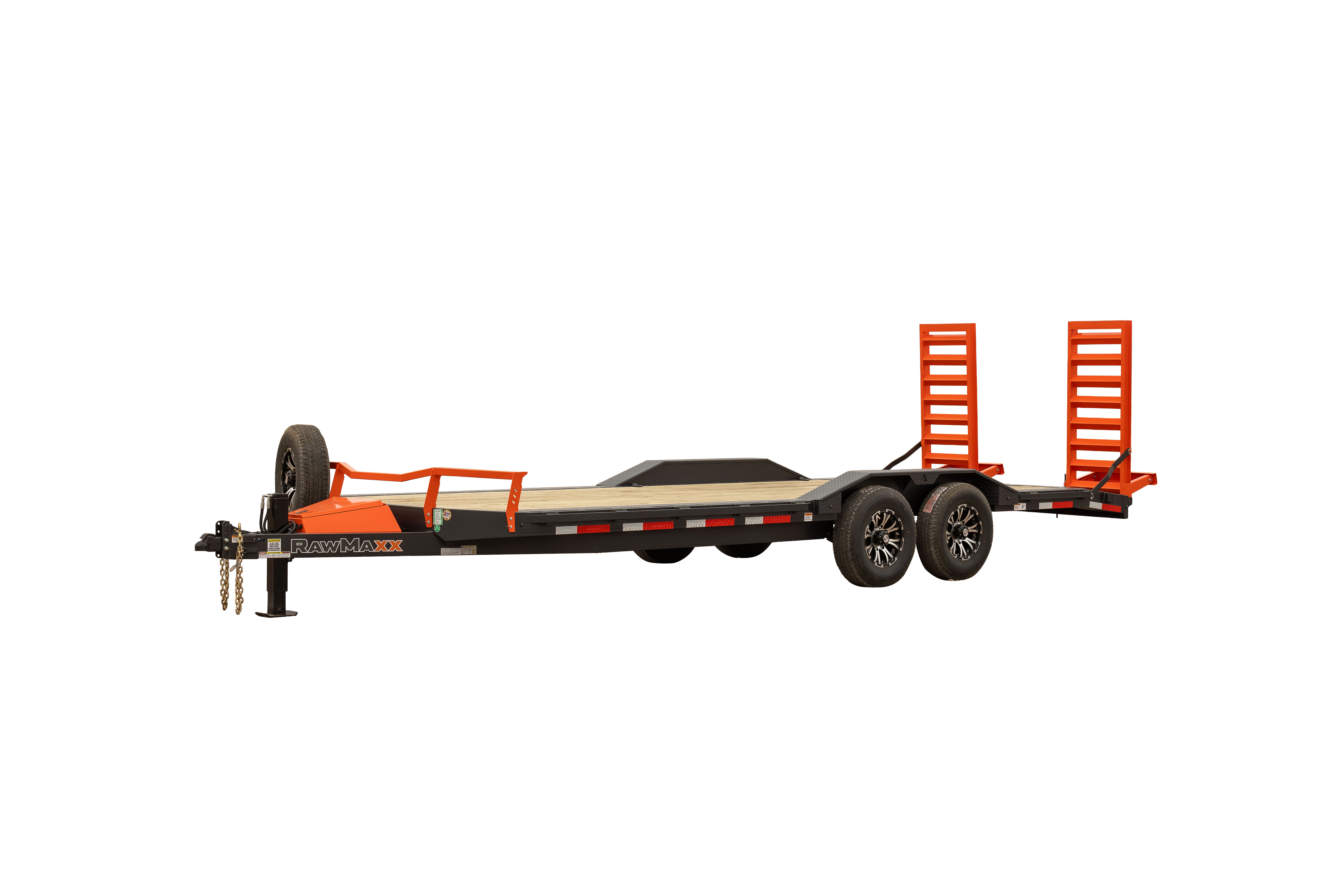

ECX
Available Sizes
Trailer Specs
Dimensions
Length: 16'
Width: 83"
Deck Height: 26"
Finish
Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black
Warranty
Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Tongue
Coupler
Coupler: 2-5/16” Adjustable Ball Coupler
Jacks
Front Jacks: ( 1 )Side Wind Drop Leg. ( 10,000 lbs.
Tool Box
Front Tool Box: Sold as Option
Tongue
Tongue Length: 48"
Safety System
Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Frame
Deck
Flooring: 2” Treated Lumber Deck
D-Rings: (4) D-Rings (Welded Outside Corners )
Side
Side Perimeter: 6" Channel Main Frame
Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets
Rub Rail: 2" Rub Rail With Spools
Fenders: 12G Treadplate Steel Fenders
Frame
Frame: 6" Channel Main Frame
Cross-Members: 3" Channel / 16" Spacings
Rear Tail
Tail: Straight Deck or 4' Dovetail
Strait deck: 5' Slide-In Channel Ramps
Dovetail: 5' Stand Up Ramps

Running Gear
Tires
Type: Radial Tires
Size: ST235/80R16
Ply: 10 Ply
Rating: 3,520 lbs.
Rims: 16” Black Mod Wheels
Bolt Pattern: 8 on 6.5”
Suspension
Axle Type: Spring
Axles: 2
Rating: 7,000 lbs.
Brakes: Electric
Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting
Wiring
Front Plug: 7 - Way RV
Frame Wiring: All Weather Wiring Harness
Lighting
Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights

Available Options

Trailer Specs
Dimensions
Length: 20'
Width: 83"
Deck Height: 26"
Finish
Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black
Warranty
Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Tongue
Coupler
Coupler: 2-5/16” Adjustable Ball Coupler
Jacks
Front Jacks: ( 1 )Side Wind Drop Leg. ( 10,000 lbs.
Tool Box
Front Tool Box: Sold as Option
Tongue
Tongue Length: 48"
Safety System
Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Frame
Deck
Flooring: 2” Treated Lumber Deck
D-Rings: (4) D-Rings (Welded Outside Corners )
Side
Side Perimeter: 6" Channel Main Frame
Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets
Rub Rail: 2" Rub Rail With Spools
Fenders: 12G Treadplate Steel Fenders
Frame
Frame: 6" Channel Main Frame
Cross-Members: 3" Channel / 16" Spacings
Rear Tail
Tail: Straight Deck or 4' Dovetail
Strait deck: 5' Slide-In Channel Ramps
Dovetail: 5' Stand Up Ramps

Running Gear
Tires
Type: Radial Tires
Size: ST235/80R16
Ply: 10 Ply
Rating: 3,520 lbs.
Rims: 16” Black Mod Wheels
Bolt Pattern: 8 on 6.5”
Suspension
Axle Type: Spring
Axles: 2
Rating: 7,000 lbs.
Brakes: Electric
Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting
Wiring
Front Plug: 7 - Way RV
Frame Wiring: All Weather Wiring Harness
Lighting
Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights

Available Options

Trailer Specs
Dimensions
Length: 24'
Width: 83"
Deck Height: 26"
Finish
Type: Powder Coat
Prep: Grit Blast
Standard Color: Jet Black
Warranty
Axle: 5 Year Dexter
Trailer: 3 Year Structural / 1 Year Paint

Tongue
Coupler
Coupler: 2-5/16” Adjustable Ball Coupler
Jacks
Front Jacks: ( 1 )Side Wind Drop Leg. ( 10,000 lbs.
Tool Box
Front Tool Box: Sold as Option
Tongue
Tongue Length: 48"
Safety System
Safety Chains: 3/8" G70 Safety Chains
Breakaway System: Electric Breakaway Kit
Reflective Tape: 3M DOT Compliant Reflective Tape

Frame
Deck
Flooring: 2” Treated Lumber Deck
D-Rings: (4) D-Rings (Welded Outside Corners )
Side
Side Perimeter: 6" Channel Main Frame
Stake Pockets: 3-5/8" x 1-1/2" (ID) Stake Pockets
Rub Rail: 2" Rub Rail With Spools
Fenders: 12G Treadplate Steel Fenders
Frame
Frame: 6" Channel Main Frame
Cross-Members: 3" Channel / 16" Spacings
Rear Tail
Tail: Straight Deck or 4' Dovetail
Strait deck: 5' Slide-In Channel Ramps
Dovetail: 5' Stand Up Ramps

Running Gear
Tires
Type: Radial Tires
Size: ST235/80R16
Ply: 10 Ply
Rating: 3,520 lbs.
Rims: 16” Black Mod Wheels
Bolt Pattern: 8 on 6.5”
Suspension
Axle Type: Spring
Axles: 2
Rating: 7,000 lbs.
Brakes: Electric
Type: 6-Leaf Slipper Spring Suspension

Electrical & Lighting
Wiring
Front Plug: 7 - Way RV
Frame Wiring: All Weather Wiring Harness
Lighting
Side Markers: 3/4" LED Bullet Lights
Rear Lights: DOT Approved LED Lights
