Standard Features

Features for “ECX16BP7K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 2,880 lbs.
  • Load Capacity: 4,738 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX18BP7K”

  • Length: 18‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 3,050 lbs.
  • Load Capacity: 4,543 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX20BP7K”

  • Length: 20‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 3,280 lbs.
  • Load Capacity: 4,278 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX22BP7K”

  • Length: 22‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 3,420 lbs.
  • Load Capacity: 4,117 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX24BP7K”

  • Length: 24‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 3,677 lbs.
  • Load Capacity: 3,821 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX16BP10K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 2,980 lbs.
  • Load Capacity: 8,073 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX18BP10K”

  • Length: 18‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 3,150 lbs.
  • Load Capacity: 7,878 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX20BP10K”

  • Length: 20‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 3,380 lbs.
  • Load Capacity: 7,613 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX22BP10K”

  • Length: 22‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 3,520 lbs.
  • Load Capacity: 7,452 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX24BP10K”

  • Length: 24‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 3,777 lbs.
  • Load Capacity: 7,156 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX16BP14K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,080 lbs.
  • Load Capacity: 12,558 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX18BP14K”

  • Length: 18‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,250 lbs.
  • Load Capacity: 12,363 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX20BP14K”

  • Length: 20‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,480 lbs.
  • Load Capacity: 12,098 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD

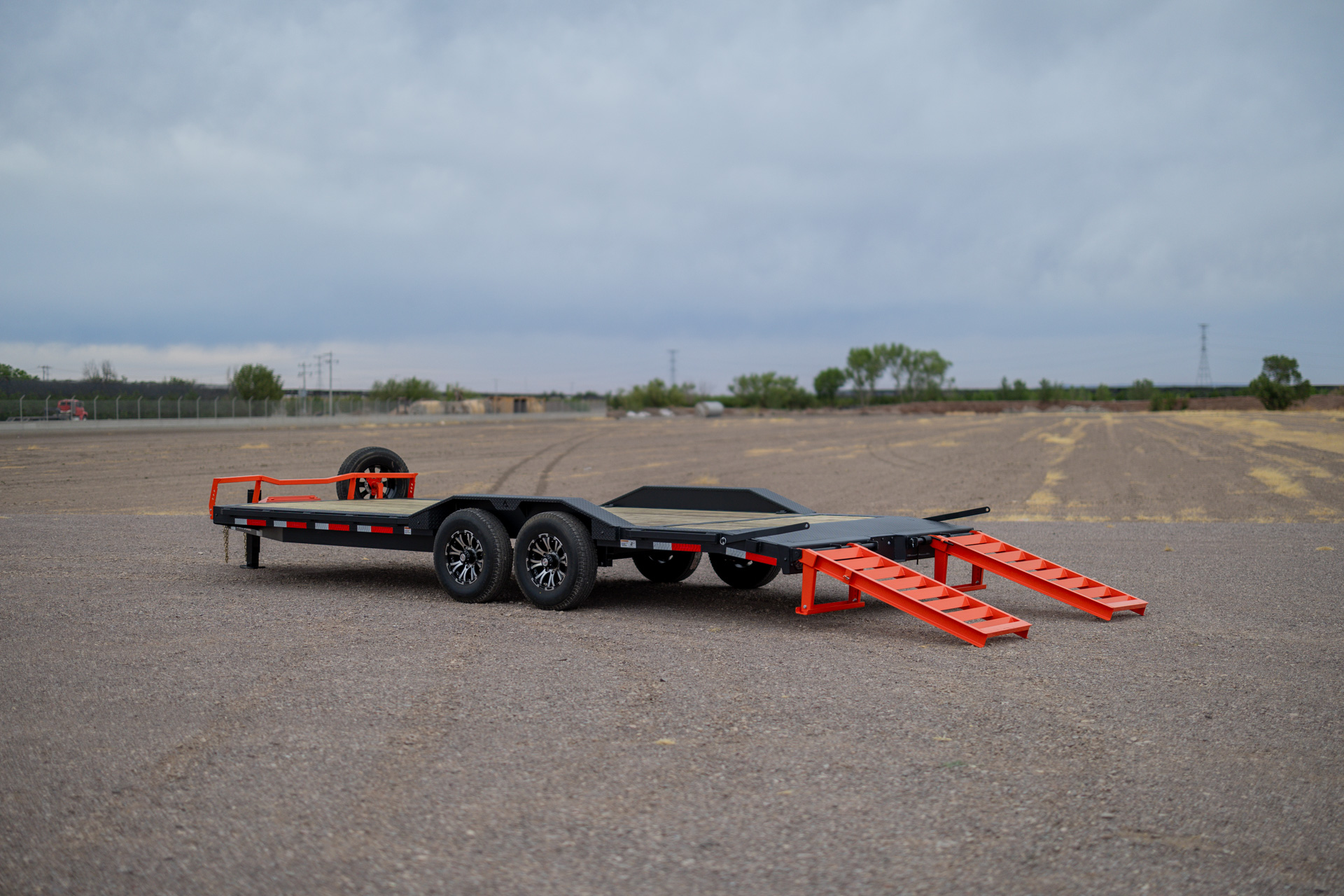

  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX22BP14K”

  • Length: 22‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,620 lbs.
  • Load Capacity: 11,937 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX24BP14K”

  • Length: 24‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,877 lbs.
  • Load Capacity: 11,641 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX16BP16K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,505 lbs.
  • Load Capacity: 14,369 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX18BP16K”

  • Length: 18‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,610 lbs.
  • Load Capacity: 14,249 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX20BP16K”

  • Length: 20‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,680 lbs.
  • Load Capacity: 14,168 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX22BP16K”

  • Length: 22‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,790 lbs.
  • Load Capacity: 14,042 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX24BP16K”

  • Length: 24‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,920 lbs.
  • Load Capacity: 13,892 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

ECX 3D

Order Now

Standard Features

Features for “ECX16BP7K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 2,880 lbs.
  • Load Capacity: 4,738 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX18BP7K”

  • Length: 18‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 3,050 lbs.
  • Load Capacity: 4,543 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX20BP7K”

  • Length: 20‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 3,280 lbs.
  • Load Capacity: 4,278 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX22BP7K”

  • Length: 22‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 3,420 lbs.
  • Load Capacity: 4,117 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX24BP7K”

  • Length: 24‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 7,000 lbs.
  • GAWR: 3,500 lbs.
  • Empty Weight: – 3,677 lbs.
  • Load Capacity: 3,821 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 3,500 lb. Electric Brake Axles
  • 8 Ply ST205/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 5 on 5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX16BP10K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 2,980 lbs.
  • Load Capacity: 8,073 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX18BP10K”

  • Length: 18‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 3,150 lbs.
  • Load Capacity: 7,878 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX20BP10K”

  • Length: 20‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 3,380 lbs.
  • Load Capacity: 7,613 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX22BP10K”

  • Length: 22‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 3,520 lbs.
  • Load Capacity: 7,452 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX24BP10K”

  • Length: 24‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 10,000 lbs.
  • GAWR: 5,200 lbs.
  • Empty Weight: – 3,777 lbs.
  • Load Capacity: 7,156 lbs.
  • Frame: 5″ Channel
  • Tongue: 5″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 5,200 lb. Electric Brake Axles
  • 8 Ply ST225/75R15 Tires
  • 15″ Black Mod Steel Wheels
  • Bolt Pattern: 6 on 5.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX16BP14K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,080 lbs.
  • Load Capacity: 12,558 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX18BP14K”

  • Length: 18‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,250 lbs.
  • Load Capacity: 12,363 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX20BP14K”

  • Length: 20‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,480 lbs.
  • Load Capacity: 12,098 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX22BP14K”

  • Length: 22‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,620 lbs.
  • Load Capacity: 11,937 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX24BP14K”

  • Length: 24‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 14,000 lbs.
  • GAWR: 7,000 lbs.
  • Empty Weight: – 3,877 lbs.
  • Load Capacity: 11,641 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 7,000 lb. Electric Brake Axles
  • 10 Ply ST235/80R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX16BP16K”

  • Length: 16‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,505 lbs.
  • Load Capacity: 14,369 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX18BP16K”

  • Length: 18‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,610 lbs.
  • Load Capacity: 14,249 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX20BP16K”

  • Length: 20‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,680 lbs.
  • Load Capacity: 14,168 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX22BP16K”

  • Length: 22‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,790 lbs.
  • Load Capacity: 14,042 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

Features for “ECX24BP16K”

  • Length: 24‘
  • Width: 83“
  • Deck Height: 24″
  • GVWR: 16,000 lbs.
  • GAWR: 8,000 lbs.
  • Empty Weight: – 3,920 lbs.
  • Load Capacity: 13,892 lbs.
  • Frame: 6″ Channel
  • Tongue: 6″ Channel
  • Cross-Members: 3″ Channel on 16″ Centers
  • Fenders: 12G Diamond Plate
  • Rub Rail: 2″ x 3/8″ Flar Bar
  • Spools: 1 5/8″ OD
  • Ramps: 5′ Slide Out Channel Ramps
  • Flooring: 2″ Treated Lumber Deck
  • Coupler: 2 5/16″ Adjustable
  • Jacks: Single Side Wind Drop Leg Jack
  • Tool Box: Integrated Tool Box In Tongue
  • Suspension: Spring
  • Axles: 2 – 8,000 lb. Electric Brake Axles
  • 14 Ply ST235/85R16 Tires
  • 16″ Black Mod Steel Wheels
  • Bolt Pattern: 8 on 6.5
  • All Weather Proof Harness
  • Market Lights: 3/4″ LED Bullet Lights
  • Rear Lights: 6″ Oval DOT Approved LED Lights
  • Paint: Powder Coated
  • Color: Midnight Black With Classic Orange Trim
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural Warranty
  • 1 Year Paint Warranty

ECX

Capability

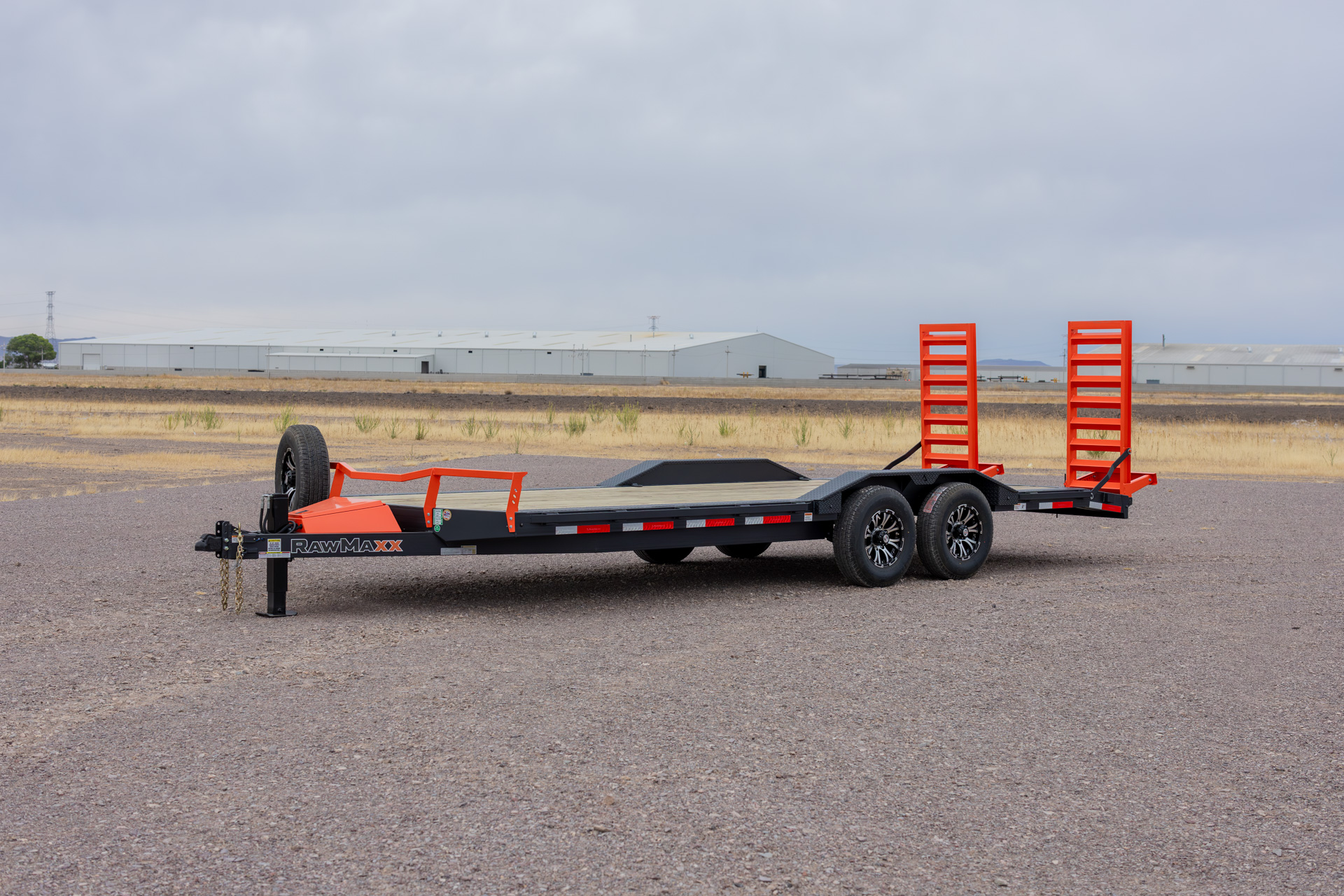

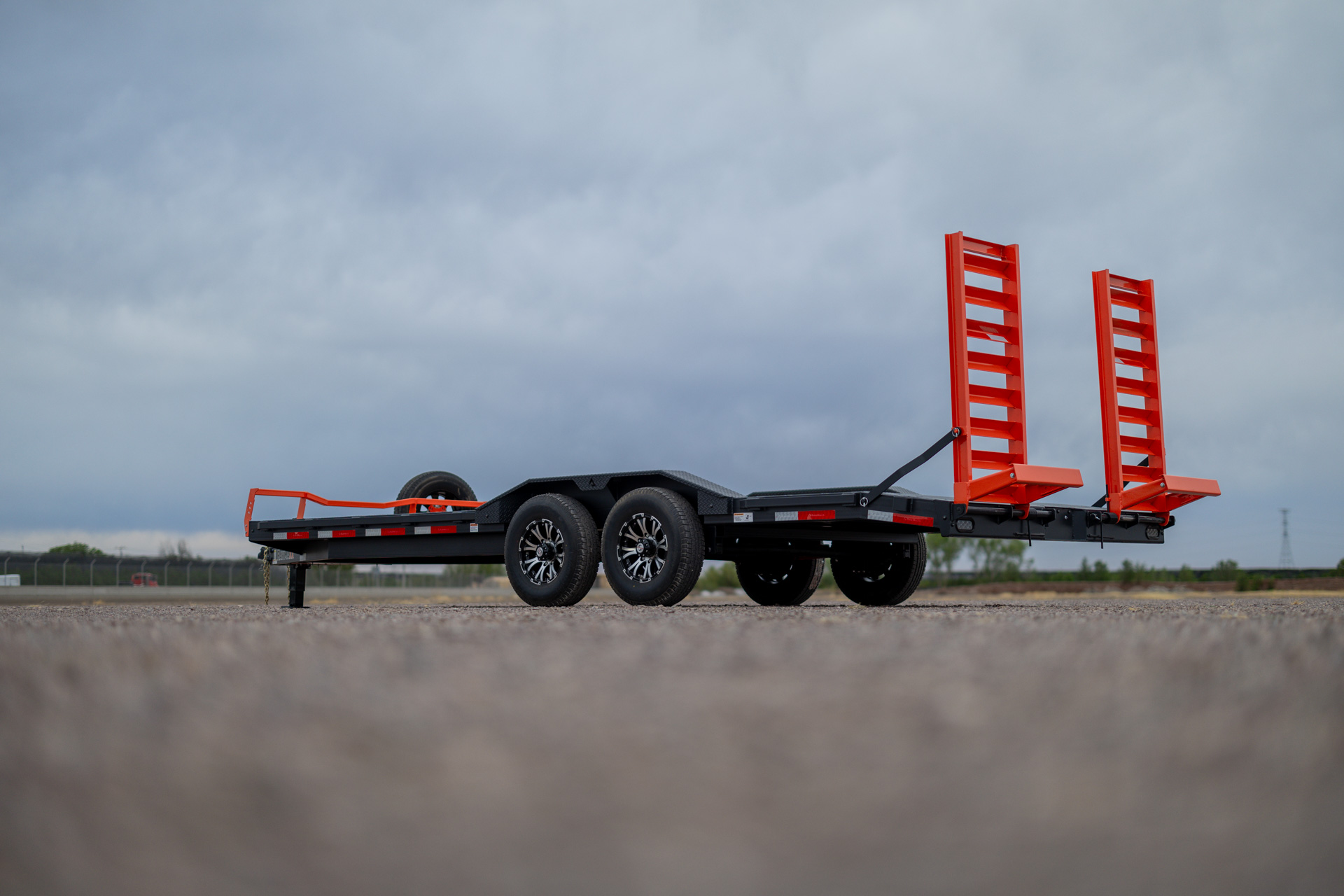

When the job calls for real equipment, real weight, and zero excuses, the RawMaxx ECX shows up ready. Available in 16’, 18’, 20’, 22’, and 24’ lengths with axle ratings ranging from 7K up to 16K configurations, the ECX is built to handle serious loads without overcomplicating the trailer.

With a 14,000 lb. GVWR configuration delivering over 12,500 lbs. of usable load capacity, the ECX is designed for contractors, equipment operators, and crews who move machinery daily — not occasionally.

Built on a 6″ channel main frame with 3″ channel cross-members on 16″ centers, the ECX delivers dependable structural integrity where it matters most. A 2″ treated lumber deck, welded D-rings inside the fenders, stake pockets, rub rail, and chain spool give you full flexibility to secure everything from skid steers to compact excavators with confidence.

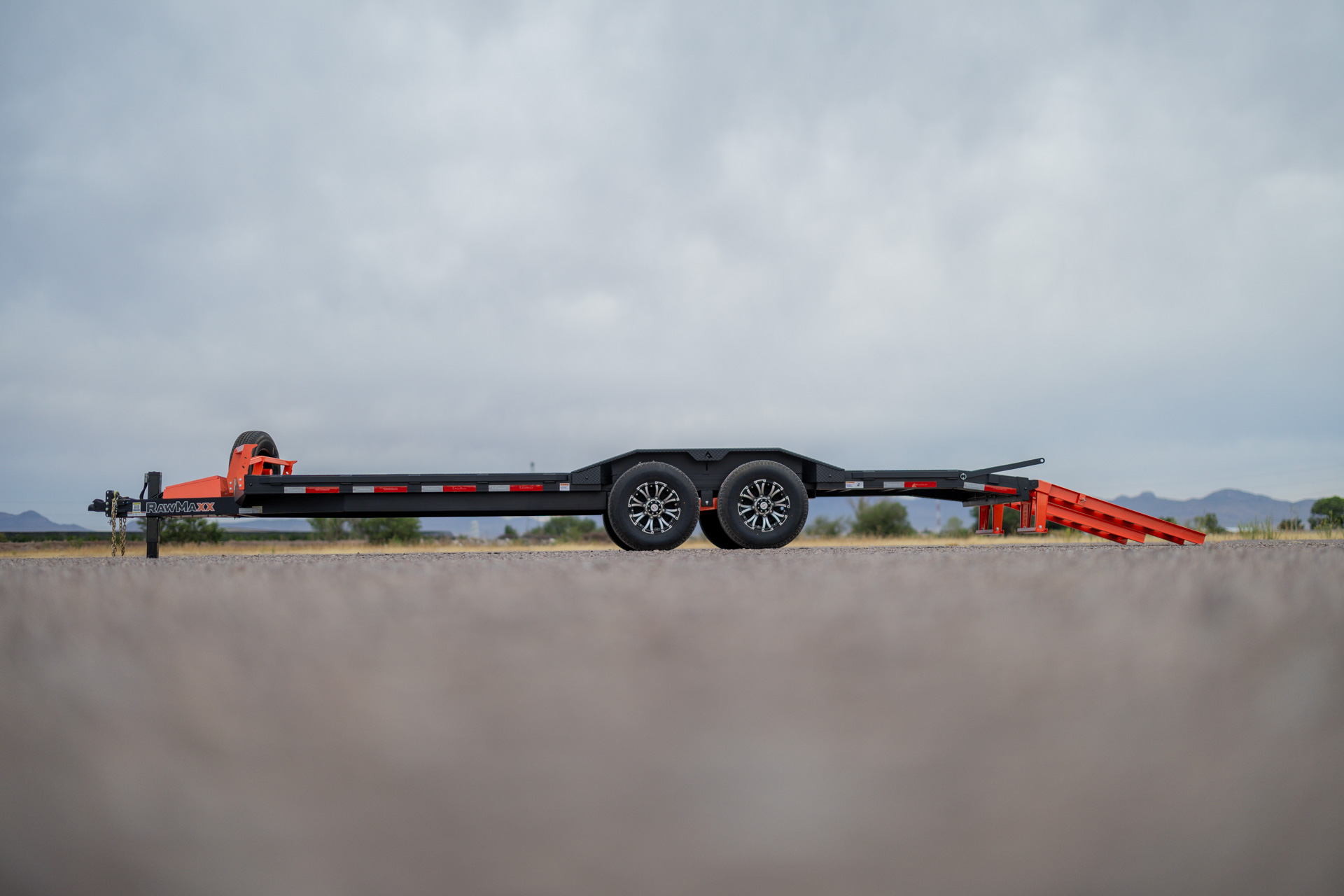

Standard 5’ slide-out channel ramps make loading smooth and efficient, while 12-gauge treadplate steel fenders, radial 10-ply tires, and 7,000 lb. spring axles with electric brakes keep the trailer balanced and road-ready.

For crews needing additional width, the available 102″ wide deck with drive-over fenders expands capability and makes loading wider equipment even easier.

LED lighting, all-weather wiring, DOT-compliant safety systems, and a 7-way plug ensure the ECX is ready to work the moment it leaves the lot.

With upgrade options including 8,000 lb. axles, 14-ply tires, steel floor upgrades, dovetail configurations, flush-mount D-rings, and more, the ECX can be configured to match exactly how you work — without adding unnecessary complexity.

The RawMaxx ECX — built for equipment, built for weight, built for the long haul.

ECX

Capability

When the job calls for real equipment, real weight, and zero excuses, the RawMaxx ECX shows up ready. Available in 16’, 18’, 20’, 22’, and 24’ lengths with axle ratings ranging from 7K up to 16K configurations, the ECX is built to handle serious loads without overcomplicating the trailer.

With a 14,000 lb. GVWR configuration delivering over 12,500 lbs. of usable load capacity, the ECX is designed for contractors, equipment operators, and crews who move machinery daily — not occasionally.

Built on a 6″ channel main frame with 3″ channel cross-members on 16″ centers, the ECX delivers dependable structural integrity where it matters most. A 2″ treated lumber deck, welded D-rings inside the fenders, stake pockets, rub rail, and chain spool give you full flexibility to secure everything from skid steers to compact excavators with confidence.

Standard 5’ slide-out channel ramps make loading smooth and efficient, while 12-gauge treadplate steel fenders, radial 10-ply tires, and 7,000 lb. spring axles with electric brakes keep the trailer balanced and road-ready.

For crews needing additional width, the available 102″ wide deck with drive-over fenders expands capability and makes loading wider equipment even easier.

LED lighting, all-weather wiring, DOT-compliant safety systems, and a 7-way plug ensure the ECX is ready to work the moment it leaves the lot.

With upgrade options including 8,000 lb. axles, 14-ply tires, steel floor upgrades, dovetail configurations, flush-mount D-rings, and more, the ECX can be configured to match exactly how you work — without adding unnecessary complexity.

The RawMaxx ECX — built for equipment, built for weight, built for the long haul.
