DOX
Trailer Specs
Dimensions
Length:
16'
Width:
102"
Deck Height:
33"
Finish
Type:
Powder Coat
Prep:
Grit Blast
Standard Color:
Jet Black
Warranty
Axle:
5 Year Dexter
Trailer:
3 Year Structural / 1 Year Paint

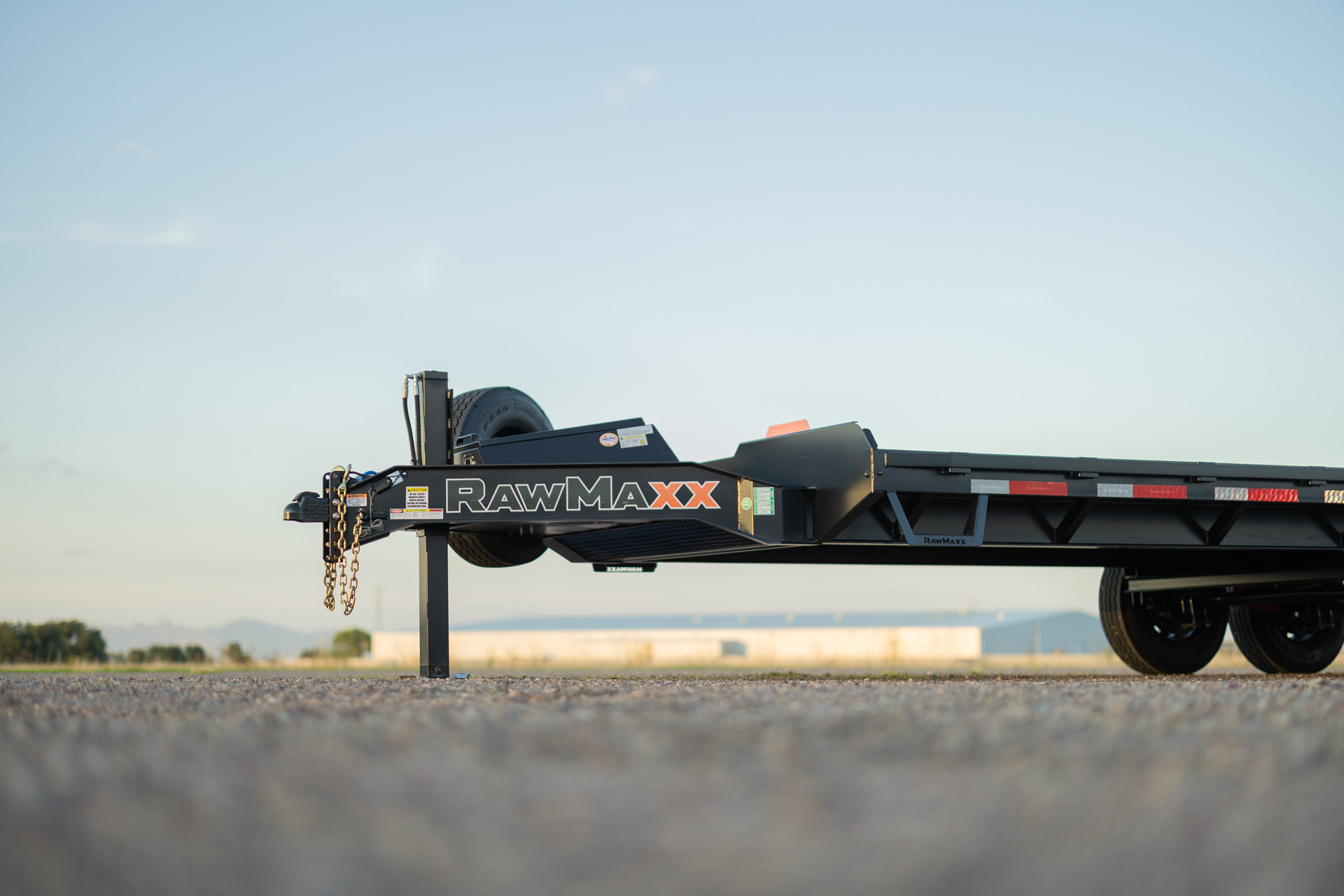

Tongue
Coupler
Coupler:
2-5/16” Ball Coupler
Jacks
Front Jacks:
2 Side Wind Drop Legs - 10,000 lbs.
Tool Box
Front Tool Box:
Optional
Gooseneck
Tongue Length:
60"
Safety System
Safety Chains:
3/8" G70 Safety Chains
Breakaway System:
Electric Breakaway Kit
Reflective Tape:
3M DOT Compliant Reflective Tape
Spare Mount
Spare Tire Mount:
3" Tubing / 3/16" Plate
Frame
Deck
Flooring:
2” Treated Lumber Deck
D-Rings:
4 D-Rings Welded Outside Corners
Side
Side Perimeter:
5" Channel Outer Deck Frame
Rub Rail:
2" x 3/8" Flat Bar
Stake Pockets:
3-7/8" x 1-13/16" (ID) Stake Pockets
Chain Spool:
1 5/8" OD
Fenders:
3/16” Thread Plate
Frame
Frame:
10" x 12 lbs. I-Beam Main Frame
Cross-Members:
3" Channel / 16" Spacings
Bridge Frame:
2" x 4" Square Tube / 4 x 3/8" Flat Bar
Side Step & Handle
Side Step:
G10 Sides / G12 Diamond Plate Step
Handle:
1/2" Round Rod
Rear Tail
Strait deck:
8' Slide-In Channel Ramps
Running Gear
Tires
Type:
Radial Tires
Size:
ST235/80R16
Ply:
10 Ply
Rating:
3,520 lbs.
Rims:
16” Black Mod Wheels
Bolt Pattern:
8 on 6.5”
Suspension
Axle Type:
Spring
Axles:
2
Rating:
7,000 lbs.
Brakes:
Electric
Electrical & Lighting
Wiring
Front Plug:
7 - Way Plug
Frame Wiring:
All Weather Wiring Harness
Lighting
Side Markers:
3/4" LED Bullet Lights
Turn Flashers:
2" x 6" Amber Side Turn Lights
Rear Lights:
DOT Approved LED Lights
Available Upgrades
Tire Options
Spare Tire Options
Tail Options
Slide Track Options
Weld On Ratchets
Winch Options
Light Options
Trailer Specs
Dimensions
Length:
20'
Width:
102"
Deck Height:
33"
Finish
Type:
Powder Coat
Prep:
Grit Blast
Standard Color:
Jet Black
Warranty
Axle:
5 Year Dexter
Trailer:
3 Year Structural / 1 Year Paint
Tongue
Coupler
Coupler:
2-5/16” Ball Coupler
Jacks
Front Jacks:
2 Side Wind Drop Legs - 10,000 lbs.
Tool Box
Front Tool Box:
Optional
Gooseneck
Tongue Length:
60"
Safety System
Safety Chains:
3/8" G70 Safety Chains
Breakaway System:
Electric Breakaway Kit
Reflective Tape:
3M DOT Compliant Reflective Tape
Spare Mount
Spare Tire Mount:
3" Tubing / 3/16" Plate
Frame
Deck
Flooring:
2” Treated Lumber Deck
D-Rings:
4 D-Rings Welded Outside Corners
Side
Side Perimeter:
5" Channel Outer Deck Frame
Rub Rail:
2" x 3/8" Flat Bar
Stake Pockets:
3-7/8" x 1-13/16" (ID) Stake Pockets
Chain Spool:
1 5/8" OD
Fenders:
3/16” Thread Plate
Frame
Frame:
10" x 12 lbs. I-Beam Main Frame
Cross-Members:
3" Channel / 16" Spacings
Bridge Frame:
2" x 4" Square Tube / 4 x 3/8" Flat Bar
Side Step & Handle
Side Step:
G10 Sides / G12 Diamond Plate Step
Handle:
1/2" Round Rod
Rear Tail
Strait deck:
8' Slide-In Channel Ramps
Running Gear
Tires
Type:
Radial Tires
Size:
ST235/80R16
Ply:
10 Ply
Rating:
3,520 lbs.
Rims:
16” Black Mod Wheels
Bolt Pattern:
8 on 6.5”
Suspension
Axle Type:
Spring
Axles:
2
Rating:
7,000 lbs.
Brakes:
Electric
Electrical & Lighting
Wiring
Front Plug:
7 - Way Plug
Frame Wiring:
All Weather Wiring Harness
Lighting
Side Markers:
3/4" LED Bullet Lights
Turn Flashers:
2" x 6" Amber Side Turn Lights
Rear Lights:
DOT Approved LED Lights
Available Upgrades
Tire Options
Spare Tire Options
Tail Options
Slide Track Options
Weld On Ratchets
Winch Options
Light Options
Trailer Specs
Dimensions
Length:
24'
Width:
102"
Deck Height:
33"
Finish
Type:
Powder Coat
Prep:
Grit Blast
Standard Color:
Jet Black
Warranty
Axle:
5 Year Dexter
Trailer:
3 Year Structural / 1 Year Paint
Tongue
Coupler
Coupler:
2-5/16” Ball Coupler
Jacks
Front Jacks:
2 Side Wind Drop Legs - 10,000 lbs.
Tool Box
Front Tool Box:
Optional
Gooseneck
Tongue Length:
60"
Safety System
Safety Chains:
3/8" G70 Safety Chains
Breakaway System:
Electric Breakaway Kit
Reflective Tape:
3M DOT Compliant Reflective Tape
Spare Mount
Spare Tire Mount:
3" Tubing / 3/16" Plate
Frame
Deck
Flooring:
2” Treated Lumber Deck
D-Rings:
4 D-Rings Welded Outside Corners
Side
Side Perimeter:
5" Channel Outer Deck Frame
Rub Rail:
2" x 3/8" Flat Bar
Stake Pockets:
3-7/8" x 1-13/16" (ID) Stake Pockets
Chain Spool:
1 5/8" OD
Fenders:
3/16” Thread Plate
Frame
Frame:
10" x 12 lbs. I-Beam Main Frame
Cross-Members:
3" Channel / 16" Spacings
Bridge Frame:
2" x 4" Square Tube / 4 x 3/8" Flat Bar
Side Step & Handle
Side Step:
G10 Sides / G12 Diamond Plate Step
Handle:
1/2" Round Rod
Rear Tail
Strait deck:
8' Slide-In Channel Ramps
Running Gear
Tires
Type:
Radial Tires
Size:
ST235/80R16
Ply:
10 Ply
Rating:
3,520 lbs.
Rims:
16” Black Mod Wheels
Bolt Pattern:
8 on 6.5”
Suspension
Axle Type:
Spring
Axles:
2
Rating:
7,000 lbs.
Brakes:
Electric
Electrical & Lighting
Wiring
Front Plug:
7 - Way Plug
Frame Wiring:
All Weather Wiring Harness
Lighting
Side Markers:
3/4" LED Bullet Lights
Turn Flashers:
2" x 6" Amber Side Turn Lights
Rear Lights:
DOT Approved LED Lights
Available Upgrades
Tire Options
Spare Tire Options
Tail Options
Slide Track Options
Weld On Ratchets
Winch Options
Light Options
Trailer Specs
Dimensions
Length:
26'
Width:
102"
Deck Height:
33"
Finish
Type:
Powder Coat
Prep:
Grit Blast
Standard Color:
Jet Black
Warranty
Axle:
5 Year Dexter
Trailer:
3 Year Structural / 1 Year Paint
Tongue
Coupler
Coupler:
2-5/16” Ball Coupler
Jacks
Front Jacks:
2 Side Wind Drop Legs - 10,000 lbs.
Tool Box
Front Tool Box:
Optional
Gooseneck
Tongue Length:
60"
Safety System
Safety Chains:
3/8" G70 Safety Chains
Breakaway System:
Electric Breakaway Kit
Reflective Tape:
3M DOT Compliant Reflective Tape
Spare Mount
Spare Tire Mount:
3" Tubing / 3/16" Plate
Frame
Deck
Flooring:
2” Treated Lumber Deck
D-Rings:
4 D-Rings Welded Outside Corners
Side
Side Perimeter:
5" Channel Outer Deck Frame
Rub Rail:
2" x 3/8" Flat Bar
Stake Pockets:
3-7/8" x 1-13/16" (ID) Stake Pockets
Chain Spool:
1 5/8" OD
Fenders:
3/16” Thread Plate
Frame
Frame:
10" x 12 lbs. I-Beam Main Frame
Cross-Members:
3" Channel / 16" Spacings
Bridge Frame:
2" x 4" Square Tube / 4 x 3/8" Flat Bar
Side Step & Handle
Side Step:
G10 Sides / G12 Diamond Plate Step
Handle:
1/2" Round Rod
Rear Tail
Strait deck:
8' Slide-In Channel Ramps
Running Gear
Tires
Type:
Radial Tires
Size:
ST235/80R16
Ply:
10 Ply
Rating:
3,520 lbs.
Rims:
16” Black Mod Wheels
Bolt Pattern:
8 on 6.5”
Suspension
Axle Type:
Spring
Axles:
2
Rating:
7,000 lbs.
Brakes:
Electric
Electrical & Lighting
Wiring
Front Plug:
7 - Way Plug
Frame Wiring:
All Weather Wiring Harness
Lighting
Side Markers:
3/4" LED Bullet Lights
Turn Flashers:
2" x 6" Amber Side Turn Lights
Rear Lights:
DOT Approved LED Lights
Available Upgrades
Tire Options
Spare Tire Options
Tail Options
Slide Track Options
Weld On Ratchets
Winch Options
Light Options
Trailer Specs
Dimensions
Length:
28'
Width:
102"
Deck Height:
33"
Finish
Type:
Powder Coat
Prep:
Grit Blast
Standard Color:
Jet Black
Warranty
Axle:
5 Year Dexter
Trailer:
3 Year Structural / 1 Year Paint
Tongue
Coupler
Coupler:
2-5/16” Ball Coupler
Jacks
Front Jacks:
2 Side Wind Drop Legs - 10,000 lbs.
Tool Box
Front Tool Box:
Optional
Gooseneck
Tongue Length:
60"
Safety System
Safety Chains:
3/8" G70 Safety Chains
Breakaway System:
Electric Breakaway Kit
Reflective Tape:
3M DOT Compliant Reflective Tape
Spare Mount
Spare Tire Mount:
3" Tubing / 3/16" Plate
Frame
Deck
Flooring:
2” Treated Lumber Deck
D-Rings:
4 D-Rings Welded Outside Corners
Side
Side Perimeter:
5" Channel Outer Deck Frame
Rub Rail:
2" x 3/8" Flat Bar
Stake Pockets:
3-7/8" x 1-13/16" (ID) Stake Pockets
Chain Spool:
1 5/8" OD
Fenders:
3/16” Thread Plate
Frame
Frame:
10" x 12 lbs. I-Beam Main Frame
Cross-Members:
3" Channel / 16" Spacings
Bridge Frame:
2" x 4" Square Tube / 4 x 3/8" Flat Bar
Side Step & Handle
Side Step:
G10 Sides / G12 Diamond Plate Step
Handle:
1/2" Round Rod
Rear Tail
Strait deck:
8' Slide-In Channel Ramps
Running Gear
Tires
Type:
Radial Tires
Size:
ST235/80R16
Ply:
10 Ply
Rating:
3,520 lbs.
Rims:
16” Black Mod Wheels
Bolt Pattern:
8 on 6.5”
Suspension
Axle Type:
Spring
Axles:
2
Rating:
7,000 lbs.
Brakes:
Electric
Electrical & Lighting
Wiring
Front Plug:
7 - Way Plug
Frame Wiring:
All Weather Wiring Harness
Lighting
Side Markers:
3/4" LED Bullet Lights
Turn Flashers:
2" x 6" Amber Side Turn Lights
Rear Lights:
DOT Approved LED Lights
Available Upgrades
Tire Options
Spare Tire Options
Tail Options
Slide Track Options
Weld On Ratchets
Winch Options
Light Options
Trailer Specs
Dimensions
Length:
30'
Width:
102"
Deck Height:
33"
Finish
Type:
Powder Coat
Prep:
Grit Blast
Standard Color:
Jet Black
Warranty
Axle:
5 Year Dexter
Trailer:
3 Year Structural / 1 Year Paint
Tongue
Coupler
Coupler:
2-5/16” Ball Coupler
Jacks
Front Jacks:
2 Side Wind Drop Legs - 10,000 lbs.
Tool Box
Front Tool Box:
Optional
Gooseneck
Tongue Length:
60"
Safety System
Safety Chains:
3/8" G70 Safety Chains
Breakaway System:
Electric Breakaway Kit
Reflective Tape:
3M DOT Compliant Reflective Tape
Spare Mount
Spare Tire Mount:
3" Tubing / 3/16" Plate
Frame
Deck
Flooring:
2” Treated Lumber Deck
D-Rings:
4 D-Rings Welded Outside Corners
Side
Side Perimeter:
5" Channel Outer Deck Frame
Rub Rail:
2" x 3/8" Flat Bar
Stake Pockets:
3-7/8" x 1-13/16" (ID) Stake Pockets
Chain Spool:
1 5/8" OD
Fenders:
3/16” Thread Plate
Frame
Frame:
10" x 12 lbs. I-Beam Main Frame
Cross-Members:
3" Channel / 16" Spacings
Bridge Frame:
2" x 4" Square Tube / 4 x 3/8" Flat Bar
Side Step & Handle
Side Step:
G10 Sides / G12 Diamond Plate Step
Handle:
1/2" Round Rod
Rear Tail
Strait deck:
8' Slide-In Channel Ramps
Running Gear
Tires
Type:
Radial Tires
Size:
ST235/80R16
Ply:
10 Ply
Rating:
3,520 lbs.
Rims:
16” Black Mod Wheels
Bolt Pattern:
8 on 6.5”
Suspension
Axle Type:
Spring
Axles:
2
Rating:
7,000 lbs.
Brakes:
Electric
Electrical & Lighting
Wiring
Front Plug:
7 - Way Plug
Frame Wiring:
All Weather Wiring Harness
Lighting
Side Markers:
3/4" LED Bullet Lights
Turn Flashers:
2" x 6" Amber Side Turn Lights
Rear Lights:
DOT Approved LED Lights
Available Upgrades
Tire Options
Spare Tire Options
Tail Options
Slide Track Options
Weld On Ratchets
Winch Options
Light Options
DOX Trailer

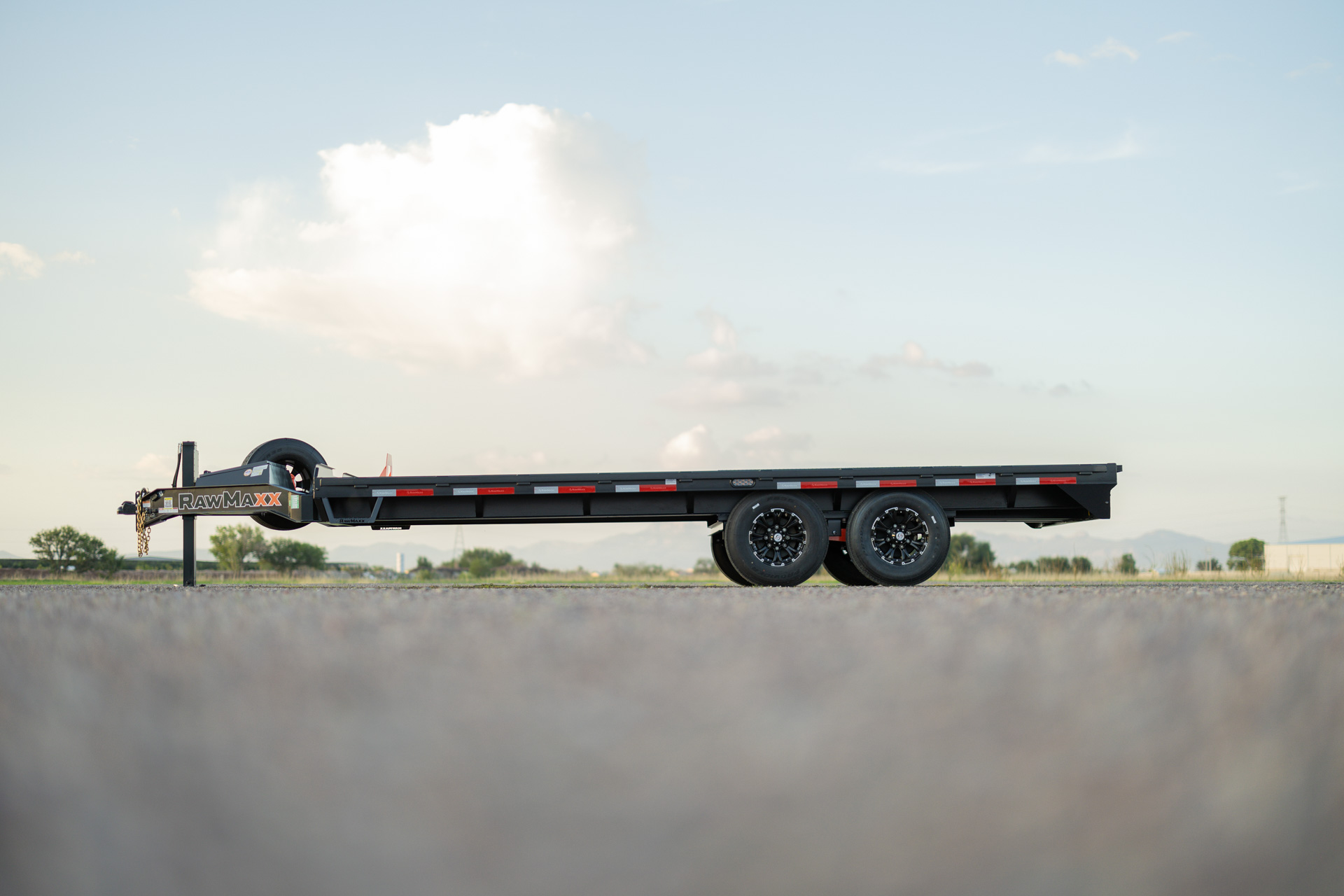

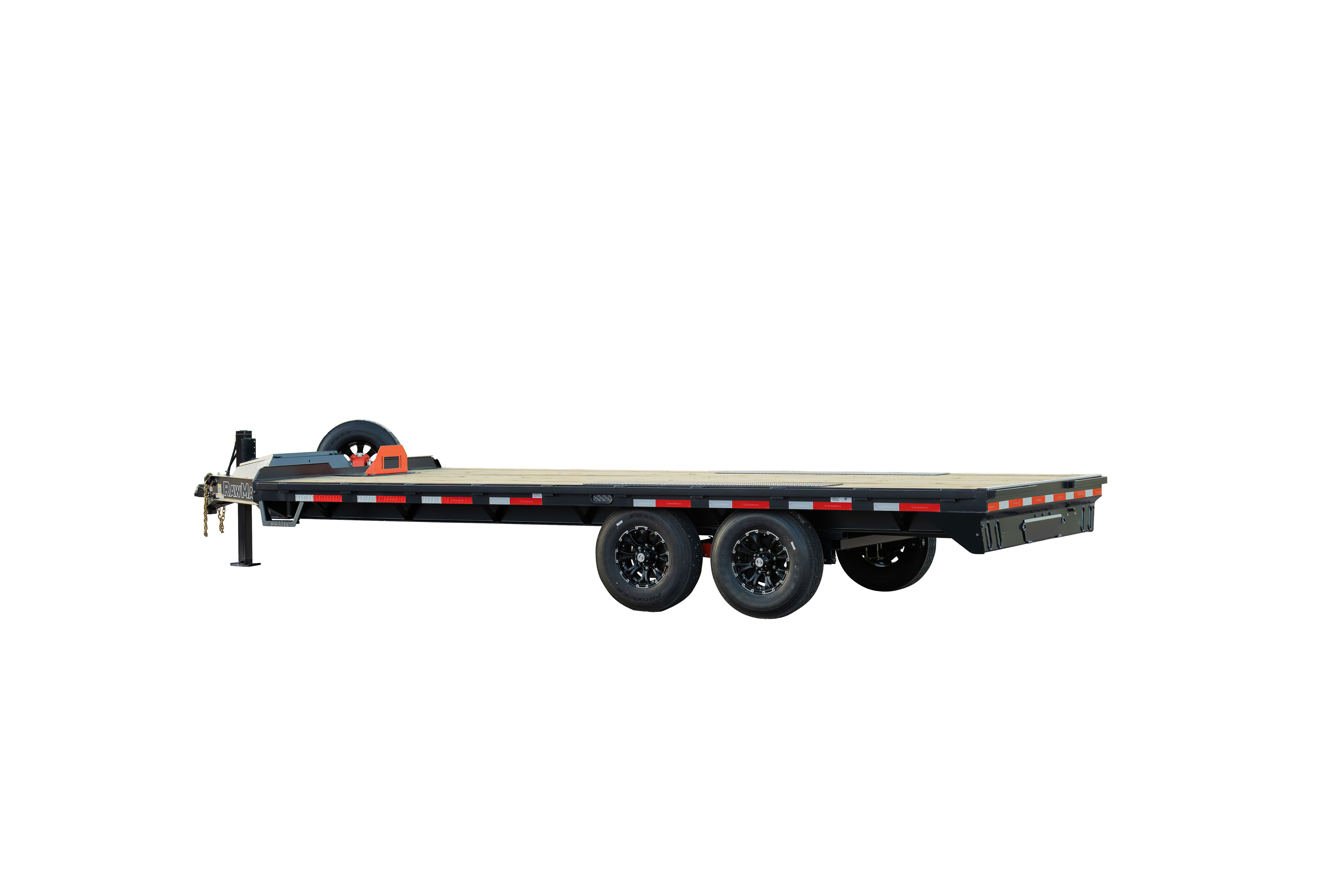

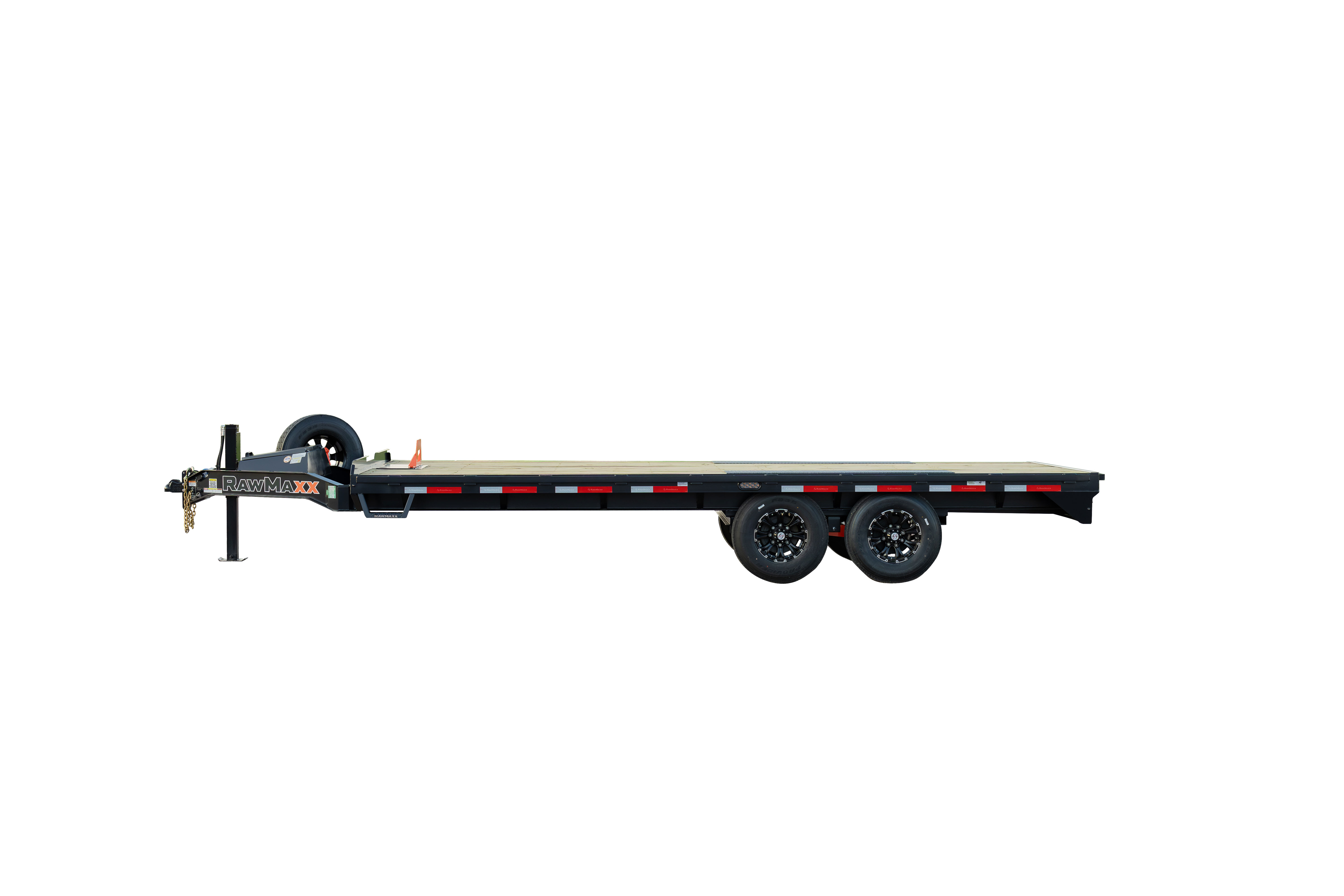

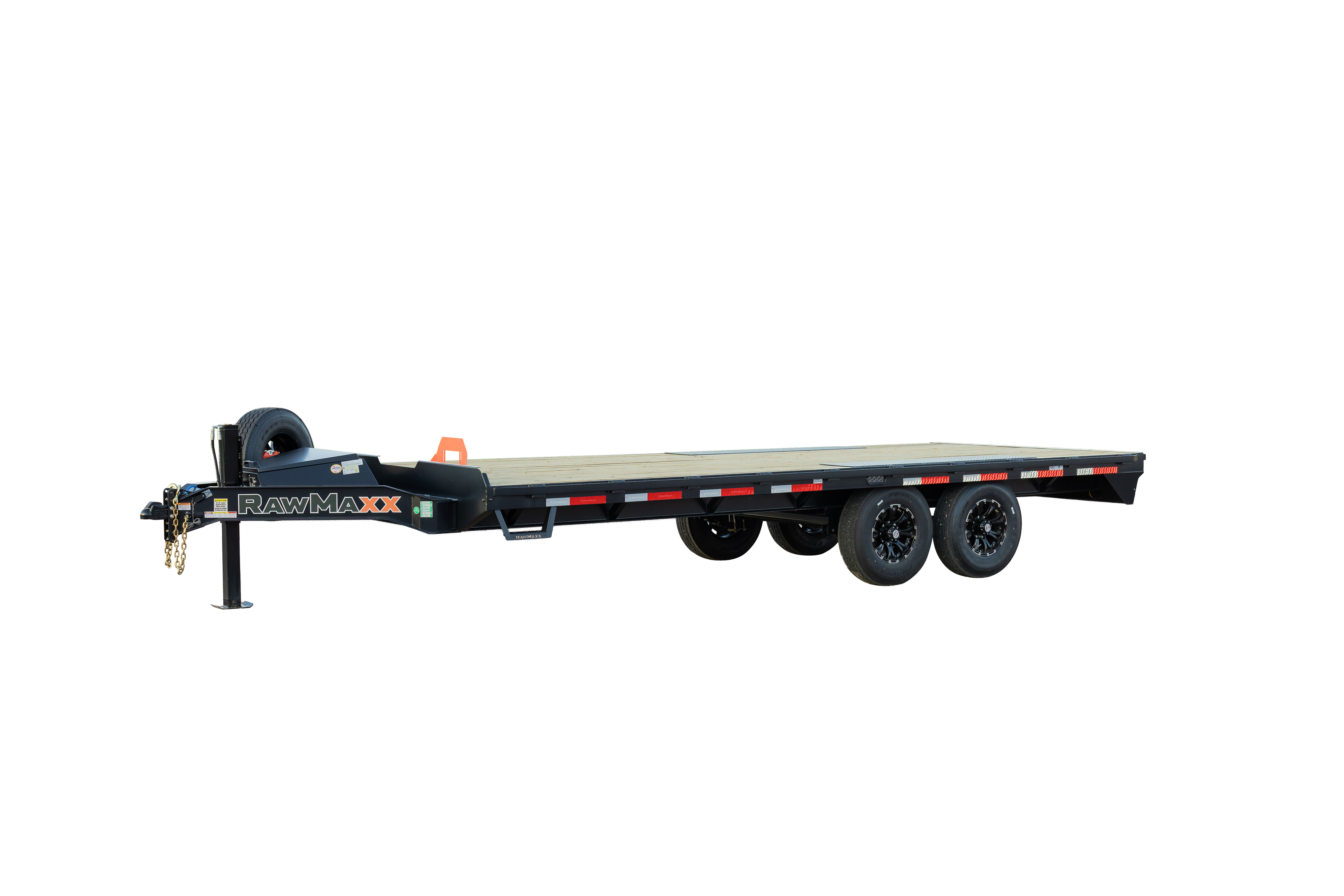

Get ready to take your hauling game to the next level with the RawMaxx trailer! This beast of a trailer comes in four sizes ranging from 20 to 30 feet long and 102 inches wide, with a maximum load capacity of over 10,000 pounds. The sturdy 12″ x 14 lbs. I-Beam main frame and 2″ treated lumber deck flooring can handle even the toughest loads. Plus, with options like 8′ slide-in channel ramps and Maxx Ramps on the 5′ dovetail model, loading and unloading has never been easier. And don’t forget about the safety features, like the electric breakaway kit and 3/8″ G70 safety chains. With the RawMaxx trailer, you’ll be ready to tackle any hauling challenge with ease and style.
Handle
360° View
