Features for “CNX24GN20K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR:  10,000 lbs.
  • Empty Weight: 8,863 lbs.
  • Load Capacity: 11,137 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs

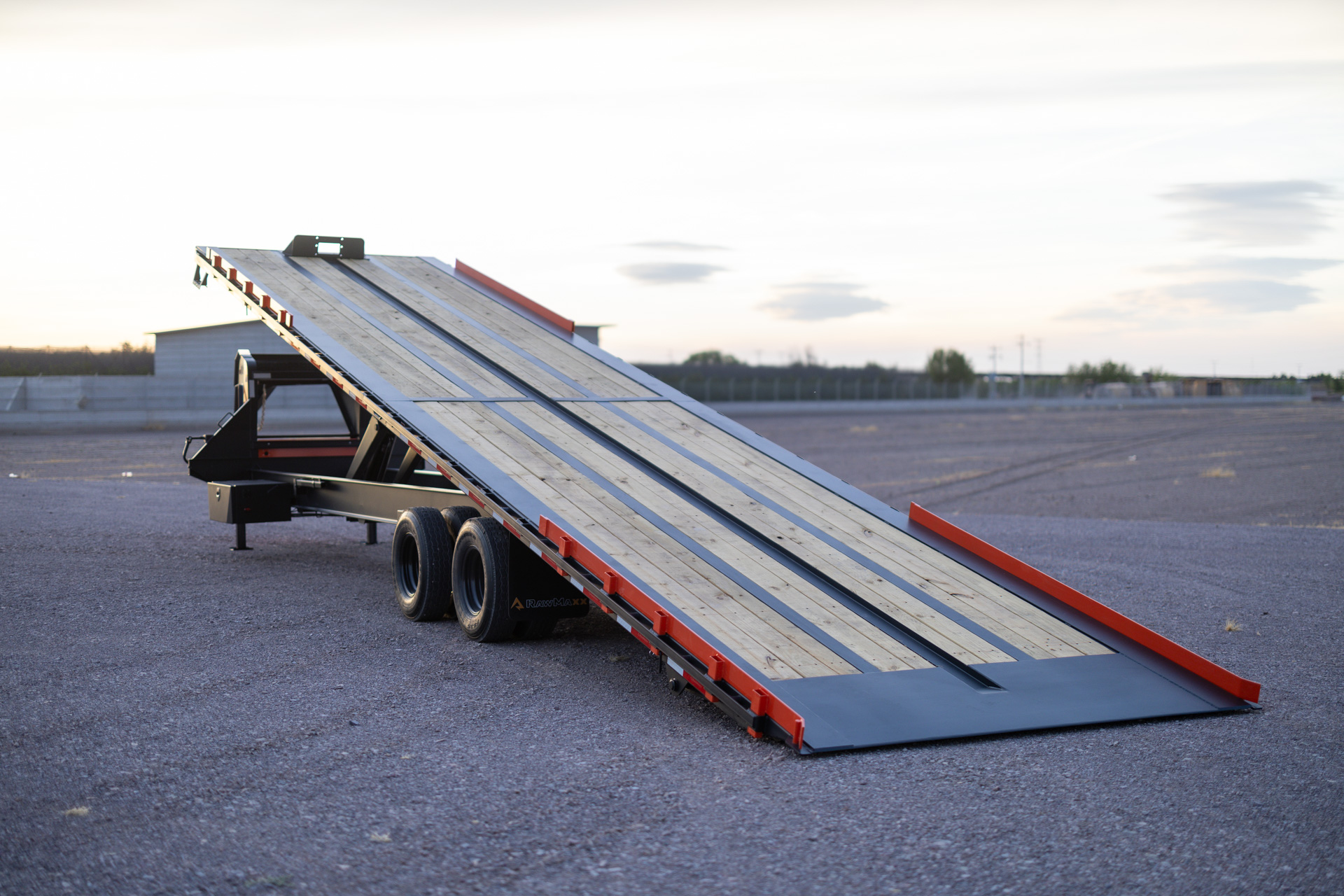

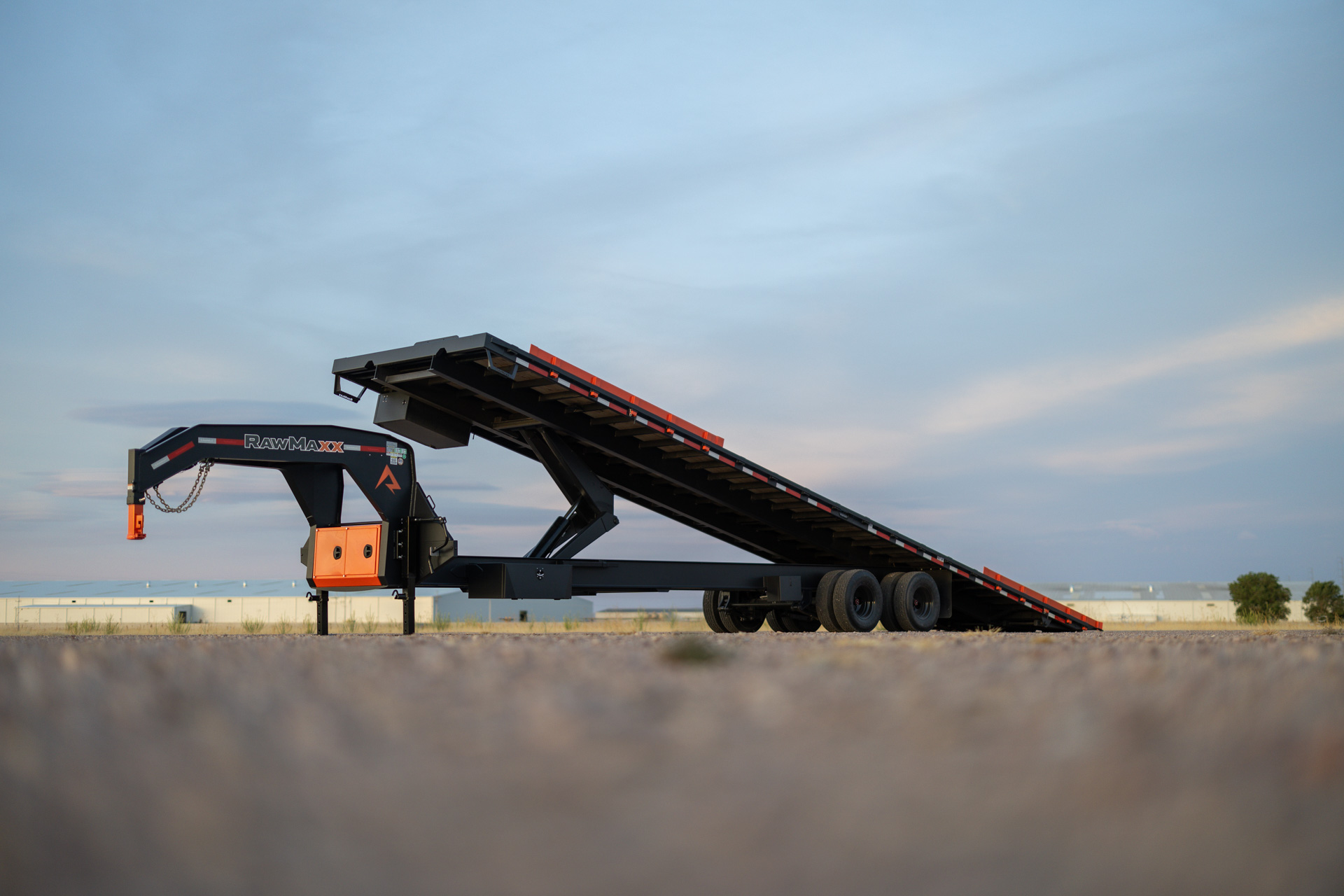

  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers

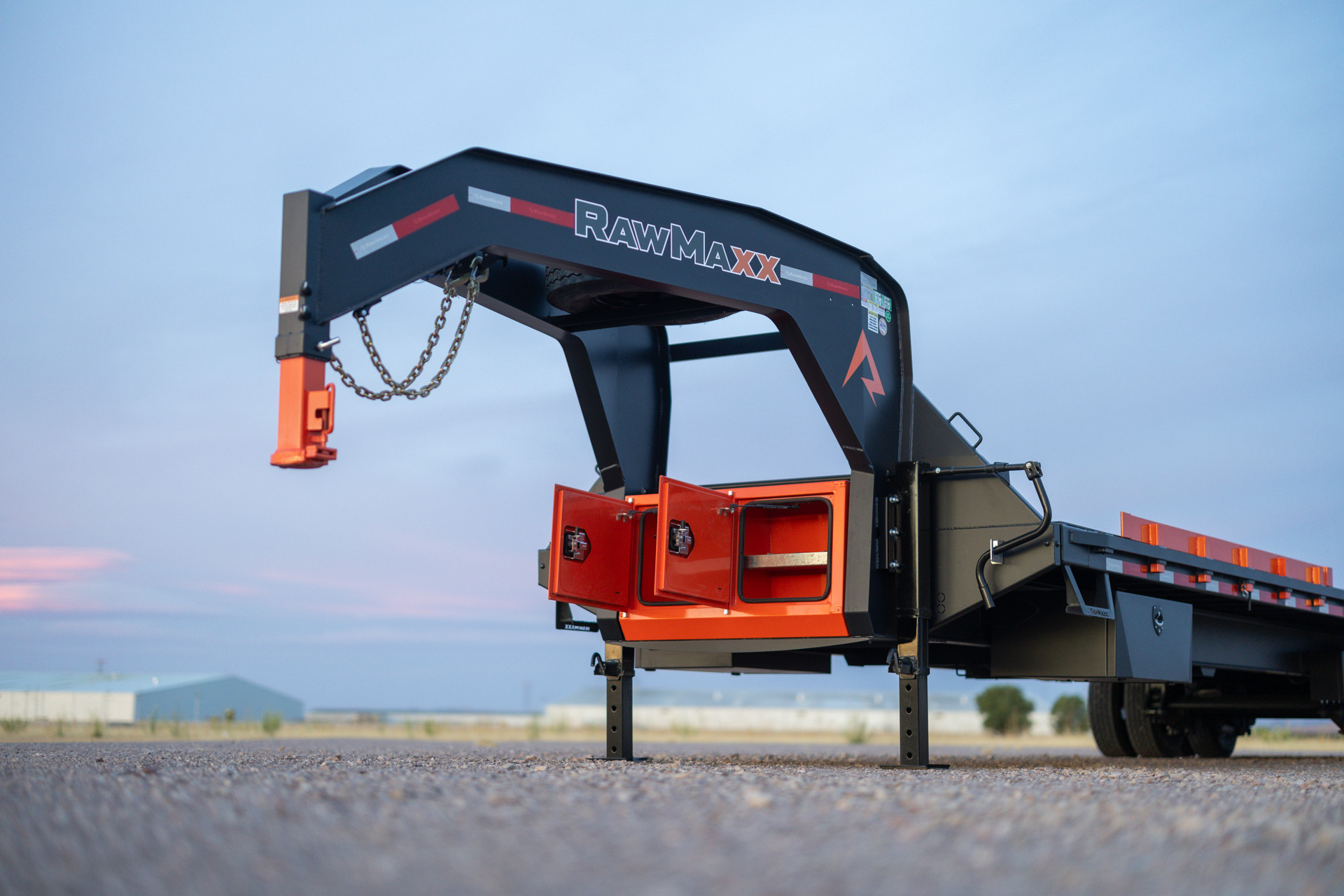

  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX25GN20K”

  • Length: 25‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight:  9,018 lbs.
  • Load Capacity: 10,982 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX30GN20K”

  • Length: 30‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight:  9,795 lbs.
  • Load Capacity: 10,205 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX40GN20K”

  • Length: 40‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 11,350 lbs.
  • Load Capacity:  8,650 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX24GN24K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 10,295 lbs.
  • Load Capacity: 13,705 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX40GN24K”

  • Length: 40‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 12,191 lbs.
  • Load Capacity: 11,809 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX40GN30K”

  • Length: 40‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 30,000 lbs.
  • GAWR:  16,000 lbs.
  • Empty Weight: 13,668 lbs.
  • Load Capacity: 16,332 lbs.
  • 2-5/16” Ball 30,000 lbs Square Coupler
  • 12″ x 22 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 18 Ply 235/75/R17.5 – Tires
  • HDSS Spring / Or Air-Ride Suspension
  • 2 – 16,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

CNX 3D

360° View

Order Now

Features for “CNX24GN20K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR:  10,000 lbs.
  • Empty Weight: 8,863 lbs.
  • Load Capacity: 11,137 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX25GN20K”

  • Length: 25‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight:  9,018 lbs.
  • Load Capacity: 10,982 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX30GN20K”

  • Length: 30‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight:  9,795 lbs.
  • Load Capacity: 10,205 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX40GN20K”

  • Length: 40‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 20,000 lbs.
  • GAWR: 10,000 lbs.
  • Empty Weight: 11,350 lbs.
  • Load Capacity:  8,650 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 10,000 lbs Axles With Ele. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX24GN24K”

  • Length: 24‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 10,295 lbs.
  • Load Capacity: 13,705 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX40GN24K”

  • Length: 40‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 24,000 lbs.
  • GAWR: 12,000 lbs.
  • Empty Weight: 12,191 lbs.
  • Load Capacity: 11,809 lbs.
  • 2-5/16″ Ball 25,000 lbs Square Coupler
  • 12″ x 19 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 16″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 10 Ply 235/80/R16 – Tires
  • HDSS Spring Suspension
  • 2 – 12,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

Features for “CNX40GN30K”

  • Length: 40‘
  • Width: 102″
  • Deck Height: 33“
  • GVWR: 30,000 lbs.
  • GAWR:  16,000 lbs.
  • Empty Weight: 13,668 lbs.
  • Load Capacity: 16,332 lbs.
  • 2-5/16” Ball 30,000 lbs Square Coupler
  • 12″ x 22 lbs I-Beam Main Frame
  • Cross-Members: 3″ Channel / 12″ OC
  • 6″ Channel Outer Deck Frame
  • Rub Rail: 2″ x 3/8″ Flat Bar
  • 3-7/8″ x 1-13/16″ (ID) Stake Pockets
  • Chain Spool: 1 5/8″ OD
  • 2 Side Wind Drop Leg Jacks – 10,000 lbs
  • Full Hydraulic Tilt Deck 6 30 Cylinder.
  • 3/8″ x 8″ Perimeter Flat Track
  • 4-10’ Removable Guide Rails
  • Flooring: 2” Treated Lumber Deck
  • Front Tool Box: Between Risers
  • Grade 50, One-Piece Gooseneck
  • Winch Plate
  • Winch Trough
  • Chain Rack
  • 8 – 18 Ply 235/75/R17.5 – Tires
  • HDSS Spring / Or Air-Ride Suspension
  • 2 – 16,000 lbs Axles With Ele./Hyd. Brakes
  • 3/8″ G70 Safety Chains
  • 3M DOT Compliant Reflective Tape
  • All Weather Wiring Harness
  • Powder Coat Paint
  • 5 Year Dexter Axle Warranty
  • 3 Year Structural / 1 Year Paint
  • 10W Solar Panel
  • Wireless Remote on a KTI Pump

CNX

Controlled

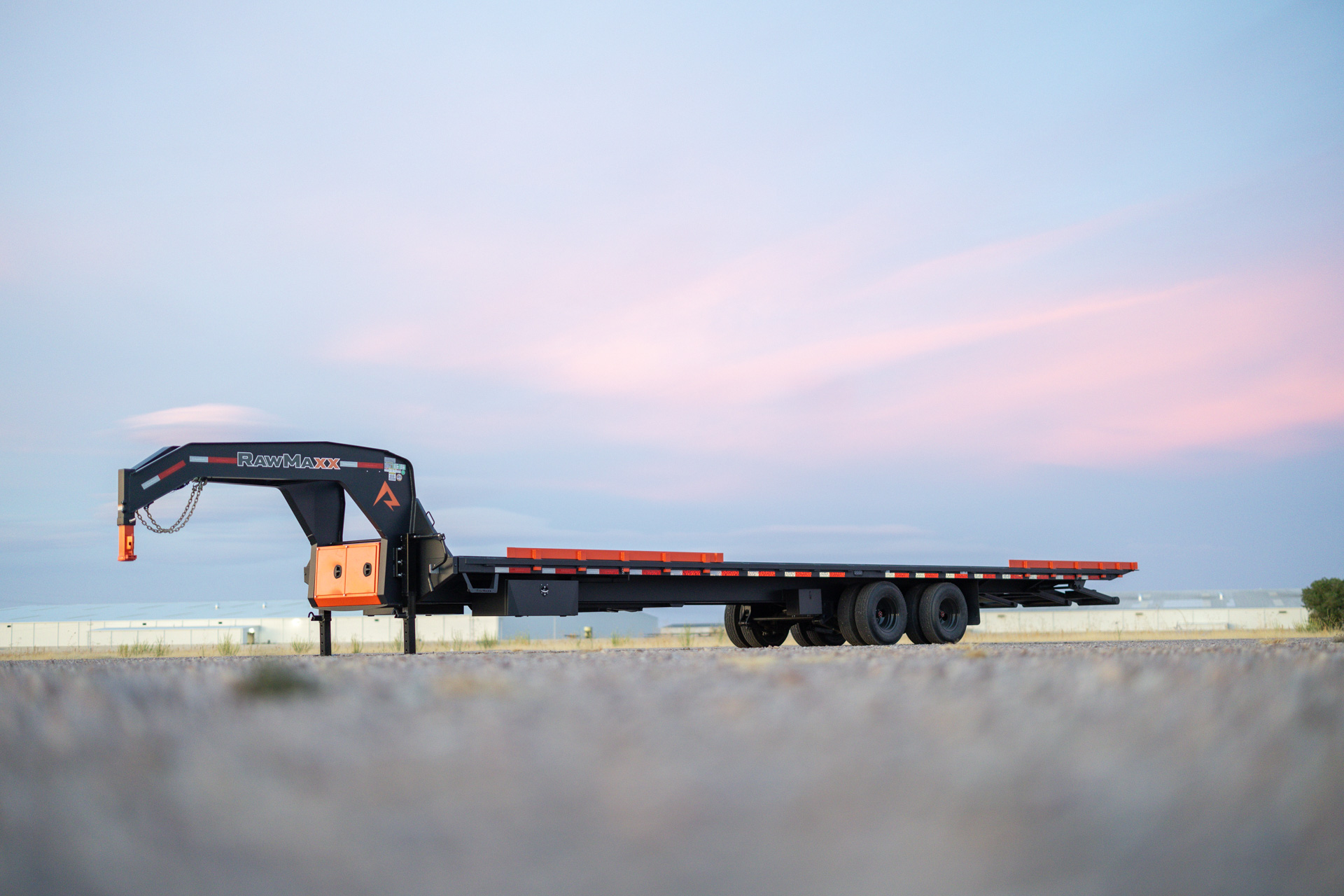

The Full Tilt Gooseneck Flatdeck Built for Long, Heavy Loads

When the load is long, heavy, and needs to stay guided from start to finish, the RawMaxx CNX is built to do the job right. Available in 24’, 25’, 30’, and 40’ lengths with 20K, 24K, and 30K configurations, the CNX is a full tilt gooseneck flatdeck trailer designed for operators hauling serious equipment, large freight, and specialized loads that demand more control during loading.

Built on a massive 12″ x 19 lb. I-beam main frame, the CNX delivers the structure and stability needed for long-span hauling. A full 102″ deck width, 2″ treated lumber floor, heavy outer deck frame, and welded D-rings at the perimeter create a wide, dependable platform that’s ready for real work. The guide rail layout helps keep loads tracking where they should during loading, while the full hydraulic tilt deck and knife-edge tail make drive-on loading smoother and more controlled.

Hydraulic power comes from a heavy-duty scissor lift and 6″ x 30″ cylinder driven by a KTI 12V pump with power up / power down control. The 14° tilt angle gives operators a clean approach for loading machinery and other difficult equipment without dealing with separate ramps or extra setup. Dual 10K axles, dual-wheel running gear, electric brakes, and a 6-leaf slipper spring suspension keep the trailer planted under serious weight.

Up front, the 96″ neck, dual 10,000 lb. drop-leg jacks, and lockable toolbox between the risers keep the CNX practical and ready for day-to-day operation. For heavier applications, it can be equipped with 12K, 15K, or 16K axle packages, higher-capacity winches, electric-over-hydraulic brakes, slide-track ratchet systems, and additional storage options.

The RawMaxx CNX — full tilt control, guided loading, and built for the long heavy loads that demand more from a trailer.
